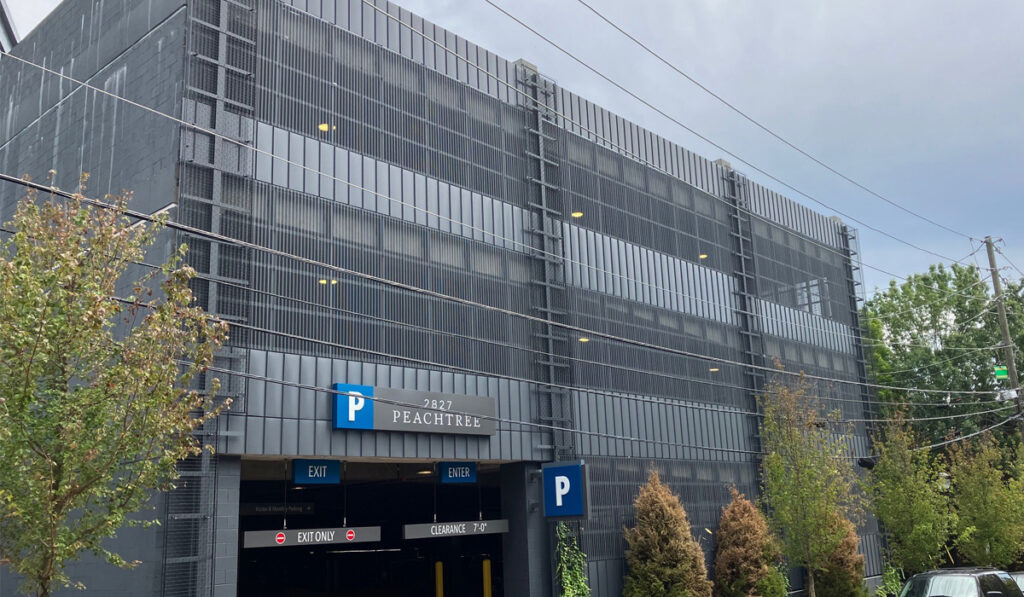

Versa-Line
The Versa-Line concealed fastener wall panel is designed for horizontal or vertical applications. Pre-punched fastener slots allow for quick and easy installation.
You can also enhance aesthetics of Versa-Line by using factory fabricated Elite Series accessories, including the Z Box and Closure Angle shown.
VSN120
VSN160
.032, .040 aluminum
.7, .8 mm zinc*^
16 oz. copper*^
12⅜”
16⅜”
custom widths available with a minimum of 8″ and a maximum of 20⅝”*
striations optional
2′-0″
20′-0″
1″
Smooth
Stucco Embossed
Perforated
Factory panel pre-notching available. Contact ATAS for specifics.
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
Clear Satin
Dark Bronze
A complete line of trims available in matching colors, gauge, and finish or as specified.
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
