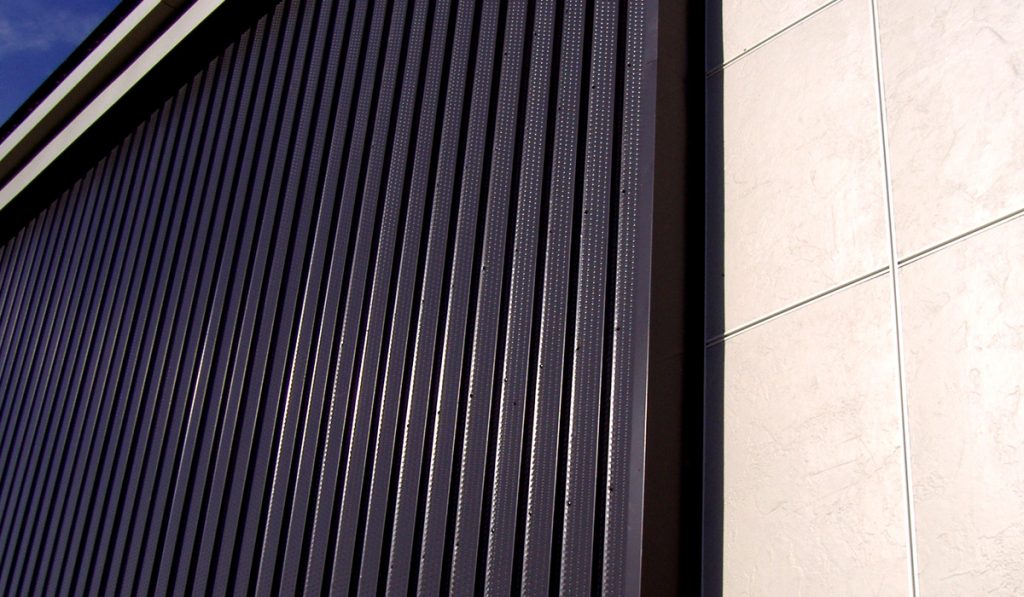

This is not just a wall panel, this is a solar collector and fresh air heating system.

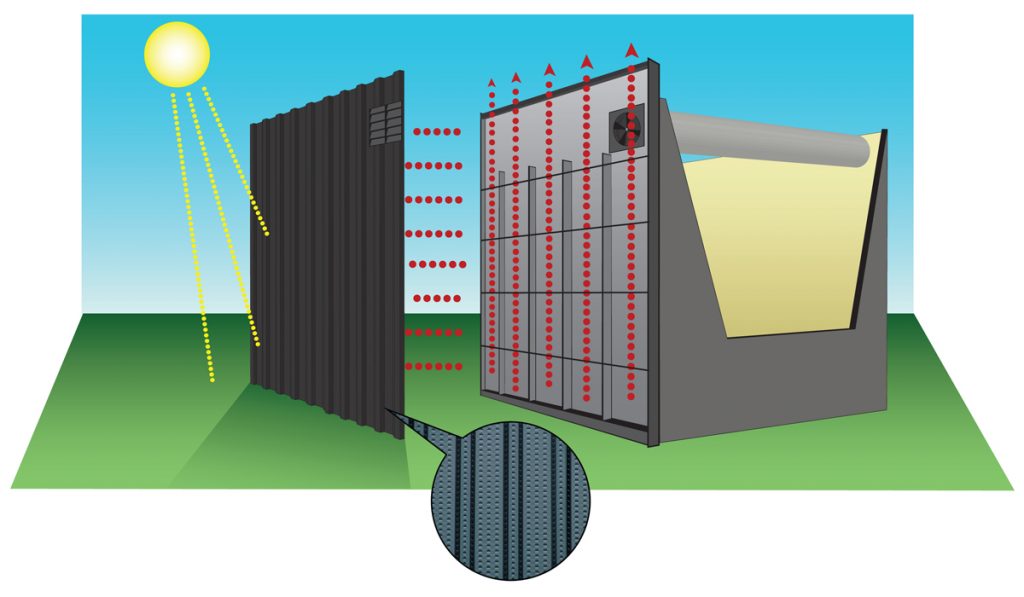

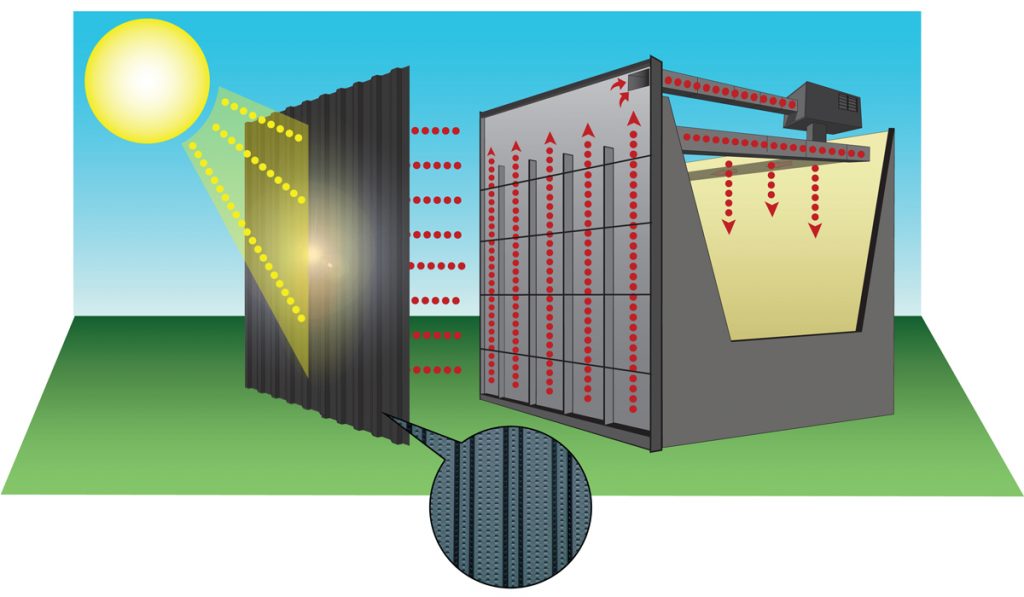

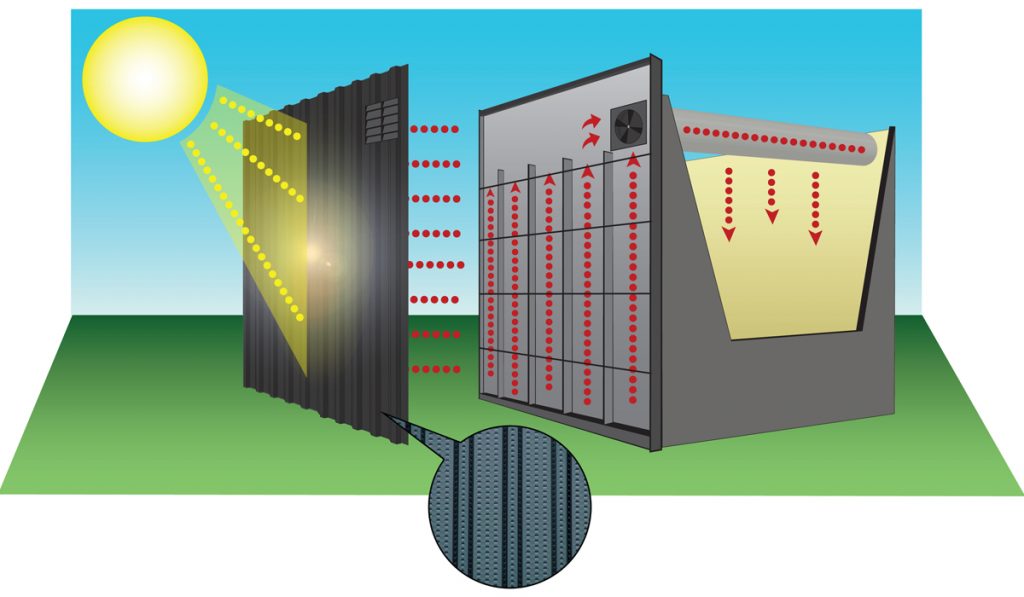

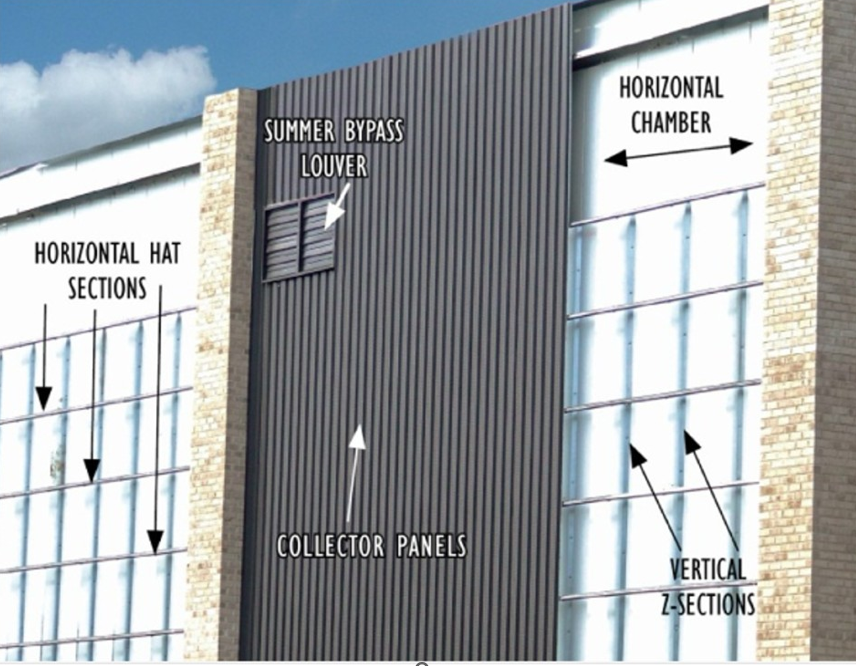

How It Works: The InSpire® wall panel, a transpired solar collector, is mounted a few inches from the building’s outer wall. The precision perforations in the wall panels allow outside air to travel through the face of the panel. Solar heated air at the surface of the panel is drawn through the perforations where it rises between the two walls and enters the building’s central ventilation system or supply fan.

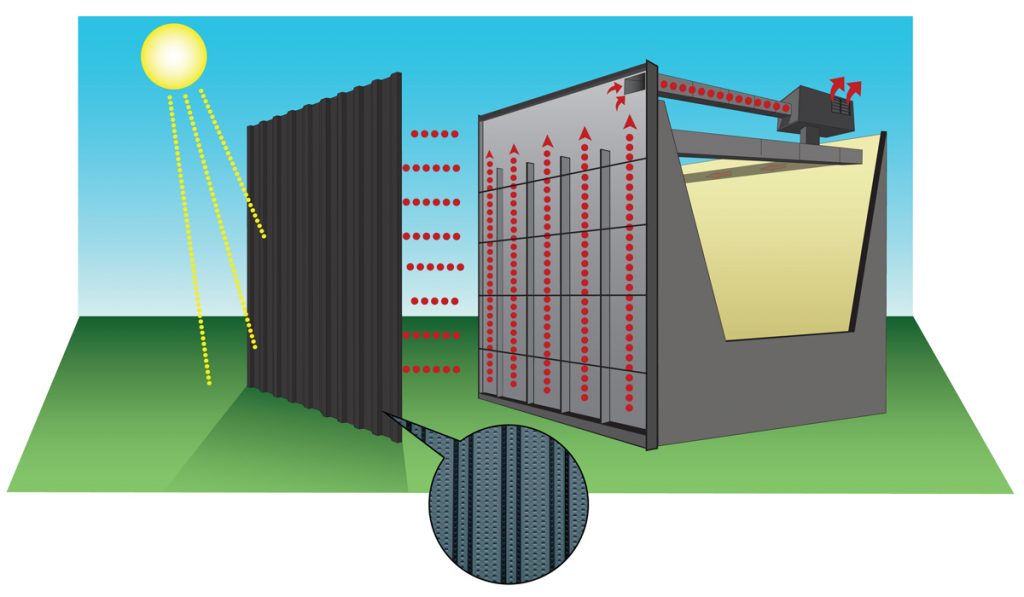

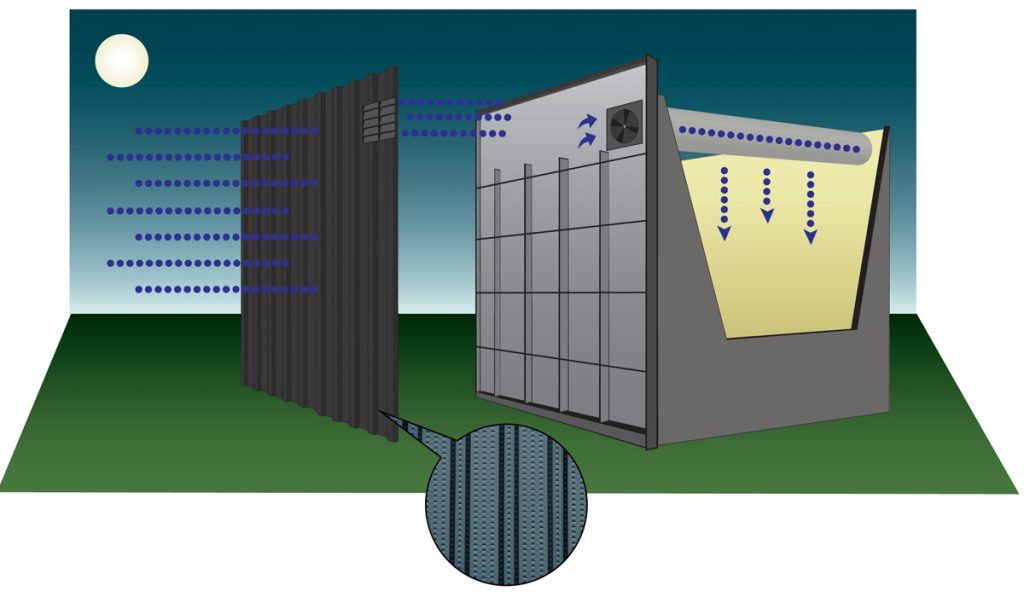

Summer Usage: The InSpire® wall panel also helps to reduce the cooling load in the summer by preventing normal solar radiation from striking the building’s main wall. Hot air is thermally siphoned up the wall and vented through holes at the top of the system, leaving the main wall cooler. In the summer, by-pass louvers allow cool fresh air to be drawn into the building at night, maintaining indoor air quality. View schematics.

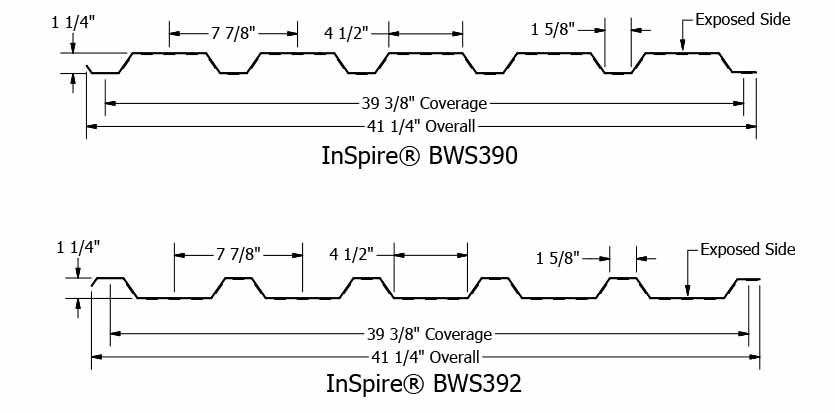

SKU:

BWS390
BWS392

Material:

.032 aluminum
.7 mm zinc*

Panel Coverage:

39 3⁄8″
31 1⁄2″ (zinc)

Minimum Panel Length:

6’-0”

Maximum Panel Length:

40′-0″

Panel Height:

1 1⁄4″

Texture:

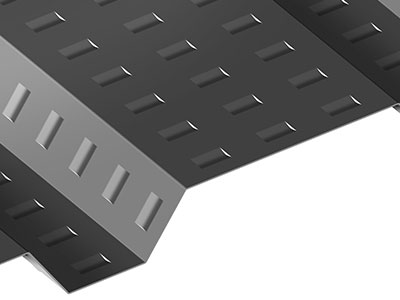

Smooth with lanced micro perforations

Finish:

70% PVDF

Solar Efficient Colors:
Color Name Solar Absorptivity
Black .95
Classic Bronze .91
Dark Bronze Anodized .85
Regal Blue .75
Forest Green .75
Hartford Green .75
Antique Patina .74
Chocolate Brown .73
Charcoal Grey .72
Boysenberry .72
Rocky Grey .72
Redwood .71
Teal .70
Hemlock Green .70
Slate Blue .69
Medium Bronze .68
Siam Blue .66
Brite Red .63
Slate Grey .61
Patina Green .57
Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability
