Isoleren RL

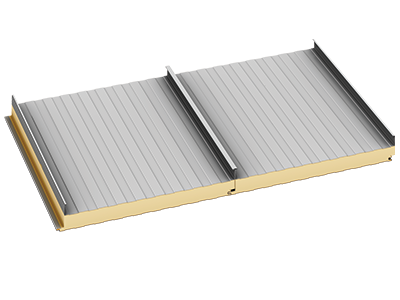

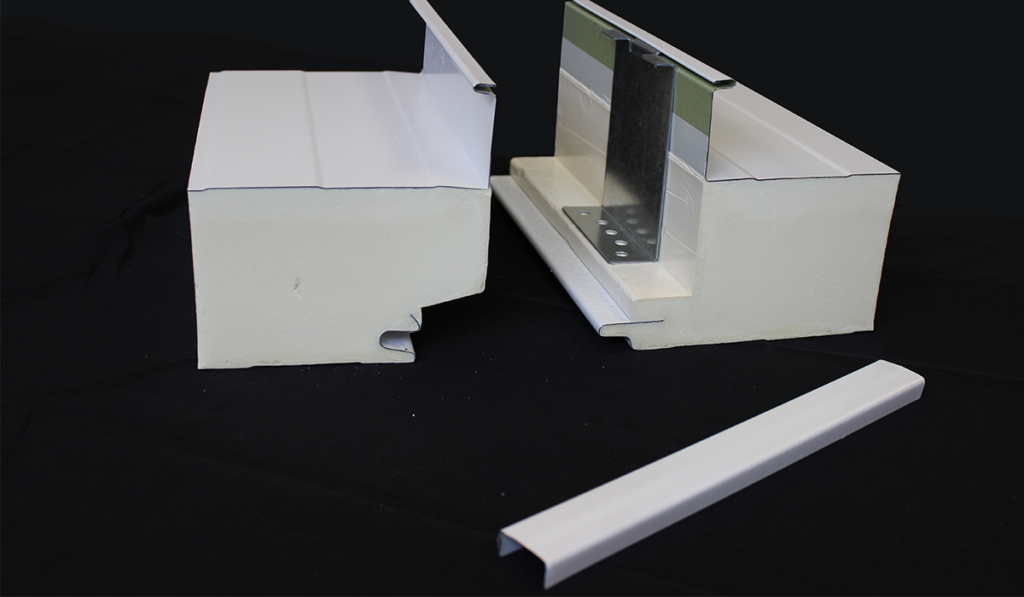

The Isoleren^® RL insulated metal roof panel provides the look of a standing seam metal roof with the added benefits of thermal performance, building efficiency and durability. Isoleren^® RL will provide sustainability and aesthetics to your building for many years to come.

Contractors and erectors are now able to rent roof seamers directly from our supplier, D.I. Roof Seamers. Renting directly from DI, by visiting atas.diroofseamers.com, will provide an even quicker, more efficient ordering process and allow you to communicate directly with their knowledgeable staff regarding logistics and technical issues.

Download Product Brochure

Virtual Meeting

Request Meeting with Rep

Virtual Meeting

Request Meeting with Rep

PRODUCT INFO

SKU:

IRL421
IRL423
IRL424
IRL425
IRL426

Exterior Profile:

Isoleren RL

Interior Profile:

Isoleren ML

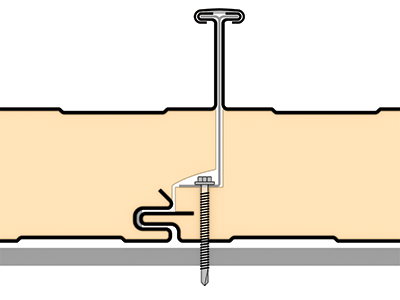

Rib Type:

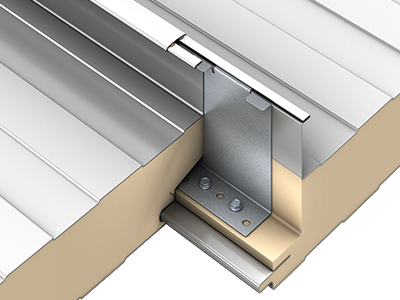

2⅜” tall, tee-shaped rib with separate batten

Attachment:

Mechanically seamed rib with clip

Exterior Gauge:

26
24
22

Interior Gauge:

26
24
22

Substrate:

55% Al-Zn Alloy Coated Steel with Acrylic CoatingG90 Galvanized
Stainless Steel

Exterior Finish:

70% PVDF
Standard Gloss
Siliconized Polyester

Interior Finish:

Polyester
Siliconized Polyester
70% PVDF
Standard Gloss (USDA White)
Plastisol
Stainless

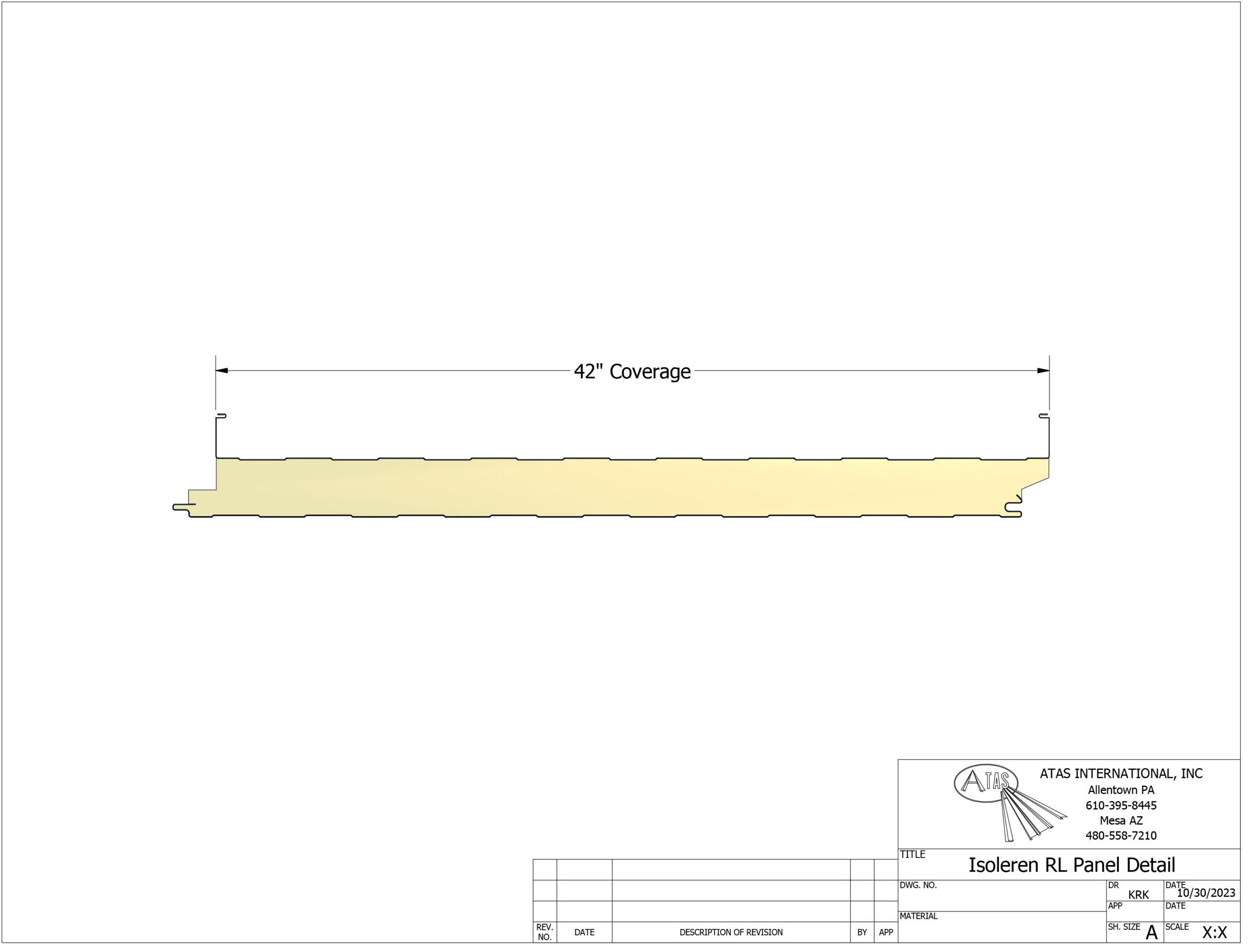

Panel Coverage:

42″

Thickness (A):

2.5″
3″
4″
5″
6″

Exterior Texture:

Smooth

Interior Texture:

Smooth
Stucco Embossed

Core:

Continuously poured-in-place, polyisocyanurate, insulating foam

K Factor:

0.138 Btu-in/hr-ft²-F° @ 75° F mean temperature (R-7.25)
0.129 Btu-in/hr-ft²-F° @ 35° F mean temperature (R-7.75)

Weight, Insulation:

2.50 pounds per cubic foot (nominal)

Weight, Steel:

2.00 pounds per square foot (nominal)

Standard Lengths:

12′-0″ to 53′-0″

Minimum Slope:

½ : 12

Note:

All information subject to change without notice

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

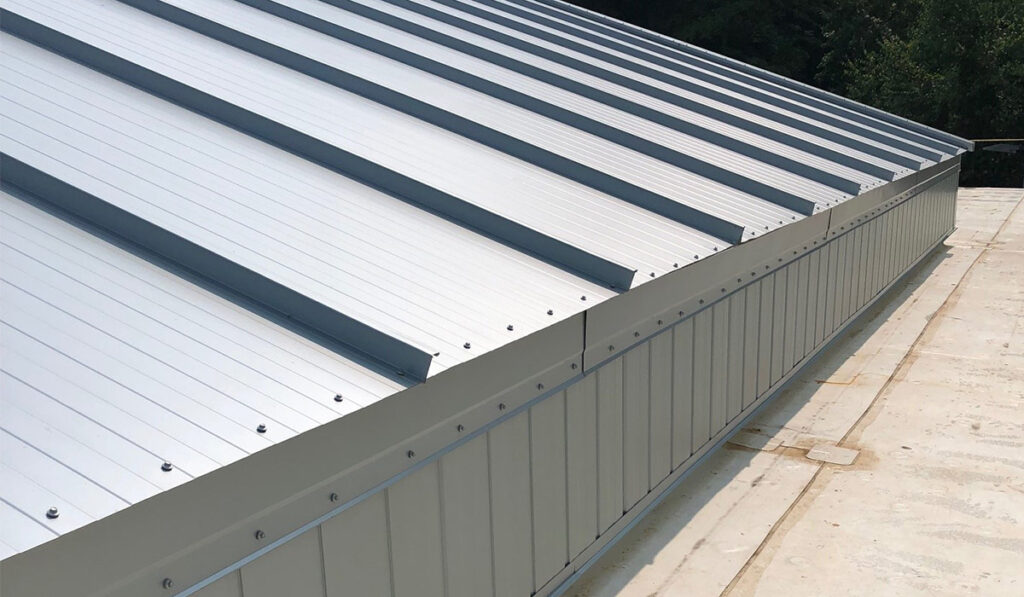

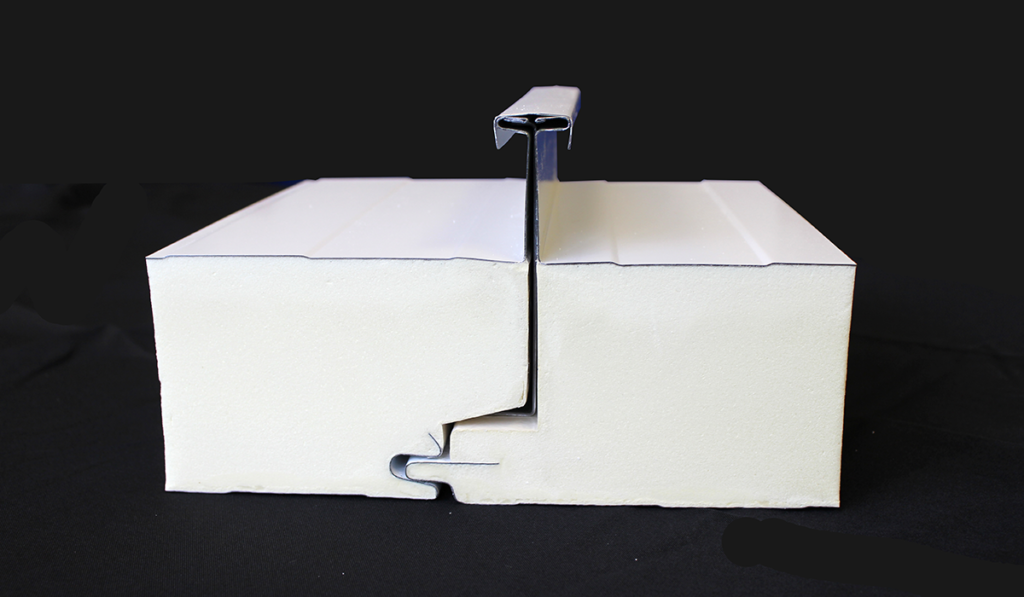

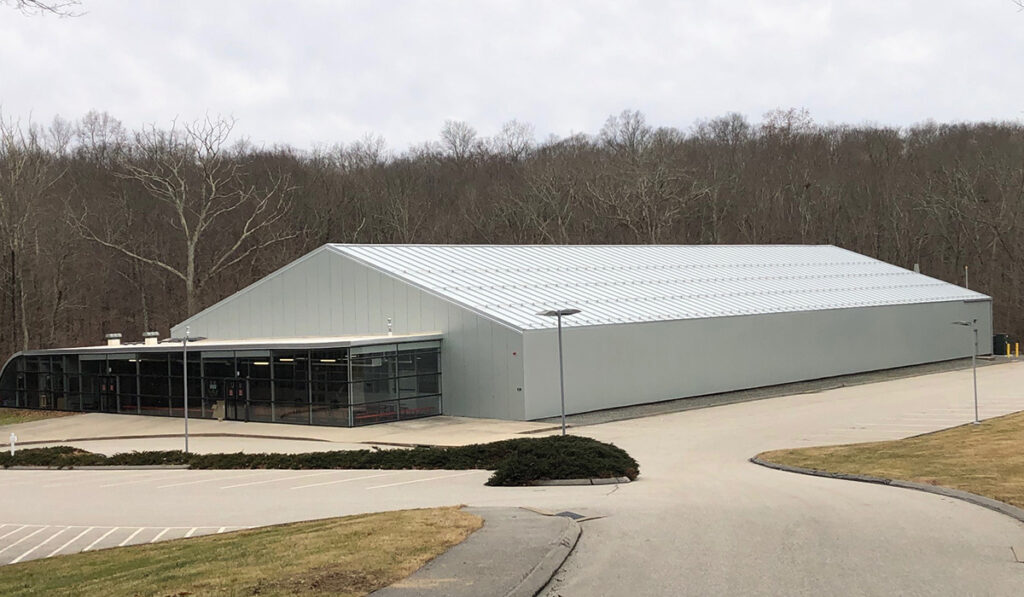

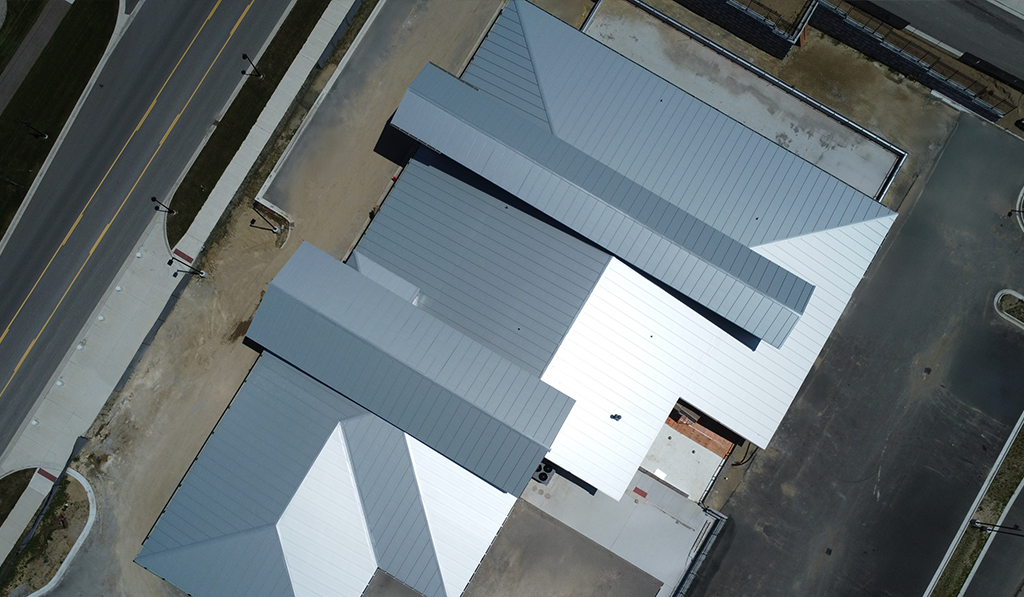

GALLERY

DOCUMENTS

Isoleren Insulated Metal Panels Product Brochure

Isoleren RL Spec Data Sheet

Isoleren RL Tech Data Sheet

Isoleren Color Chart

Isoleren Weight Chart

Isoleren RL Allowable Uniform Load Table

Isoleren R-Values

Isoleren Testing Insulated Metal Roof

Insulated Metal Roof Panel Guide Specification - PDF Format

Insulated Metal Roof Panel Guide Specification - Word Doc

Isoleren Handling and Maintenance Guide

LEED v4

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
