Profile Options
Round
Square

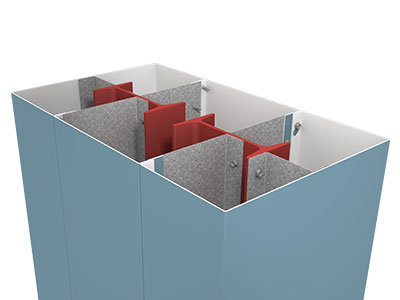

Rectangle
Racetrack
Beam Wrap

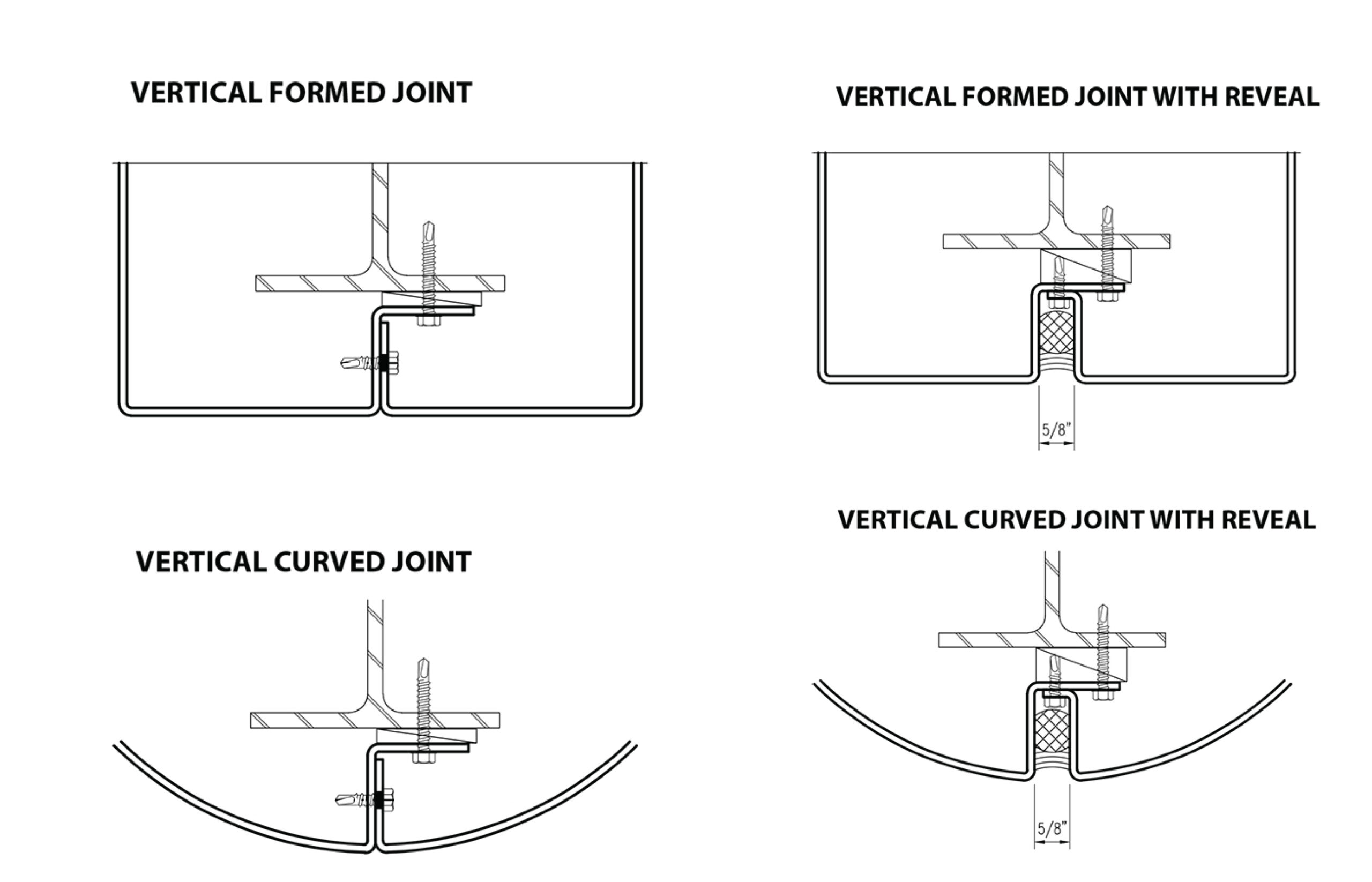

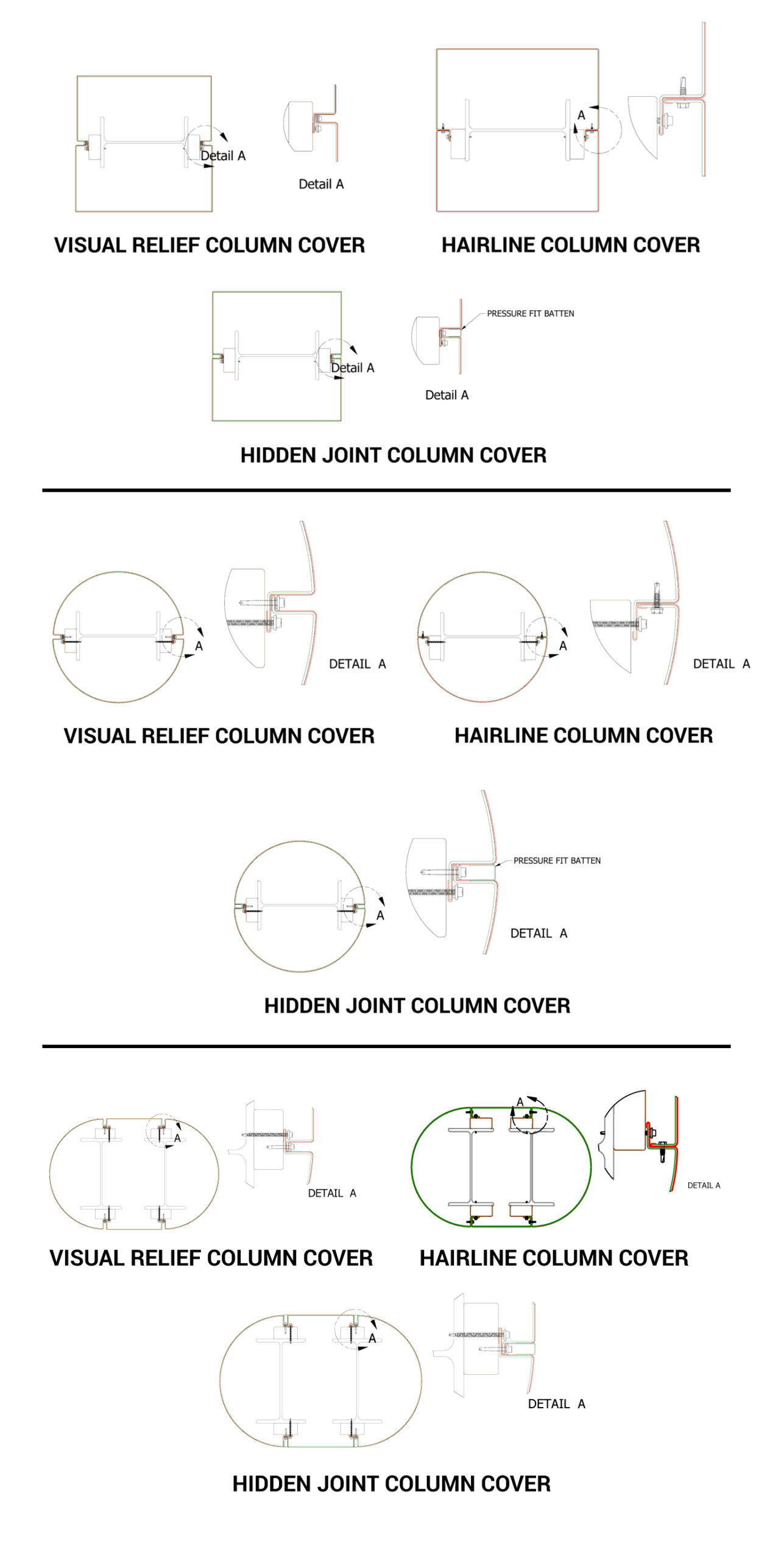

Typical Vertical Joint Conditions
Column Covers & Beam Wraps

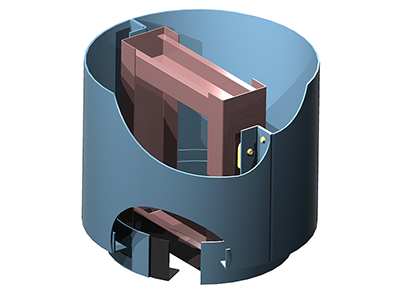

Architectural metal Column Covers & Beam Wraps offer design options to create a uniform appearance or cover an unsightly support. Columns over 12′-0″ in height require stacked units with horizontal hairline joints. Covers are manufactured in a smooth surface. Three design options are available for the vertical jointures: a vertical formed butt joint, a vertical formed joint with reveal, and a vertical formed joint with reveal and batten type flush insert. Capitals and bases can be provided. Column covers and beam wraps are offered in a pre-painted aluminum shrouded design or post painted to achieve desired color selection. They are also available in bare aluminum and stainless steel.
Round Column Cover Quote Request Form
Square & Racetrack Column Cover Quote Request Form
MAW999
12″ minimum (aluminum)
14″ minimum (stainless steel)
Inquire
Steel Liner with Aluminum Shroud: (.080 Aluminum liner with Pre-Painted 0.032″ or 0.040″ shroud)
*Standard colors, wood grain, and anodized available
Aluminum:
Standard: .080 & .125,
Alternative: .090, .188, & 0.25 (Subject to minimum quantities and extended lead time)
*Post-Painted
Stainless Steel:
Standard: 16ga & 14ga
Alternative: 12ga (Subject to minimum quantities and extended lead time)
#4,#6, Mirror, Non-Directional Satin
70% PVDF (aluminum)
Directional, Brushed, or Mirror (stainless steel)
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
