Secondary Framing Components

Product Offerings:

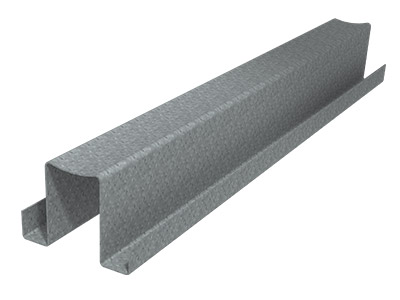

Hat Section

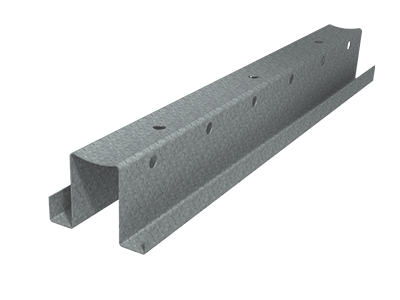

Suspended Hat

Channel Section

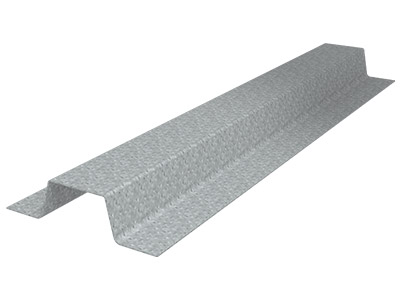

Sub-girt

U-Girt

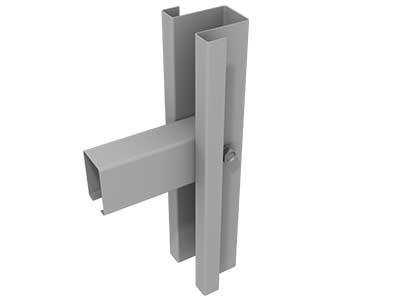

ATA-Truss

M Channel

Sub-Purlin

Horseshoe Shims

Product Offerings:

Hat Section

Suspended Hat

Channel Section

Sub-girt

U-Girt

ATA-Truss

M Channel

Sub-Purlin

Horseshoe Shims

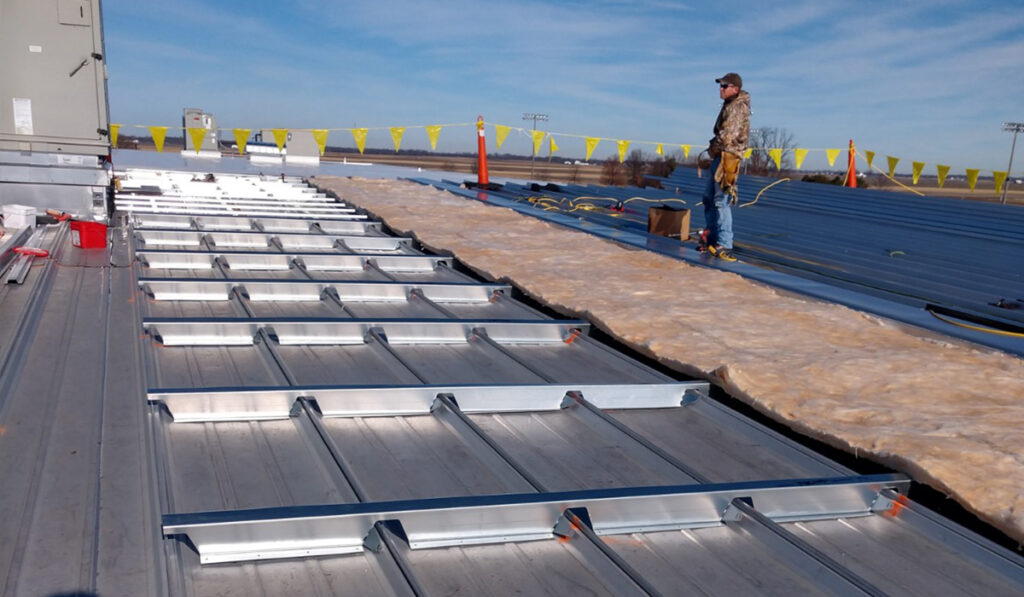

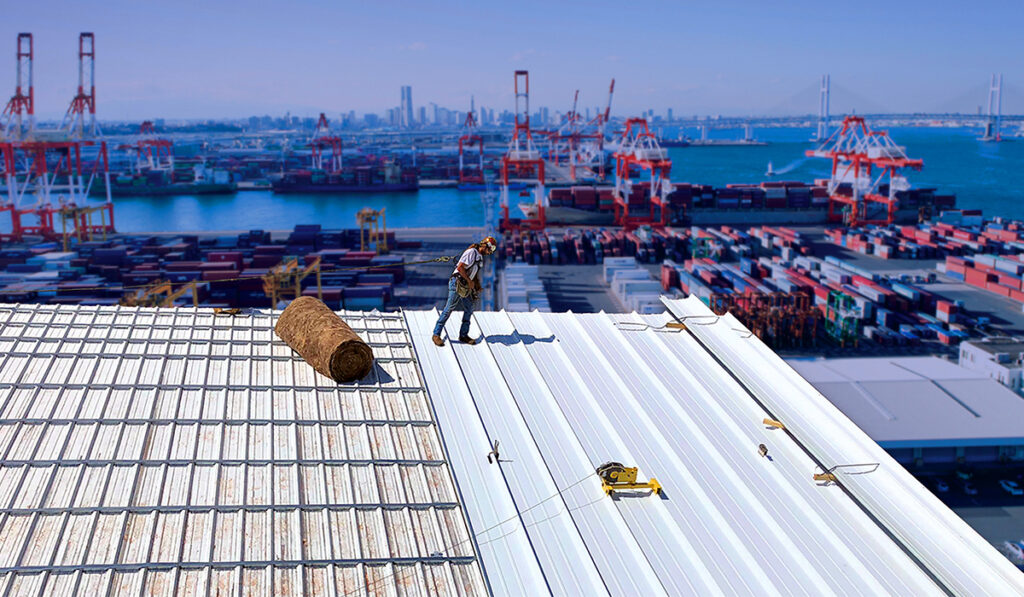

ATAS secondary framing members are used for attachment and structural support for our panel systems in roof, wall and soffit applications. Components include hat, U and sub-girt type members. In addition, secondary framing members may be used in retro-fit roofing applications to create newly applied slope to an existing flat roof. Common applications include the following:

Rainscreen systems
Equipment screens

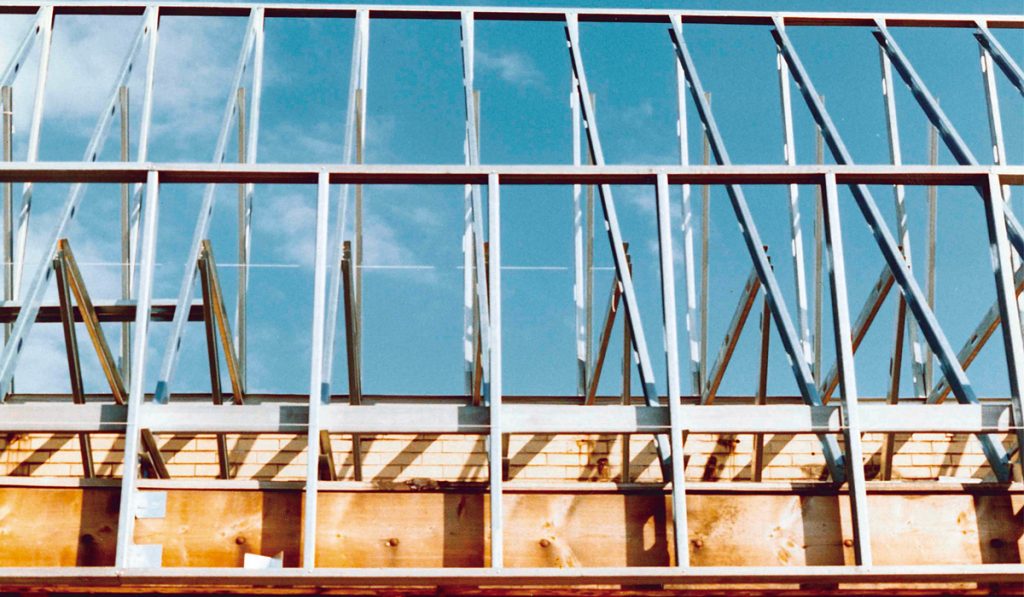

Mansard type systems
Soffit support framing

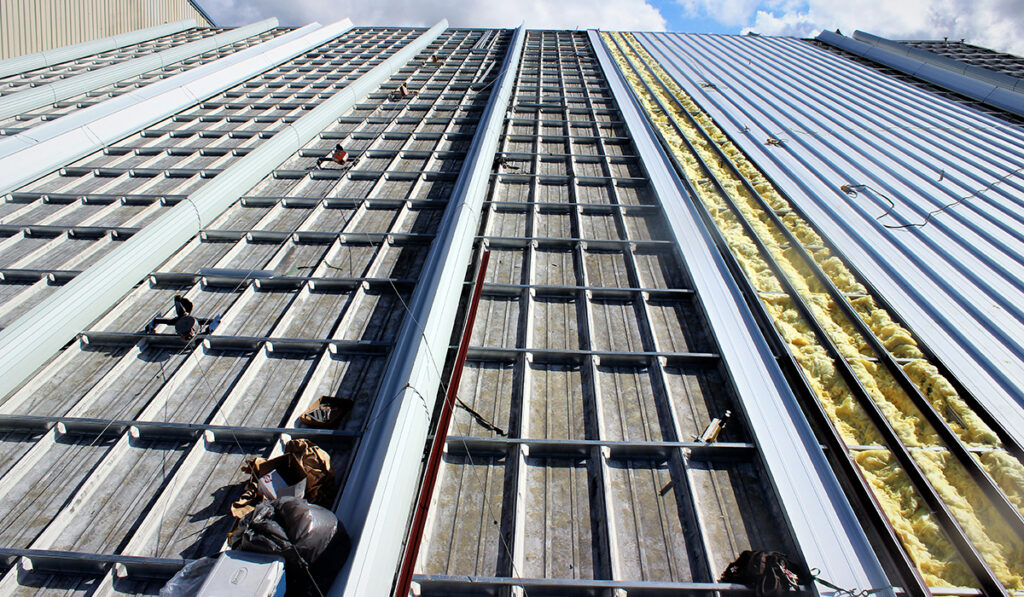

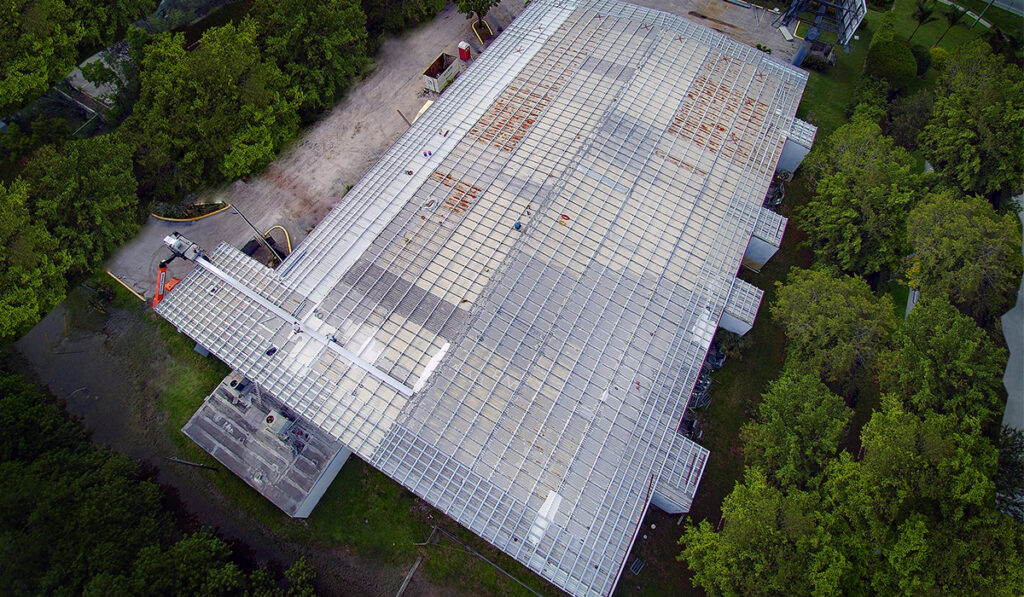

Metal over metal retro fit (roof application only)

Virtual Meeting

Request Meeting with Rep

PRODUCT INFO

Material:

.050 aluminum
18 ga., 24 ga. G90 galvanized steel

Shapes:

Hat Sections

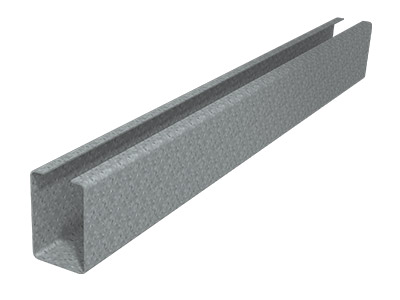

Structural U’s
Sub-girt

Standard Lengths:

Hat Sections:
–.050 aluminum & 24 ga. G90 galvanized steel: 12′-0″
–18 ga. G90 galvanized steel: 24′-0″

Structural U’s: 12′-0″

Sub-girt: 12′-0″

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

GALLERY

DOCUMENTS

Structural U's Load Table

Sub-girt Channel Load Table

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
