Versa-Seam Reveal

Panel Details:

Horizontal Panel

Horizontal Interlock

Horizontal Overlap

Horizontal Stacked

Horizontal Staggered

Vertical Panel

Vertical Interlock

Vertical Overlap

Vertical Stacked

Vertical Staggered

Panel Details:

Horizontal Panel

Horizontal Interlock

Horizontal Overlap

Horizontal Stacked

Horizontal Staggered

Vertical Panel

Vertical Interlock

Vertical Overlap

Vertical Stacked

Vertical Staggered

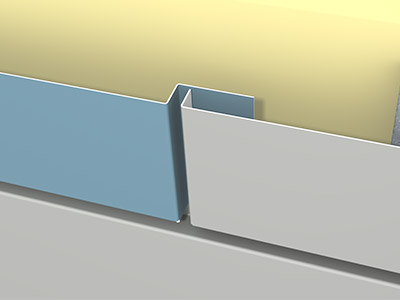

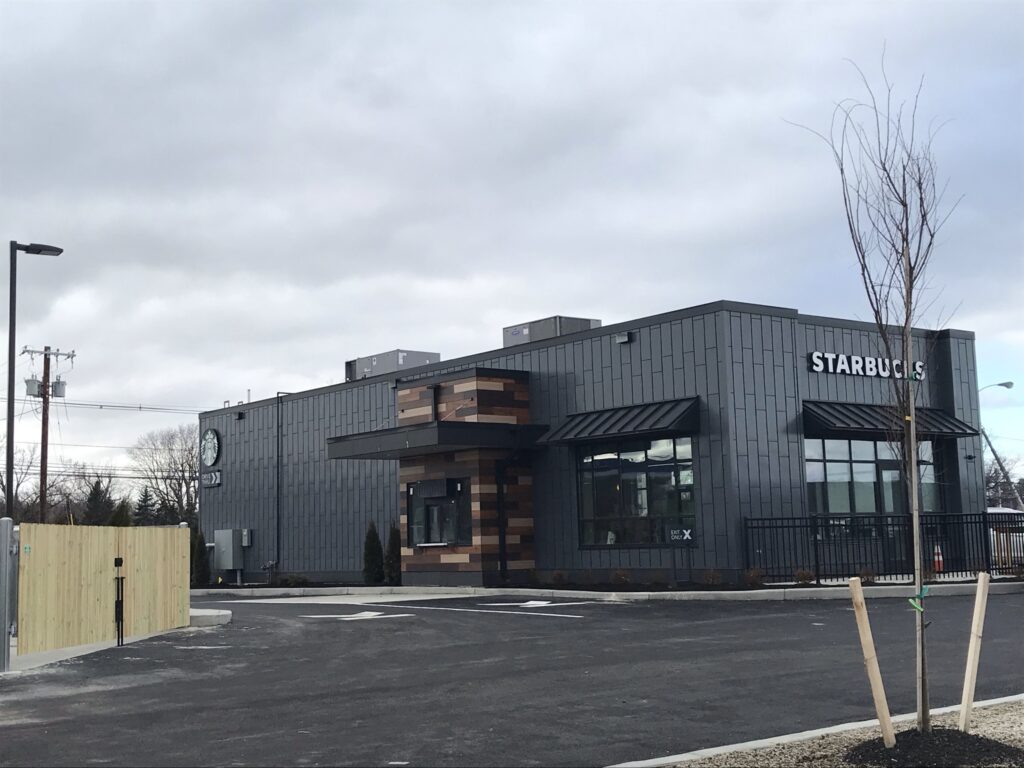

Versa-Seam Reveal is a modular wall panel series designed as a drained and back ventilated (D/BV) assembly or for attachment to a solid substrate. Versa-Seam Reveal installed in a horizontal application requires a drainage plane. The panels are offered in various widths, depths, and lengths to create a unique appearance. It may be installed horizontally or vertically without the need for any sealants, gaskets, or splines to create the dry joint. Versa-Seam Reveal is a great light-gauge alternative to other heavier plate and Metal Composite Material (MCM) modular styles.

Submittal Builder

Build PDF Packet

Virtual Meeting

Request Meeting with Rep

Literature

Download Product Brochure

PRODUCT INFO

SKU:

VSR

Material:

.032, .040 aluminum

Panel Coverage:

8″
10″
12″
Custom widths available in 1″ increments*

Reveal:

¼”,
½”,
¾”

Minimum Panel Length:

3′-0″

Maximum Panel Length:

15′-0″

Panel Depth:

1″

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed

Perforations Available:

Yes

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format | Horizontal Application | Open Framing

PDF File Format | Vertical Application | Open Framing

DWG File Format | Horizontal Orientation | Open Framing

DWG File Format | Vertical Orientation | Open Framing

DOCUMENTS

ATAS Color Chart

Solar Reflectance & Thermal Emittance Chart

Finish Warranty

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

LEED v4

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
