Standing Seam Shingle

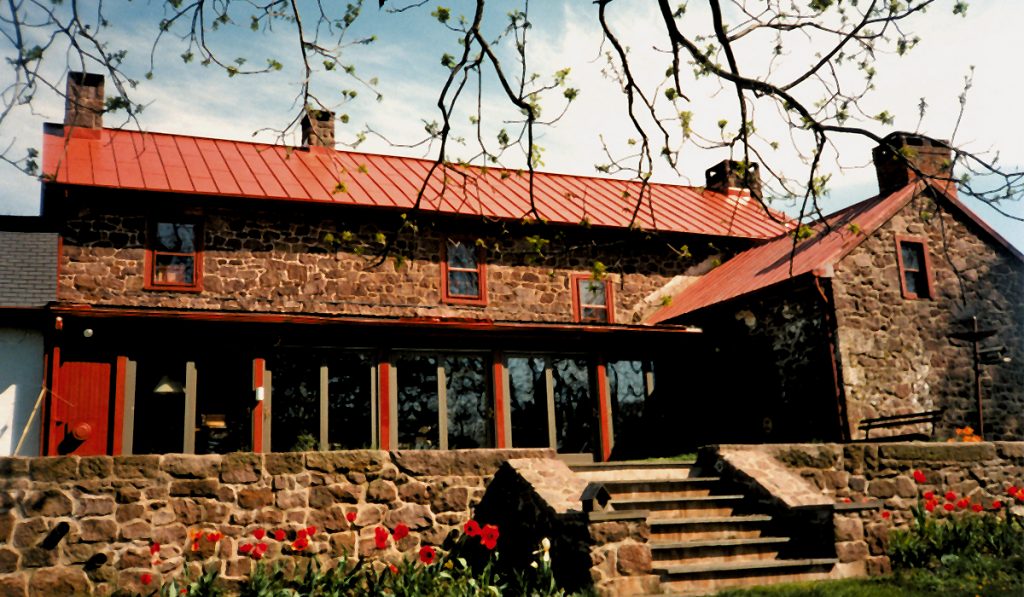

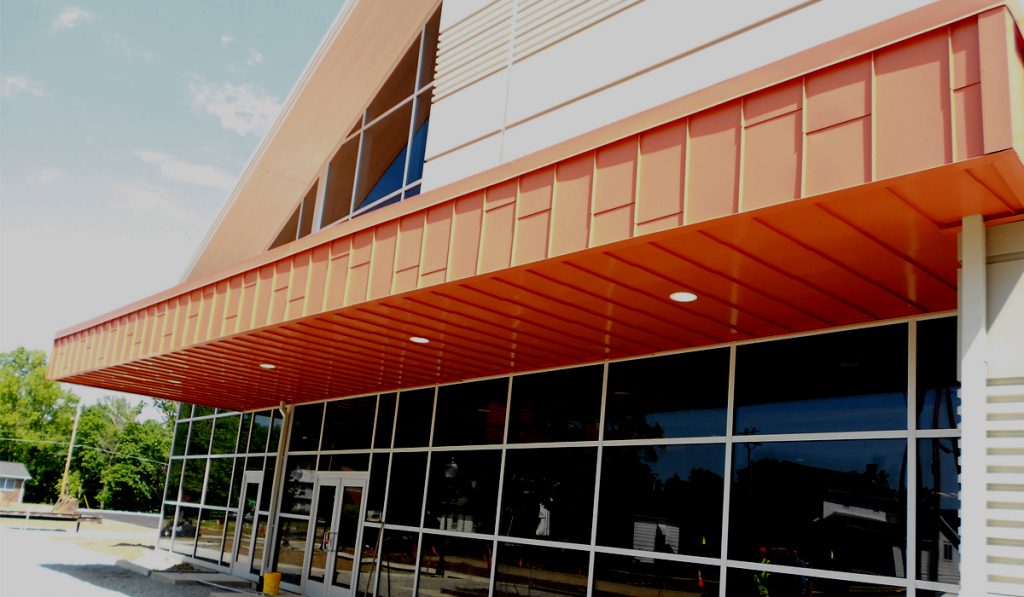

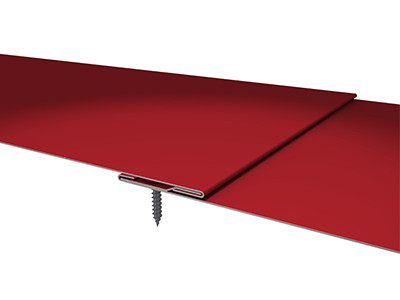

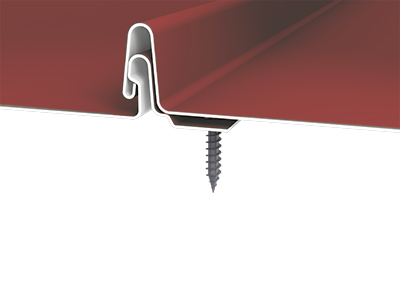

Standing Seam Shingles are elegant in their style and feature a four-way interlock to ensure weathertightness. These panels are installed with concealed fasteners from eave to ridge and over a solid substrate. Transverse seams are staggered to provide a historic standing seam appearance. The metal roof allows for snow and ice to slide off easily, preventing damage from freeze and thaw cycles. Typical applications for the Standing Seam Shingle are mansards, entryways, commercial and residential roofs with a minimum recommended slope of 4:12.

Line Drawing
Product Info
CAD Details
Gallery
Documents

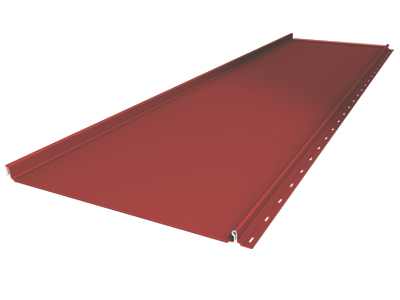

Line Drawing

Product Info

SKU:

HSS164 (36”)
HSS165 (60”)

Material:

.032 aluminum
16 oz. copper*

Shingle Size:

16” x 36”
16″ x 60”

Seam Height:

1″

Texture:

Smooth

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Fasteners:

Concealed fasteners and clips

Minimum Slope:

4:12

MCA Certification:

0057STAN

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
