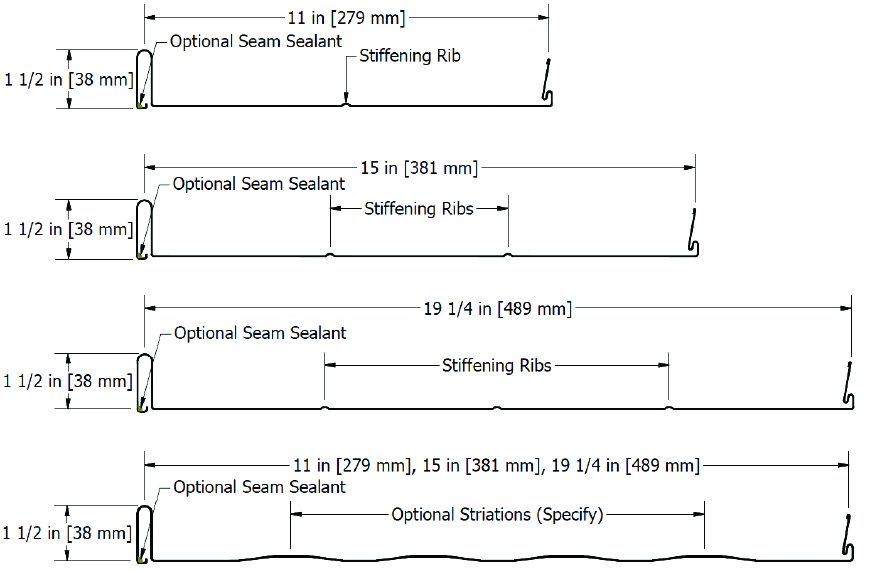

Profile Options

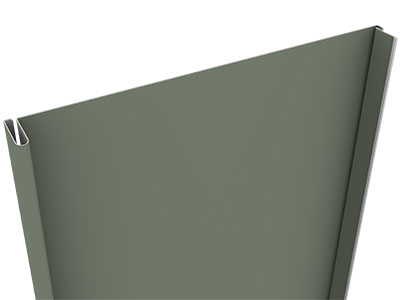

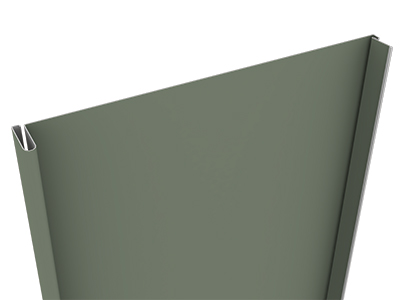

Without Ribs
Stiffening Ribs
Striations

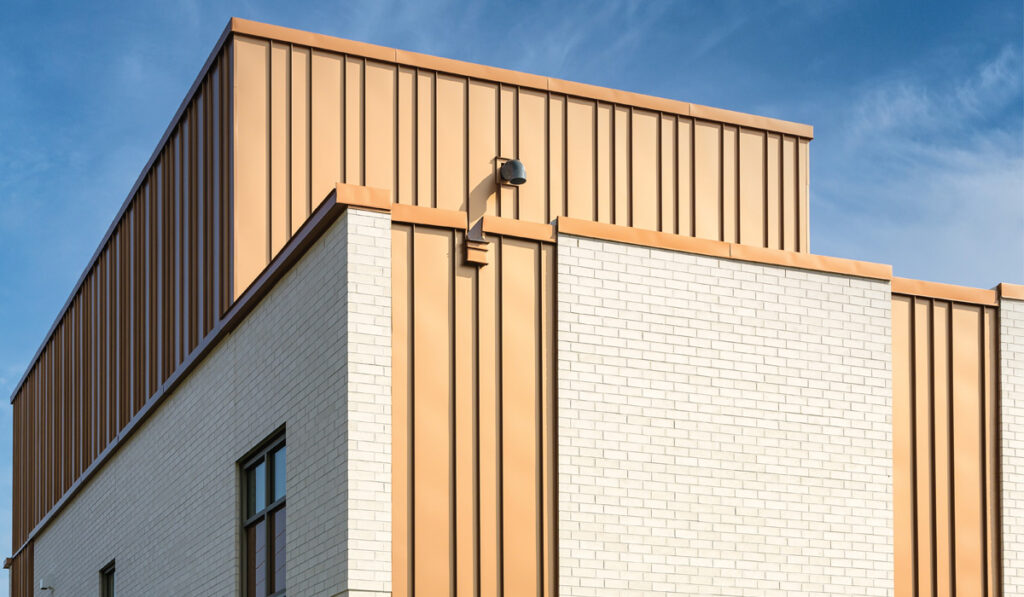

Dutch Seam (Wall)
Dutch Seam® is a continuous standing seam metal panel with an integral seam, which was originally developed as a roof panel. With the lock and seam an integral part of the panel, there are no seam caps to install. This prevents “blow-off” or “creeping” of the cap or seam. Just snap the panel onto the previously installed panel, fasten the clip and the panel is in place. This panel can be installed vertically, horizontally, and diagonally. You can also enhance aesthetics of Dutch Seam by using factory fabricated Elite Series accessories, including the Z Box and Closure Angle shown.
MRD110
MRD150
MRD194
.032, .040 aluminum
24, 22* ga. metallic coated steel
24 ga. 55% Al-Zn alloy coated steel with acrylic coating
16, 20 oz. copper*
.8 mm & 1.0 mm zinc* (inquire with ATAS)
11”
15”
19¼”
(Stiffening ribs standard, specify without ribs or with striations)
2’-0”
Transportation limitations and/or product and project design considerations
1½”
Smooth
Stucco Embossed
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
Clear Satin
Dark Bronze
BlackMatt (.040 Only)
LA Extra Dark Bronze (.040 Only)
A complete line of trims available in matching colors, gauge, and finish or as specified
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format
- Dutch Seam Wall - All Details
- Dutch Seam Wall - Profile Detail
- Dutch Seam Wall - Base Detail
- Dutch Seam Wall - Endwall Detail
- Dutch Seam Wall - Inside Corner Detail
- Dutch Seam Wall - Outside Corner Detail
- Dutch Seam Wall - Top of Wall Detail
- Dutch Seam Wall - Flanged Window Head Detail
- Dutch Seam Wall - Flanged Window Jamb Detail
- Dutch Seam Wall - Flanged Window Sill Detail
- Dutch Seam Wall - Head Detail
- Dutch Seam Wall - Jamb Detail
- Dutch Seam Wall - Window Sill Detail
