Rumba Shake

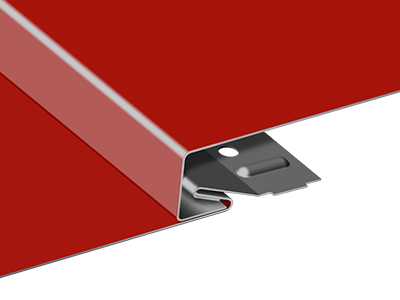

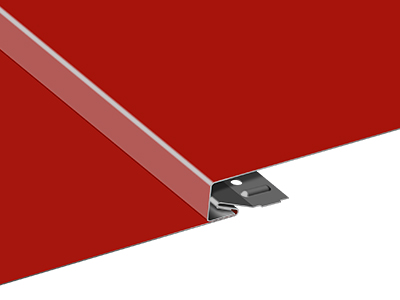

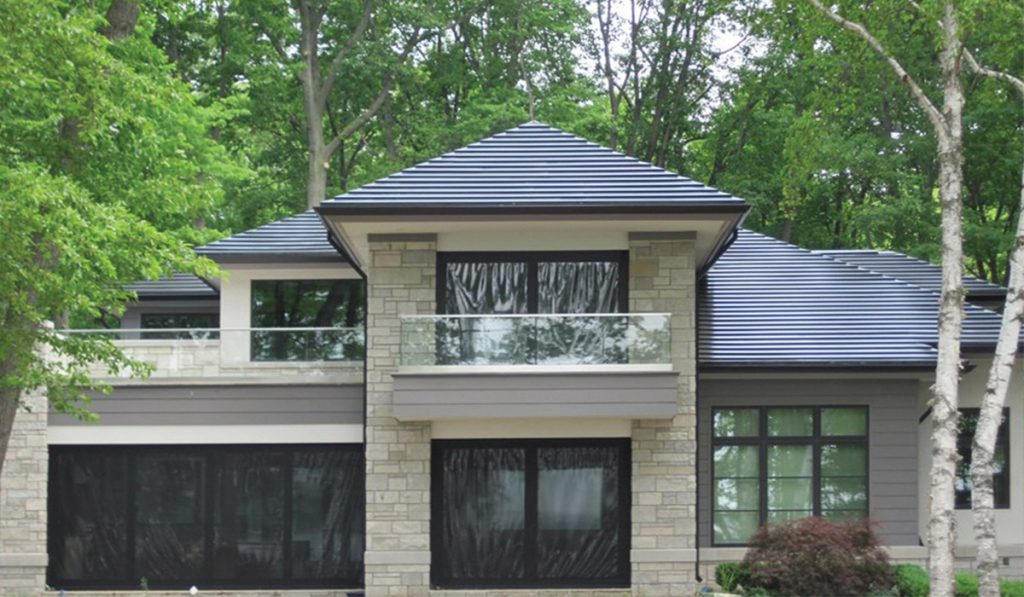

Rumba Shake^™, a Bermuda style roof panel, is easily installed horizontally from eave to ridge with concealed fasteners and clips. It is lightweight, allowing for installation over an existing roof without the need for tear-off and disposal*. Typical applications for the Rumba Shake™ are roofs on either commercial or residential buildings with a minimum slope of 4:12. It also is suitable for walls and mansards.

*Subject to local codes

Download Product Brochure

BIM Model

Download BIM File

Virtual Meeting

Request Meeting with Rep

PRODUCT INFO

SKU:

HBS090

Material:

.032, .040 aluminum
24, 22* ga. metallic coated steel
16 oz. copper*
.8 mm zinc*

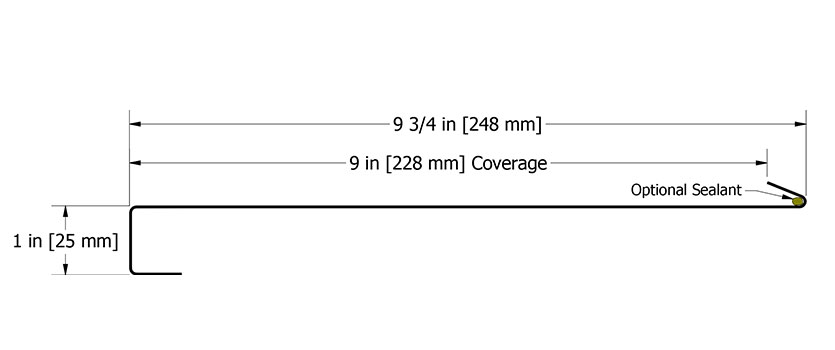

Shingle Coverage:

9”

Shingle Length:

12′-0″
20′-0″

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (24 ga. metallic coated steel, .032 aluminum & .040 aluminum only)

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Minimum Slope:

4:12

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

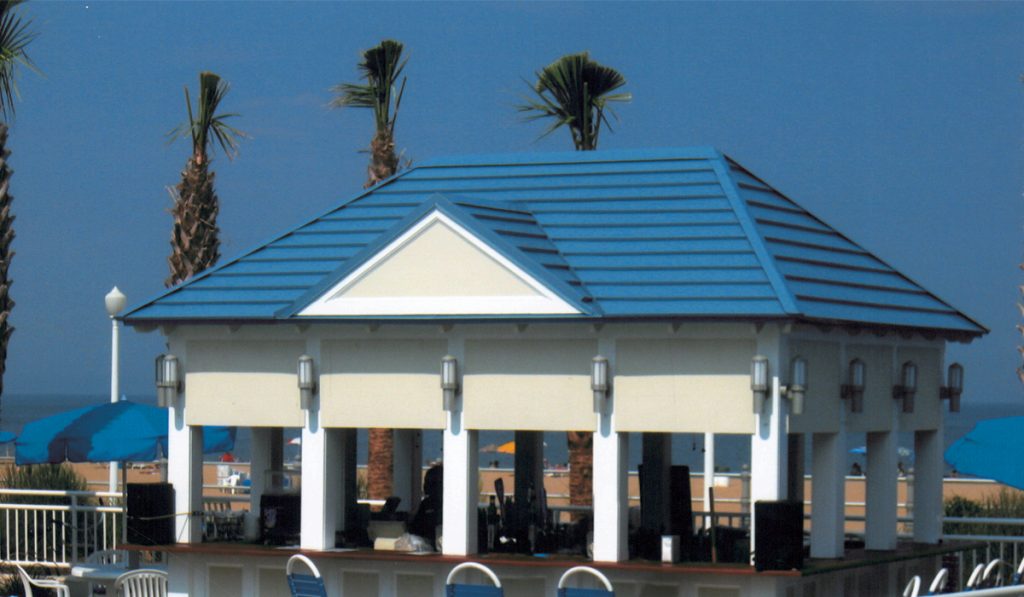

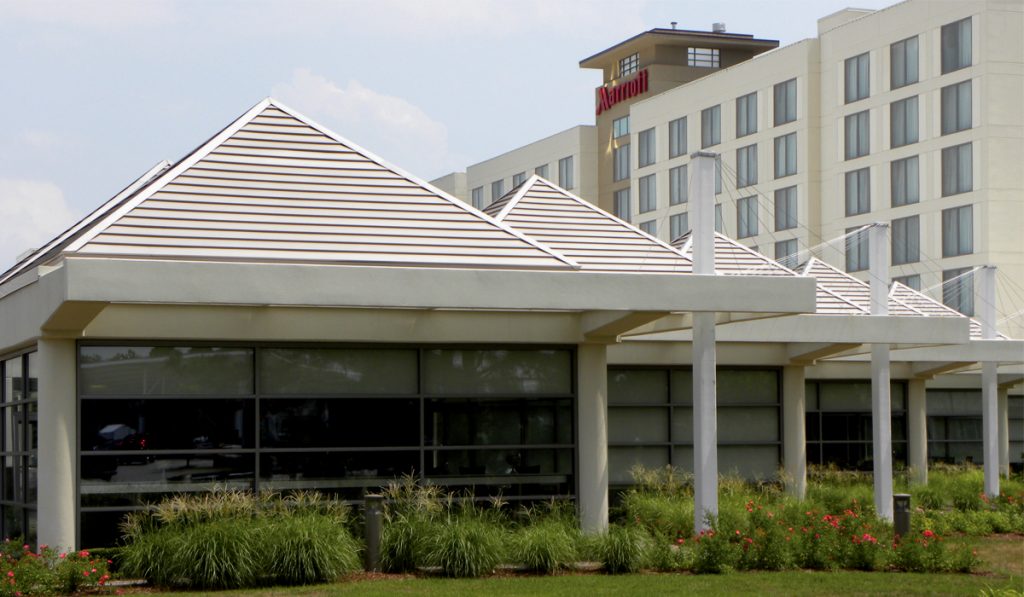

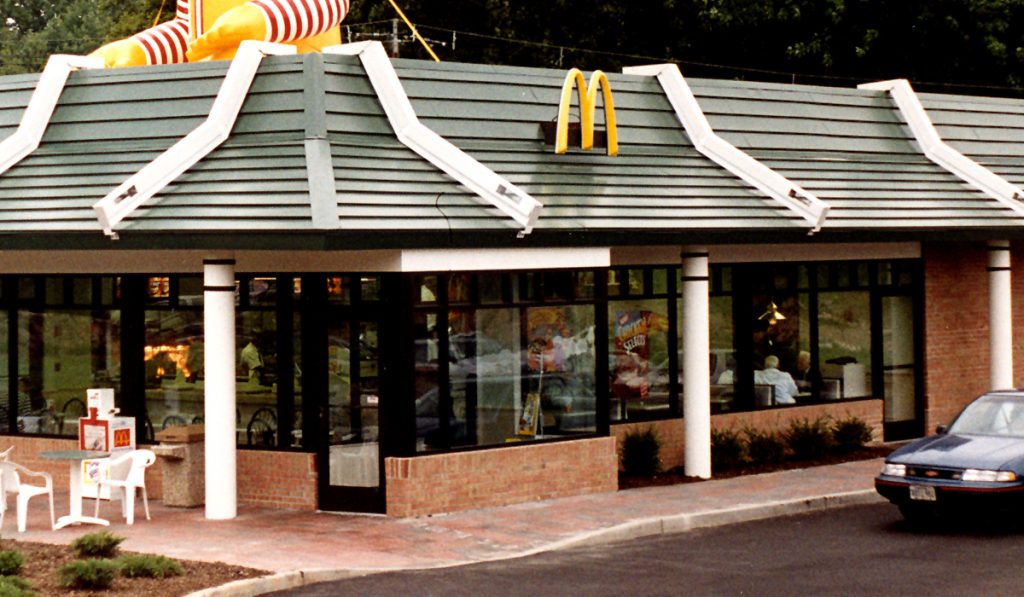

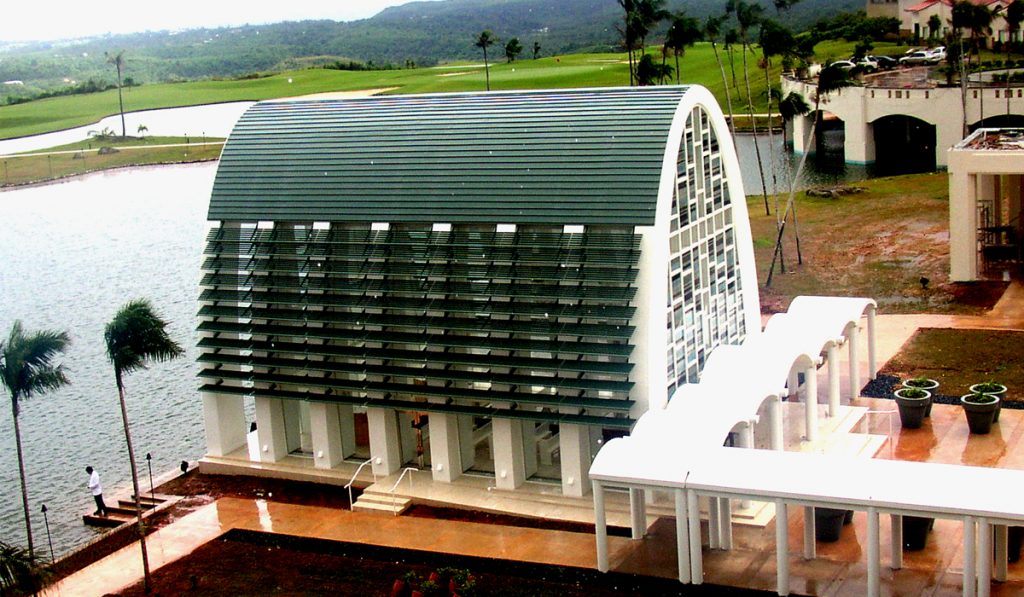

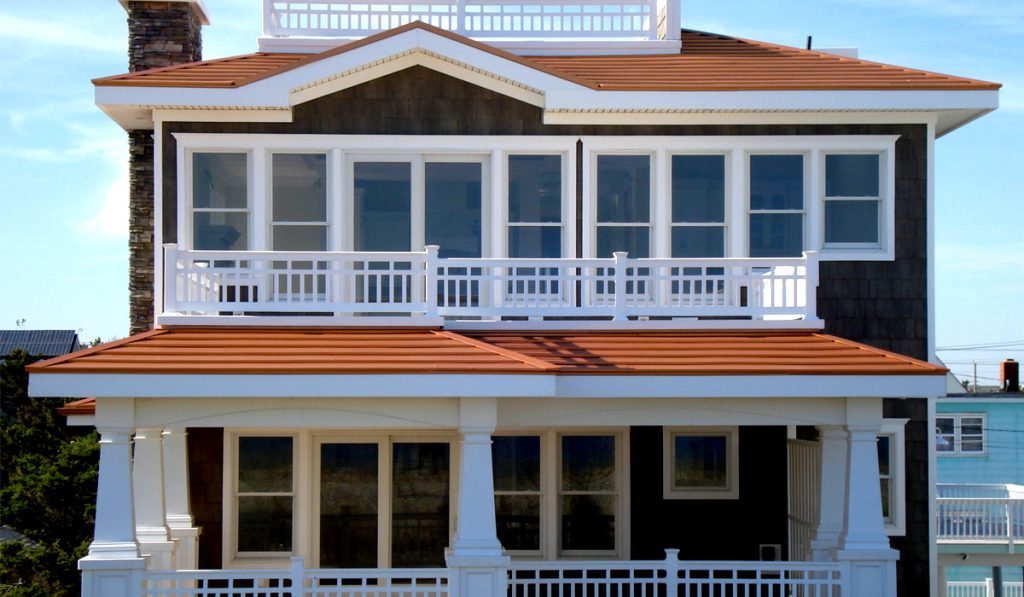

GALLERY

DOCUMENTS

Rumba Shake Product Brochure

Rumba Shake Spec Data Sheet

ATAS Color Chart

Rumba Shake Load Table

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

SRI Values Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

Color Chart Color & Material Availability
