Design Wall | DSF, DWF

Design Wall | DSF, DWF

Profile Options:

DSF
DSF
DSF Interlock
DSF Interlock
DWF
DWF

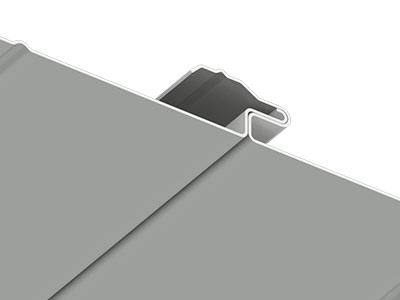

DWF Interlock
DWF Interlock
Design Wall | DSF, DWF

Profile Options:

DSF
DSF
DSF Interlock
DSF Interlock
DWF
DWF
DWF Interlock
DWF Interlock

The Design Wall™ System is a structural panel with optional louvered style venting. It may be installed horizontally or vertically. Typical applications for this panel are walls, soffits, fascia or equipment screens.

Florida Building Product Approval: FL 39332.1, FL 39332.2, FL 39332.3, FL 39332.4

PRODUCT INFO
SKU:

DSF
DWF

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22* ga. 55% Al-Zn alloy coated steel with acrylic coating
.8, 1.0 mm zinc* (DWF only)
16, 20 oz. copper*

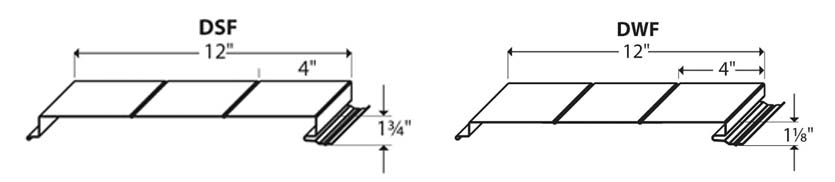

Panel Coverage:

12”
(Stiffening ribs standard, specify without)

Minimum Panel Length:

3’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1¾”
1⅛”

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (DWF only)

Available:

Louvered/Vented

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Florida Building Code (DSF)

FL 39332.2, FL 39332.4 (steel)

FL 39332.1, FL 39332.3 (aluminum)

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format
DWG File Format

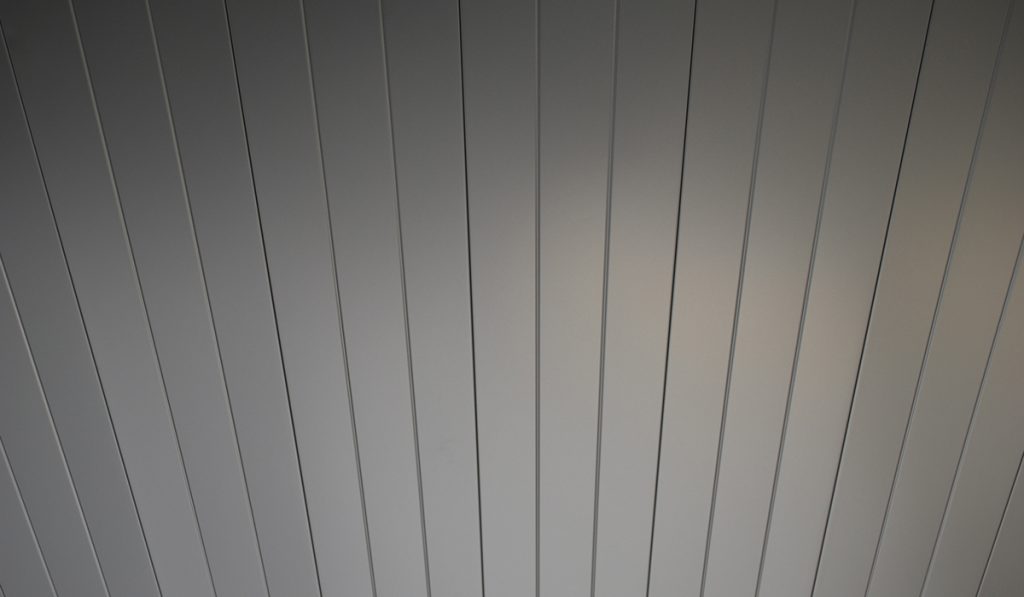

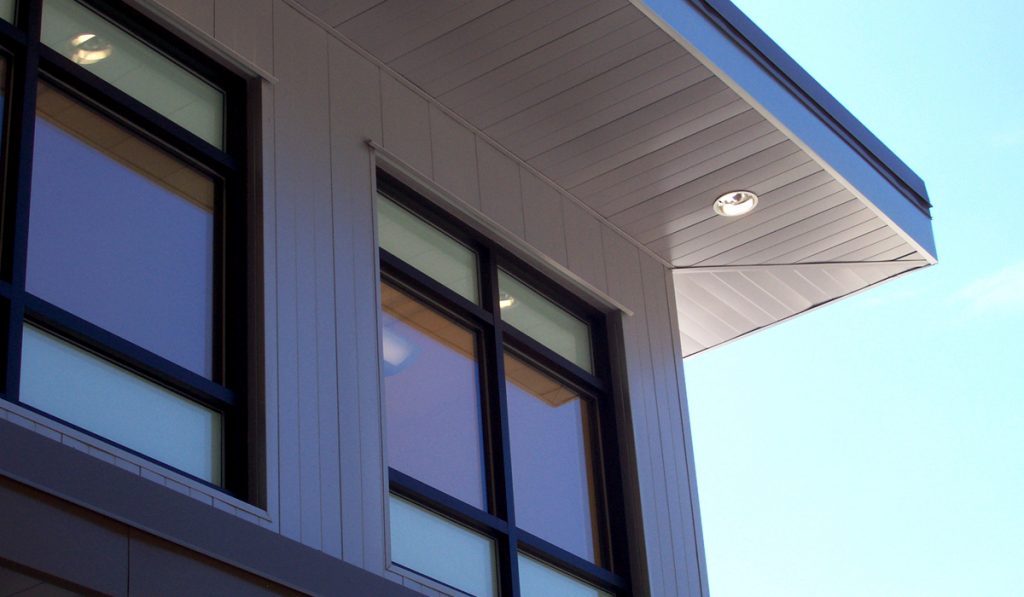

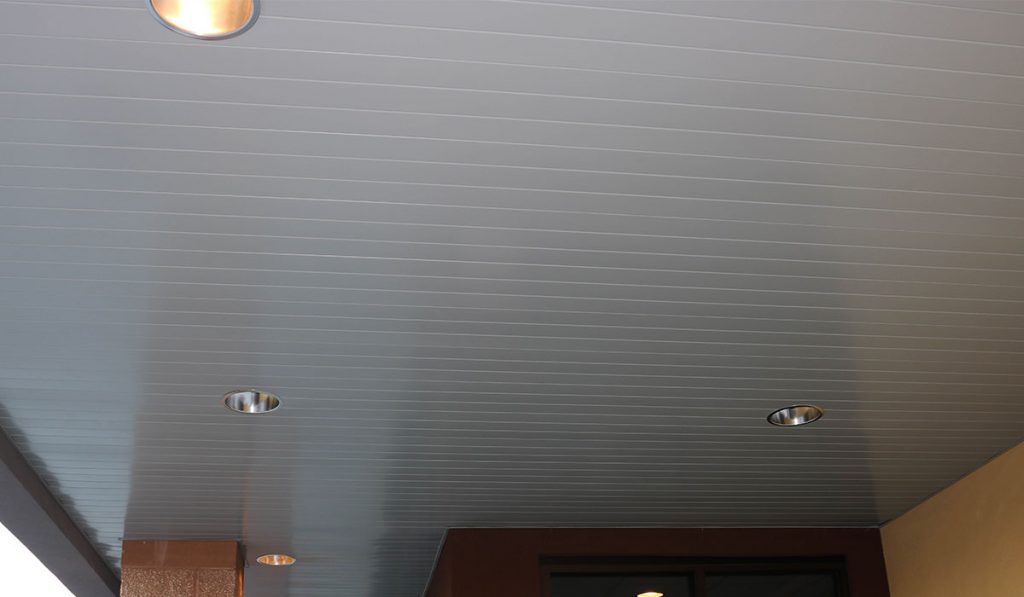

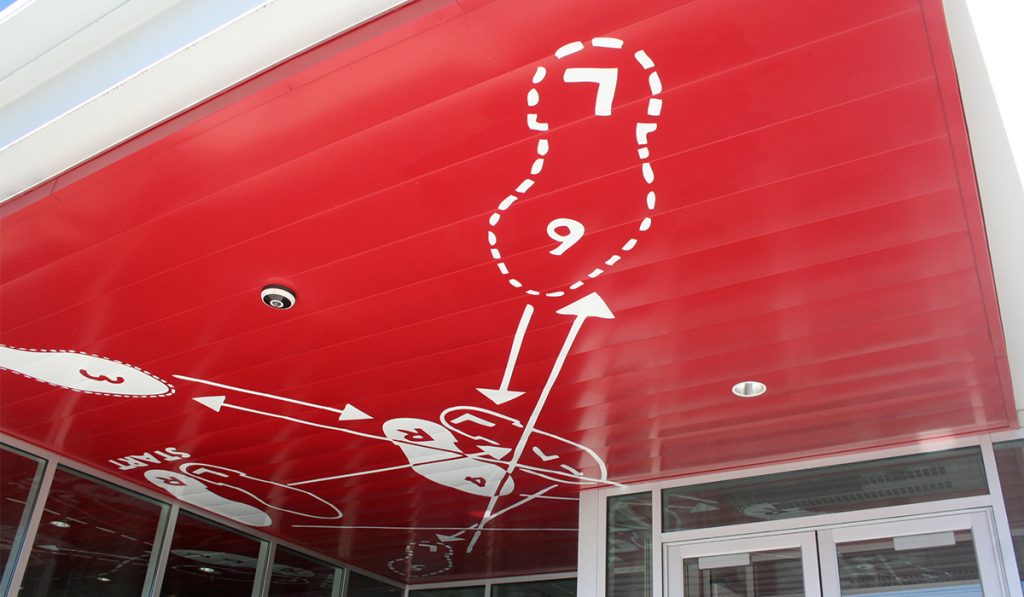

GALLERY
DOCUMENTS

Ceilings & Soffits Product Brochure

Design Wall Spec Data Sheet

ATAS Color Chart

DWF120 Load Table

DSF120 Load Table

Florida Building Code Approval (DSF)

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
