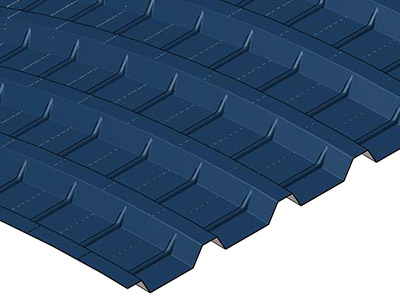

Crimp Curved Belvedere 7.2″ Rib

Belvedere™ 7.2″ Rib wall panels are structural in nature and can be installed either on solid substrate or open framing. It is a structural wall panel that offers design freedom for all types of buildings. This panel can be installed vertically or horizontally with exposed fasteners. Curved trims available.

Line Drawing
Product Info
SKU:

BWR360

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating

Panel Coverage:

36″

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1½”

Curving Parameters:

36″ W x 1½” D x 7.2″ Pitch
Convex and/or Concave
1 ft O.S. rad. min. 20 to 24 ga.
3 ft O.S. rad. min. 22 ga.
6 ft O.S. rad. min. 18 ga.

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 35 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of curved trims available in matching colors, gauge, and finish or as specified

View the list of Crimp Curved Accessories.

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

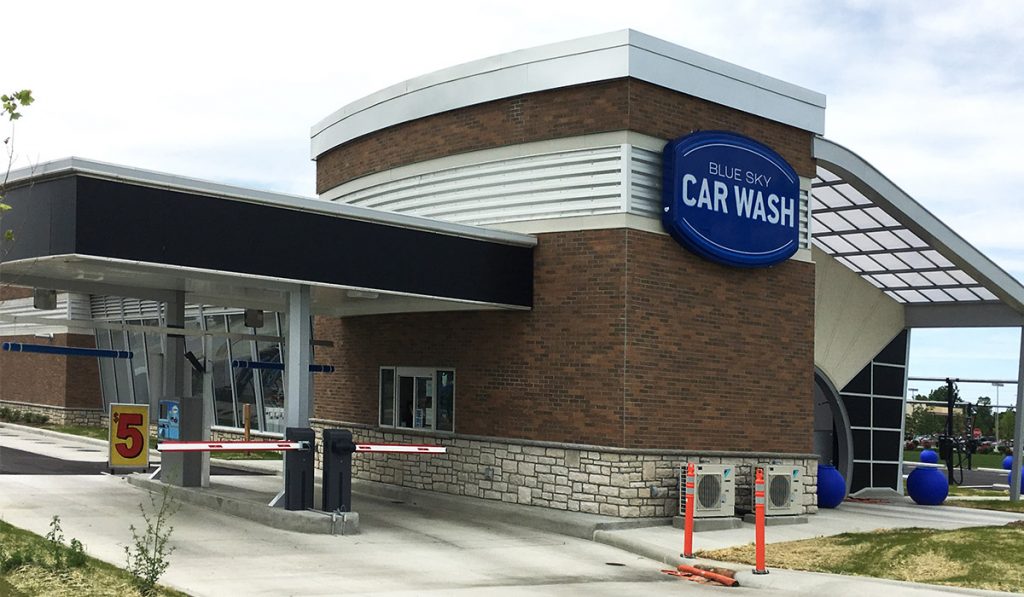

Gallery
