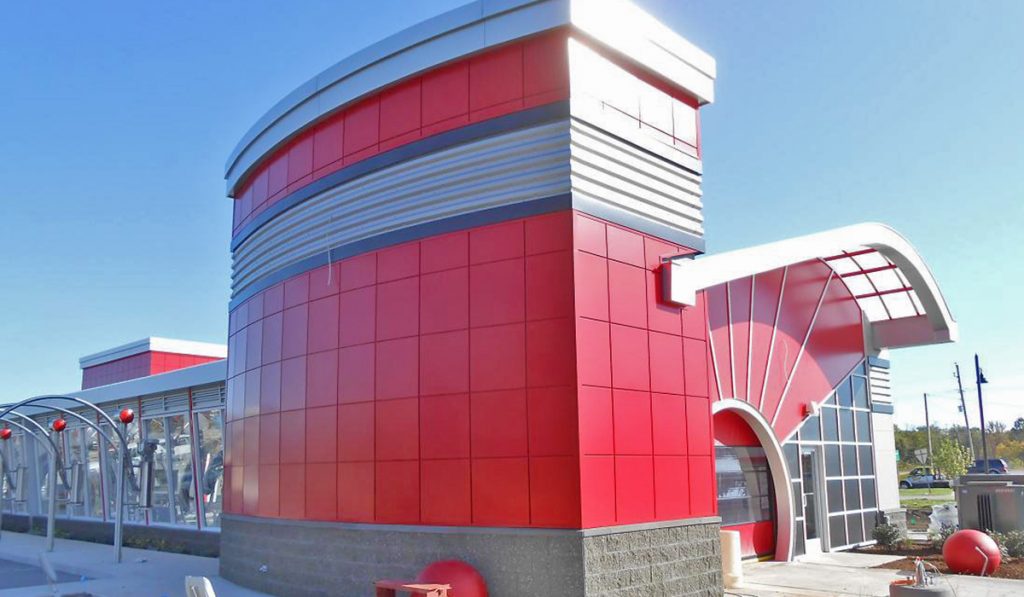

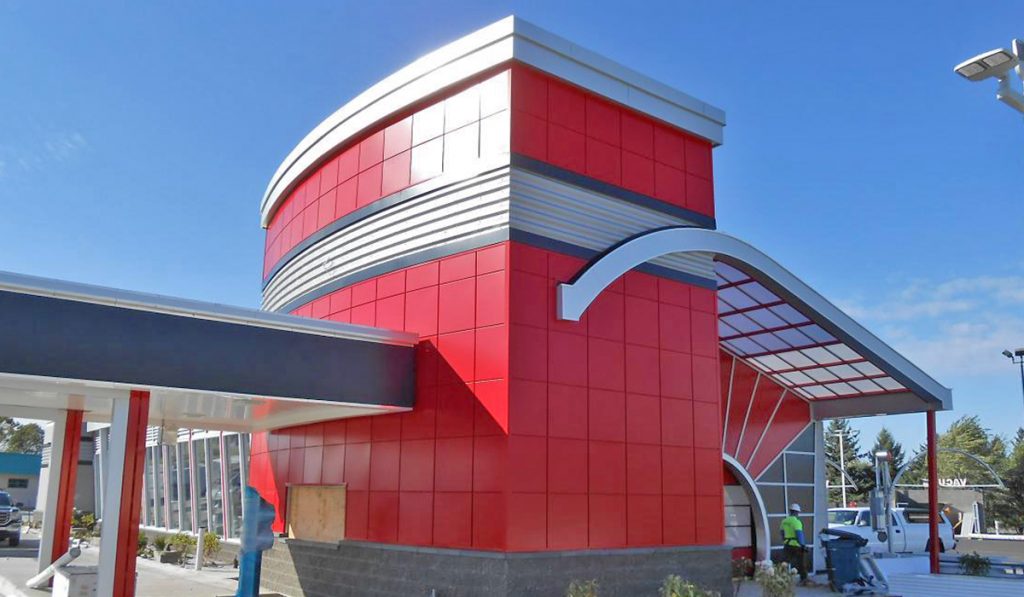

Crimp Curved Belvedere 6″ Short Rib
SKU:
BWK360
Material:
.032, .040 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating
Panel Coverage:
36″
Minimum Panel Length:
6’-0”
Maximum Panel Length:
Transportation limitations and/or product and project design considerations
Panel Depth:
1½”
Curving Parameters:
36″ W x 1½” D x 6″ Pitch
Convex and/or Concave
1 ft O.S. rad. min. 24 ga.
3 ft O.S. rad. min. 20 to 22 ga.
6 ft O.S. rad. min. 18 ga.
Texture:
Smooth
Stucco Embossed
Finish:
70% PVDF
Colors:
Choice of over 35 stock colors.
Custom colors and finishes available*
Anodized:
Clear Satin
Dark Bronze
Accessories:
A complete line of curved trims available in matching colors, gauge, and finish or as specified.
View the list of Crimp Curved Accessories.
*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability
Color Chart
To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
