Span Wall™

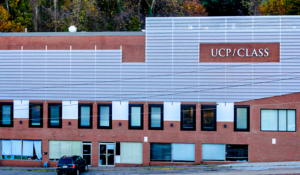

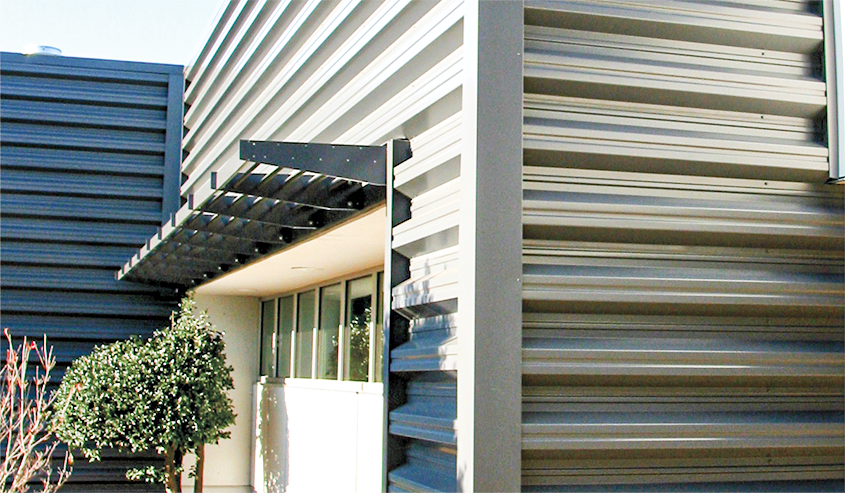

Span Wall is a structural wall panel that offers design freedom for all types of buildings. The panel can be installed horizontally or vertically on solid substrate or spaced framing. The texture is either smooth or stucco embossed. Typical applications for Span Wall are walls, equipment screens and mansards.

Panel Specifications:

  • .032, .040, .050 aluminum
  • 24, 22*, 20, 18 ga. metallic coated steel
  • 24, 22*, 20*, 18* ga. 55% Al-Zn alloy coated steel with acrylic coating
  • 0.8*, 1.0* mm zinc*
  • 16, 20 oz. copper*
  • Width – 24”
  • Length: Cut to customer specifications with a minimum of 6’-0”, maximum to transportation
    limitations and/or product and project design considerations
  • Depth – 4”

Texture:

  • Smooth
  • Stucco embossed

Finish:

  • Choice of over 40 stock colors
  • Natural metals and anodized* finishes available
  • Custom colors available*

Available Features:

  • Perforations

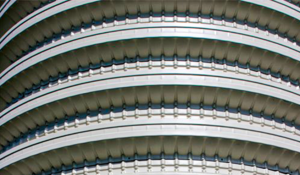

  • Crimp curved (convex and concave)

*Subject to minimum quantities and extended lead time. Inquire for material and panel coverage availability
