Design Wall Reveal
August 26, 2022

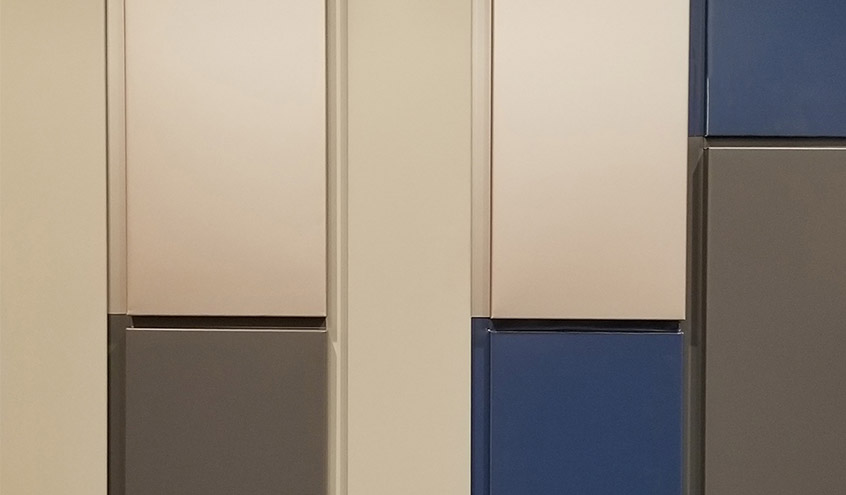

Design Wall™ Reveal is a modular wall panel series designed as a drained and back ventilated (D/BV) assembly. Panels are offered in select widths, depths, and lengths to create a unique appearance.
It is offered as a light gauge alternative to other heavier plate and Metal Composite Metal (MCM) type modular styles.
Design Wall High Pressure Clip can be utilized with this panel.
Product Information
- SKU: DWR, DSR
- Material: .032, .040, .050 aluminum
- Reveal: 1” wide, 1/2” deep (DWR), 1 1/4” deep (DSR)
- Widths: 8”, 10”, 12”
- Custom widths available
- Height: 1 ⅛” (DWR), 1 ¾” (DSR)
- Minimum Length: 3’
- Maximum Length: 15’
- Texture: Smooth, Stucco Embossed, Wood Grain Embossed (DWR only)
- Perforations available
- Choice of over 40 stock colors
- Woodland Series
- Clear Satin and Dark Bronze Anodized
- Custom colors available*
