CastleTop is a 15 3/4″ x 15 3/4″ shingle that covers 13 1/2″ x 13 1/2″.

CastleTop Material Availability:

• .032 aluminum embossed (recommended)
  • ATAS standard colors
• 7 mm zinc
• 16 oz. copper

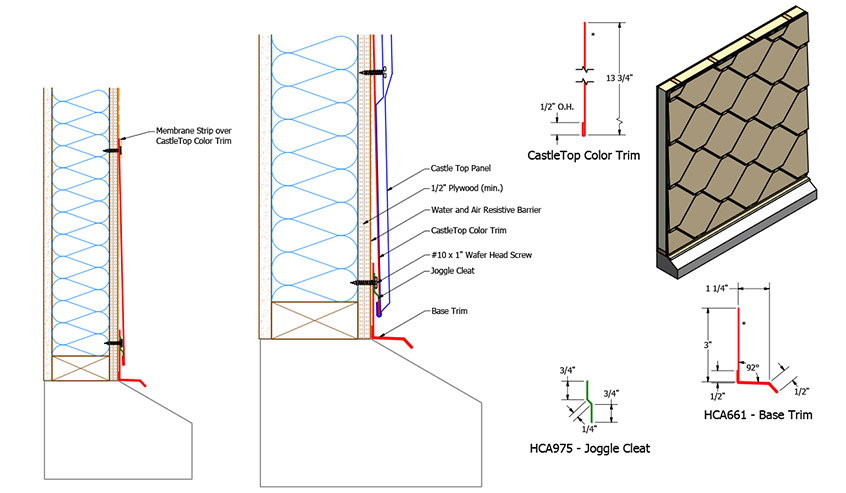

Installation Recommendations:

• Installation starts from the bottom up
• Importance of keeping the installation square and horizontal
• Using the alignment marks and chalk lines throughout installation is crucial
• Three fasteners per panel
