(FLS137, FLS180)
MATERIAL
- .032, .040 ALUMINUM
- 24, 22 GA METALLIC COATED STEEL
- 24GA 55% AL-ZN COATED STEEL WITH ACRYLIC COATING

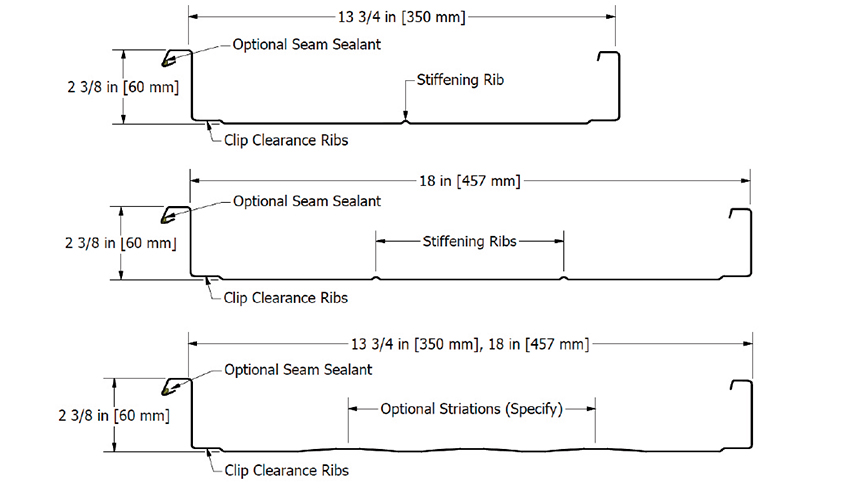

PANEL SPEC
- COVERAGE 13-3/4”, 18”
- STIFFENING RIBS STANDARD, SPECIFY WITHOUT RIBS OR STRIATIONS
- MINIMUM LENGTH: 4’-0”
- MAXIMUM LENGTH: TRANSPORTATION LIMITATIONS, PRODUCT/PROJECT CONSIDERATIONS
- SEAM HEIGHT: 2-3/8”
PRODUCT INFO
- FACTORY PANEL PRE-NOTCHING AVAILABE
- SMOOTH OR STUCCO EMMOSSED
- MINUMUM SLOPE ½:12
- 70% PVDF – 40 STOCK COLORS
- FLORIDA BUILDING PRODUCT APPROVAL: FL 3556.3
- MCA CERTIFICATION: 0057FLS
