Span Wall

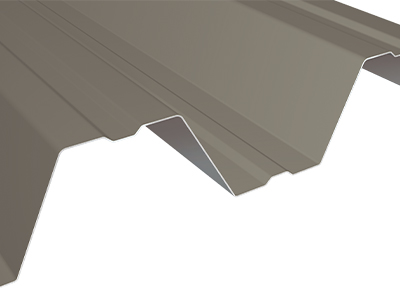

Span Wall™ is a structural wall panel that offers design freedom for all types of buildings. The panel can be installed horizontally or vertically on solid substrate or spaced framing. The texture is either smooth or embossed, depending on gauge of material. Typical applications for Span Wall are walls, equipment screens, and mansards.

You can also enhance aesthetics of Span Wall™ by using factory fabricated Elite Series, including the Z Box shown.

Download Product Brochure

BIM Model

Download BIM File

Virtual Meeting

Request Meeting with Rep

PRODUCT INFO

SKU:

BWS240

Material:

.032, .040, .050 aluminum
24, 22*, 20, 18 ga. metallic coated steel
24, 22*, 20*, 18* ga. 55% Al-Zn coated steel with acrylic coating
16, 20 oz. copper*
0.8, 1.0 mm zinc*

Panel Coverage:

24″

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

4″

Texture:

Smooth
Stucco Embossed

Perforations Available:

Yes

Curving Available:

Crimp-Curved (convex and concave)

Finish:

70% PVDF, Anodized

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate

PDF File Format - Vertical Application - Solid Substrate

PDF File Format - Horizontal Application - Open Framing

PDF File Format - Vertical Application - Open Framing

DWG File Format - Horizontal Application - Solid Substrate

DWG File Format - Vertical Application - Solid Substrate

DWG File Format - Horizontal Application - Open Framing

DWG File Format - Vertical Application - Open Framing

GALLERY

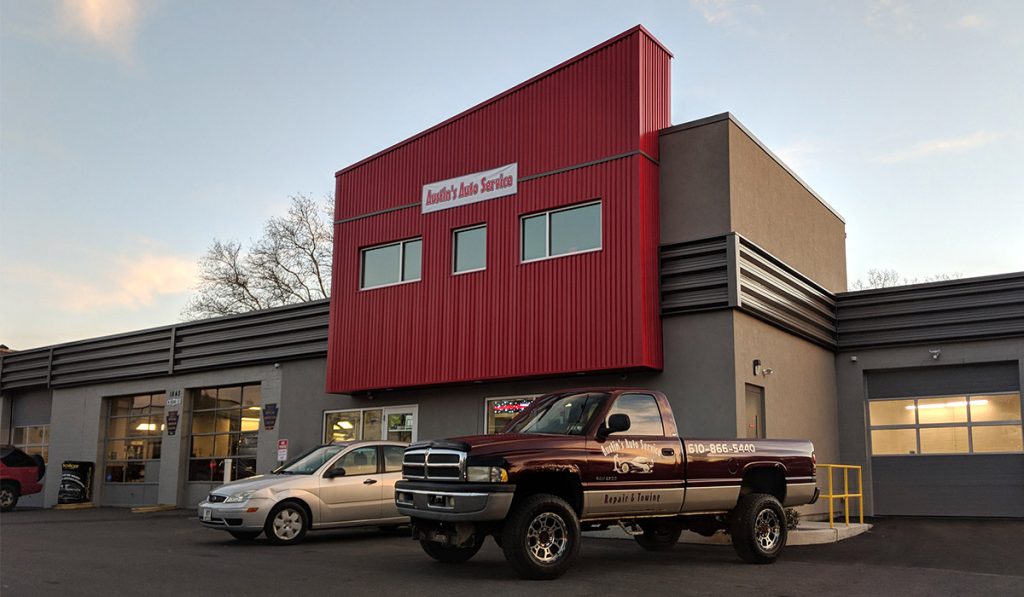

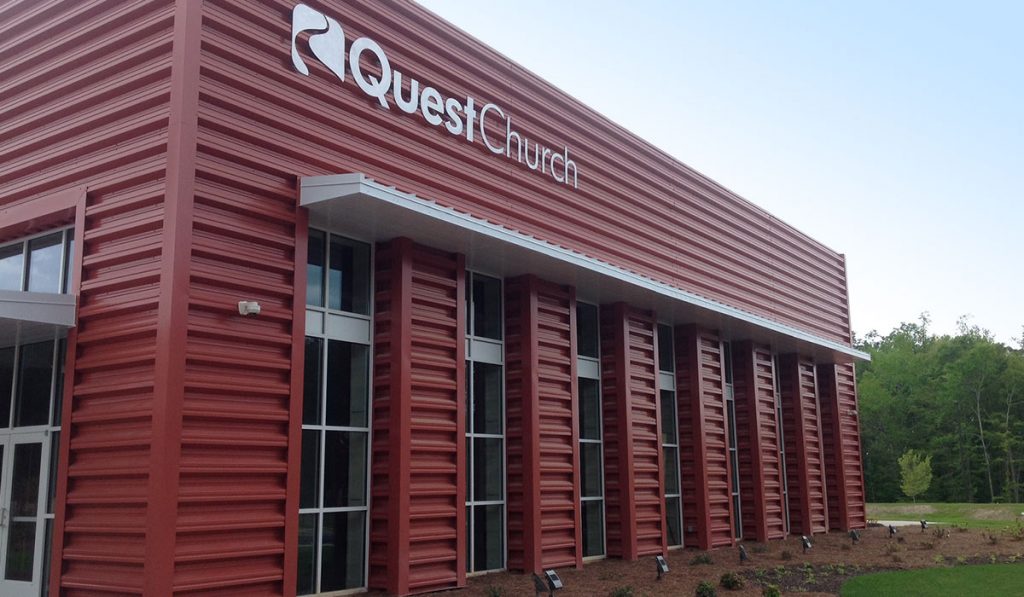

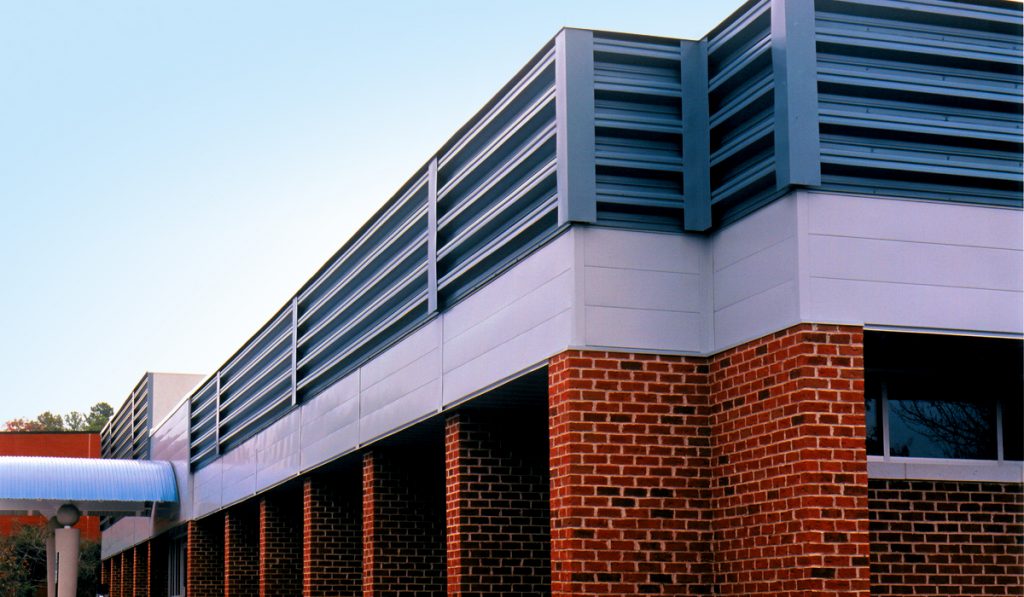

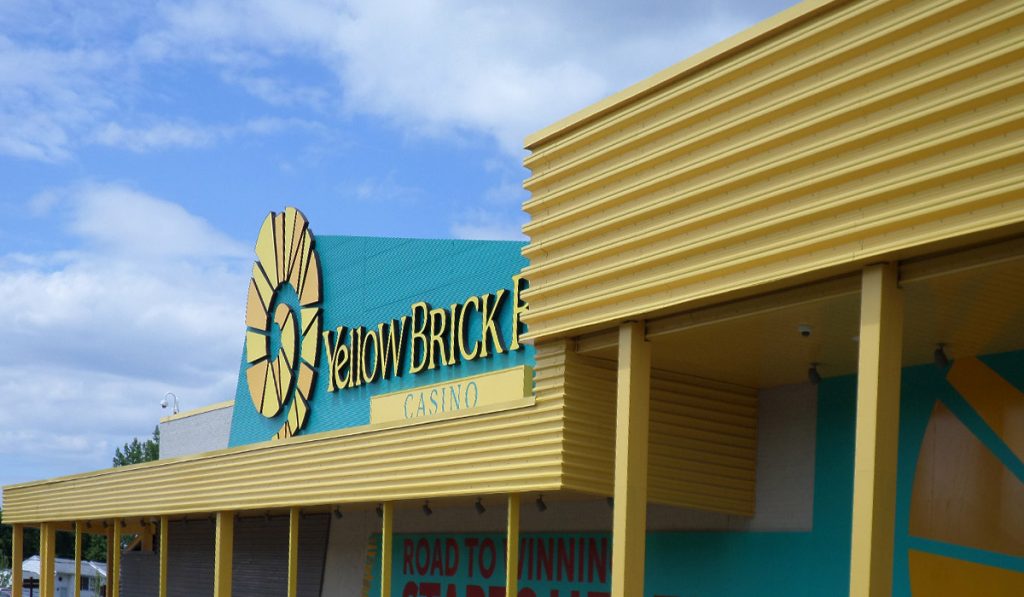

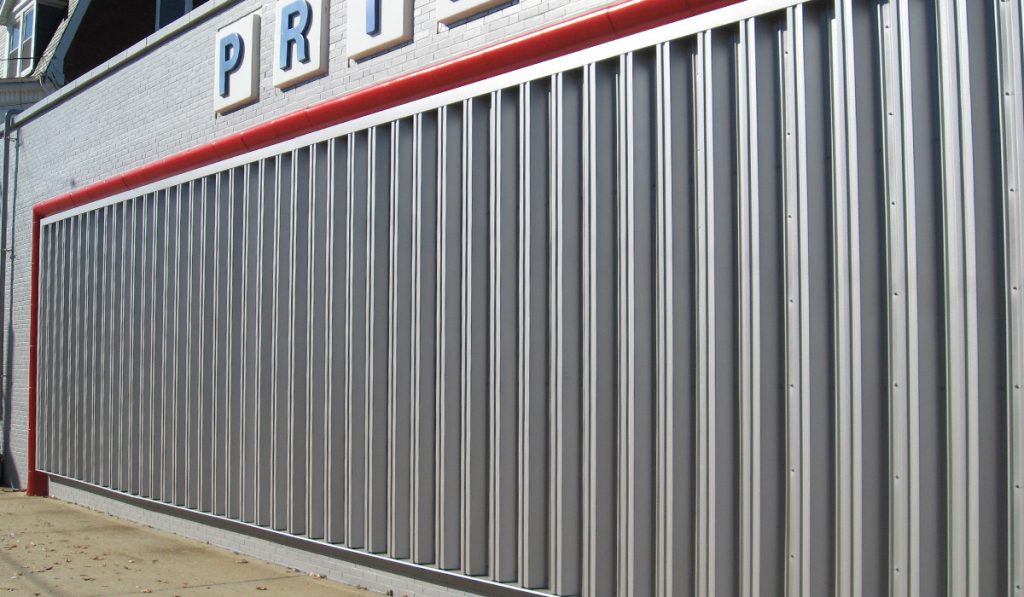

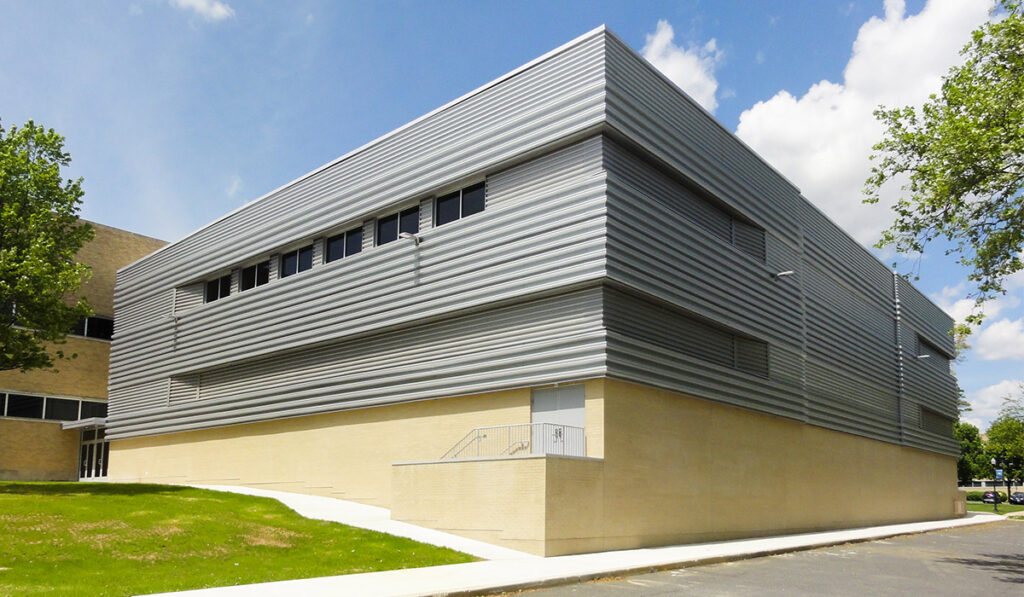

DOCUMENTS

Belvedere Series Product Brochure

Span Wall Spec Data Sheet

ATAS Color Chart

Span Wall Load Table

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

SRI Values Chart

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

Color Chart Color & Material Availability
