Crimp Curved Span Wall

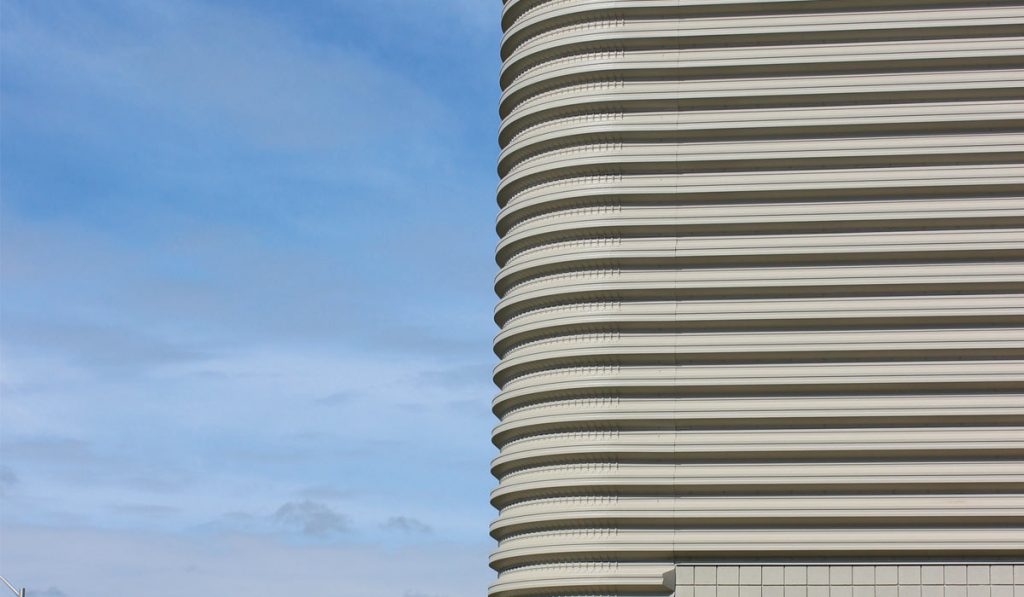

Span Wall™ is a structural wall panel that offers design freedom for all types of buildings. The panel can be installed horizontally or vertically on solid substrate or spaced framing. The texture is either smooth or embossed, depending on gauge of material. Typical applications for Span Wall™ are walls, equipment screens and mansards. Curved trims available.

Line Drawing
Product Info
CAD Details
Gallery
Documents

Line Drawing

Product Info

SKU:

BWS240

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating

Panel Coverage:

24″

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

4″

Curving Parameters:

24″ W x 4″ D x 12″ Pitch
Convex and/or Concave
4 ft O.S. rad. min. 24 ga.
6 ft O.S. rad. min. 22 ga.
10 ft O.S. rad. min. 24 ga.
15 ft O.S. rad. min. 18 to 20 ga.

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Accessories:

A complete line of curved trims available in matching colors, gauge and finish or as specified.

View the list of Crimp Curved Accessories.

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
