Belvedere 6″ Short Rib

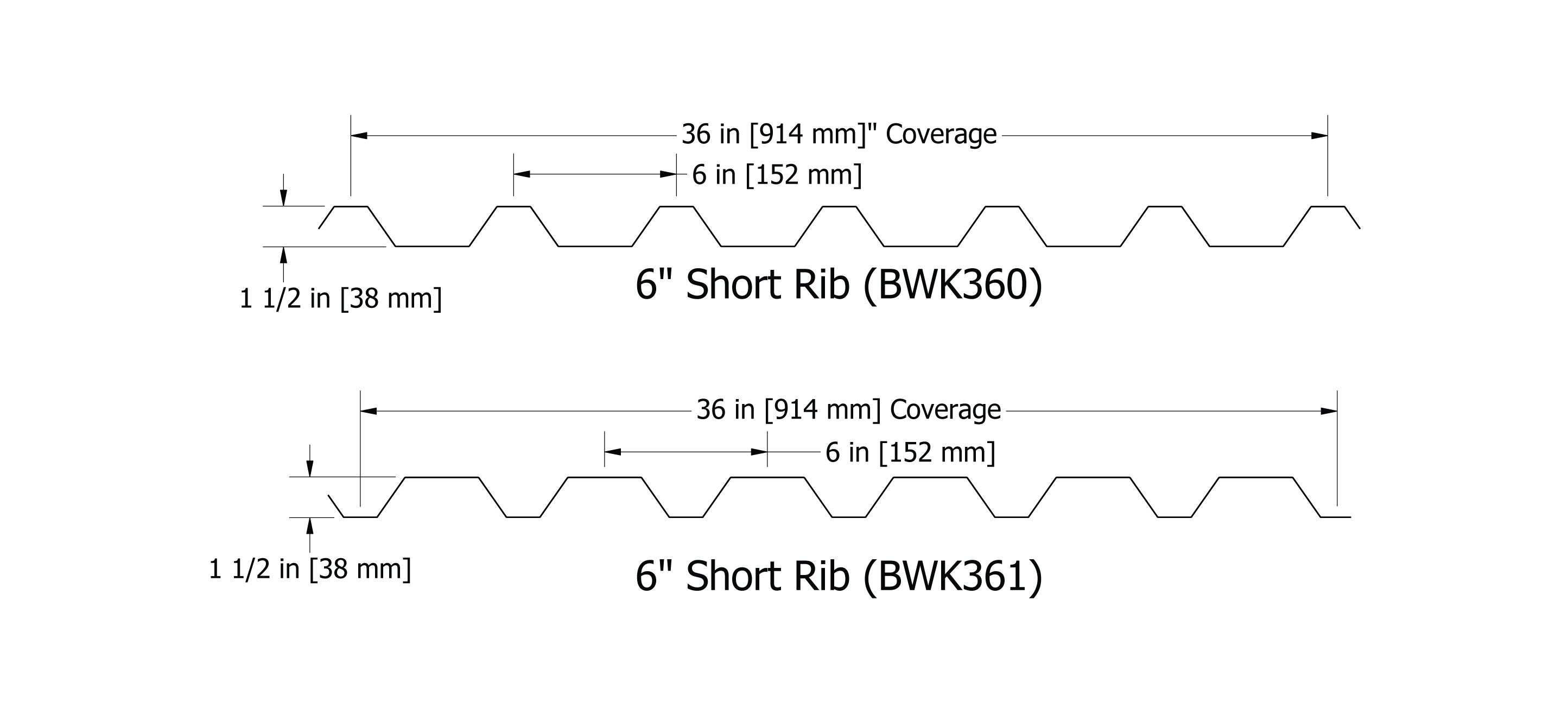

Belvedere™ 6″ Short Rib wall panels are structural in nature and can be installed either on solid substrate or open framing. The Belvedere™ 6″ Short Rib wall panel is a 1½” deep ribbed panel that features six broad low and six narrow high cells. This panel can be installed horizontally and vertically with exposed fasteners.

You can also enhance aesthetics of Belvedere™ 6″ Short Rib by using factory fabricated Elite Series, including the Z Box and Closure Angle shown.

Download Product Brochure

BIM Model

Download BIM Files

Virtual Meeting

Request Meeting with Rep

PRODUCT INFO

SKU:

BWK360

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn coated steel with acrylic coating

Panel Coverage:

36″

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

1½”

Texture:

Smooth
Stucco Embossed

Perforations Available:

Yes

Curving Available:

Crimp-Curved (convex & concave)

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate

PDF File Format - Vertical Application - Solid Substrate

PDF File Format - Horizontal Application - Open Framing

PDF File Format - Vertical Application - Open Framing

DWG File Format - Horizontal Application - Solid Substrate

DWG File Format - Vertical Application - Solid Substrate

DWG File Format - Horizontal Application - Open Framing

DWG File Format - Vertical Application - Open Framing

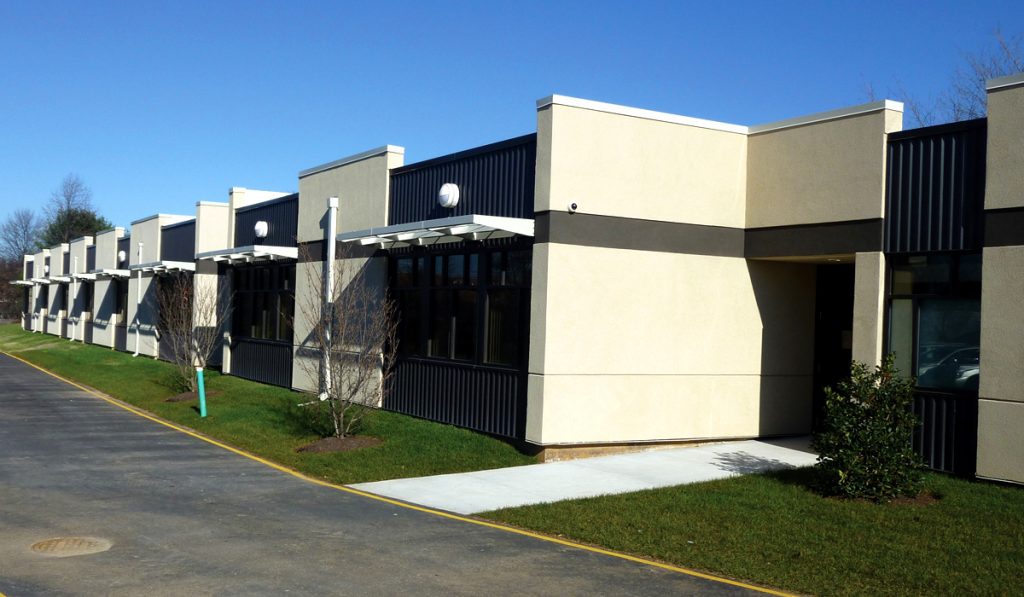

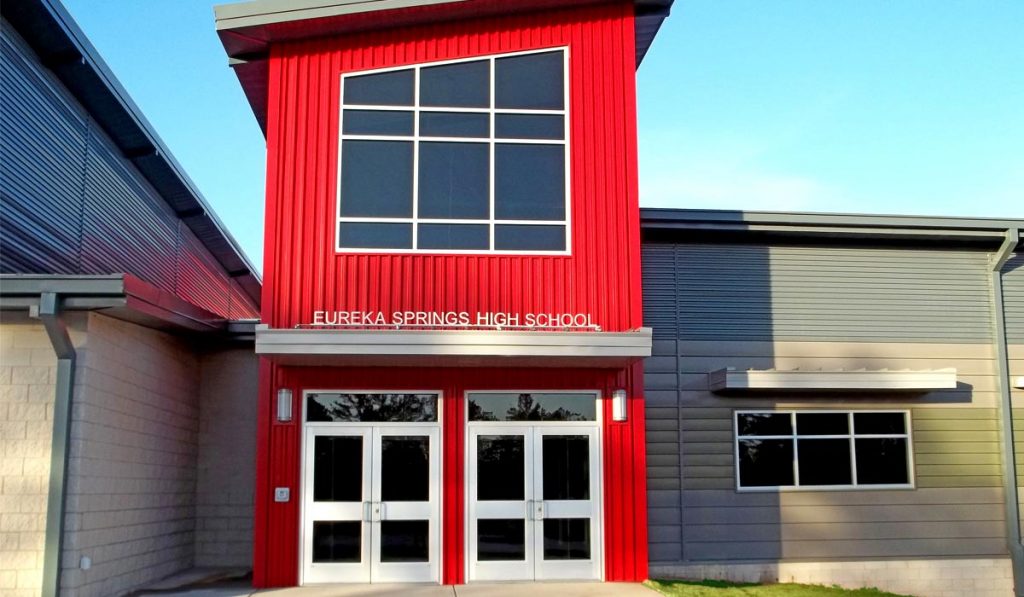

GALLERY

DOCUMENTS

Belvedere 6" Short Rib Product Brochure

Belvedere 6" Short Rib Spec Data Sheet

ATAS Color Chart

Belvedere 6" Short Rib Load Table

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

Color Chart Color & Material Availability
