Metafor

Panel Details:

Overview

Interlock

Perforated

Z Box

Closure Angle

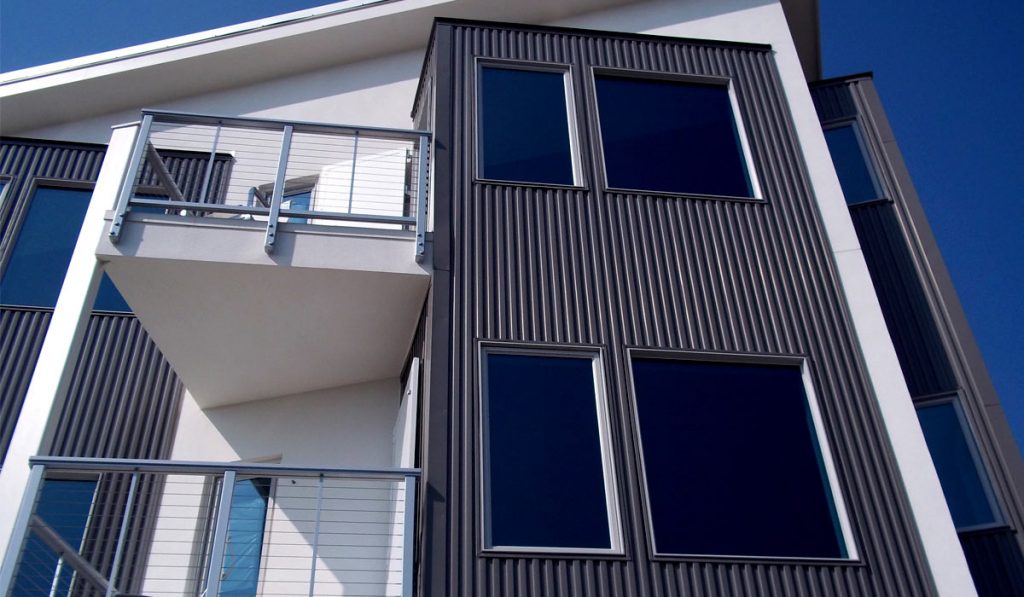

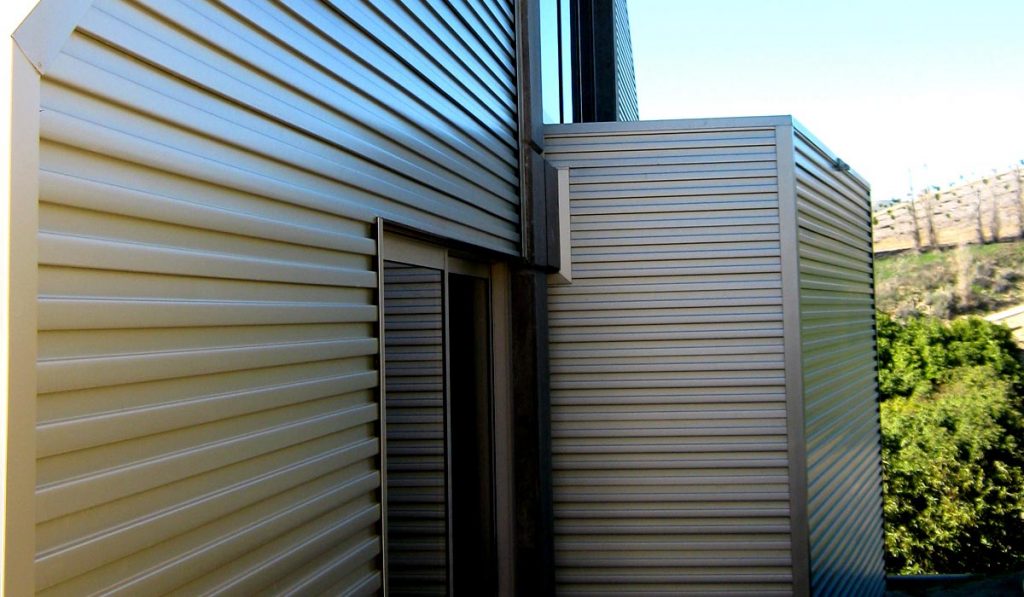

Metafor™ is a structural panel with a ribbed appearance and a concealed fastening system. The architectural ribbed panel has 4-up, 4-down ribs. The texture of the panel is either smooth or stucco embossed. Metafor™ may be installed horizontally or vertically. This panel is lightweight, but it also is strong. Metafor™ panels have the Wind-Lok^® interlock which guards against wind-driven rain and wind uplift. This interlock also allows the Metafor™ panels to be combined with Corra-Lok™, the Multi-Purpose™ system, and Rigid Wall II™ for the ability to create interesting patterns and breaks. It can be applied directly to solid decking or open framing. Typical applications for this panel are walls, ceilings, fascias, mansards, equipment screens and soffits. It may also be used for walkways, balconies, entrances and vestibules.

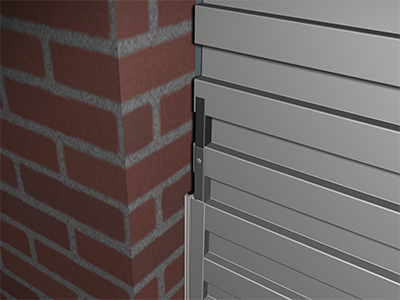

You can also enhance aesthetics of Metafor™ by using factory fabricated Elite Series accessories, including the Z Box and Closure Angle shown.

Florida Building Product Approval: FL 30777.3

Download Product Brochure

BIM Model

Download BIM File

Virtual Meeting

Request Meeting with Rep

PRODUCT INFO

SKU:

MFP120

Material

.032, .040, .050 aluminum
16, 20 oz. copper*
.8, 1.0 mm zinc*
.0197 classic & tin matte stainless steel*

Panel Coverage:

12”

Minimum Panel Length:

3′

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

⅝”

Panel Options:

Curved
Perforated

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Florida Building Code Approval:

FL 30777.3

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate

PDF File Format - Vertical Application - Solid Substrate

PDF File Format - Horizontal Application - Open Framing

PDF File Format - Vertical Application - Open Framing

DWG File Format - Horizontal Application - Solid Substrate

DWG File Format - Vertical Application - Solid Substrate

DWG File Format - Horizontal Application - Open Framing

DWG File Format - Vertical Application - Open Framing

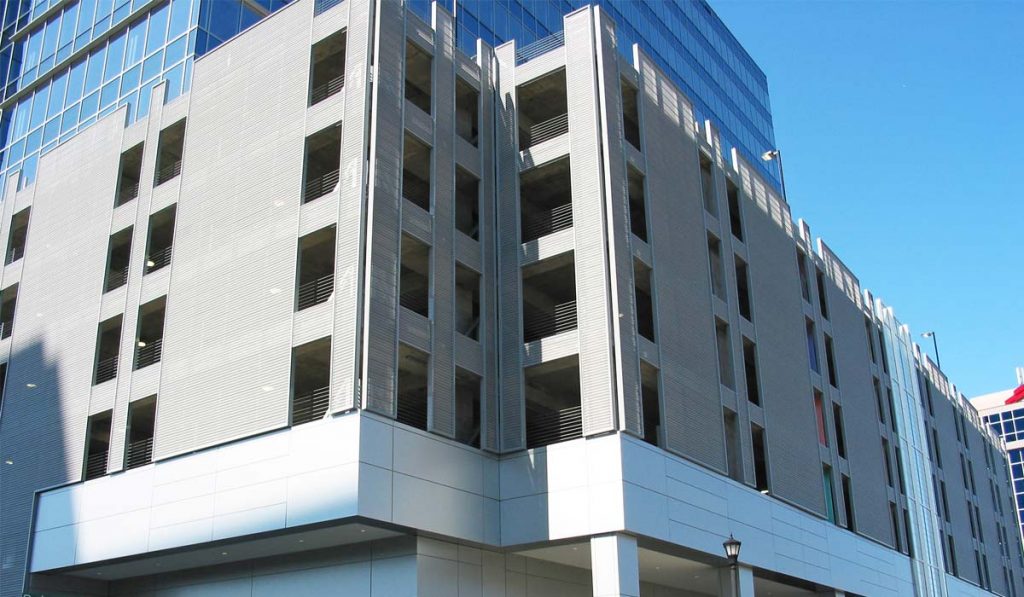

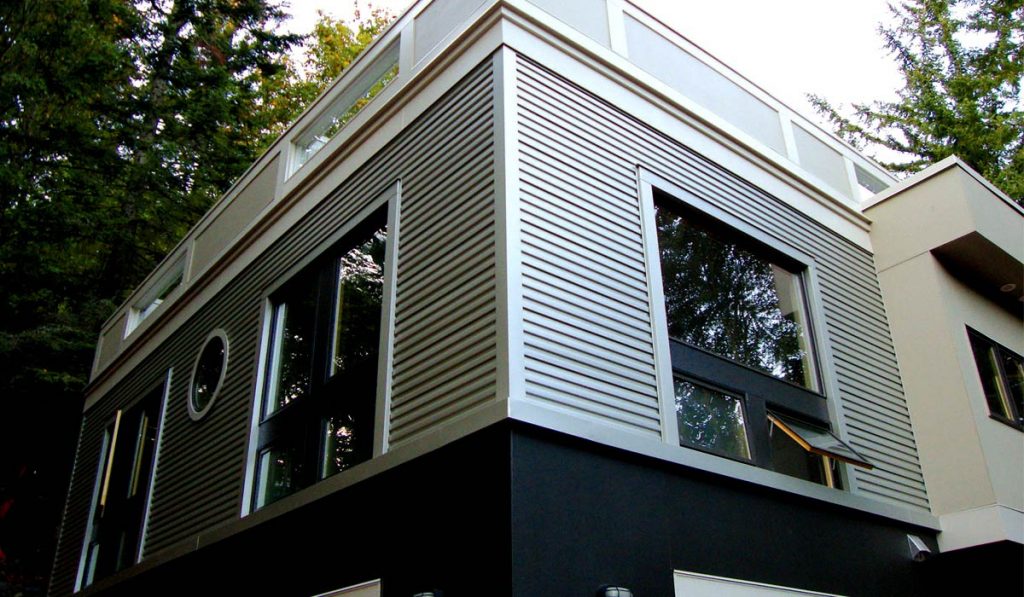

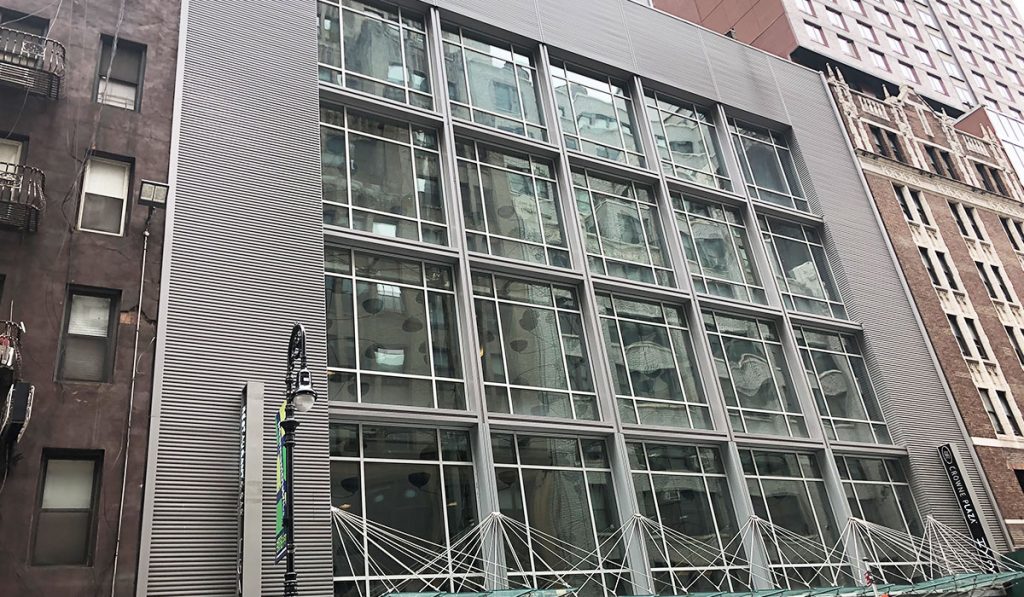

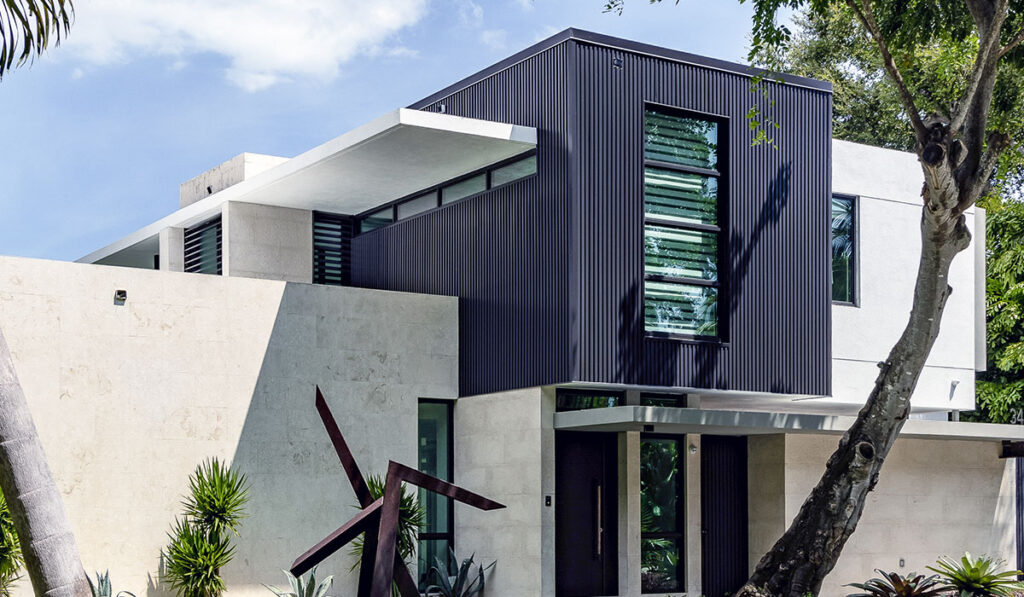

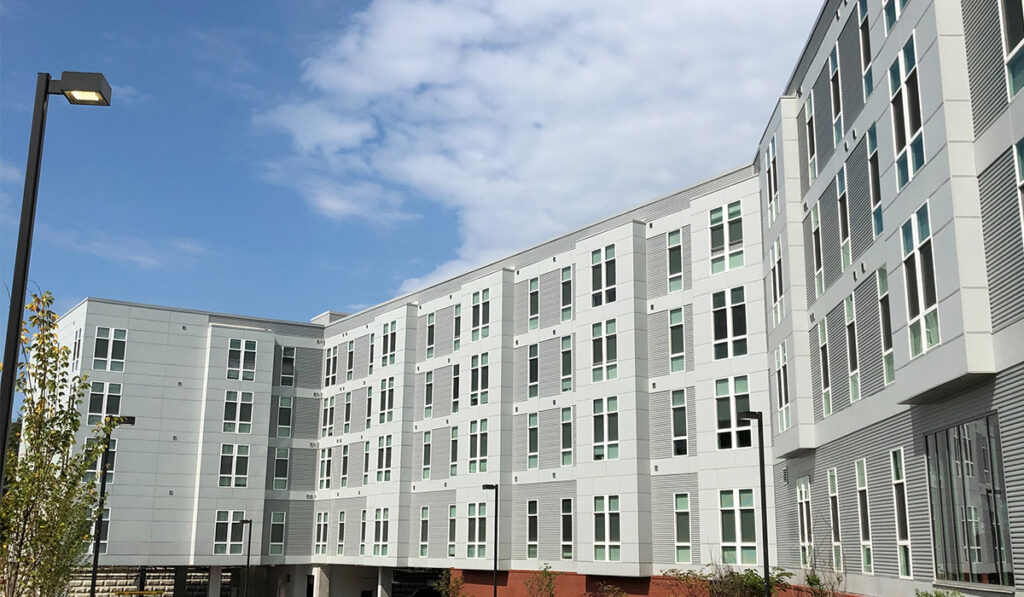

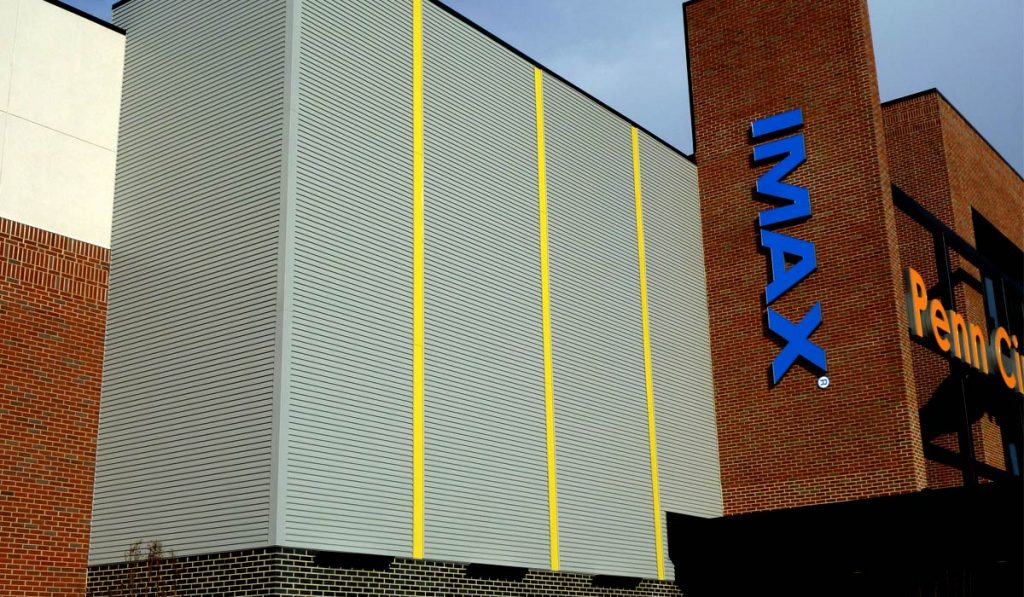

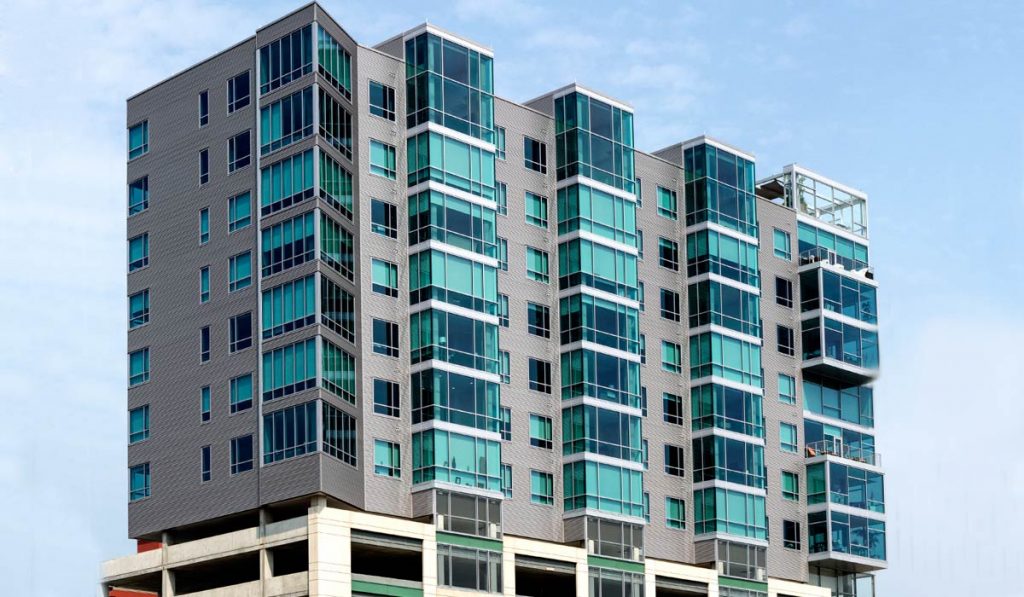

GALLERY

DOCUMENTS

Metafor Product Brochure

Metafor Spec Data Sheet

ATAS Color Chart

Metafor Load Table

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

Florida Building Code Approval

ASTM E330 Testing (aluminum)

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

Color Chart Color & Material Availability
