Arc-Metafor

Arc-Metafor™ is a 12” structural ribbed panel with Wind-Lok™ fastening system in convex or concave form. It is an architectural ribbed panel with 4-up, 4-down ribs. The panel is available in .032 aluminum in over 30 stock colors, as well as clear satin and dark bronze anodized. The Arc-Metafor™ panel can be installed in a vertical or horizontal fashion.

PRODUCT INFO

SKU:

MFX120 (convex)
MFV120 (concave)

Material:

.032 aluminum

Panel Coverage:

12″

Minimum Panel Length:

4’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

⅝”

Minimum Radius:

MFX120: 5’-9”
MFV120: 10’-0”

Texture:

Smooth
Stucco Embossed

Perforations Available:

Yes

Finish:

70% PVDF

Colors:

Choice of over 35 stock colors
Custom colors in PVDF and anodized finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

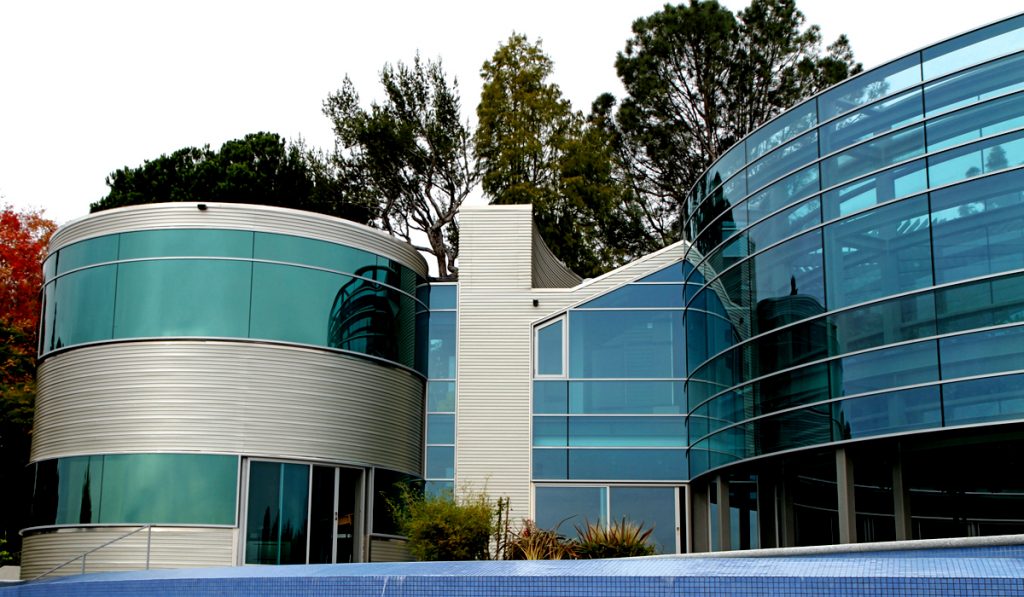

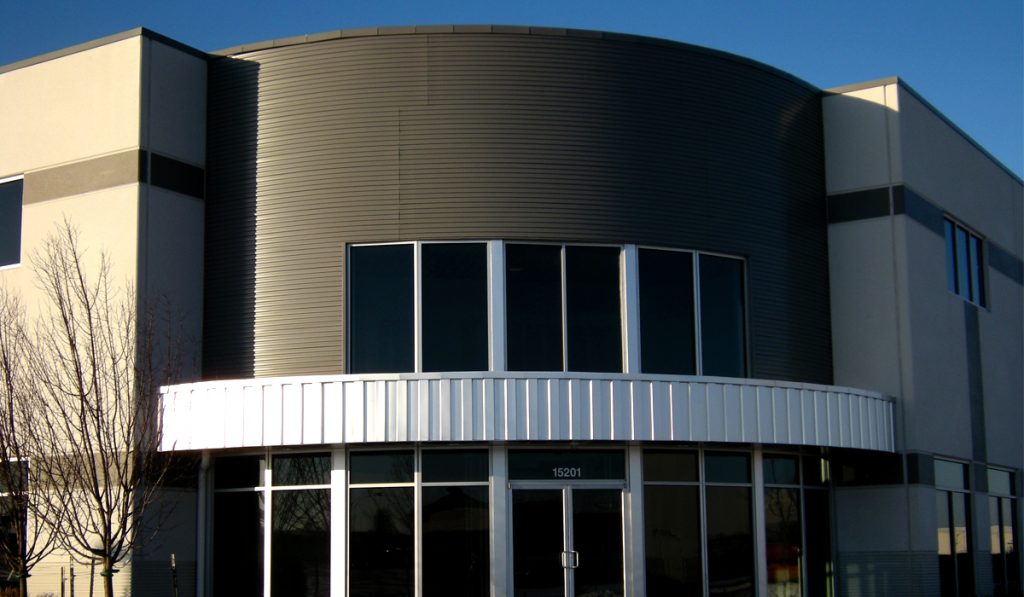

GALLERY

DOCUMENTS

Arc-Metafor Product Brochure

Metafor Spec Data Sheet

Arc-Metafor Worksheet

Arc-Metafor Load Table

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

ATAS Color Chart

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

Color Chart Color & Material Availability
