PC System | Standing Seam

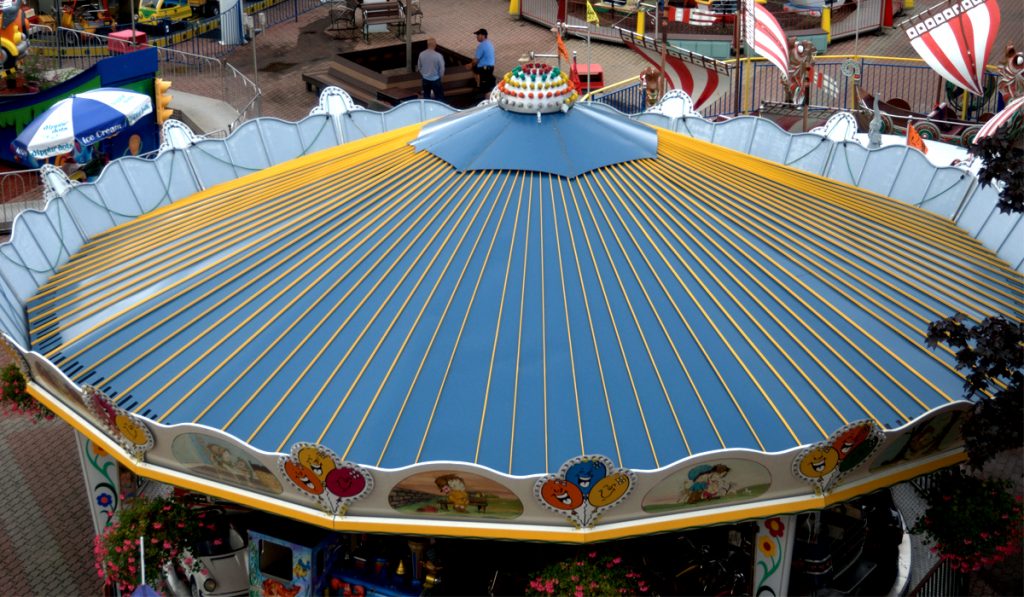

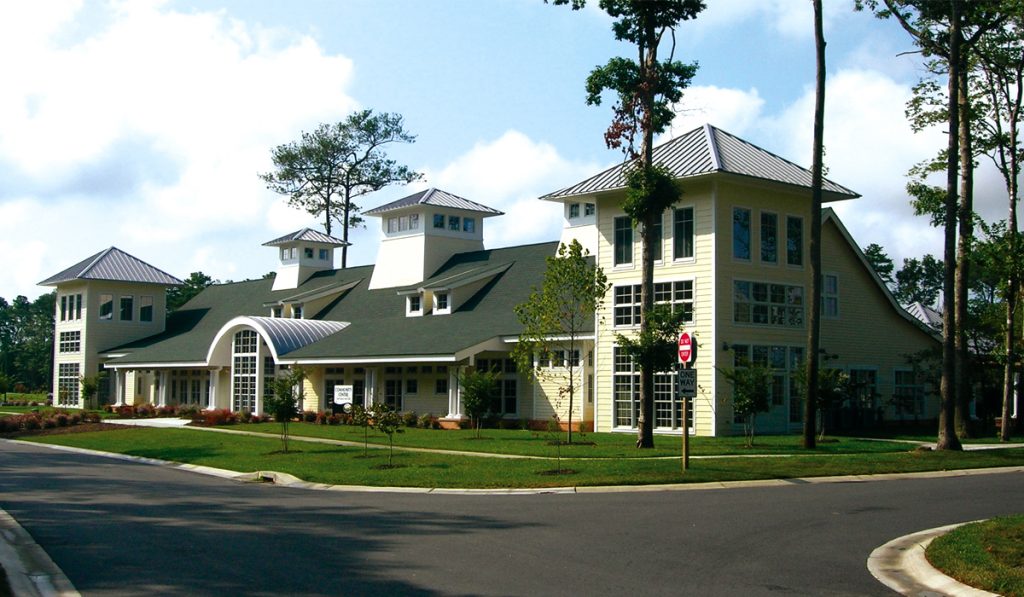

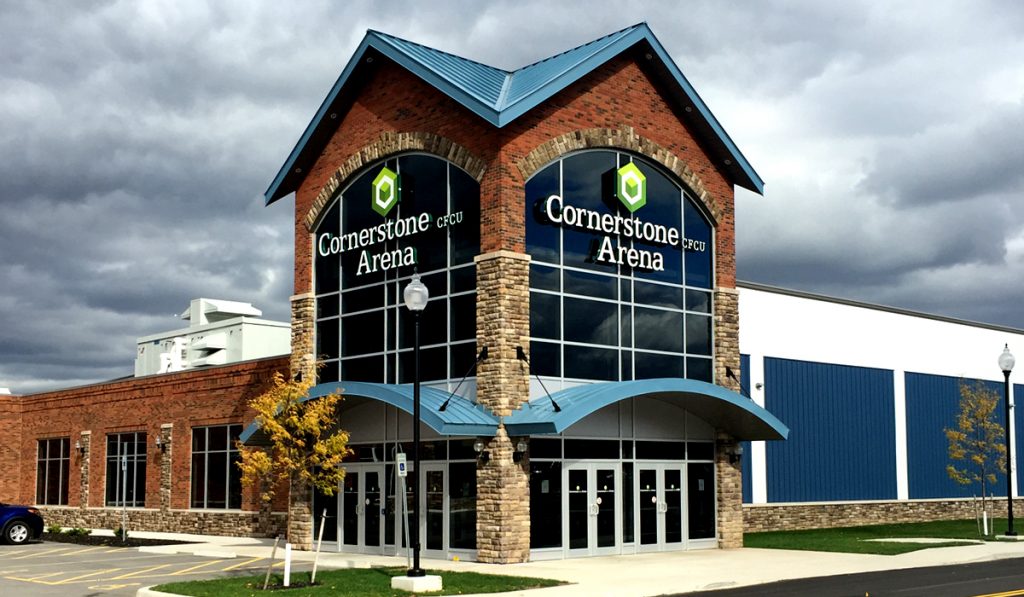

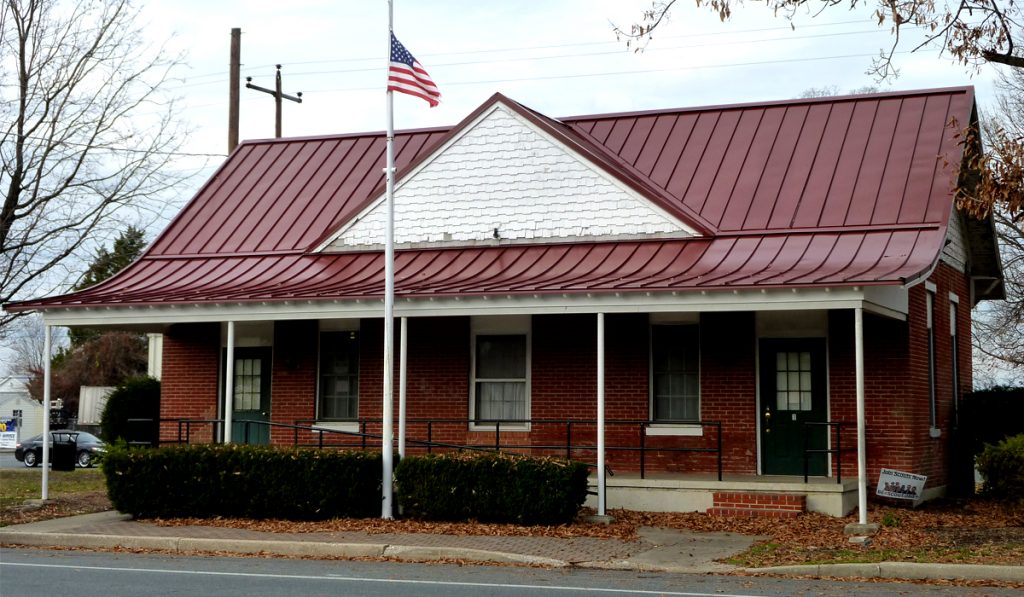

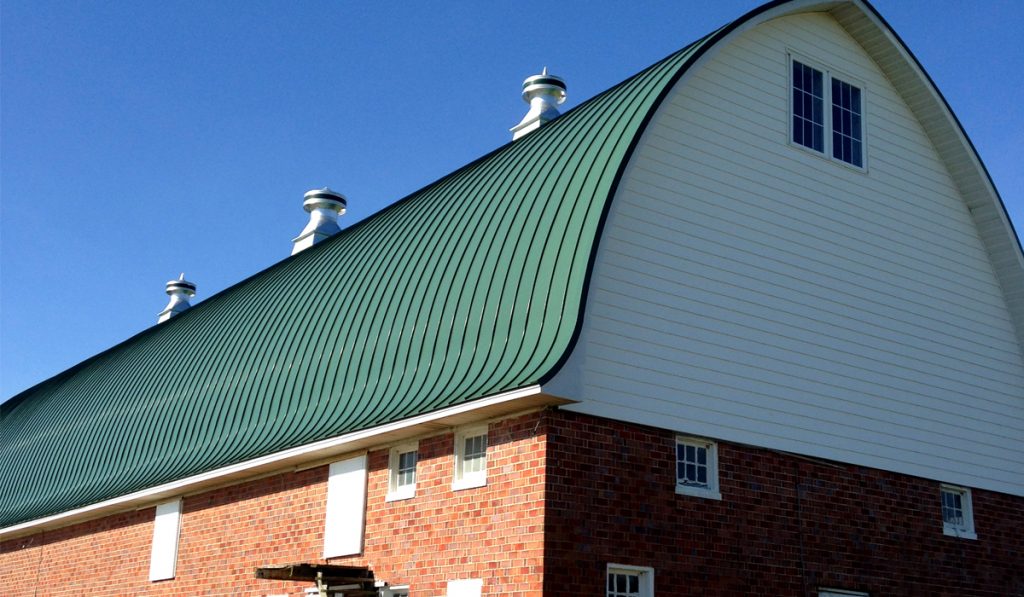

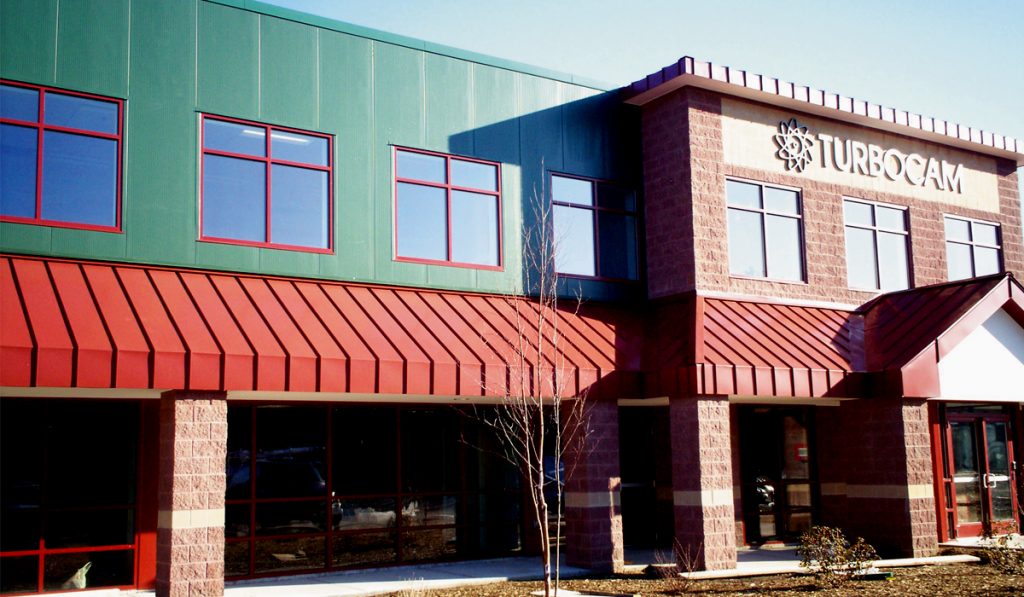

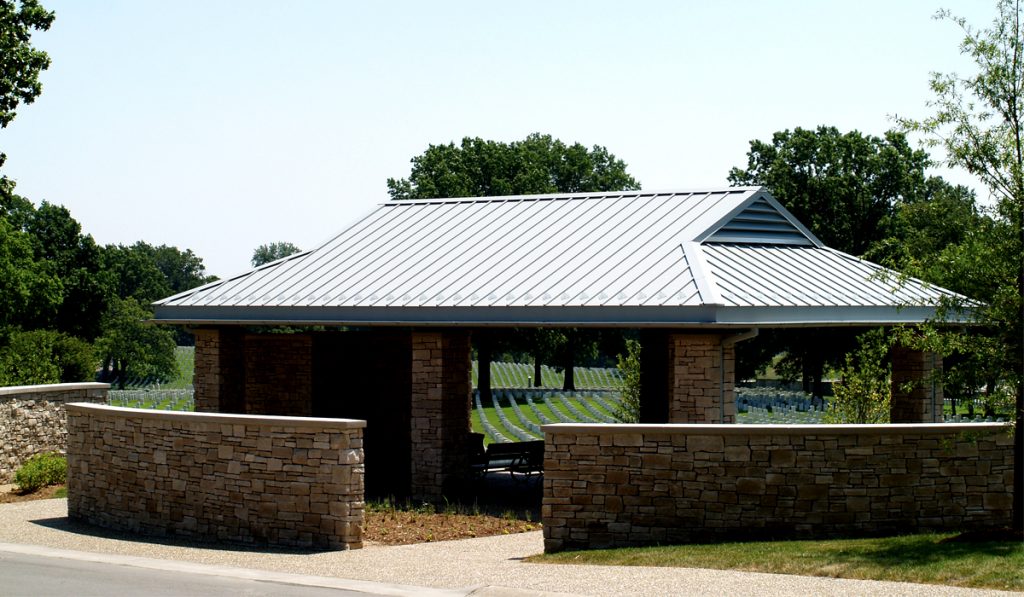

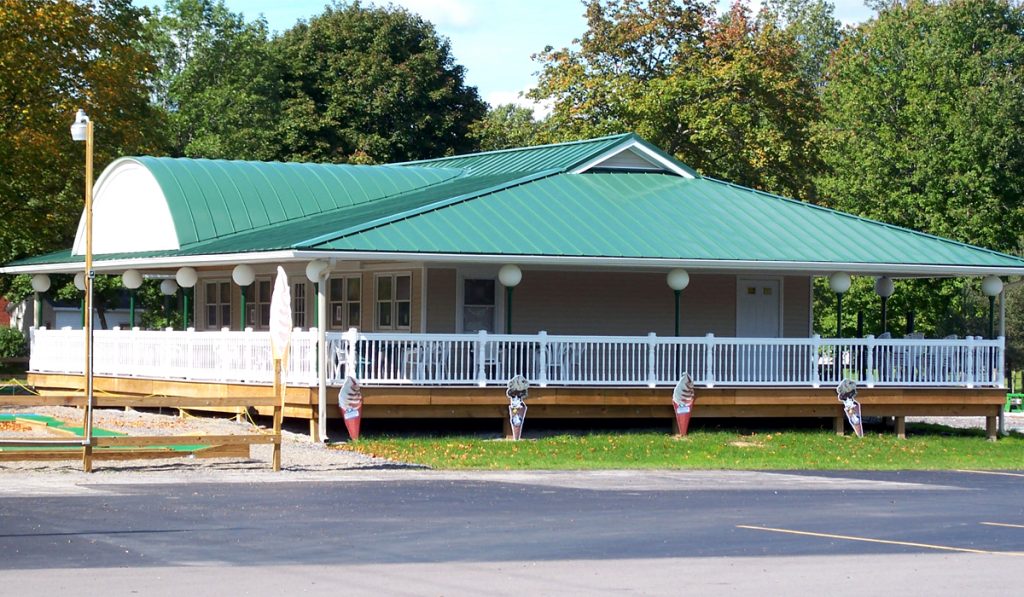

The PC™ Systems consist of three parts, the pan, a separate seam or batten, and a clip. The seam is snapped over the clips concealing the fastening system. With the batten style, the system is installed with a spacer clip and is snapped in place. The PC™ Systems are not structural panels and must be applied to a solid substrate. PC™ System panels can be used for tapered and curved installations.

PCP110
PCP120
PCP150
PCP999
PCS114
PCP147
.032, .040 aluminum
24, 22* ga. metallic coated steel
16 oz. copper* (PCP147 only)
24 ga. 55% Al-Zn alloy coated steel with acrylic coating
11¼”
12⅝”
14⅝”*
15¼”
Custom widths available*
*Copper and Dark Bronze Anodized Only
2’-0”
Transportation limits and/or product and project design considerations
1″
Smooth
Stucco Embossed
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
Clear Satin
Dark Bronze
A complete line of trims available in matching colors, gauge, and finish or as specified
3:12
0057PCP
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
