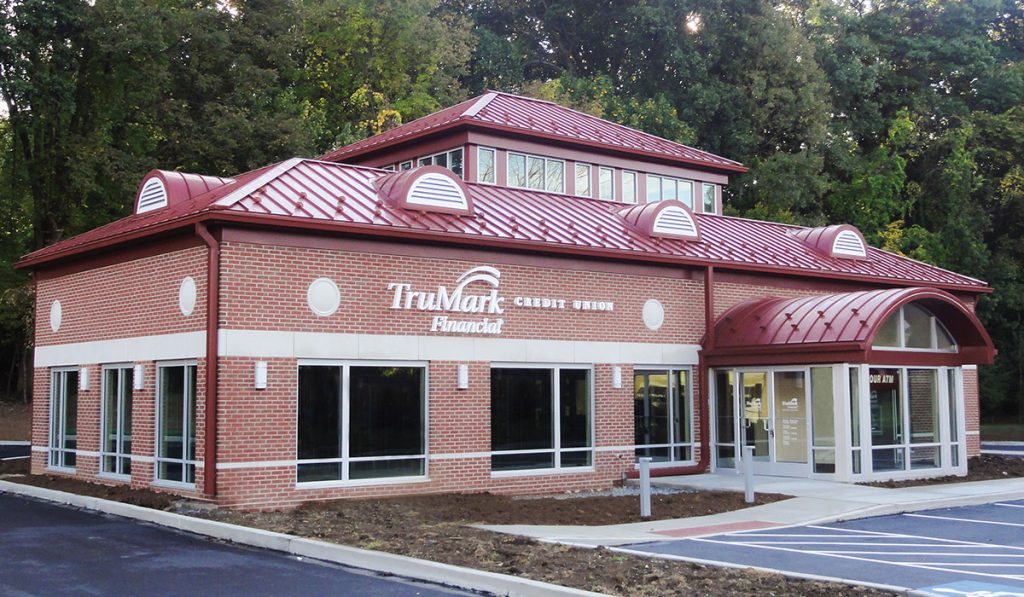

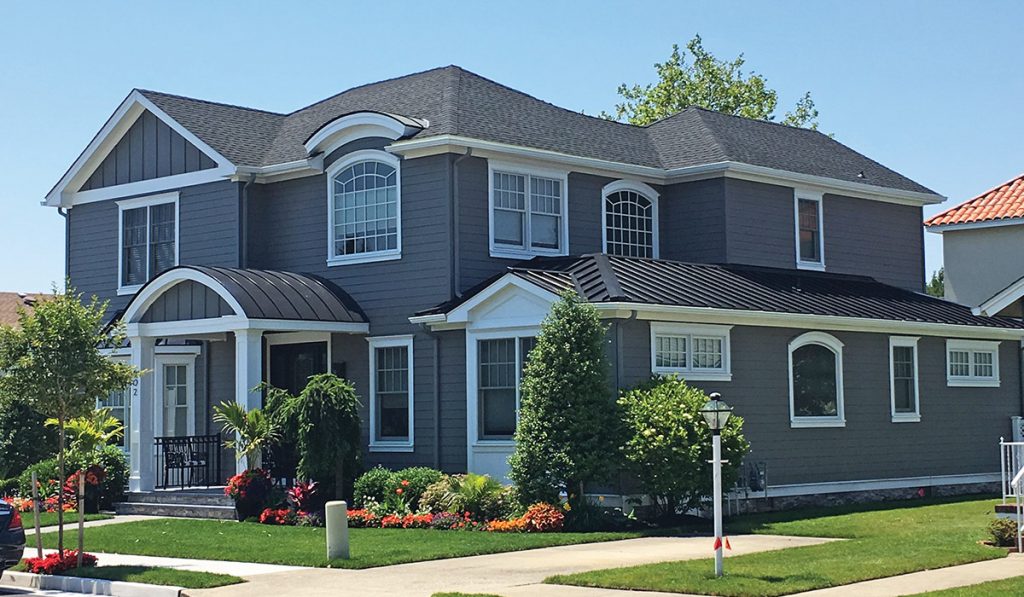

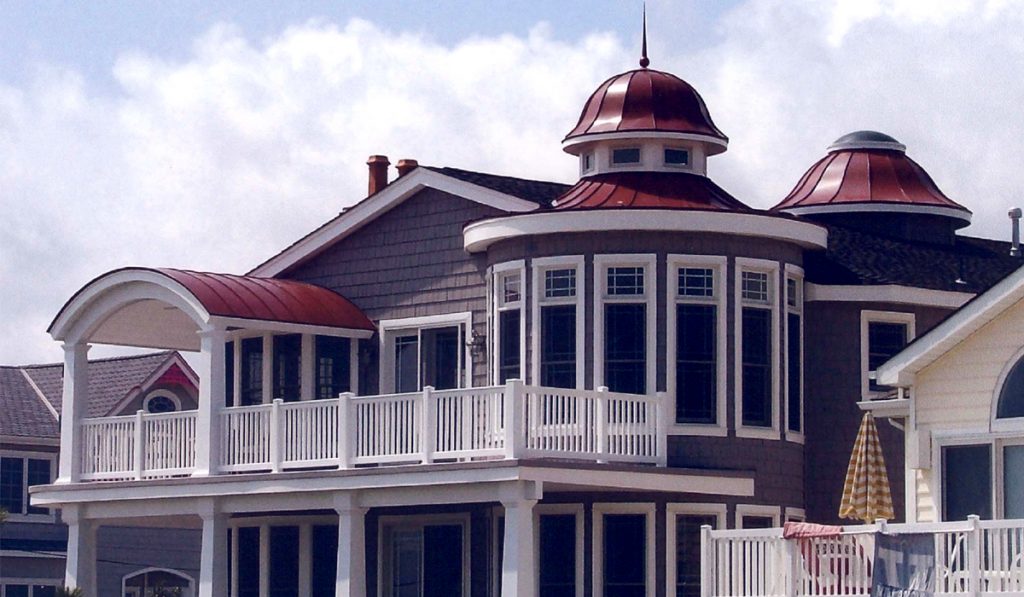

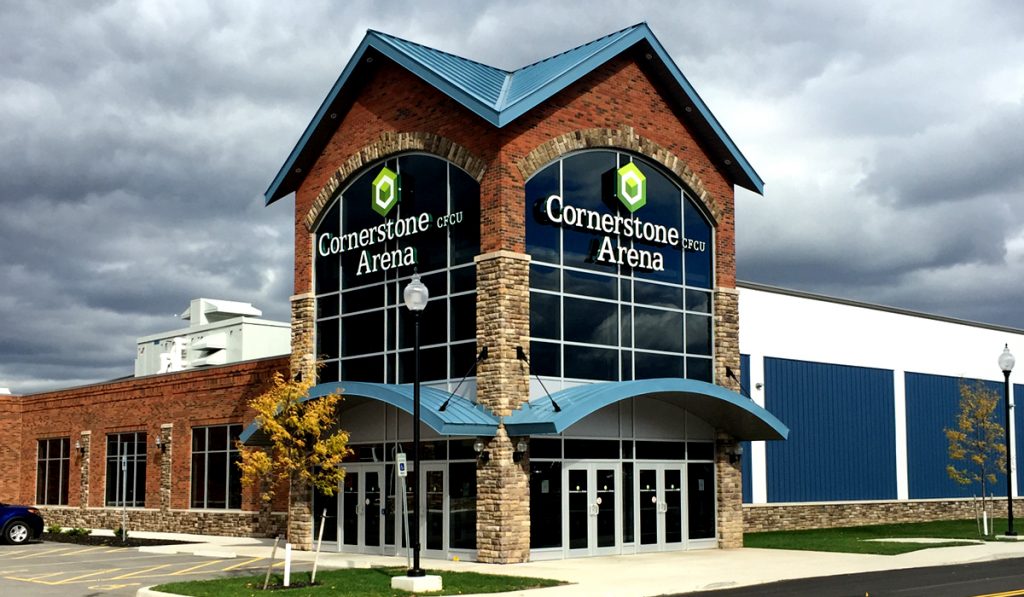

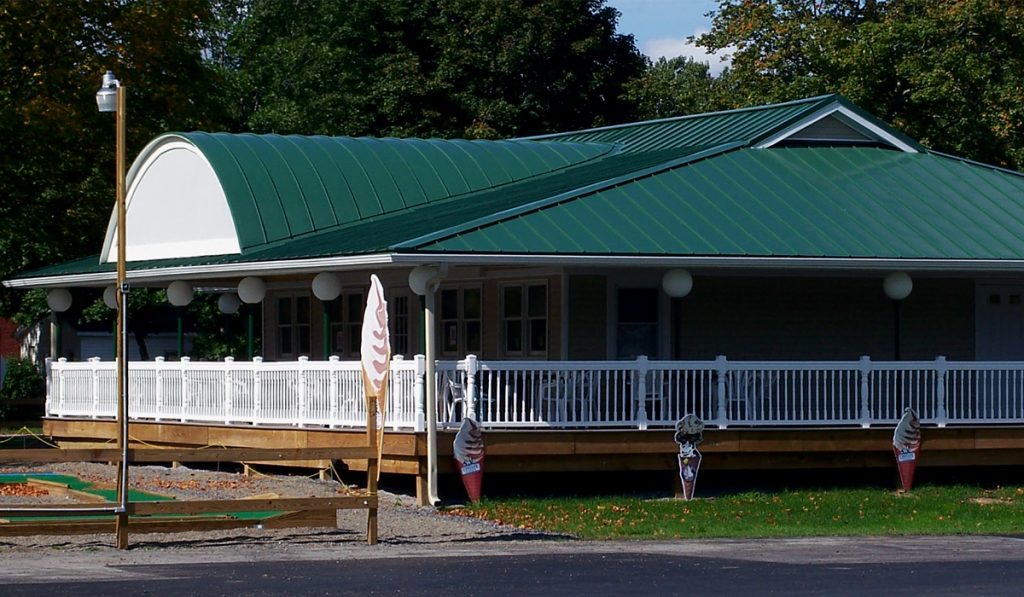

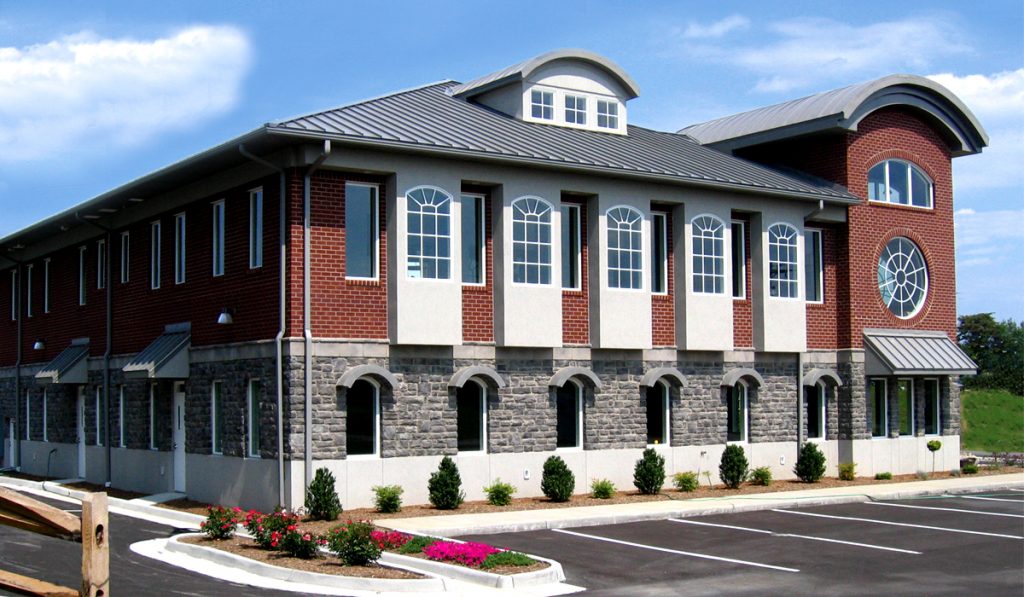

Curved PC™ System is a non-structural standing seam panel consisting of a snap-on seam with concealed clip and fastener system. The panel comes in 11¼”, 12⅝”, 14¾” (copper and Dark Bronze Anodized only) and 15¼” standard widths. Custom widths are available. The panel system can be curved in concave or convex styles. Choice of smooth or embossed finish with a selection of over 30 stock colors. Base metal is 24 gauge metallic coated steel, .032 or .040 aluminum with a 70% PVDF coating, and copper. Curved trims available.

PRODUCT INFO
SKU:

PCX
PCV

Material:

.032, .040 aluminum
24, 22* ga. metallic coated steel
16 oz. copper*^
24 ga. 55% Al-Zn alloy coated steel with acrylic coating

Panel Coverage:

11¼”
12⅝”
14⅝”*
15¼”
Custom widths available
*Copper and Dark Bronze Anodized Only

Minimum Panel Length:

3’-0”

Maximum Panel Length:

Transportation limits and/or product and project design considerations

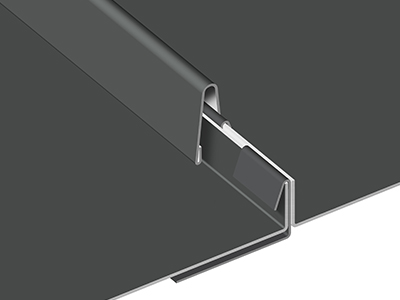

Seam Height:

1″

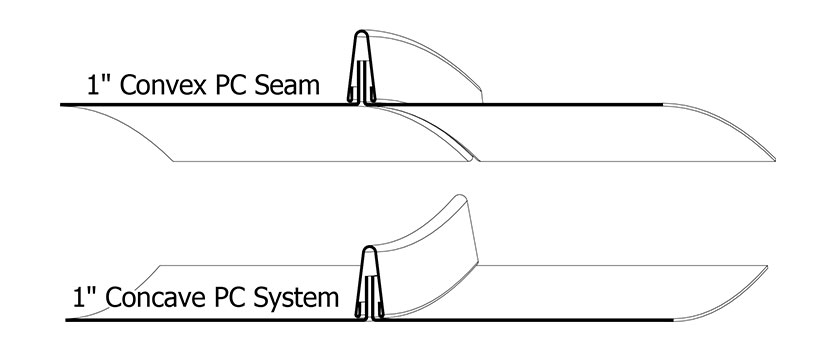

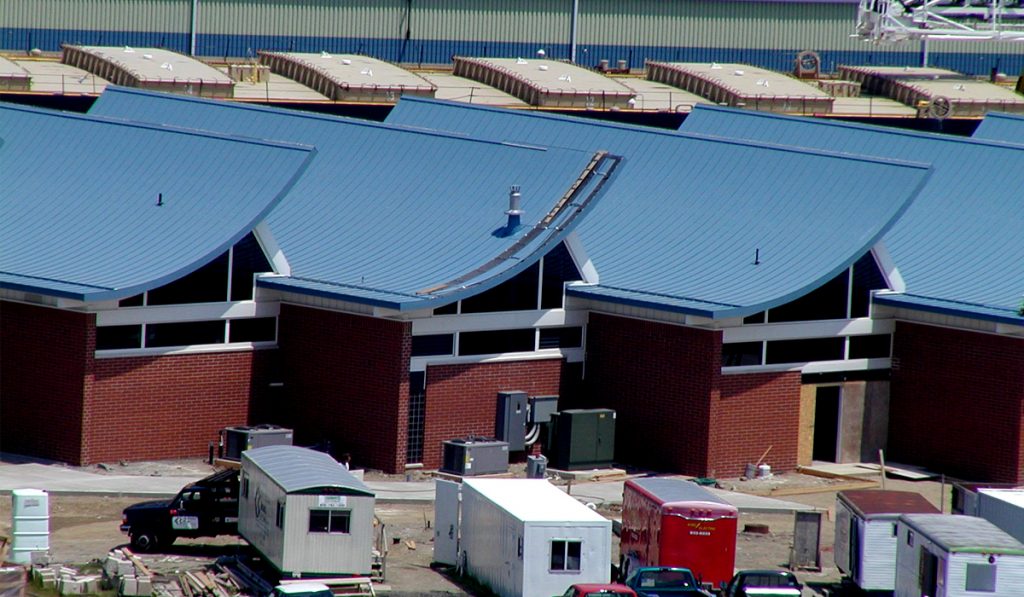

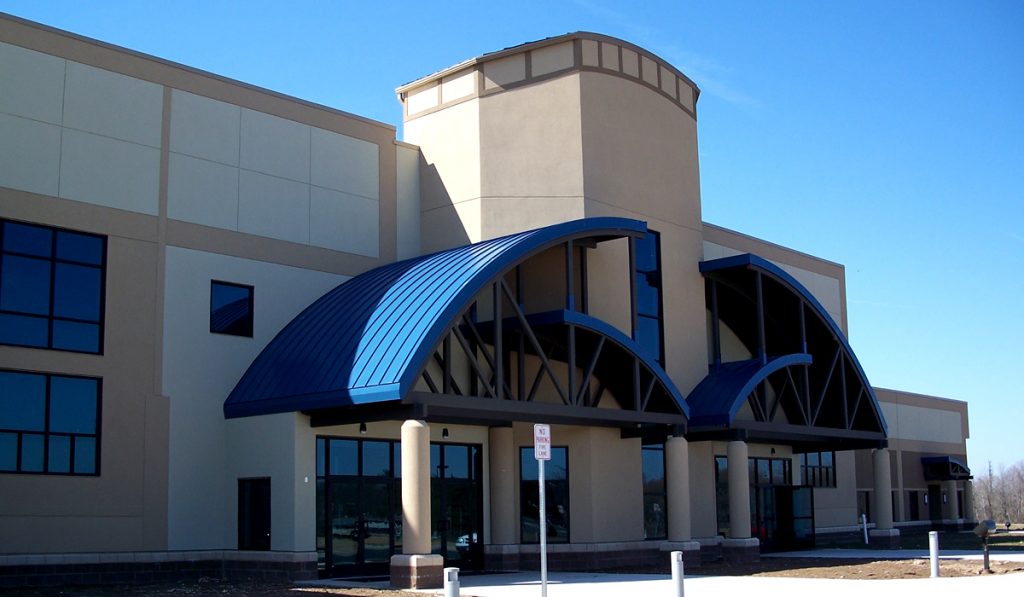

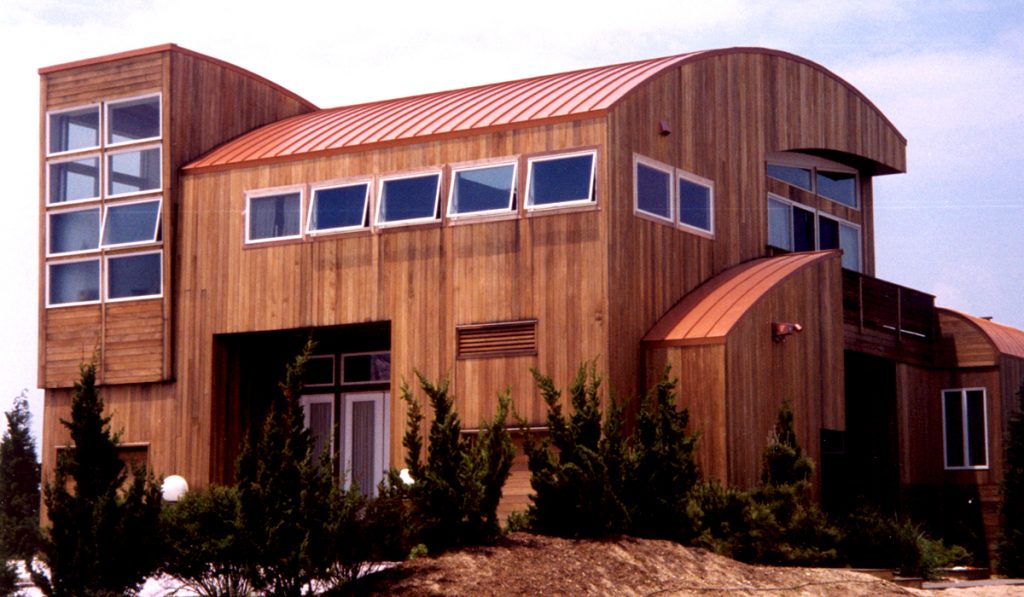

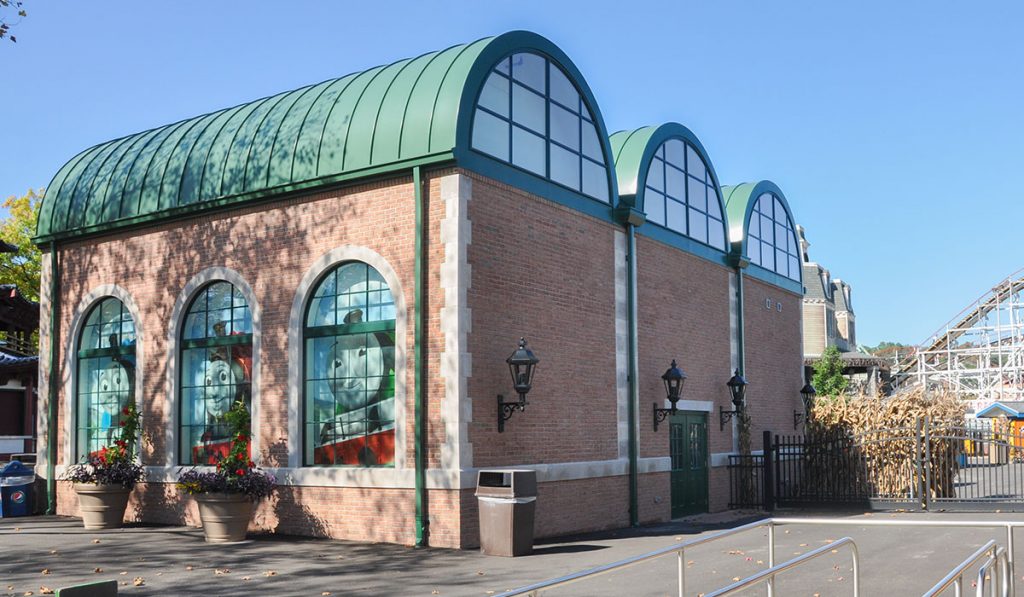

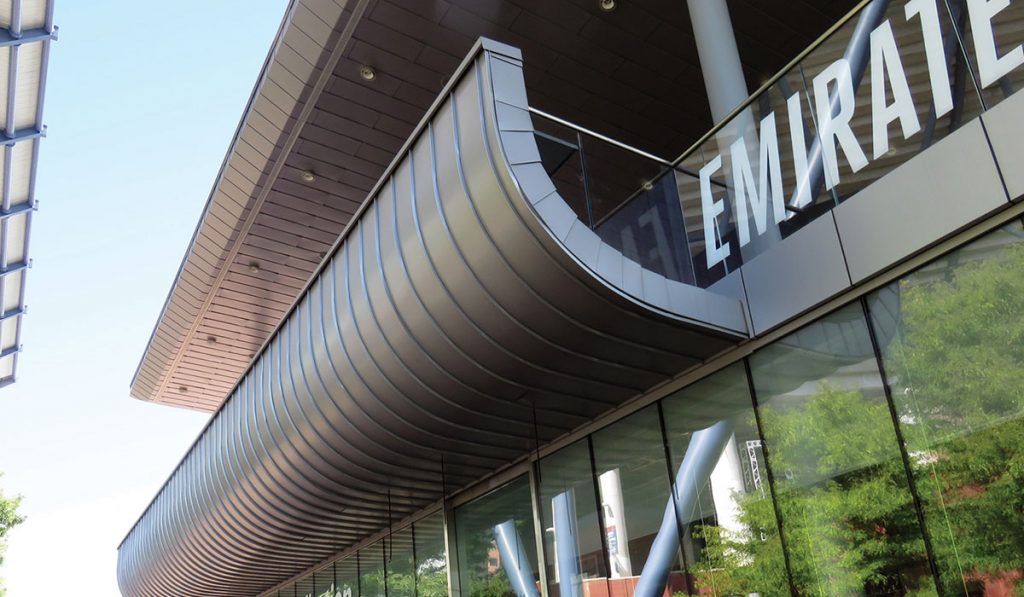

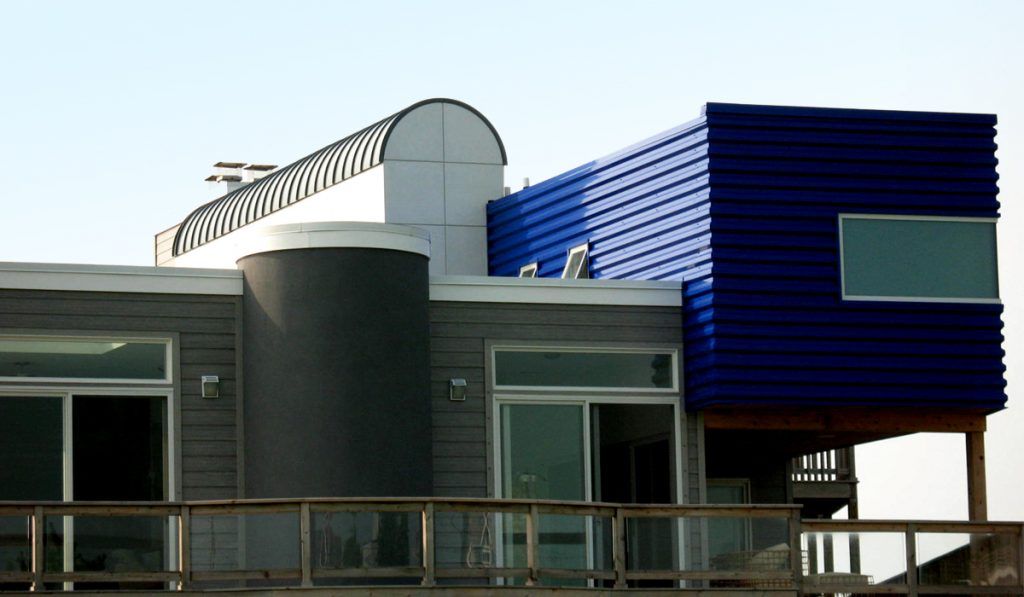

Curving Available:

Convex
Concave

Minimum Radius:

2′-9″ (PCX)
4′-0″ (PCV)

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of curved trims available in matching colors, gauge and finish or as specified

Minimum Slope:

3:12

*Subject to minimum quantities and extended lead time.
Inquire for material and panel coverage availability.

^Inquire for available widths
