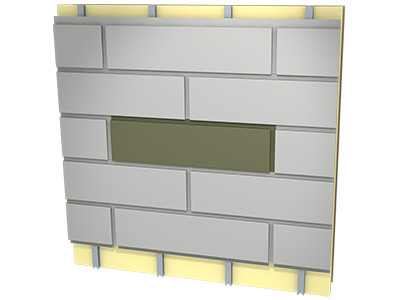

DWR Staggered
DWR Staggered
DWR Z-Box
DWR Z-Box
Design Wall Reveal

Profile Options:

DSR Panel
DSR Panel
DSR Interlock
DSR Interlock
DSR Overlap
DSR Overlap
DSR Stacked
DSR Stacked
DSR Staggered
DSR Staggered
DSR Z-Box
DSR Z-Box
DWR Panel
DWR Panel
DWR Interlock
DWR Interlock
DWR Overlap
DWR Overlap
DWR Stacked
DWR Stacked
DWR Staggered
DWR Staggered
DWR Z-Box
DWR Z-Box

The Design Wall™ Reveal is a modular wall panel series designed as a drained and back ventilated (D/BV) assembly. The panels are offered in various widths, depths, and lengths to create a unique appearance. It may be installed horizontally or vertically without the need for any sealants, gaskets, or splines. Design Wall Reveal is a great light-gauge alternative to other heavier plate and Metal Composite Material (MCM) modular styles.

PRODUCT INFO
SKU:

DSR
DWR

Material:

.032, .040, .050 aluminum

Panel Coverage:

8″, 10″, 12″
custom widths available in 1″ increments
High Pressure Clip optional

Reveal:

1″

Minimum Panel Length:

3′-0″

Maximum Panel Length:

15′-0″

Panel Depth:

DSR: 1¾”
DWR: 1⅛”

Texture:

Smooth,
Stucco Embossed,
Wood Grain Embossed (DWR only)

Perforations Available:

Yes

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Open Framing
PDF File Format - Vertical Application - Open Framing
PDF File Format - Vertical Application - Solid Substrate
DWG File Format - Horizontal Application - Open Framing
DWG File Format - Vertical Application - Open Framing
GALLERY
DOCUMENTS

ATAS Color Chart

Solar Reflectance & Thermal Emittance Chart

Finish Warranty

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

LEED v4

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

SKU:

DSR
DWR

Material:

.032, .040, .050 aluminum

Panel Coverage:

8″, 10″, 12″
custom widths available in 1″ increments
High Pressure Clip optional

Reveal:

1″

Minimum Panel Length:

3′-0″

Maximum Panel Length:

15′-0″

Panel Depth:

DSR: 1¾”
DWR: 1⅛”

Texture:

Smooth,
Stucco Embossed,
Wood Grain Embossed (DWR only)

Perforations Available:

Yes

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability
