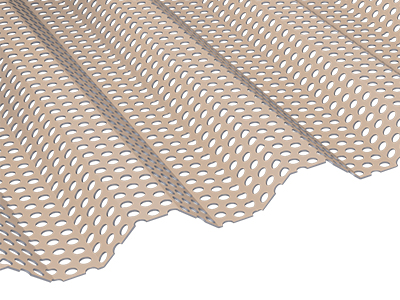

Perforated
Perforated
Elite Trims
Elite Trims
Z Box
Z Box
Closure Angle
Closure Angle

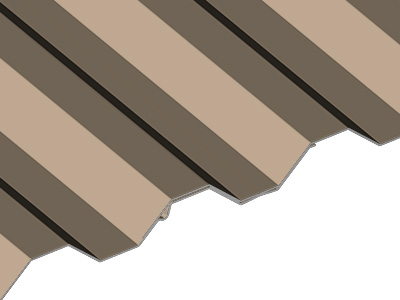

The Grand C panels provide a unique solution for today’s metal roofing and metal siding needs. Panels are designed for use over solid substrates or open framing with support members spaced a maximum of 24 inches on center. Typical applications include walls, fascias, mansards, equipment screens and some limited roofing with a minimum slope of 3:12.

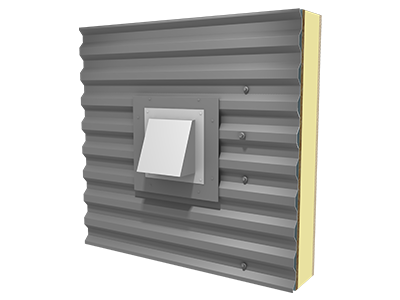

You can also enhance aesthetics of Grand C by using factory fabricated Elite Series, including the Z Box and Closure Angle shown.

PRODUCT INFO
SKU:

BWF324

Material:

.032 aluminum

Panel Coverage:

32¼”

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

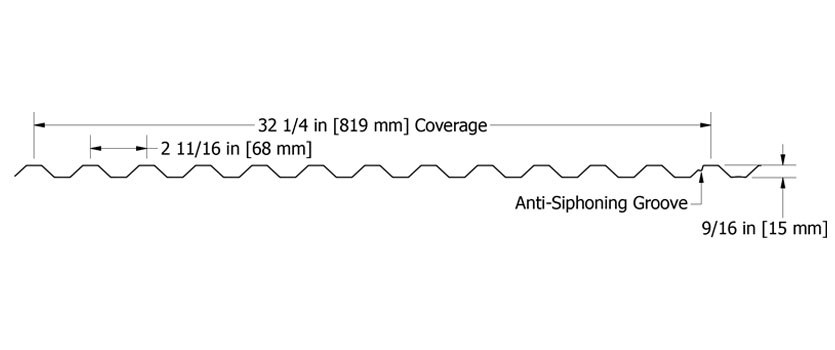

9⁄16″

Texture:

Smooth

Perforations Available:

Yes

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate
PDF File Format - Vertical Application - Solid Substrate
PDF File Format - Horizontal Application - Open Framing
PDF File Format - Vertical Application - Open Framing
DWG File Format - Horizontal Application - Solid Substrate
DWG File Format - Vertical Application - Solid Substrate
DWG File Format - Horizontal Application - Open Framing
DWG File Format - Vertical Application - Open Framing

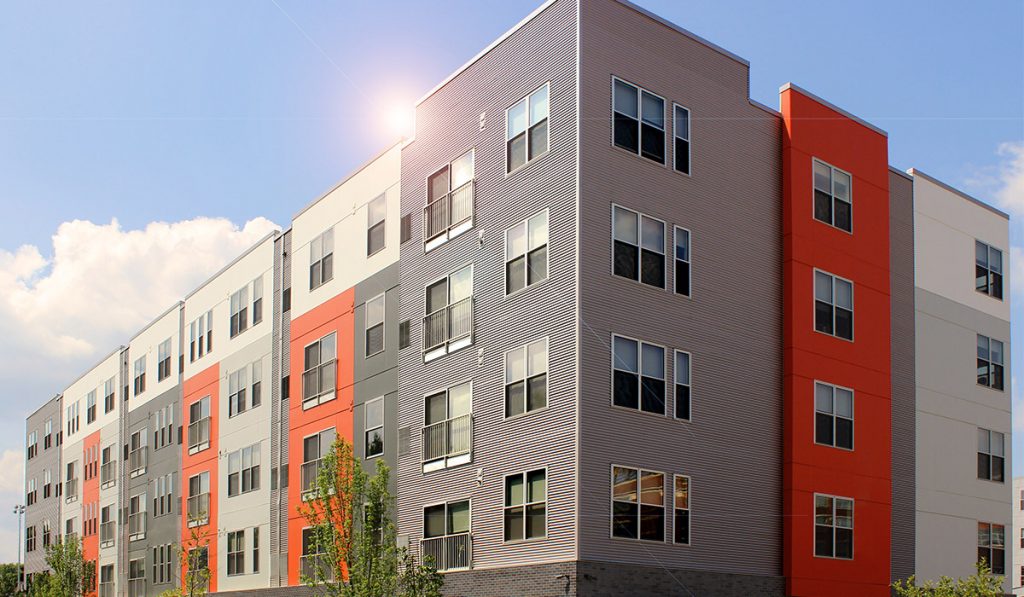

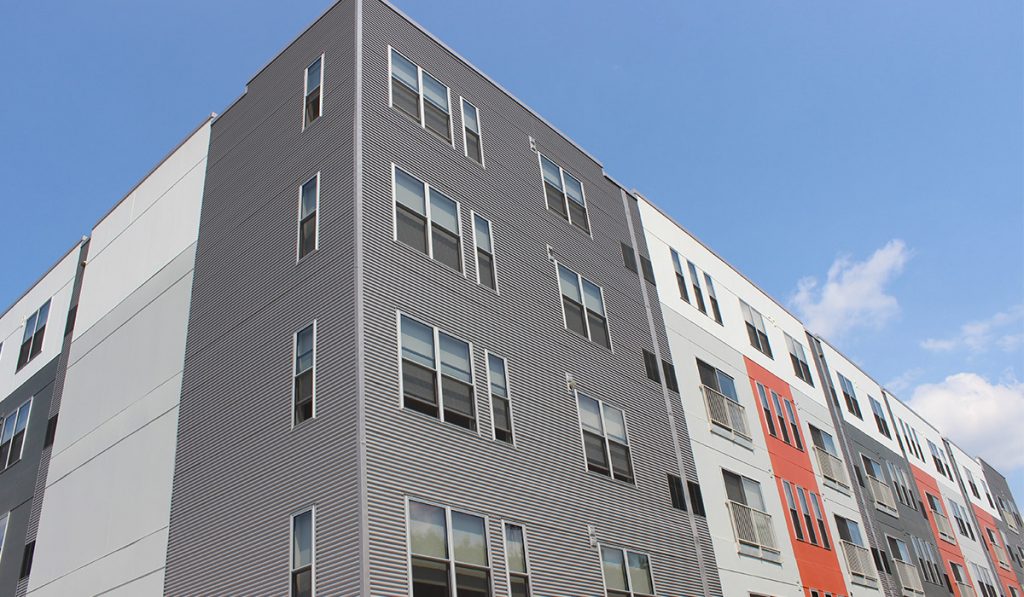

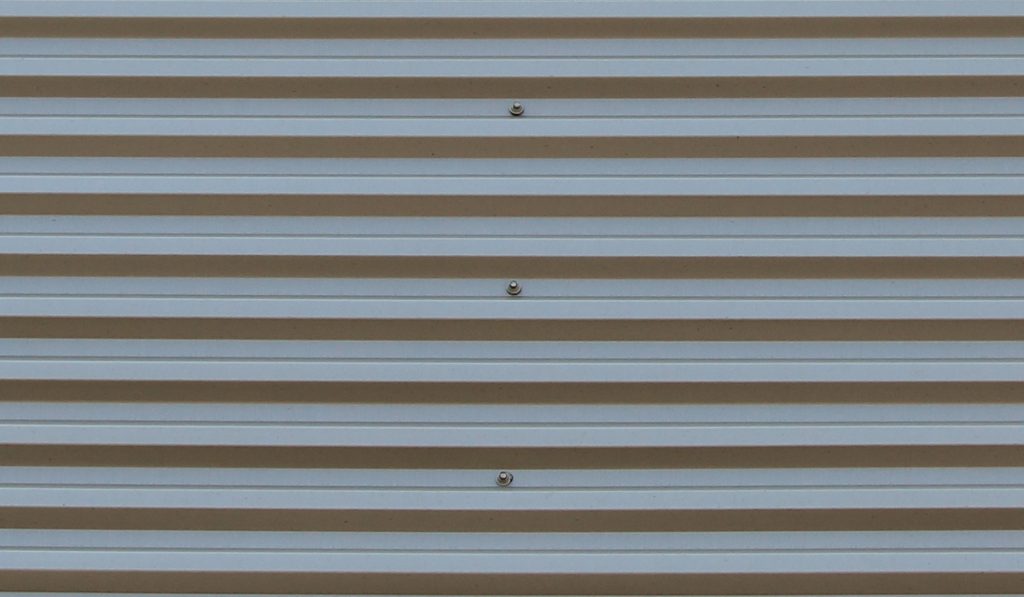

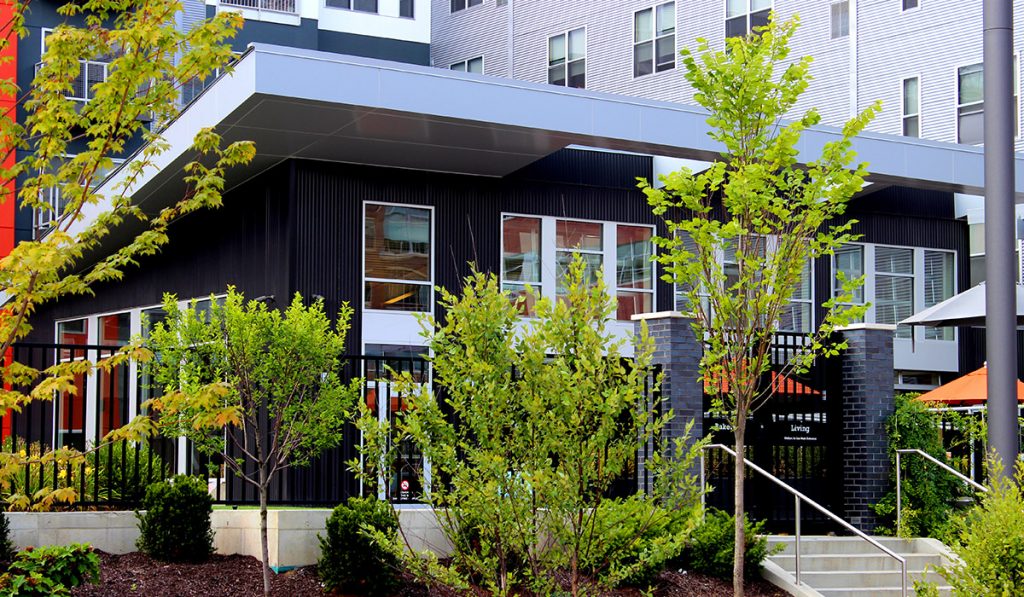

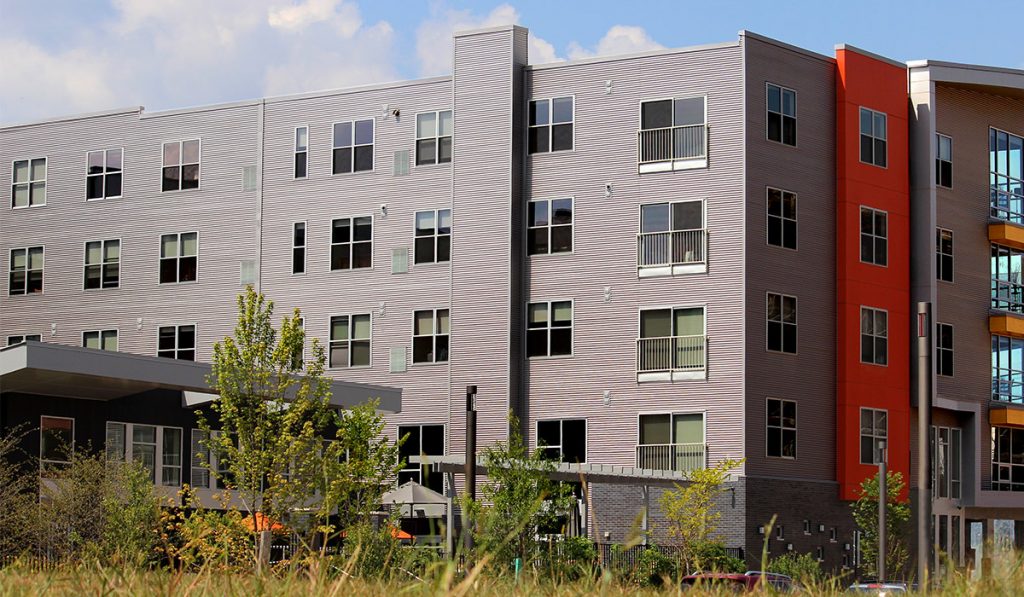

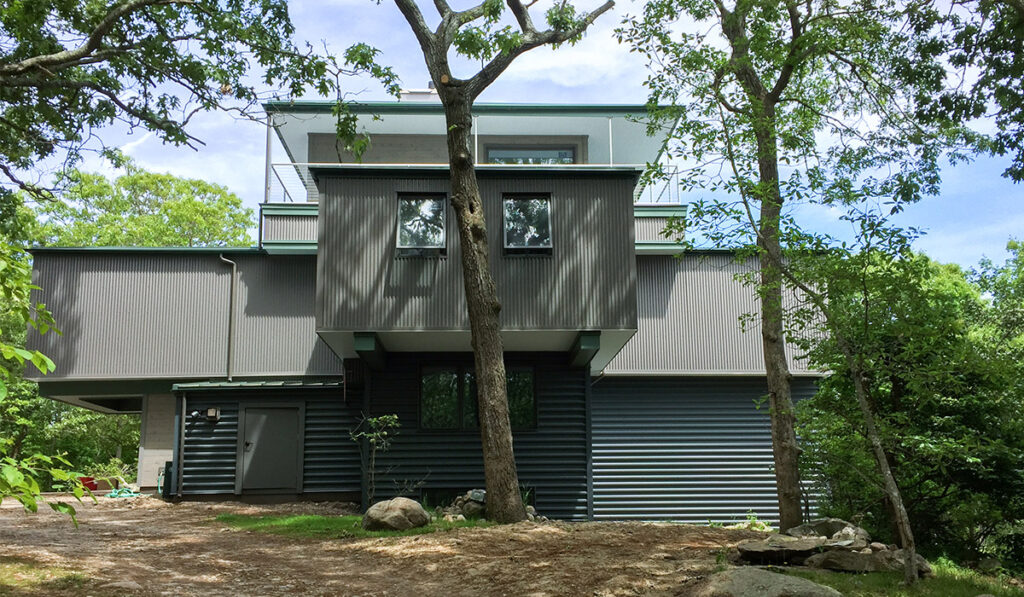

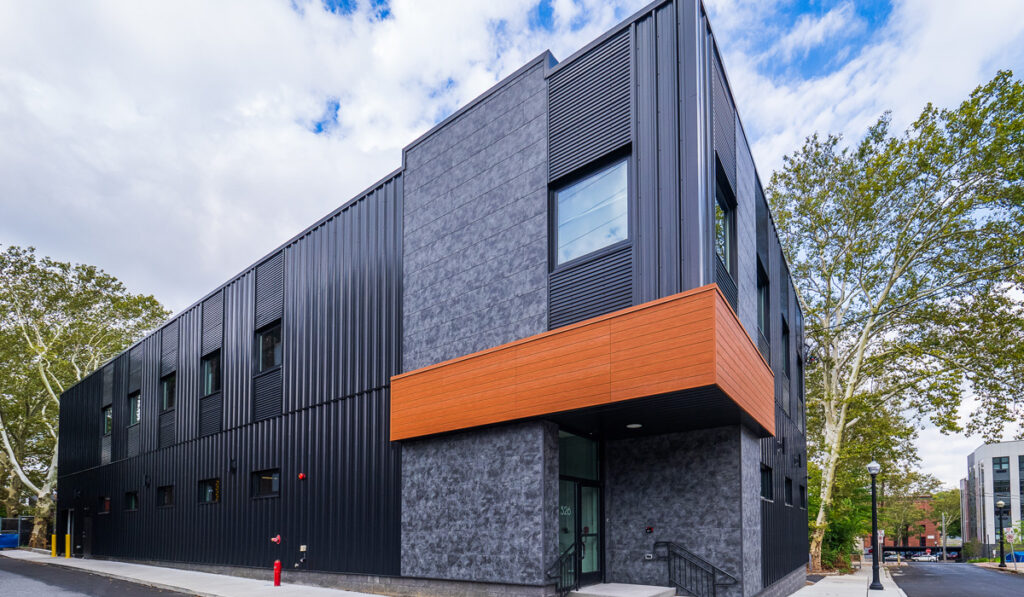

GALLERY
DOCUMENTS

Grand C Product Brochure

Grand Series Spec Data Sheet

ATAS Color Chart

Finish Warranty

ATAS Aluminum Recycled Contents

LEED v4

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
