Corrugated Panel

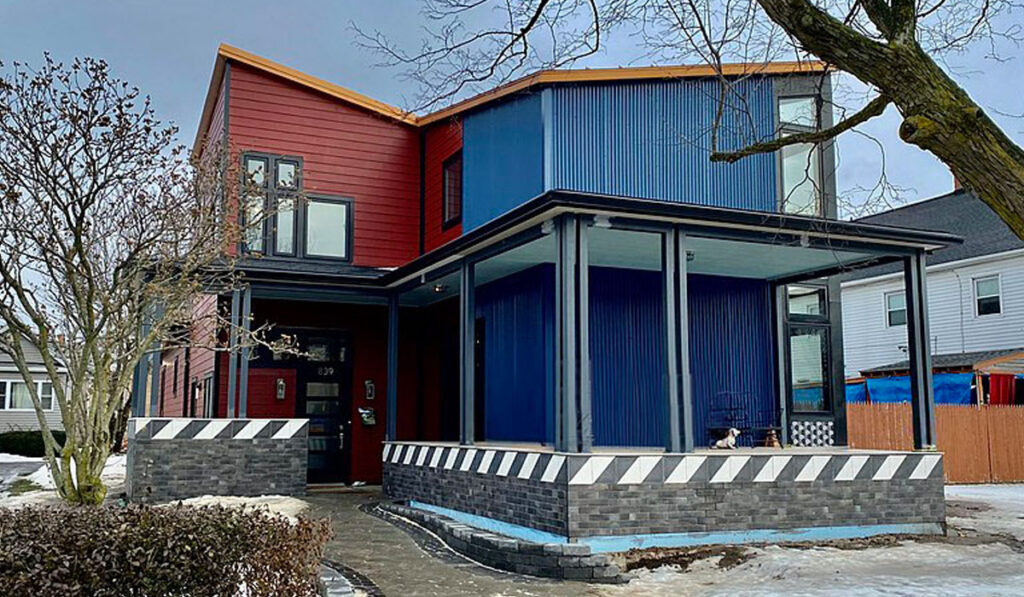

The Corrugated Panel is a traditional, economical wall or roof panel. It is installed horizontally or vertically with exposed fasteners. The panel is available in smooth or stucco embossed texture, depending on material. Ideal applications are walls, mansards and equipment screens.
You can also enhance aesthetics of Corrugated Panel by using factory fabricated Elite Series, including the Z Box and Closure Angle shown.

BWC374
.032, .040, .050 aluminum
24, 22*, 20*, 18* ga. metallic coated steel
16, 20 oz. copper*^
24, 22*, 20* ga. 55% Al-Zn alloy coated steel with acrylic coating
0.8, 1.0, 1.2 mm zinc*^
37¼”
6’-0”
Transportation limitations and/or product and project design considerations
⅞”
Smooth
Stucco Embossed
Curved
Crimp-Curved (convex & concave)
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
Clear Satin
Dark Bronze
A complete line of trims available in matching colors, gauge, and finish or as specified
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format - Horizontal Application - Solid Substrate
- Horizontal Corrugated Panel Solid - All Details
- Horizontal Corrugated Panel Solid - Base Detail
- Horizontal Corrugated Panel Solid - Endwall Detail
- Horizontal Corrugated Panel Solid - Inside Corner Detail
- Horizontal Corrugated Panel Solid - Jamb Detail
- Horizontal Corrugated Panel Solid - Jamb Alternate Detail
- Horizontal Corrugated Panel Solid - Outside Corner Detail
- Horizontal Corrugated Panel Solid - Top Of Wall Detail
- Horizontal Corrugated Panel Solid - Window Head Detail
- Horizontal Corrugated Panel Solid - Window Sill Detail
- Corrugated Panel - Fastening Detail
- Corrugated Panel - Panel Profile Detail
PDF File Format - Vertical Application - Solid Substrate
- Vertical Corrugated Panel Solid - All Details
- Vertical Corrugated Panel Solid - Base Detail
- Vertical Corrugated Panel Solid - Endwall Detail
- Vertical Corrugated Panel Solid - Inside Corner Detail
- Vertical Corrugated Panel Solid - Jamb Detail
- Vertical Corrugated Panel Solid - Outside Corner Detail
- Vertical Corrugated Panel Solid - Top Of Wall Detail
- Vertical Corrugated Panel Solid - Window Head Detail
- Vertical Corrugated Panel Solid - Window Sill Detail
- Corrugated Panel - Fastening Detail
- Corrugated Panel - Panel Profile Detail
PDF File Format - Horizontal Application - Open Framing
- Horizontal Corrugated Panel Open - All Details
- Horizontal Corrugated Panel Open - Base Detail
- Horizontal Corrugated Panel Open - Endwall Detail
- Horizontal Corrugated Panel Open - Inside Corner
- Horizontal Corrugated Panel Open - Jamb Detail
- Horizontal Corrugated Panel Open - Outside Corner Detail
- Horizontal Corrugated Panel Open - Top Of Wall Detail
- Horizontal Corrugated Panel Open - Window Head Detail
- Horizontal Corrugated Panel Open - Window Sill
- Corrugated Panel - Fastening Detail
- Corrugated Panel - Panel Profile Detail
PDF File Format - Vertical Application - Open Framing
- Vertical Corrugated Panel Open - All Details
- Vertical Corrugated Panel Open - Base Detail
- Vertical Corrugated Panel Open - Endwall Detail
- Vertical Corrugated Panel Open - Inside Corner
- Vertical Corrugated Panel Open - Jamb Detail
- Vertical Corrugated Panel Open - Outside Corner Detail
- Vertical Corrugated Panel Open - Panel Overlap Detail
- Vertical Corrugated Panel Open - Top Of Wall Detail
- Vertical Corrugated Panel Open - Window Head Detail
- Vertical Corrugated Panel Open - Window Sill
- Corrugated Panel - Fastening Detail
- Corrugated Panel - Panel Profile Detail
DWG File Format - Horizontal Application - Solid Substrate
- Horizontal Corrugated Panel Solid - Base Detail
- Horizontal Corrugated Panel Solid - Endwall Detail
- Horizontal Corrugated Panel Solid - Inside Corner Detail
- Horizontal Corrugated Panel Solid - Jamb Detail
- Horizontal Corrugated Panel Solid - Jamb Alternate Detail
- Horizontal Corrugated Panel Solid - Outside Corner Detail
- Horizontal Corrugated Panel Solid - Top Of Wall Detail
- Horizontal Corrugated Panel Solid - Window Head Detail
- Horizontal Corrugated Panel Solid - Window Sill Detail
- Corrugated Panel - Fastening Detail
- Corrugated Panel - Panel Profile Detail
DWG File Format - Vertical Application - Solid Substrate
- Vertical Corrugated Panel Solid - Base Detail
- Vertical Corrugated Panel Solid - Inside Corner Detail
- Vertical Corrugated Panel Solid - Jamb Detail
- Vertical Corrugated Panel Solid - Outside Corner Detail
- Vertical Corrugated Panel Solid - Top Of Wall Detail
- Vertical Corrugated Panel Solid - Window Head Detail
- Vertical Corrugated Panel Solid - Window Sill Detail
- Corrugated Panel - Fastening Detail
- Corrugated Panel - Panel Profile Detail
DWG File Format - Horizontal Application - Open Framing
- Horizontal Corrugated Panel Open - Base Detail
- Horizontal Corrugated Panel Open - Endwall Detail
- Horizontal Corrugated Panel Open - Inside Corner Detail
- Horizontal Corrugated Panel Open - Jamb Detail
- Horizontal Corrugated Panel Open - Outside Corner Detail
- Horizontal Corrugated Panel Open - Top Of Wall Detail
- Horizontal Corrugated Panel Open - Window Head Detail
- Horizontal Corrugated Panel Open - Window Sill Detail
- Corrugated Panel - Fastening Detail
- Corrugated Panel - Panel Profile Detail
DWG File Format - Vertical Application - Open Framing
- Vertical Corrugated Panel Open - Base Detail
- Vertical Corrugated Panel Open - Endwall Detail
- Vertical Corrugated Panel Open - Inside Corner Detail
- Vertical Corrugated Panel Open - Jamb Detail
- Vertical Corrugated Panel Open - Outside Corner Detail
- Vertical Corrugated Panel Open - Panel Overlap Detail
- Vertical Corrugated Panel Open - Top Of Wall Detail
- Vertical Corrugated Panel Open - Window Head Detail
- Vertical Corrugated Panel Open - Window Sill Detail
- Corrugated Panel - Fastening Detail
- Corrugated Panel - Panel Profile Detail
