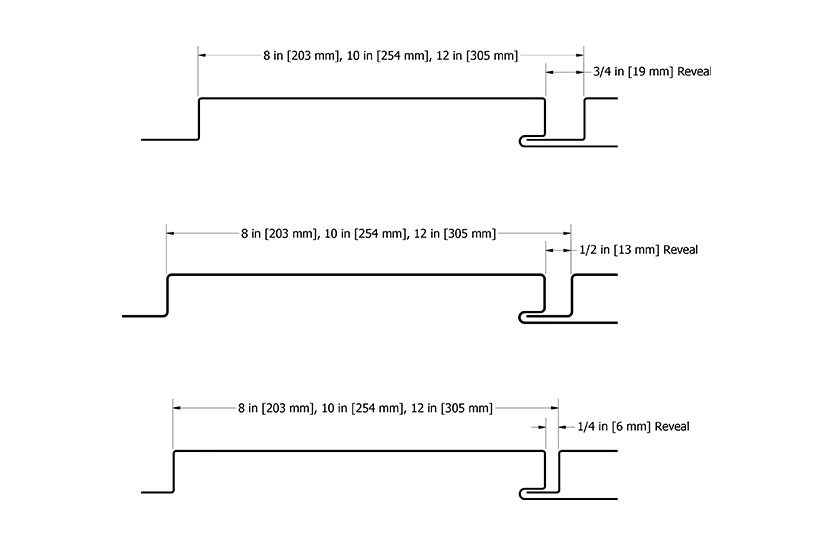

Profile Options

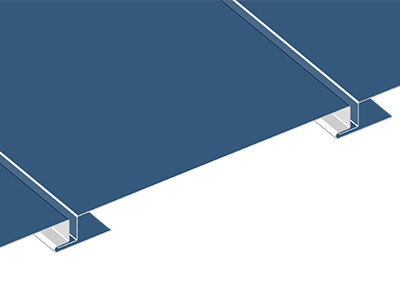

Without End Folds

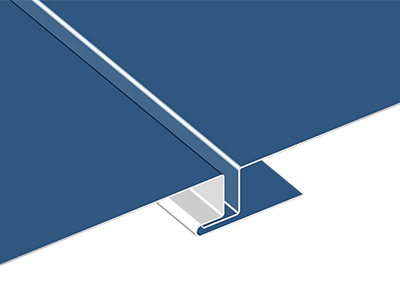

Close-Up (Without)

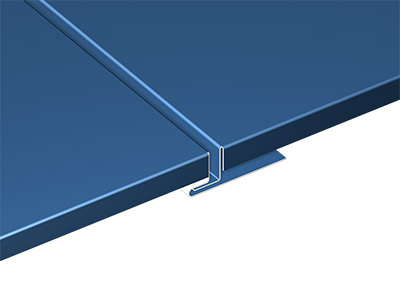

With End Folds

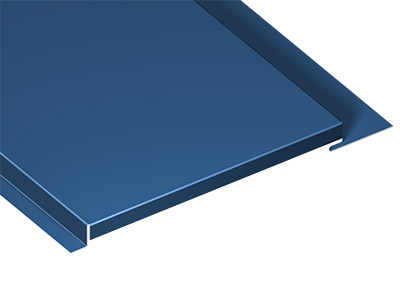

Close-Up (With)

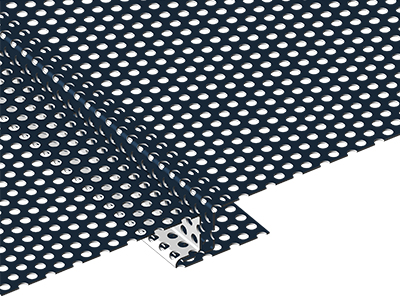

Perforated

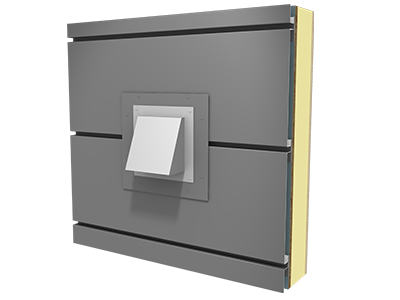

Z Box
Versa-Seam

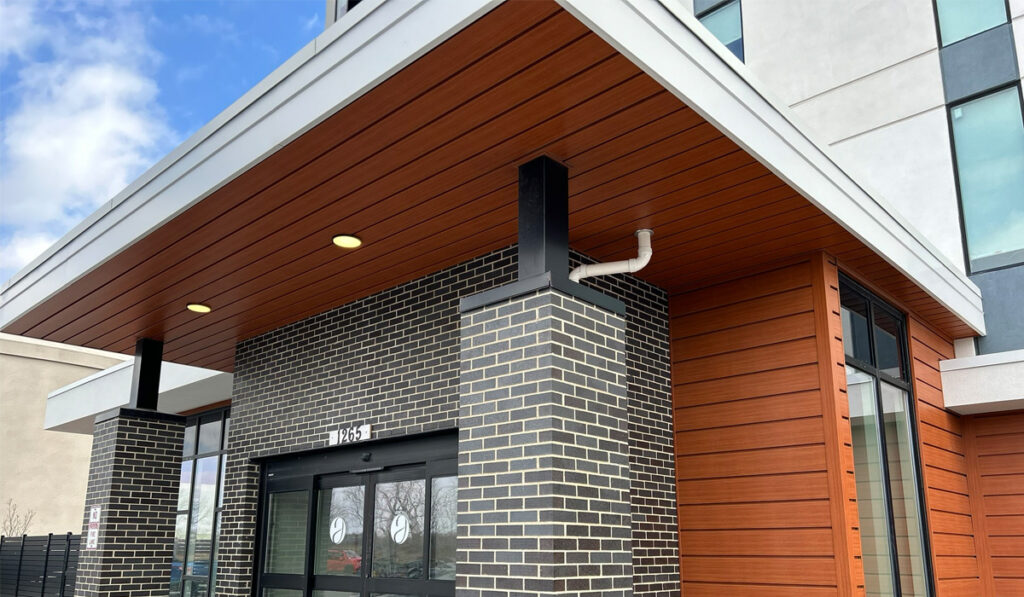

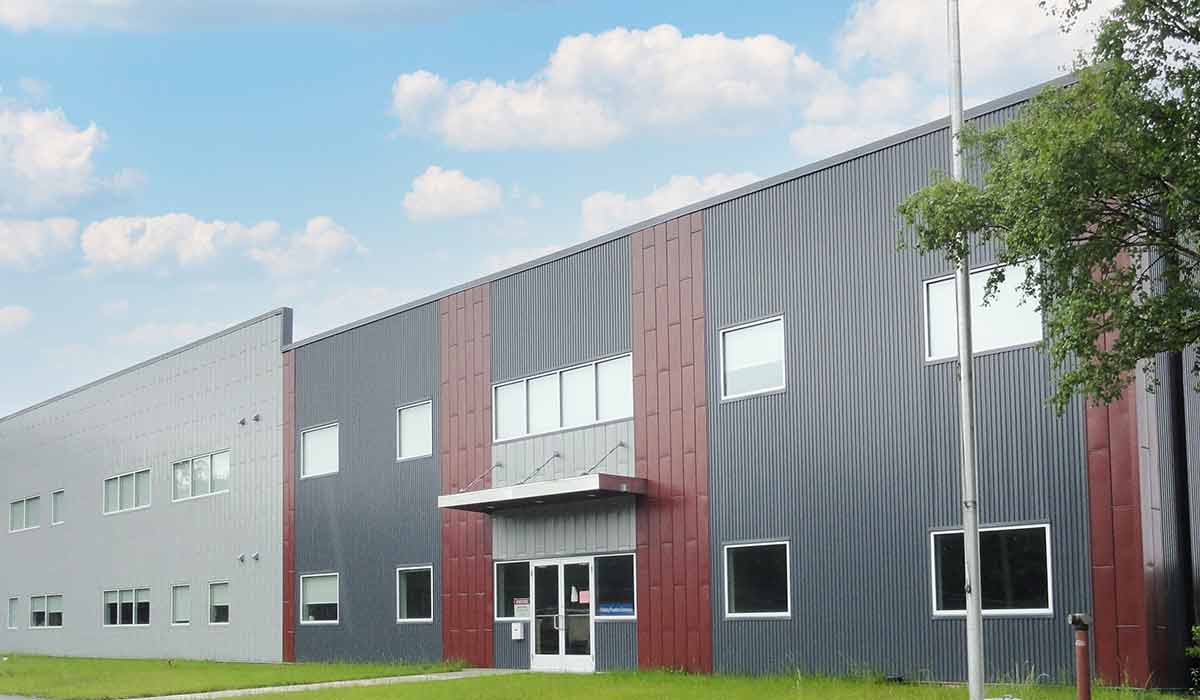

Versa-Seam™ is a rainscreen style system that requires a waterproof building envelope behind it. The panel forms architectural shadow lines in its horizontal installation and is available with three optional reveal or shadow line configurations and optional end folds. Pair accessories & fasteners with Versa-Seam™ to increase the longevity of your project.
VSS080
VSS100
VSS120
.032, .040 aluminum
.8, 1.0 mm zinc*^
16, 20 oz. copper*^
.0197 classic & tin matte stainless steel*^
8″
10″
12″
Custom widths available*
3’-0”
20’-0”
1″
Smooth
Stucco Embossed
Wood Grain Embossed (.032 aluminum & .040 aluminum only)
Louvered
Optional end folds
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
Clear Satin
Dark Bronze
A complete line of trims available in matching colors, gauge, and finish or as specified
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format - Horizontal Application - Solid Substrate
- Horizontal Versa-Seam Solid - All Details
- Versa-Seam - Panel Profile Detail
- Versa-Seam - Fastener Slots Detail
- Horizontal Versa-Seam Solid - Base Detail
- Horizontal Versa-Seam Solid - Base Alternate Detail
- Horizontal Versa-Seam Solid - Endwall Detail
- Horizontal Versa-Seam Solid - Inside Corner Detail
- Horizontal Versa-Seam Solid - Outside Corner Detail
- Horizontal Versa-Seam Solid - Top Of Wall Detail
- Horizontal Versa-Seam Solid - Top Of Wall Alternate Detail
- Versa-Seam - Splice Detail
- Versa-Seam - Splice Alternate Detail
- Horizontal Versa-Seam Solid - Head Window Flange Detail
- Horizontal Versa-Seam Solid - Jamb Window Flange Detail
- Horizontal Versa-Seam Solid - Window Sill Flange Detail
- Horizontal Versa Seam Solid - Head Existing Window Detail
- Horizontal Versa-Seam Solid - Jamb Existing Window Detail
- Horizontal Versa-Seam Solid - Window Sill Existing Window Detail
- Horizontal Versa-Seam Solid - Head Detail
- Horizontal Versa-Seam Solid - Jamb Detail
- Horizontal Versa-Seam Solid - Jamb Alternate Detail
- Horizontal Versa-Seam Solid - Window Sill Detail
- Versa-Seam - Reveal Detail
- Versa-Seam - Individual Panel Profile Details
PDF File Format - Vertical Application - Solid Substrate
- Vertical Versa-Seam Solid - All Details
- Versa-Seam - Panel Profile Detail
- Versa-Seam - Fastener Slots Detail
- Vertical Versa-Seam Solid - Base Detail
- Vertical Versa-Seam Solid - Endwall Detail
- Vertical Versa-Seam Solid - Inside Corner Detail
- Vertical Versa-Seam Solid - Outside Corner Detail
- Vertical Versa-Seam Solid - Top Of Wall Detail
- Vertical Versa-Seam Solid - Head Window Flange Detail
- Vertical Versa-Seam Solid - Jamb Window Flange Detail
- Vertical Versa-Seam Solid - Window Sill Flange Detail
- Vertical Versa-Seam Solid - Head Existing Window Detail
- Vertical Versa-Seam Solid - Jamb Existing Window Detail
- Vertical Versa-Seam Solid - Window Sill Existing Window Detail
- Vertical Versa-Seam Solid - Head Detail
- Vertical Versa-Seam Solid - Jamb Detail
- Vertical Versa-Seam Solid - Window Sill Detail
- Versa-Seam - Individual Panel Profile Details
PDF File Format - Horizontal Application - Open Framing
- Horizontal Versa-Seam Open - All Details
- Versa-Seam - Panel Profile Detail
- Horizontal Versa-Seam Open - Installation Detail
- Horizontal Versa-Seam Open - Fastening Detail
- Horizontal Versa-Seam Open - Base Detail
- Horizontal Versa-Seam Open - Endwall Detail
- Horizontal Versa-Seam Open - Inside Corner Detail
- Horizontal Versa-Seam Open - Outside Corner Detail
- Horizontal Versa-Seam Open - Top Of Wall Detail
- Versa-Seam - Reveal Detail
- Horizontal Versa-Seam Open - Head Detail
- Horizontal Versa-Seam Open - Jamb Detail
- Horizontal Versa-Seam Open - Window Sill Detail
- Versa-Seam - Individual Panel Profile Details
PDF File Format - Vertical Application - Open Framing
- Vertical Versa-Seam Open - All Details
- Vertical Versa-Seam Open - Base Detail
- Vertical Versa-Seam Open - Endwall Detail
- Vertical Versa-Seam Open - Fastening Detail
- Vertical Versa-Seam Open - Inside Corner Detail
- Vertical Versa-Seam Open - Jamb Detail
- Vertical Versa-Seam Open - Outside Corner Detail
- Vertical Versa-Seam Open - Top Of Wall Detail
- Vertical Versa-Seam Open - Window Head Detail
- Vertical Versa-Seam Open - Window Sill Detail
- Versa-Seam - Individual Panel Profile Details
- Versa-Seam - Installation Detail
- Versa-Seam - Panel Profile Detail
DWG File Format - Horizontal Application - Solid Substrate
- Versa-Seam - Panel Profile Detail
- Versa-Seam Fastener Slots Detail
- Horizontal Versa-Seam Solid - Base Detail
- Horizontal Versa-Seam Solid - Base Alternate Detail
- Horizontal Versa-Seam Solid - Endwall Detail
- Horizontal Versa-Seam Solid - Inside Corner Detail
- Horizontal Versa-Seam Solid - Outside Corner Detail
- Horizontal Versa-Seam Solid - Top Of Wall Detail
- Horizontal Versa-Seam Solid - Top Of Wall Alternate Detail
- Versa-Seam - Splice Detail
- Versa-Seam - Splice Alternate Detail
- Horizontal Versa-Seam Solid - Window Head Detail
- Horizontal Versa-Seam Solid - Jamb Detail
- Horizontal Versa-Seam Solid - Jamb Alternate Detail
- Horizontal Versa-Seam Solid - Window Sill Detail
- Versa-Seam - Reveal Detail
- Versa-Seam - Individual Panel Profile Details
DWG File Format - Vertical Application - Solid Substrate
- Versa-Seam - Panel Profile Detail
- Versa-Seam - Fastener Slots Detail
- Vertical Versa-Seam Solid - Base Detail
- Vertical Versa-Seam Solid - Endwall Detail
- Vertical Versa-Seam Solid - Inside Corner Detail
- Vertical Versa-Seam Solid - Outside Corner Detail
- Vertical Versa-Seam Solid - Top Of Wall Detail
- Vertical Versa-Seam Solid - Head Detail
- Vertical Versa-Seam Solid - Jamb Detail
- Versa-Seam - Individual Panel Profile Details
DWG File Format - Horizontal Application - Open Framing
- Versa-Seam - Panel Profile Detail
- Versa-Seam - Installation Detail
- Versa-Seam - Fastening Detail
- Horizontal Versa-Seam Open - Base Detail
- Horizontal Versa-Seam Open - Endwall Detail
- Horizontal Versa-Seam Open - Inside Corner Detail
- Horizontal Versa-Seam Open - Outside Corner Detail
- Horizontal Versa-Seam Open - Top Of Wall Detail
- Versa-Seam - Reveal Detail
- Horizontal Versa-Seam Open - Head Detail
- Horizontal Versa-Seam Open - Jamb Detail
- Horizontal Versa-Seam Open - Window Sill Detail
- Versa-Seam - Individual Panel Profile Details
DWG File Format - Vertical Application - Open Framing
- Vertical Versa-Seam Open - Base Detail
- Vertical Versa-Seam Open - Endwall Detail
- Vertical Versa-Seam Open - Fastening Detail
- Vertical Versa-Seam Open - Inside Corner Detail
- Vertical Versa-Seam Open - Jamb Detail
- Vertical Versa-Seam Open - Outside Corner Detail
- Vertical Versa-Seam Open - Top Of Wall Detail
- Vertical Versa-Seam Open - Window Head Detail
- Vertical Versa-Seam Open - Window Sill Detail
- Versa-Seam - Installation Detail
- Versa-Seam - Individual Panel Profile Details
- Versa-Seam - Panel Profile Detail
