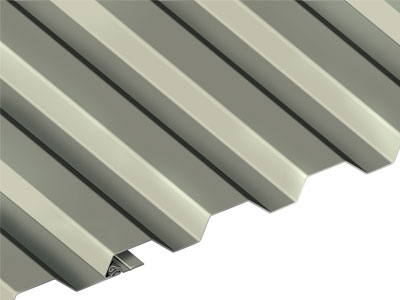

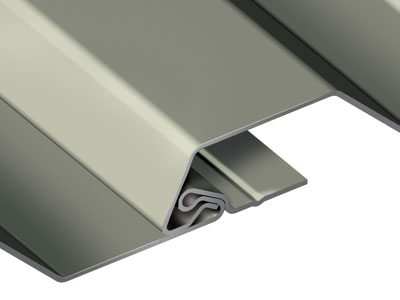

Rigid Wall II™ is a structural wall panel that retains the essence of the original version while providing design enhancements and 18 design options. Available in widths of 16”, 12” and 8”, these structural panels can be installed vertically or horizontally with concealed fasteners. This mix-and-match family of panels can be combined in various patterns to create distinctive, eye-catching facades. The Wind-Lok^® interlock allows the Rigid Wall II™ panels to be combined with Corra-Lok™, Metafor™, and Multi-Purpose™ for the ability to create interesting patterns and breaks.

You can also enhance aesthetics of Rigid Wall II™ by using factory fabricated Elite Series accessories, including the Z Box and Closure Angle shown.

Download Product Brochure

BIM Model

Download BIM File

Virtual Meeting

Request Meeting with Rep

PRODUCT INFO

SKU:

MFN

Material:

.032, .040, .050 aluminum
24, 22*, 20*, 18* ga. metallic coated steel
24, 22*, 20*, 18* ga. 55% Al-Zn alloy coated steel with acrylic coating
1.0 mm zinc*

Panel Coverage:

8″
12″
16″

Minimum Panel Length:

2’-8”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

15⁄16″

Texture:

Smooth
Stucco Embossed

Available:

Perforated
Factory panel pre-notching available. Contact ATAS for specifics.

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Florida Building Code Approval:

FL 35063.5 (Aluminum)
FL 35063.6 (Steel)

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate

PDF File Format - Vertical Application - Solid Substrate

PDF File Format - Horizontal Application - Open Framing

PDF File Format - Vertical Application - Open Framing

PDF File Format - Horizontal Application - Elite Trim Series

PDF File Format - Vertical Application - Elite Trim Series

DWG File Format - Horizontal Application - Solid Substrate

DWG File Format - Vertical Application - Solid Substrate

DWG File Format - Horizontal Application - Open Framing

DWG File Format - Vertical Application - Open Framing

DWG File Format - Horizontal Application - Elite Trim Series

DWG File Format - Vertical Application - Elite Trim Series

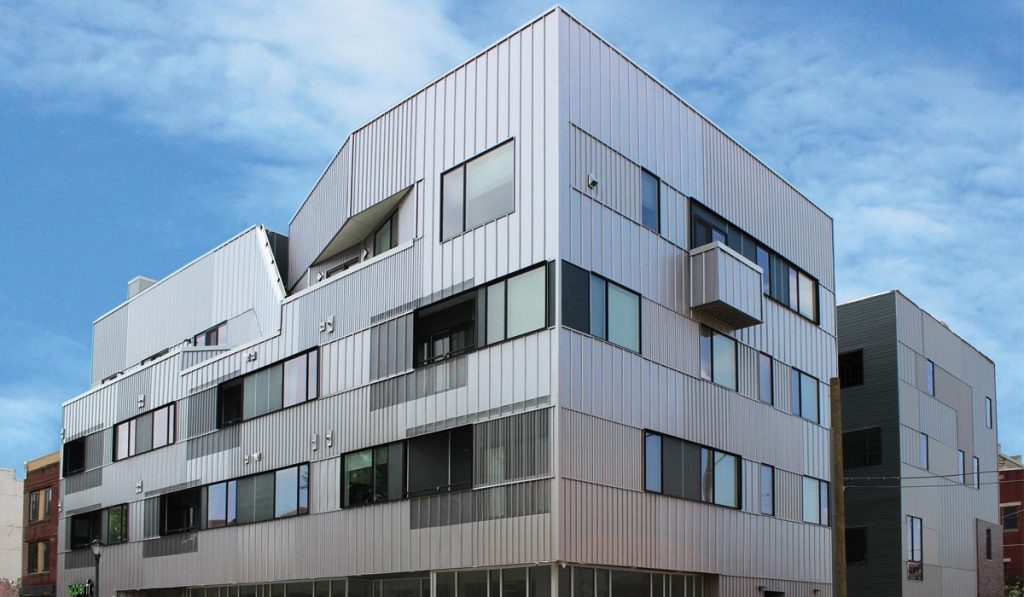

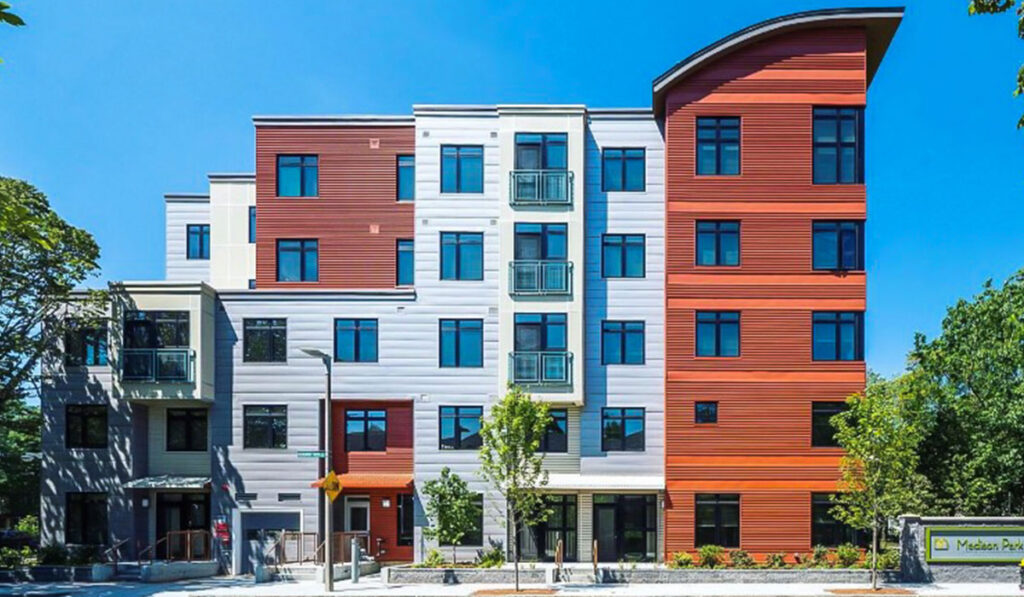

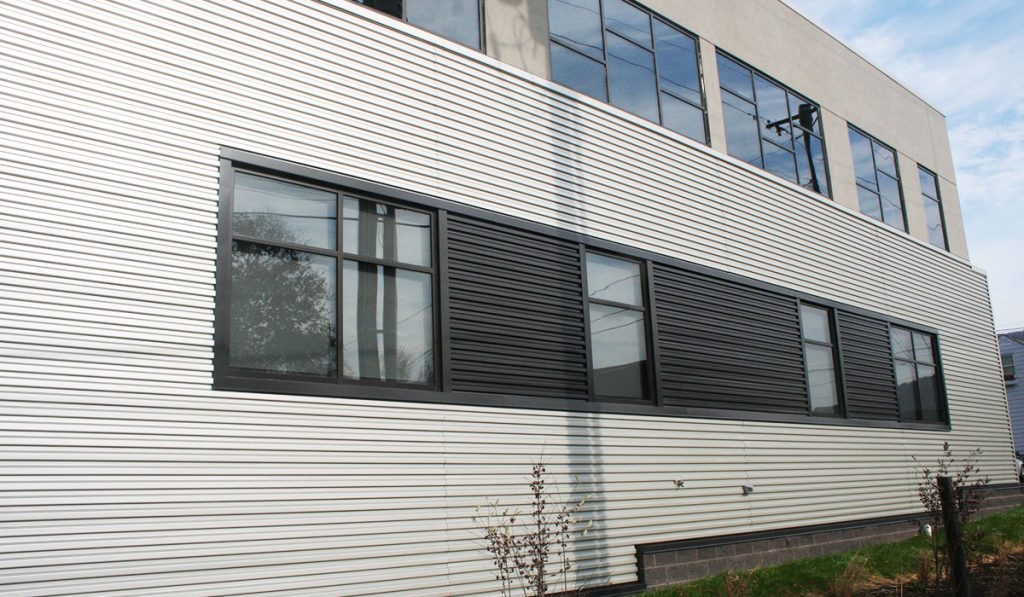

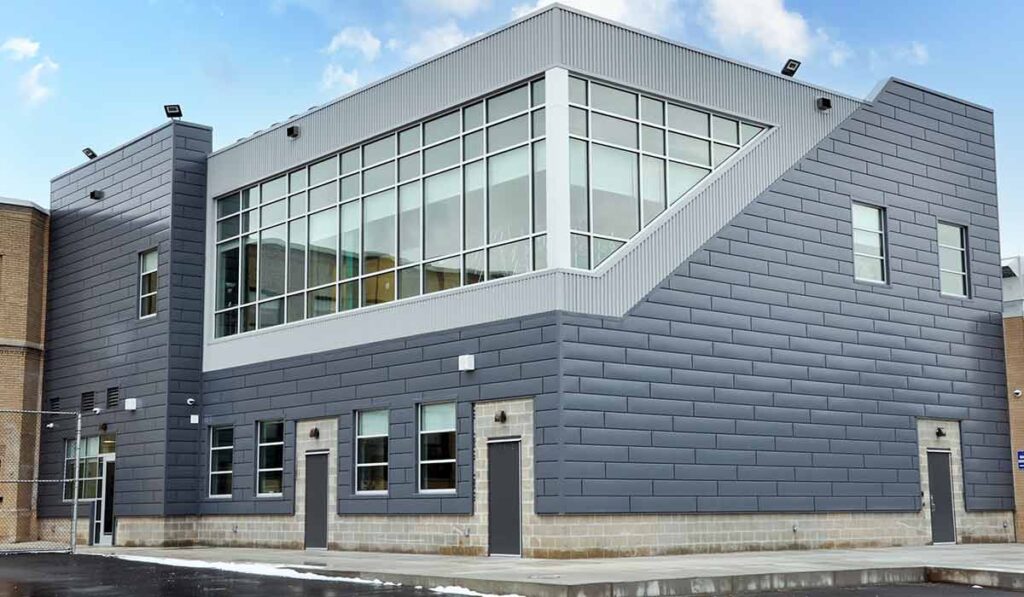

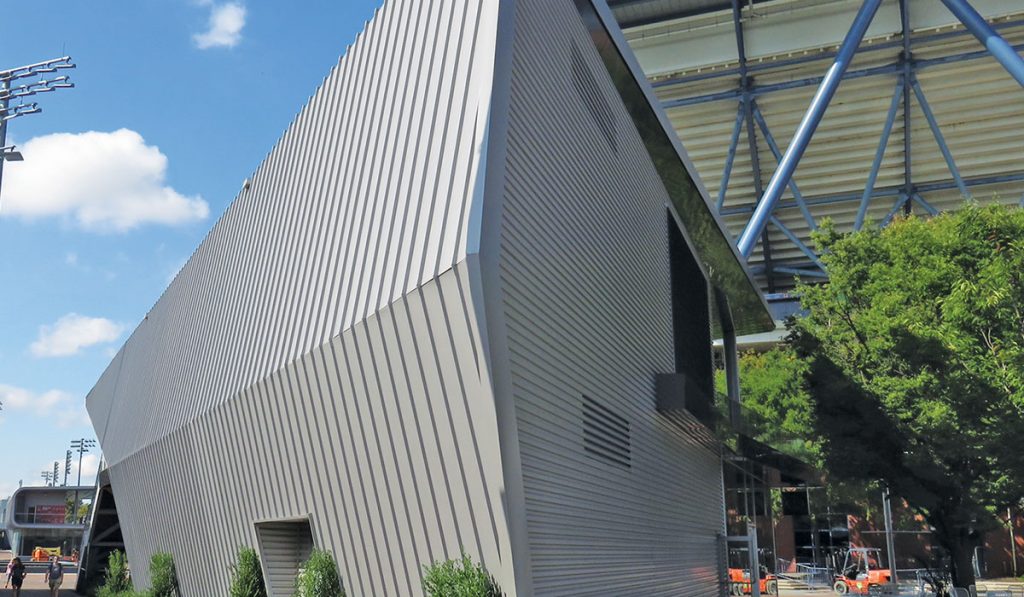

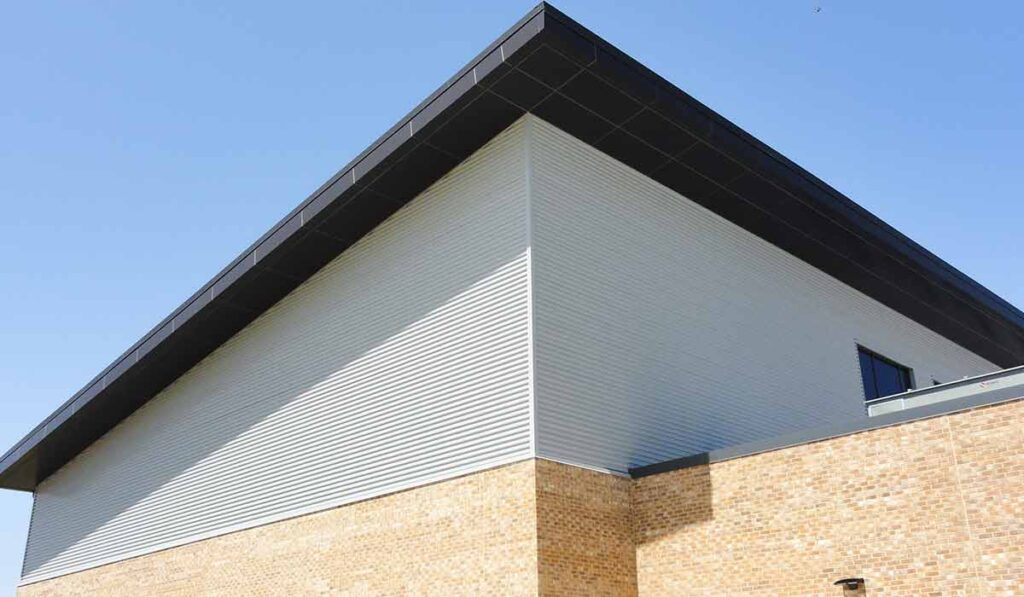

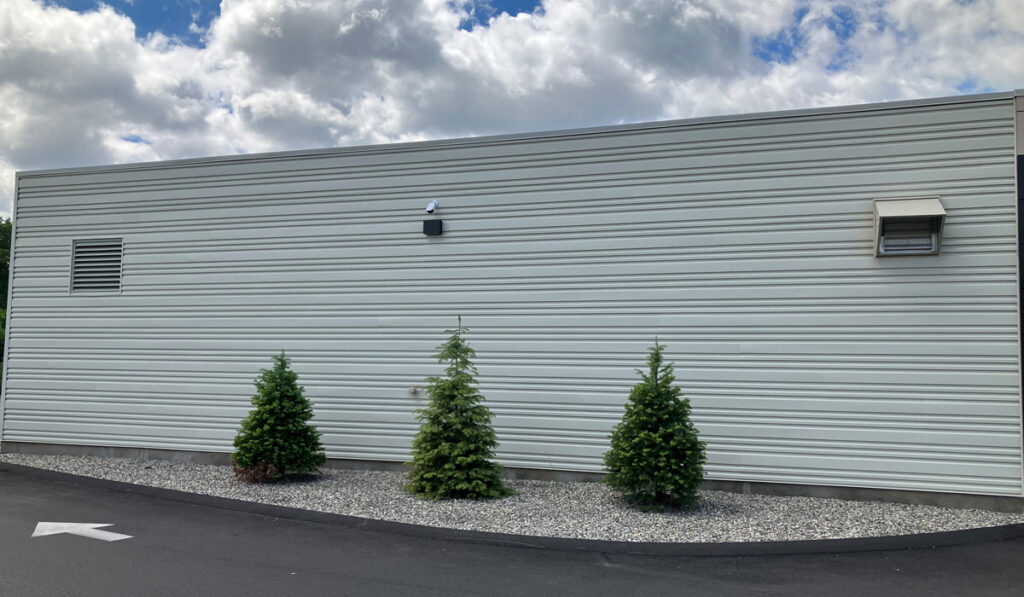

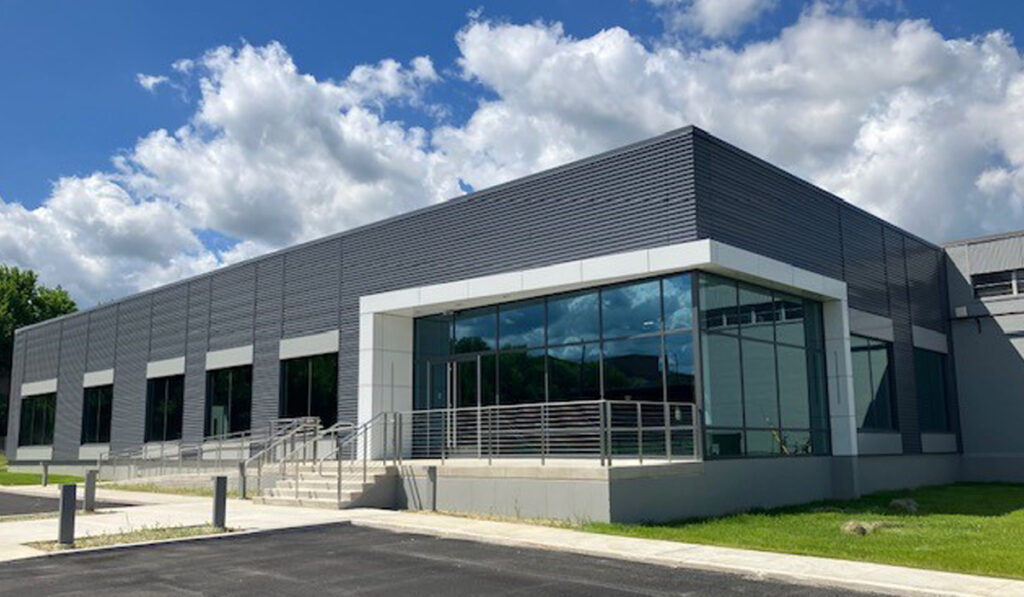

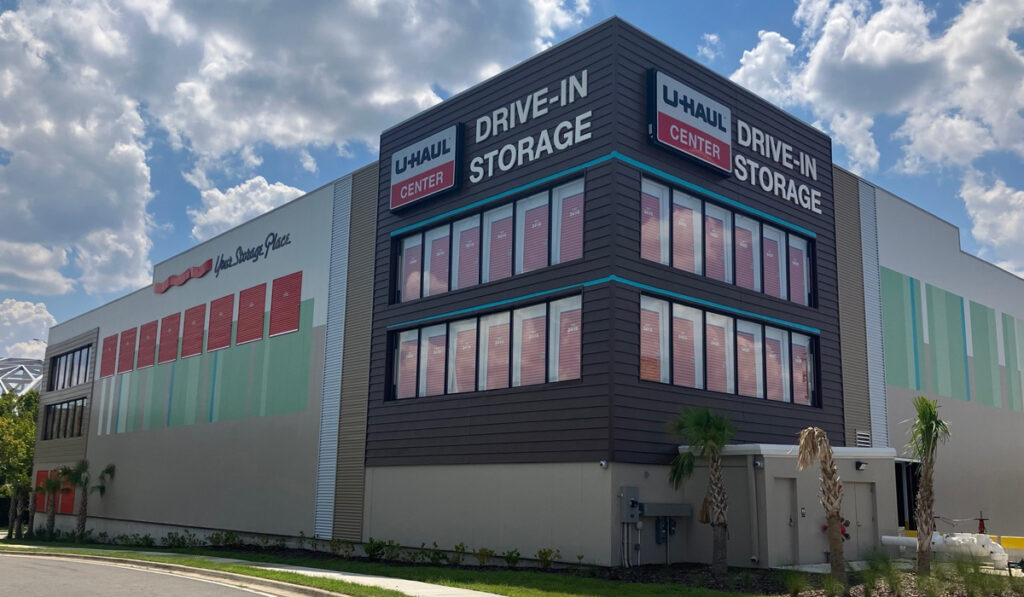

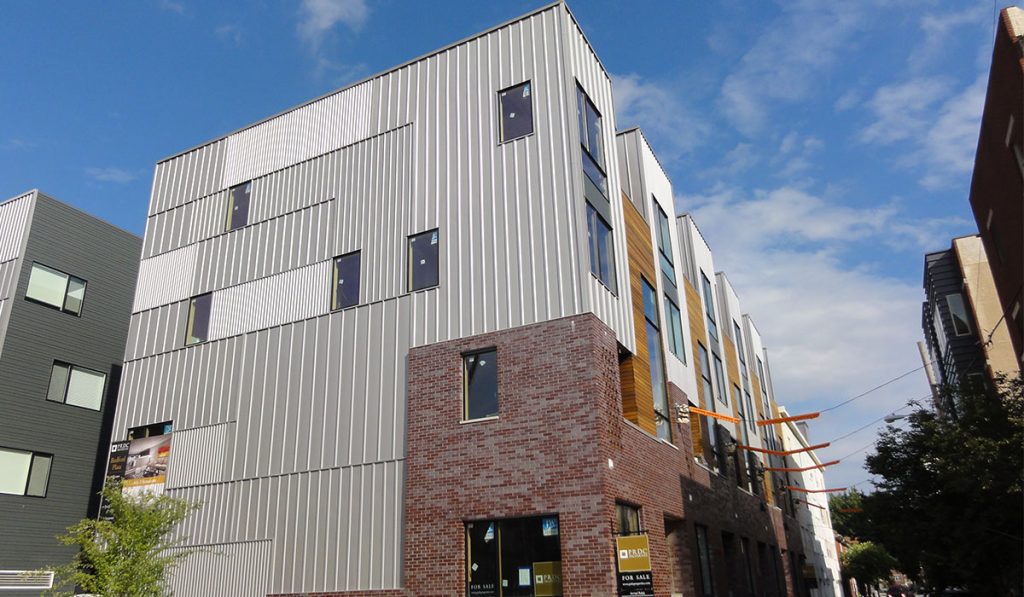

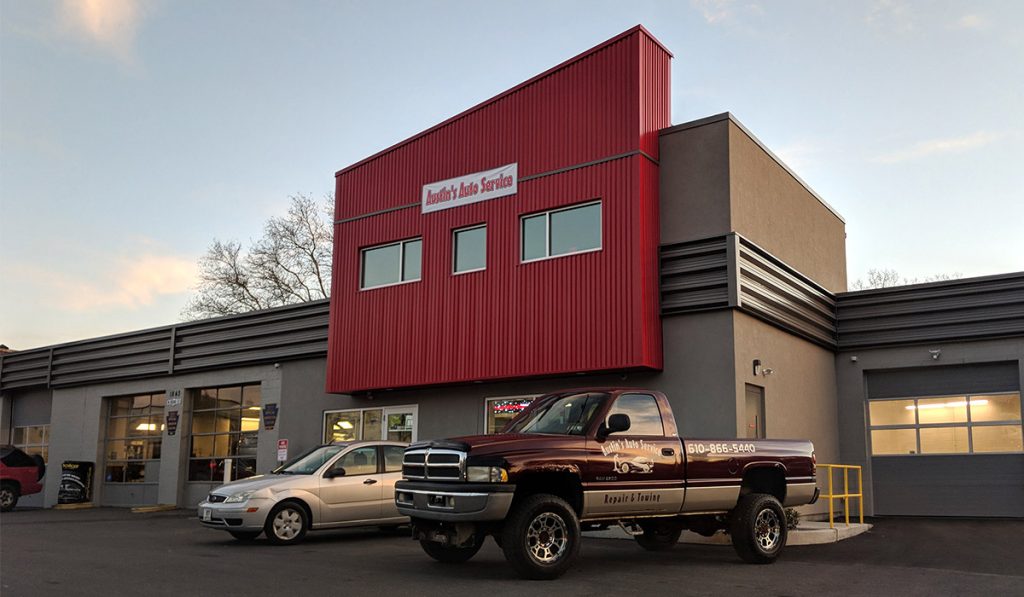

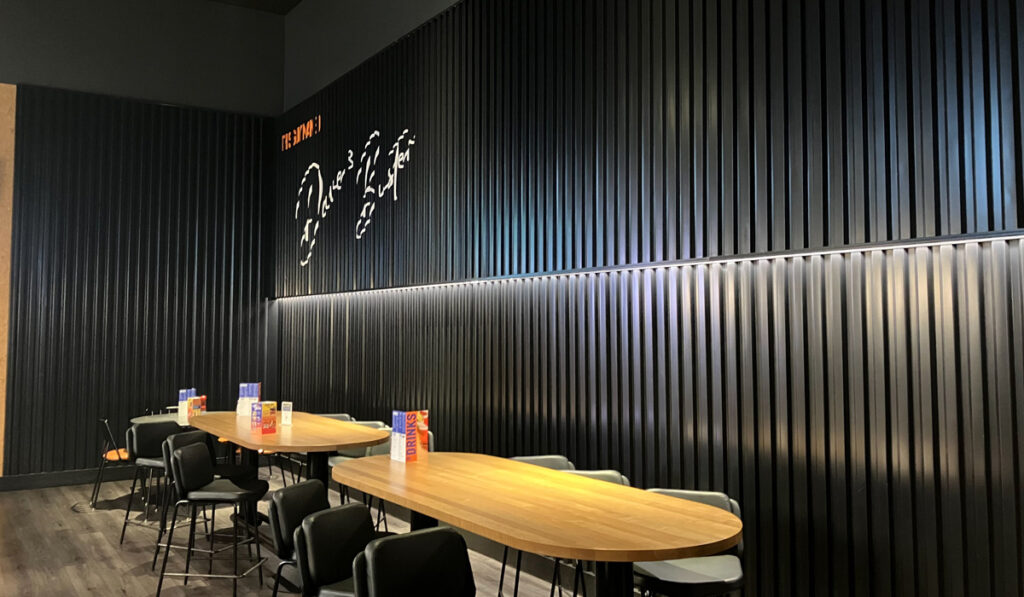

GALLERY

DOCUMENTS

Rigid Wall II Product Brochure

Rigid Wall II Spec Data Sheet

ATAS Color Chart

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

Florida Building Code Approval

ASTM E330 Testing (aluminum)

ASTM E330 Testing (steel)

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

Color Chart Color & Material Availability
