Omawall

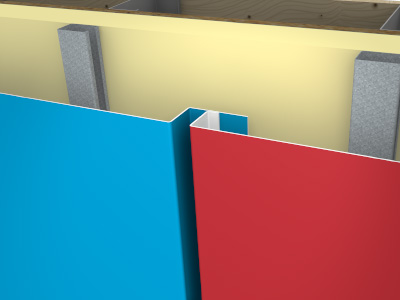

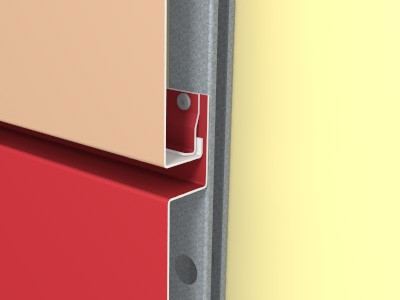

Omawall™ is a modular wall panel series designed to be used as a back ventilated or drained and back ventilated (D/BV) assembly in standard and custom size options. It offers a unique dry joint interlocking system that allows for quick and easy installation without gaskets or metal splines.
OMW188
.063 Aluminum
18″ x 96″
Custom sizes available*
1½”
5/8″
Smooth
70% PVDF
Choice of over 40 standard colors
Custom colors and finishes available*
Clear Satin
Dark Bronze
A complete line of trims available in matching colors, gauge, and finish or as specified
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format - Solid Substrate
- Omawall Solid - All Details
- Omawall Solid - Base Detail
- Omawall Solid - Endwall Detail
- Omawall Solid - Head Detail
- Omawall Solid - Inside Corner Detail
- Omawall Solid - Jamb Detail
- Omawall Solid - Outside Corner Detail
- Omawall Solid - Panel Reveal Detail
- Omawall Solid - Top of Wall Detail
- Omawall Solid - Window Sill Detail
- Omawall Solid - Panel Detail
PDF File Format - Open Framing
- Omawall Open - All Details
- Omawall Open - Panel Detail
- Omawall Open - Base Detail
- Omawall Open - Endwall Detail
- Omawall Open - Inside Corner Detail
- Omwall Open - Outside Corner Detail
- Omawall Open - Top Of Wall Detail
- Omawall Open - Panel Reveal Detail
- Omawall Open - Head Detail
- Omawall Open - Jamb Detail
- Omawall Open - Window Sill Detail
DWG File Format - Solid Substrate
- Omawall Solid - Base Detail
- Omawall Solid - Endwall Detail
- Omawall Solid - Head Detail
- Omawall Solid - Inside Corner Detail
- Omawall Solid - Jamb Detail
- Omawall Solid - Outside Corner Detail
- Omawall Solid - Panel Reveal Detail
- Omawall Solid - Top of Wall Detail
- Omawall Solid - Window Sill Detail
- Omawall Solid - Panel Detail
DWG File Format - Open Framing
- Omawall Open - Panel Detail
- Omawall Open - Base Detail
- Omawall Open - Endwall Detail
- Omawall Open - Inside Corner Detail
- Omwall Open - Outside Corner Detai
- Omawall Open - Top Of Wall Detail
- Omawall Horizontal Open - Panel Reveal Detail
- Omawall Vertical Open - Panel Reveal Detail
- Omawall Open - Head Detail
- Omawall Open - Jamb Detail
- Omawall Open - Window Sill Detail
