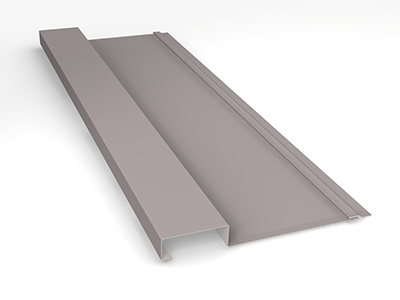

MetaFlex Series

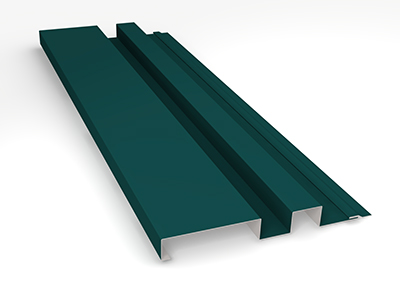

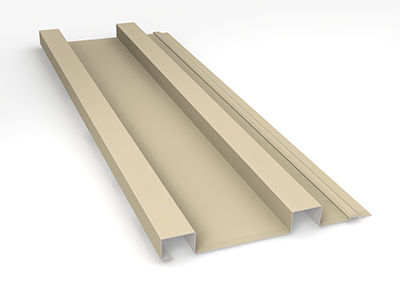

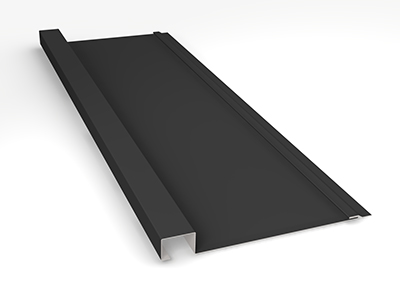

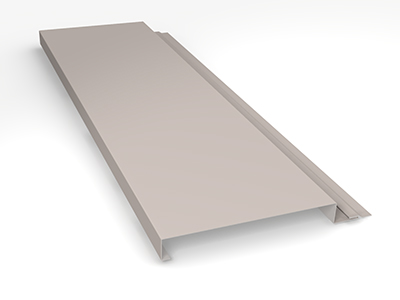

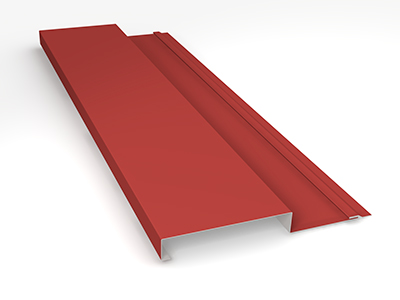

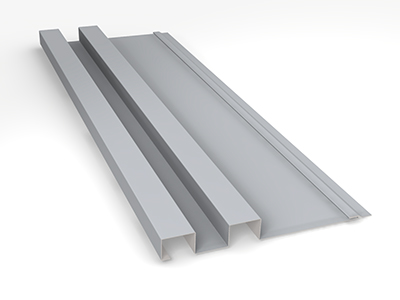

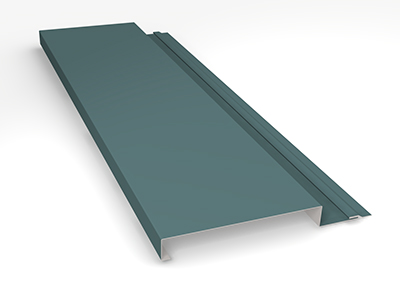

MetaFlex is a structural rainscreen wall panel system. The flexibility of these metal box-style panels allows for creativity and enhanced aesthetics for any building façade. With its versatile mix of colors, finishes, rib spacings, and panel sizes, MetaFlex brings your design vision to life. The panels are available in aluminum and steel, in a variety of thicknesses. MetaFlex is ideal for all types of commercial, educational, and healthcare buildings, as well as multi-family residential and mixed-use buildings.

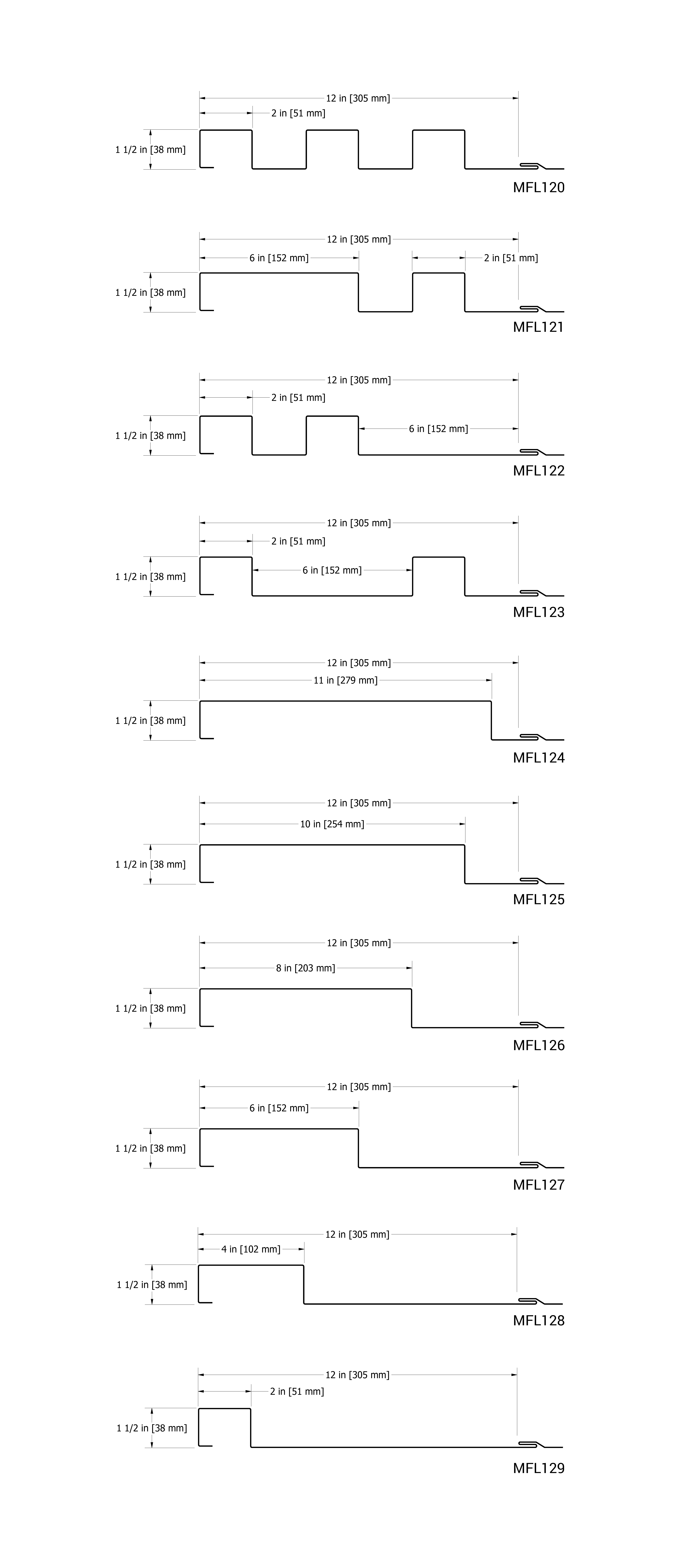

Line Drawing
Product Info
CAD Details

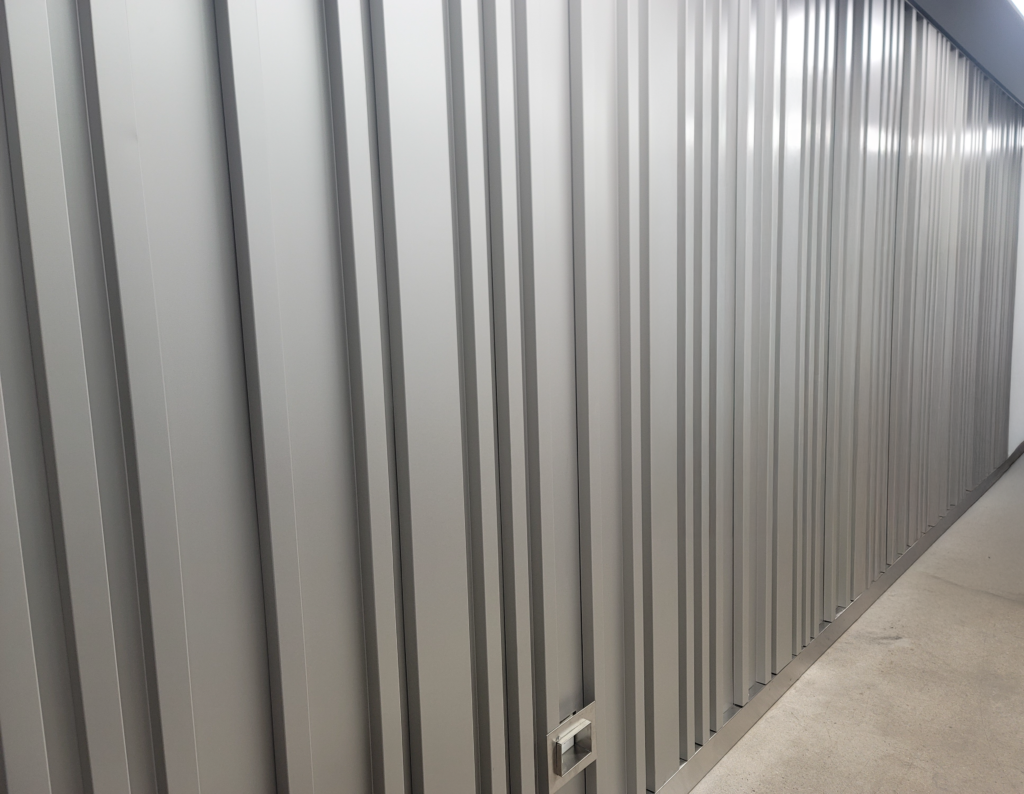

Gallery
Documents

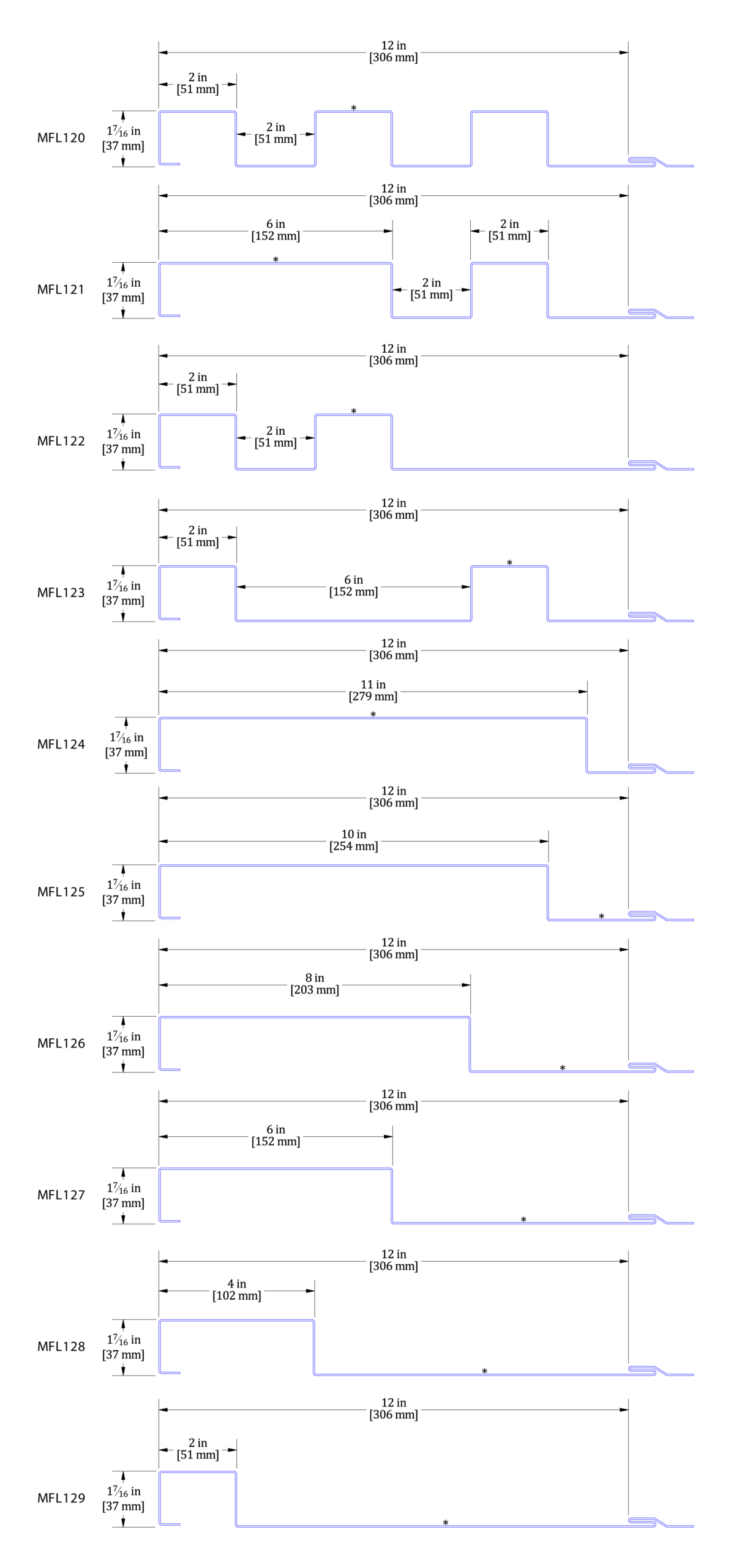

Line Drawing

Product Info

SKU:

MFL

Material

.032, & .040 aluminum

24, 22* & 20* ga. metallic coated steel

Panel Coverage:

12″

Minimum Panel Length:

3′-0″

Maximum Panel Length:

26′-4″

Panel Depth:

1 7/16”

Texture:

Smooth

Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

LA Extra Dark Bronze Anodized (.040)
BlackMatt Anodized (.040)
Dark Bronze Anodized (.032 & .040)
Clear Satin Anodized (.032, & .040)

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
