The Design Wall™ System is a structural panel with optional louvered style venting. It consists of a 12” wide panel in two distinct profiles: a smooth panel and a “board” panel. The “board” panel has an upside of 2” that may extend in 1” increments. It may be installed horizontally or vertically. Typical applications for this panel are walls, soffits, fascia or equipment screens.

You can also enhance aesthetics of Design Wall™ by using factory fabricated Elite Series accessories, including the Z Box and Closure Angle shown.

PRODUCT INFO
SKU:

DWF
DSF
DWH
DSH
DSV

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22* ga. 55% Al-Zn alloy coated steel with acrylic coating
.8, 1.0 mm zinc* (W series only)
16, 20 oz. copper*

Panel Coverage:

12″
(stiffening ribs standard on DWF, DSF, DWH, & DSH; specify without)
Striations optional on DWF & DSF
High Pressure Clip optional

Minimum Panel Length:

3’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

(DSV120 has a maximum panel length of 26′-0″)

Panel Depth:

DSF, DSH, DSV: 1¾”
DWF, DWH: 1⅛”

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed (DWF, DWH, & DSV only, 24 ga. metallic coated steel, .032 aluminum & .040 aluminum only)

Perforations Available:

Yes

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format - Horizontal Application - Solid Substrate
PDF File Format - Vertical Application - Solid Substrate
PDF File Format - Horizontal Application - Open Framing
PDF File Format - Vertical Application - Open Framing
DWG File Format - Horizontal Application - Solid Substrate
DWG File Format - Vertical Application - Solid Substrate
DWG File Format - Horizontal Application - Open Framing
DWG File Format - Vertical Application - Open Framing

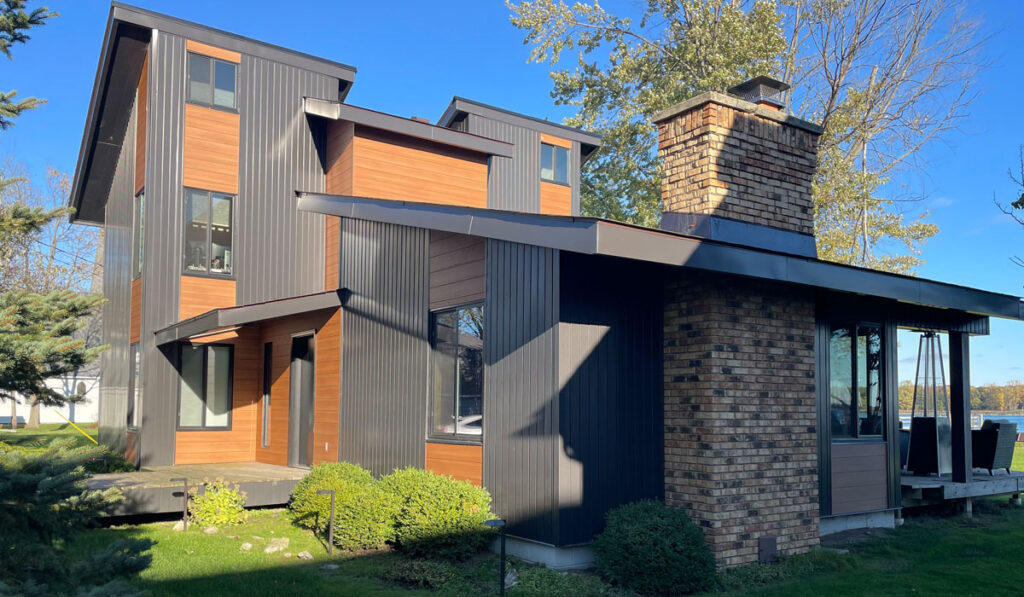

GALLERY
DOCUMENTS

Design Wall Product Brochure

Design Wall Spec Data Sheet

ATAS Color Chart

DSF Load Table

DWF Load Table

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

ASTM E330 Testing | Design Wall w/ Sidelap Fastener (aluminum)

ASTM E330 Testing | Design Wall w/ Sidelap Fastener (steel)

ASTM E330 Testing | Design Wall w/ Wind Clip (aluminum)

ASTM E330 Testing | Design Wall w/ Wind Clip (steel)

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement
