CastleTop (Wall)

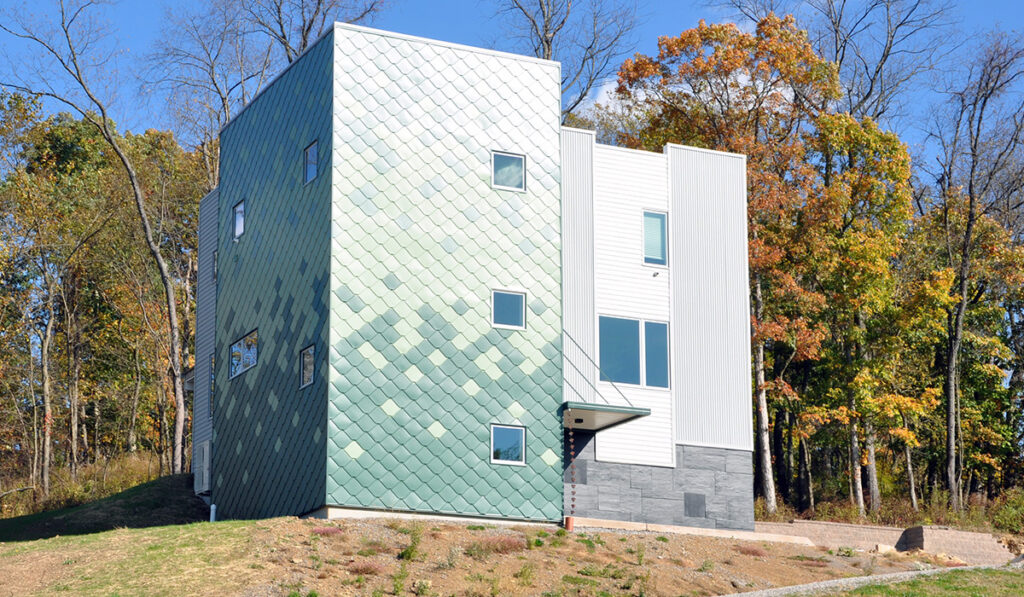

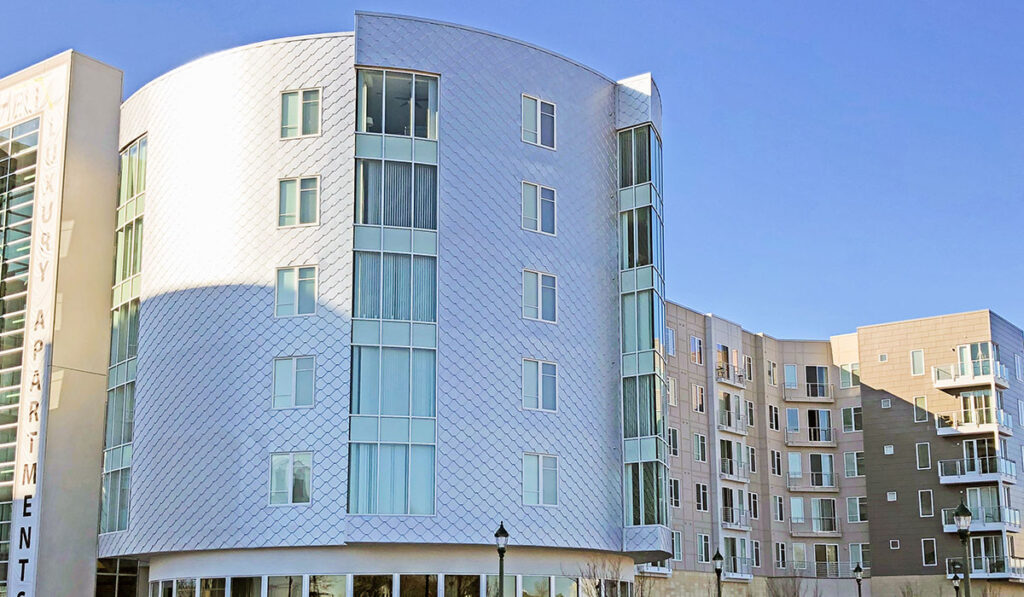

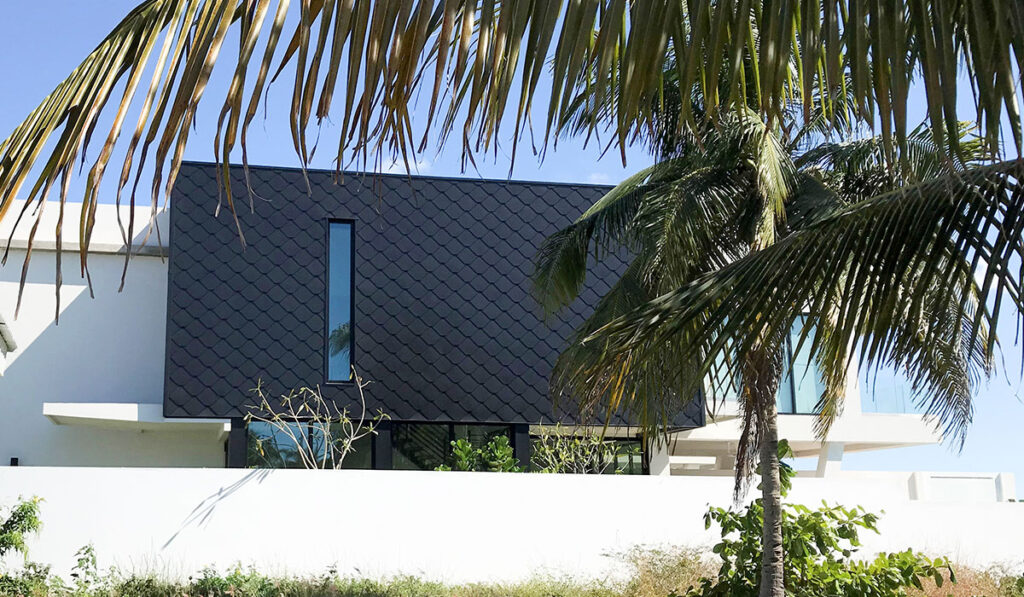

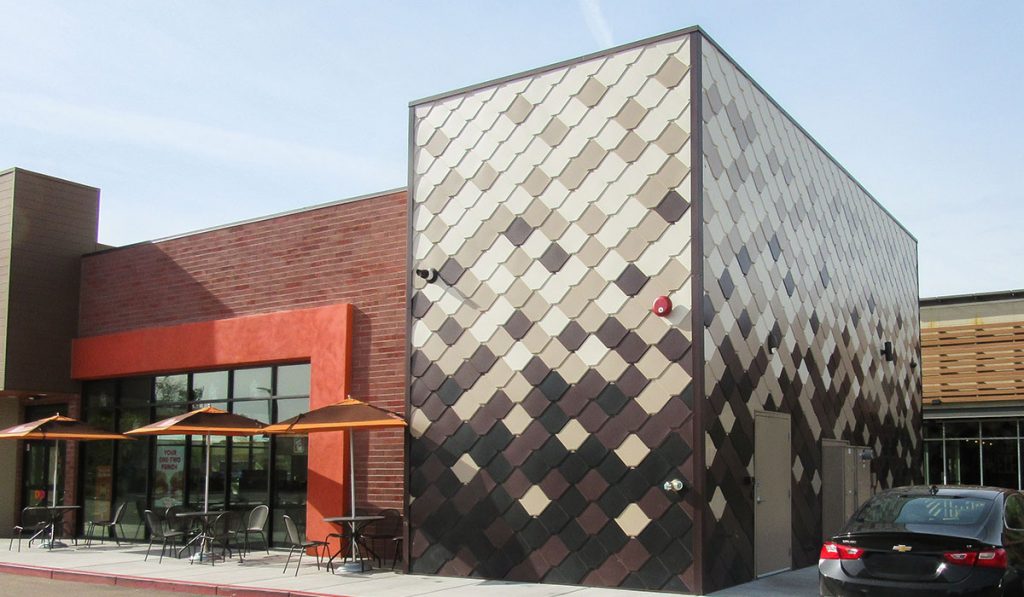

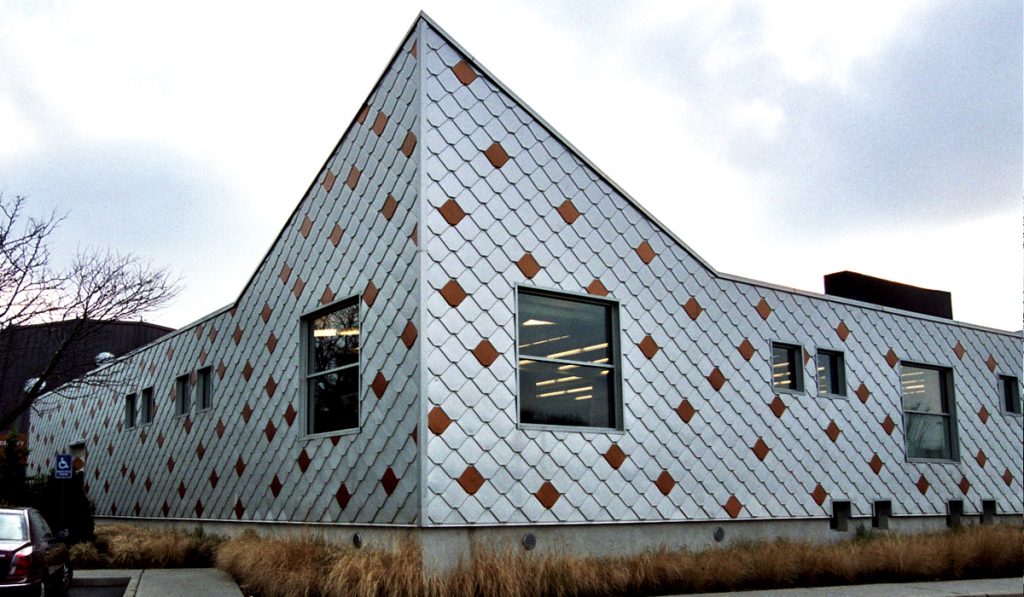

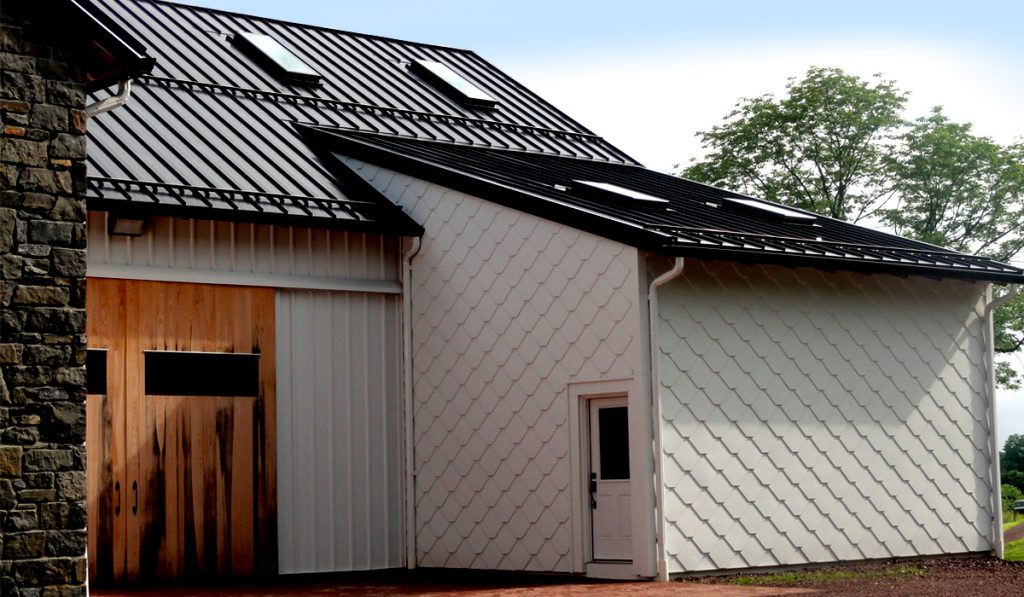

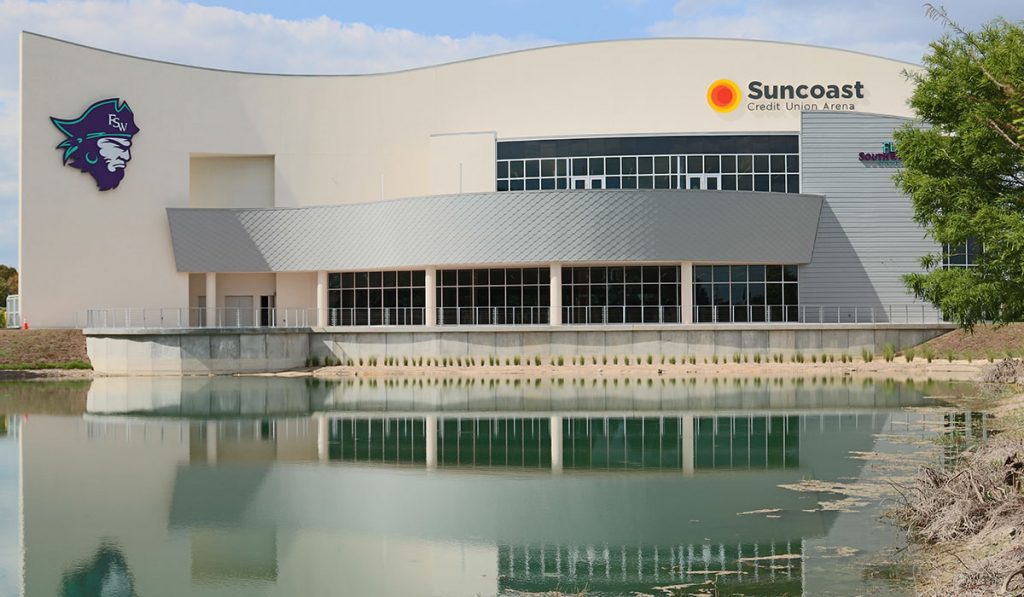

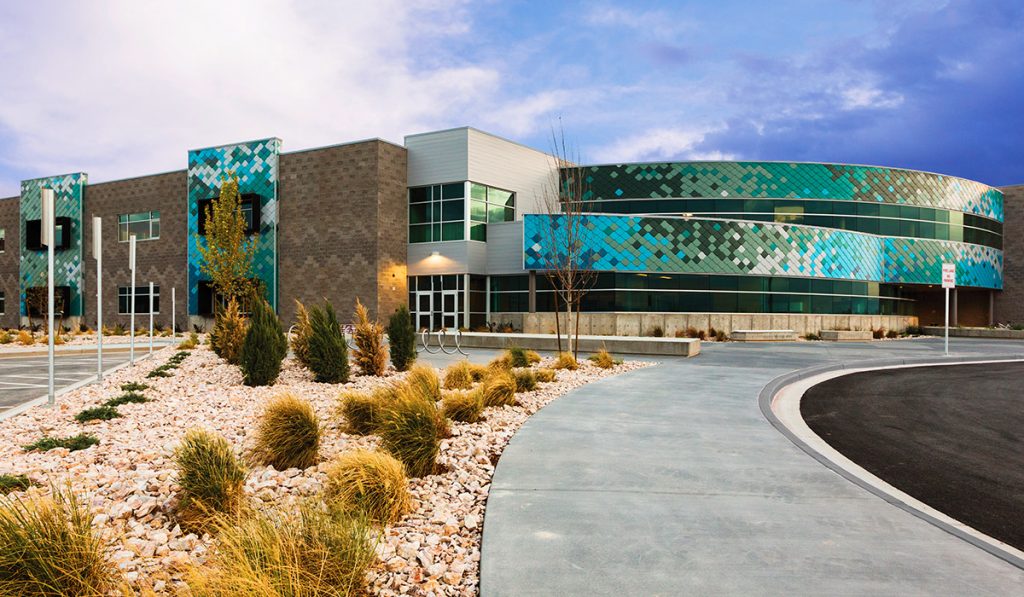

CastleTop® is a diamond-shaped flat shingle for a unique roof or wall appearance. The shingle offers easy install with concealed fasteners. Different colors may be combined to create interesting patterns. CastleTop® may be used for commercial or residential roof and wall applications with a recommended minimum slope of 3:12.
You can also enhance aesthetics of CastleTop® by using factory fabricated Elite Series accessories, including the Z Box shown.
Florida Building Product Approval: FL 2905.2
HCT160
.032 aluminum
.7 mm zinc*
16 oz. copper*
15¾” x 15¾”
13½” x 13½”
Stucco Embossed (aluminum only)
Smooth (copper and zinc only)
70% PVDF
Choice of over 40 stock colors (aluminum only)
Custom colors and finishes available*
A complete line of trims available in matching colors, gauge, and finish or as specified
FL 2905
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format
- CastleTop - All Wall Details
- CastleTop - Wall Panel Layout Detail
- CastleTop - Base Detail
- CastleTop - Endwall Detail
- CastleTop - Inside Corner Detail
- CastleTop - Outside Corner Detail
- CastleTop - Top of Wall Detail
- CastleTop - Flanged Window Head Detail
- CastleTop - Flanged Window Jamb Detail
- CastleTop - Flanged Window Sill Detail
- CastleTop - Window Head Detail
- CastleTop - Window Jamb Detail
- CastleTop - Panel Profile Detail
- CastleTop - Window Sill Detail
