Dutch Seam

Dutch Seam

Panel Options:

Stiffening Ribs
Stiffening Ribs
Striations
Striations
Without Ribs
Without Ribs
Dutch Seam

Panel Options:

Stiffening Ribs
Stiffening Ribs
Striations
Striations
Without Ribs
Without Ribs

Dutch Seam® is a continuous standing seam metal roof panel with an integral seam. With the lock and seam an integral part of the panel, there are no seam caps to install. This prevents “blow-off” or “creeping” of the cap or seam. Mechanical field seaming of the panel is not required. Just snap the panel onto the previously installed panel, fasten the clip and the panel is in place. Dutch Seam® is a structural metal roof panel and can be fastened directly to purlins or solid substrate. The minimum slope requirement for a roof is 2:12. A flat roof can be converted to the correct slope with the simple addition of a lightweight truss system.



Florida Building Product Approval: FL 3556

PRODUCT INFO
SKU:

MRD110
MRD150
MRD194

Material:

.032, .040 aluminum
24, 22* ga. metallic coated steel
24 ga. 55% Al-Zn alloy coated steel with acrylic coating
16, 20 oz. copper*
.8 mm zinc* (MRD110 Only)

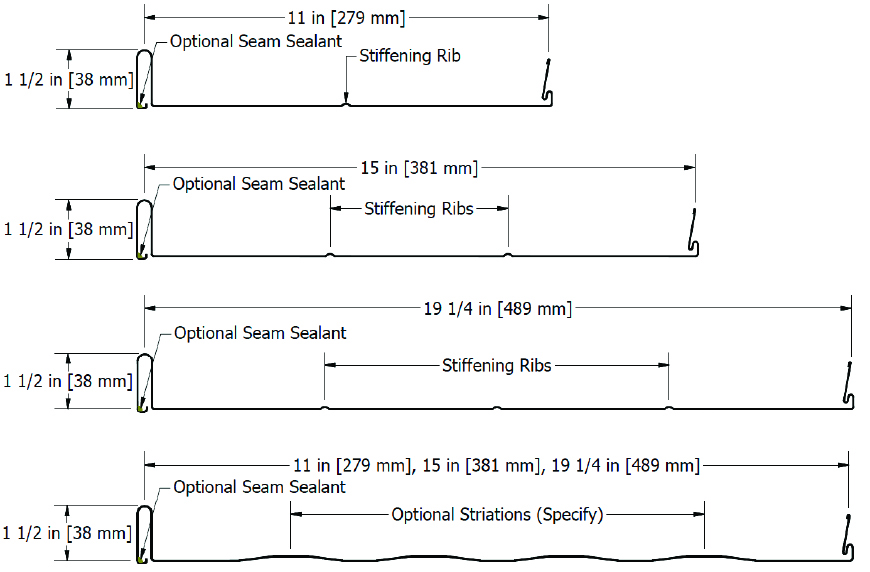

Panel Coverage:

11”
15”
19¼”
(Stiffening ribs standard, specify without ribs or with striations)

Minimum Panel Length:

2’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Seam Height:

1½”

Available:

Tapered

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Minimum Slope:

2:12

Florida Building Product Approval:

FL 3556.1
FL 3556.2



MCA Certification:

0057MONA

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format
DWG File Format

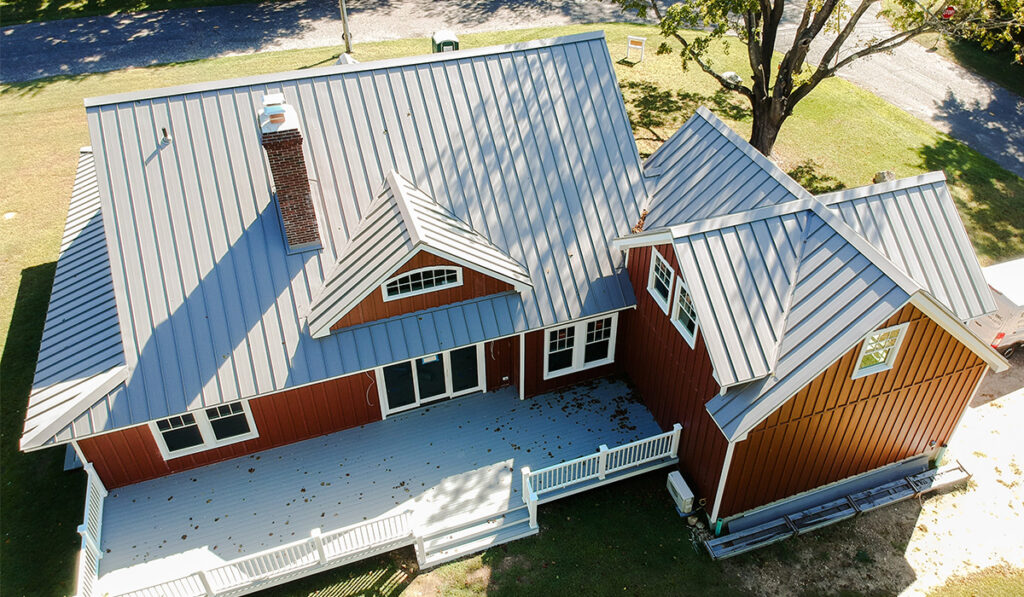

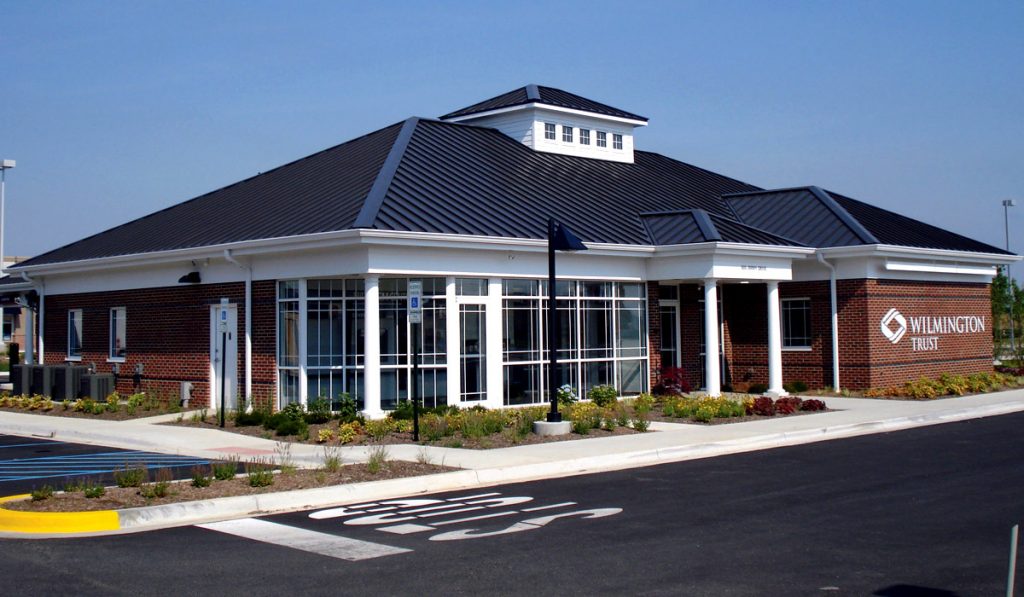

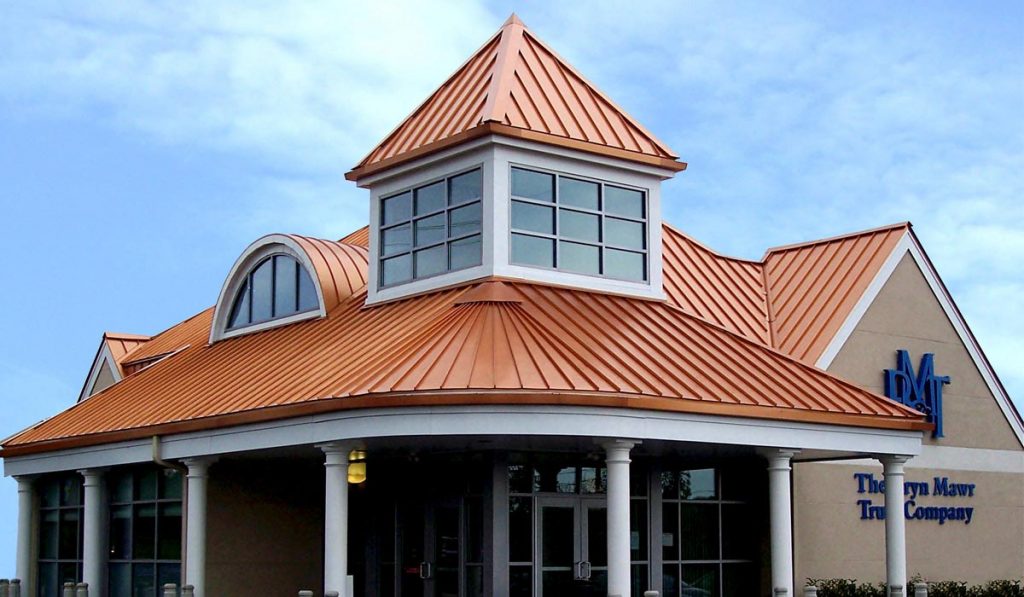

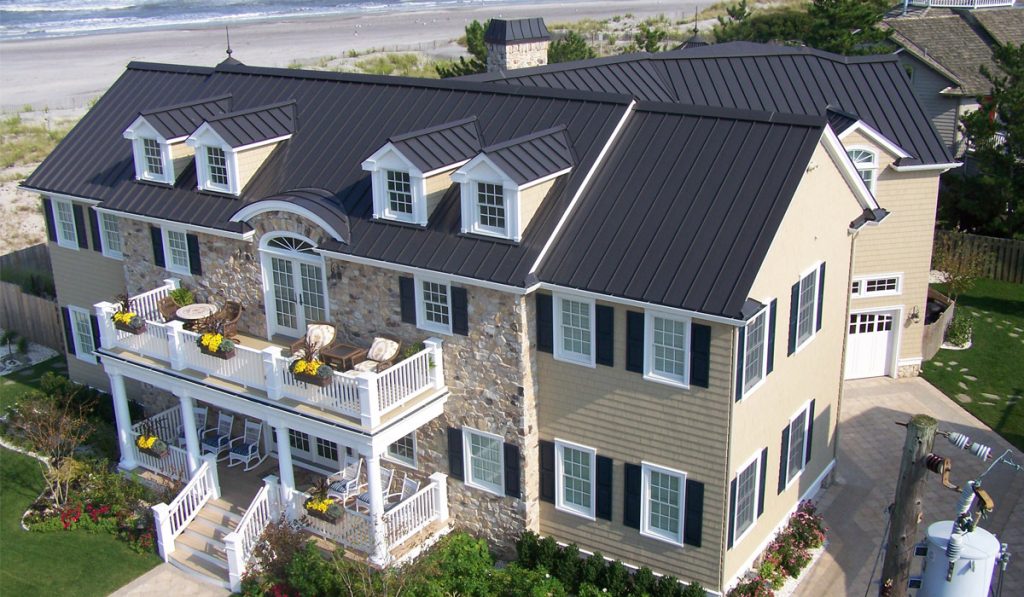

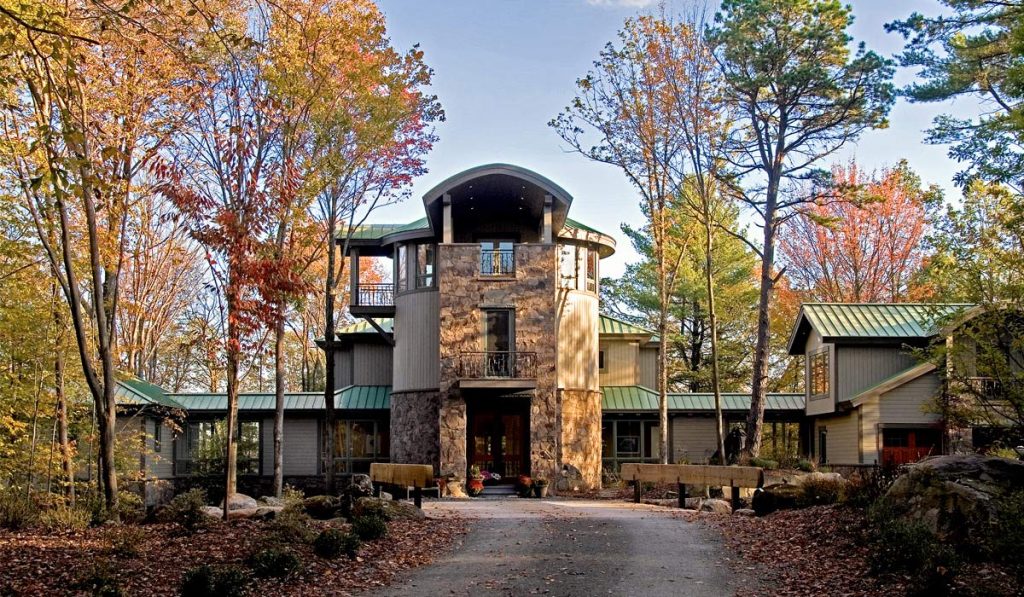

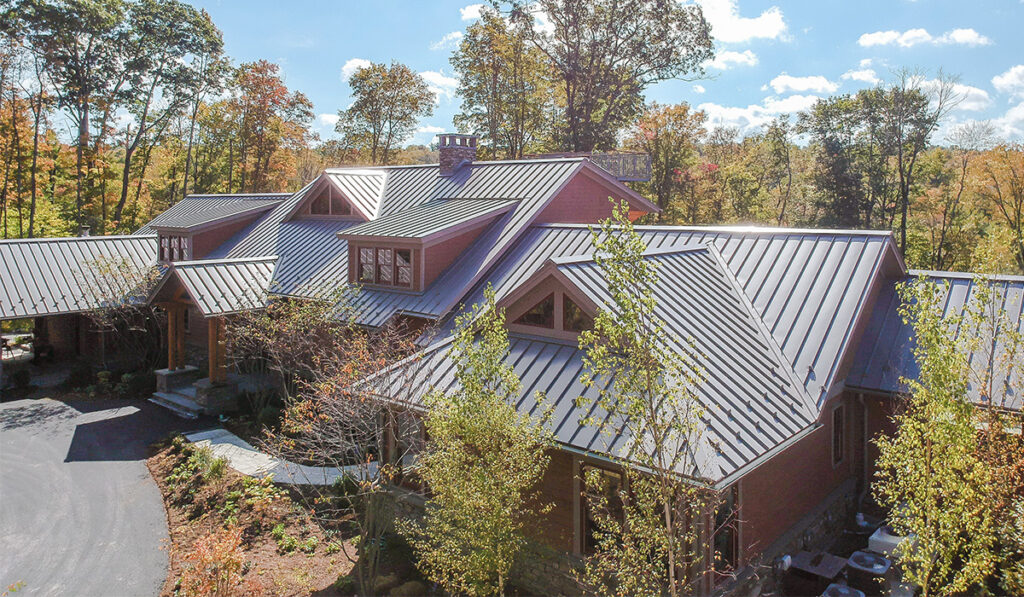

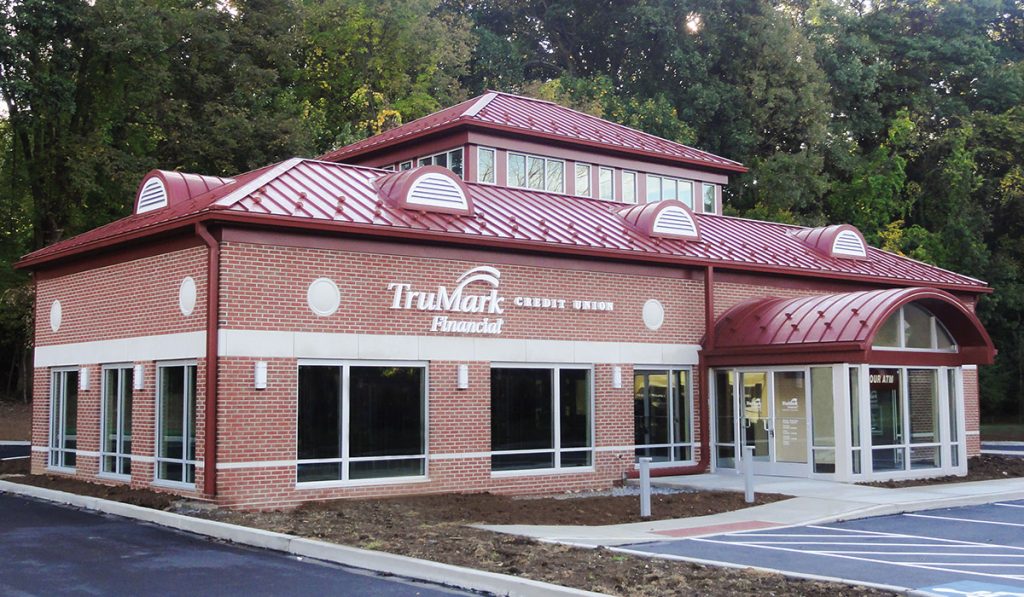

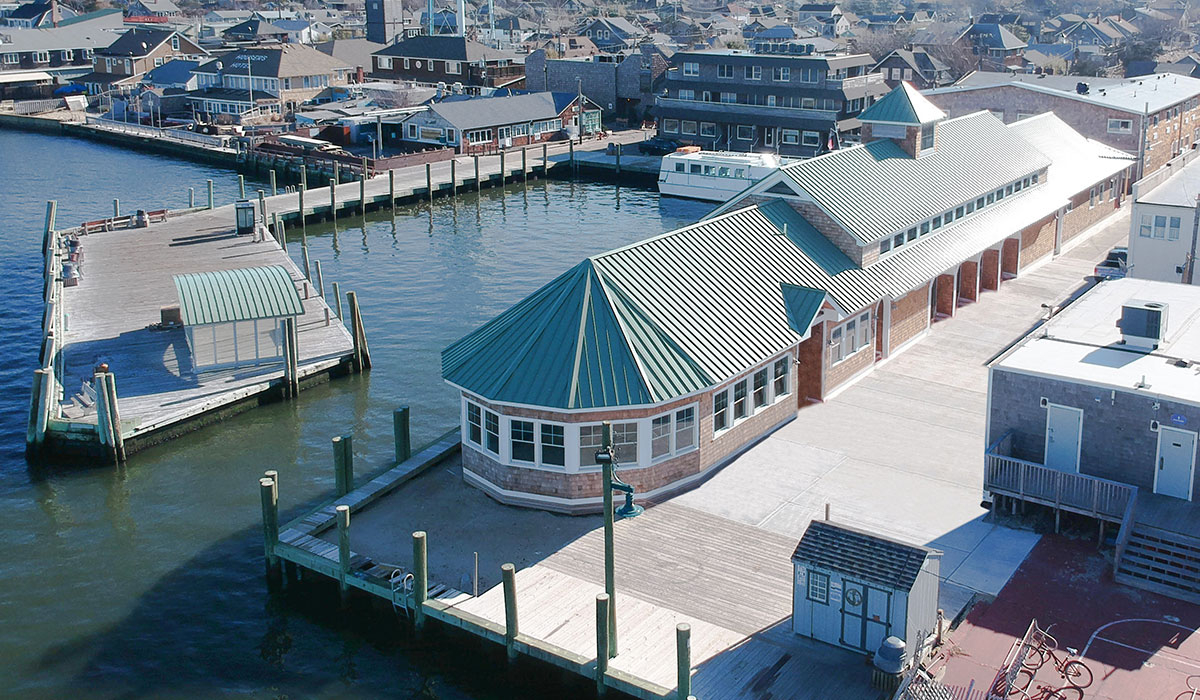

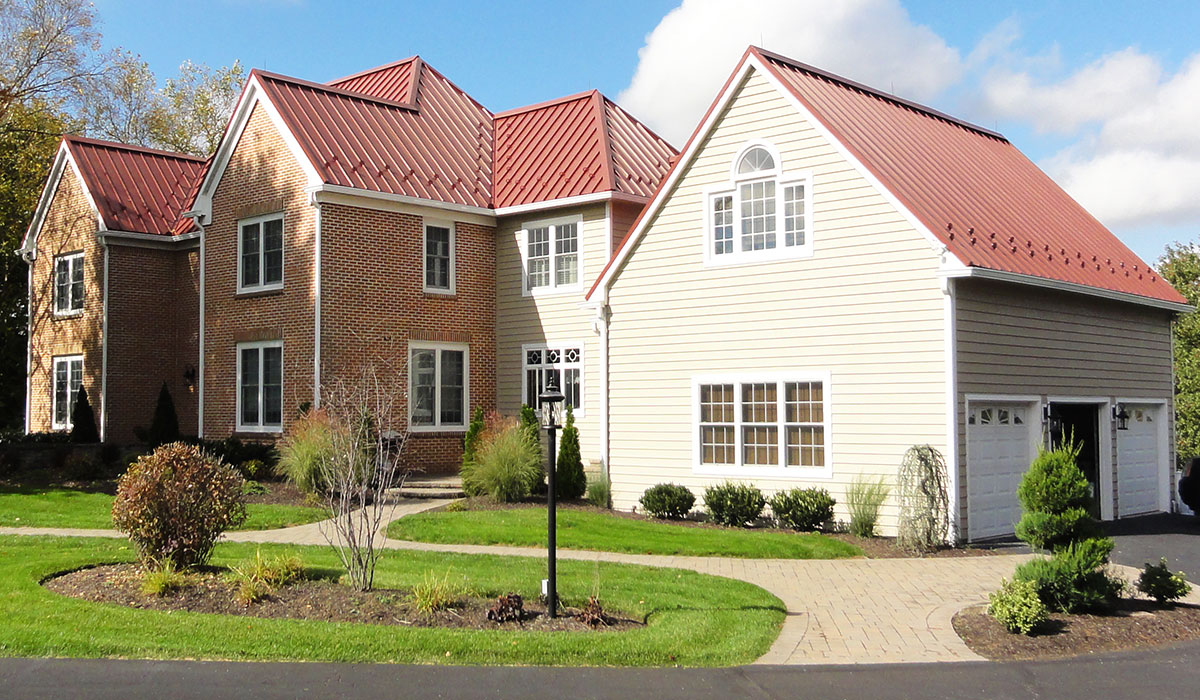

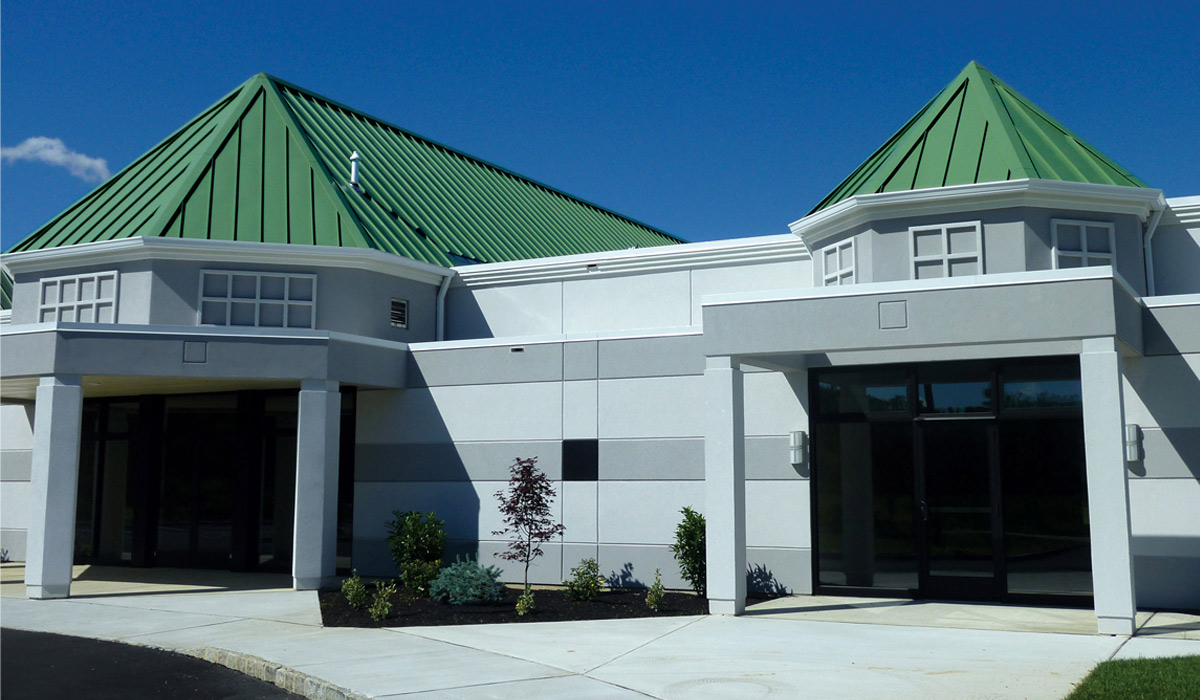

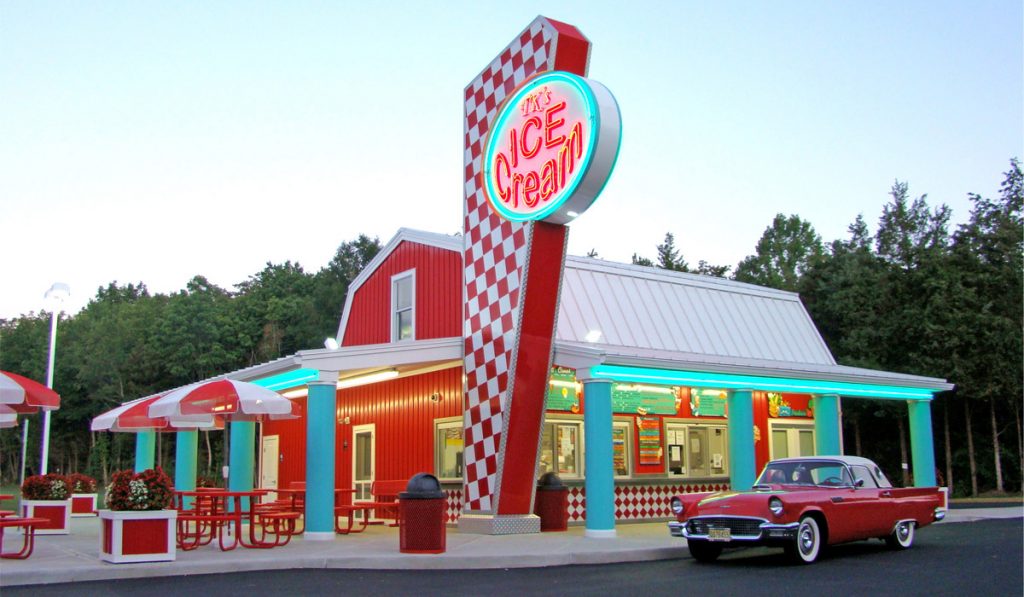

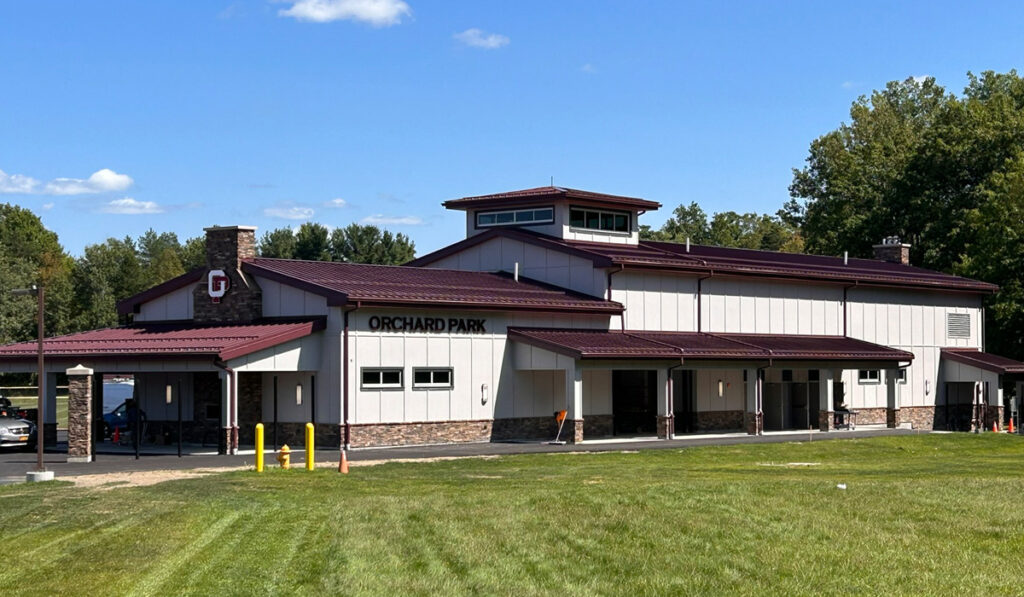

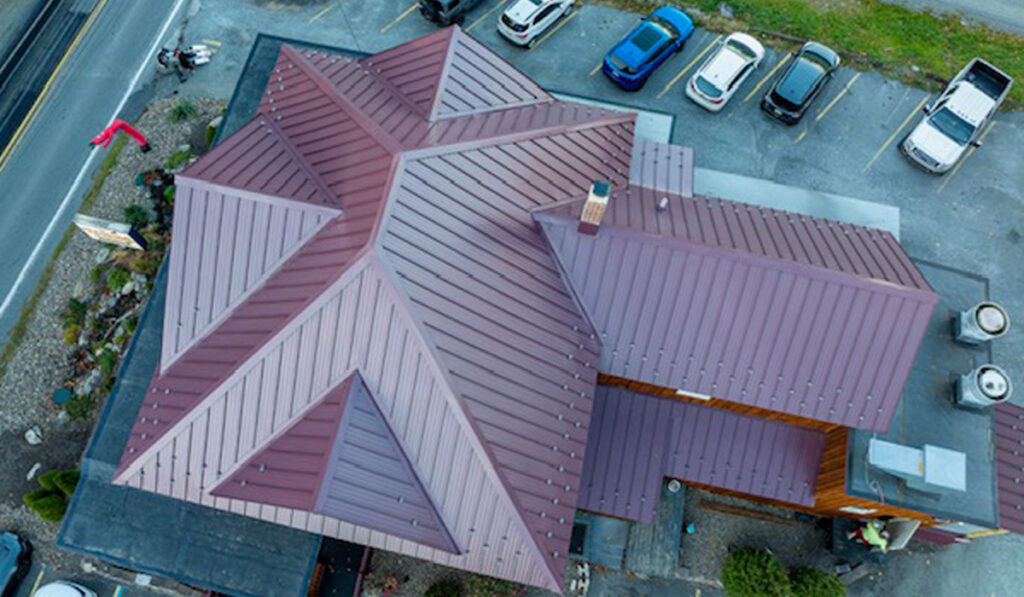

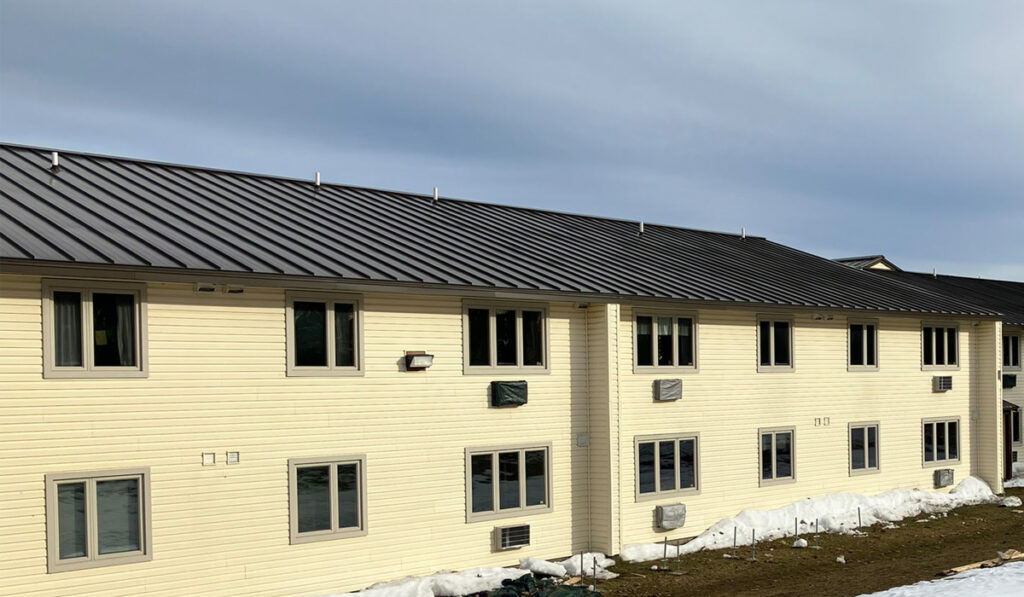

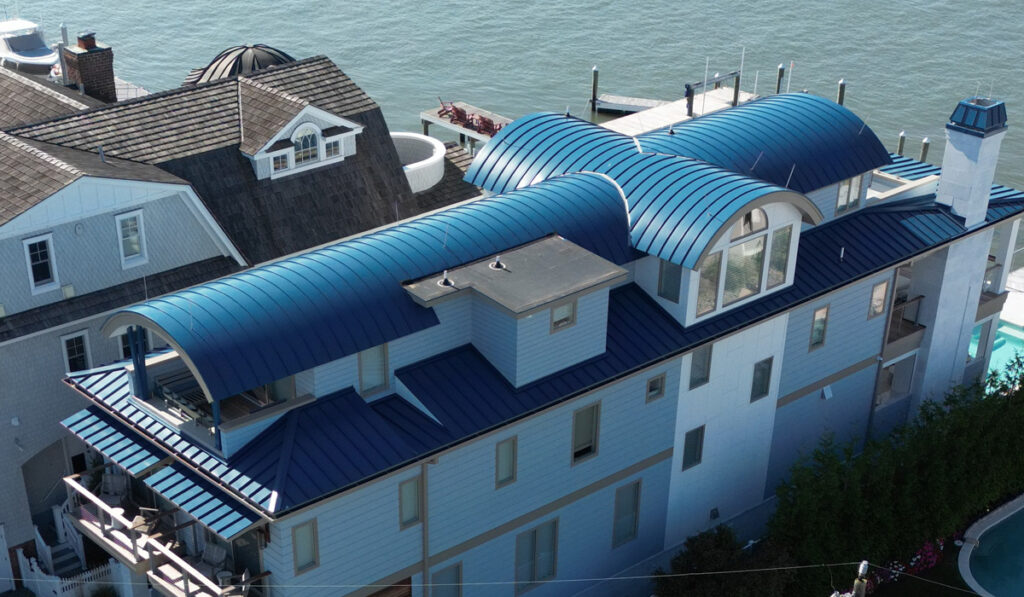

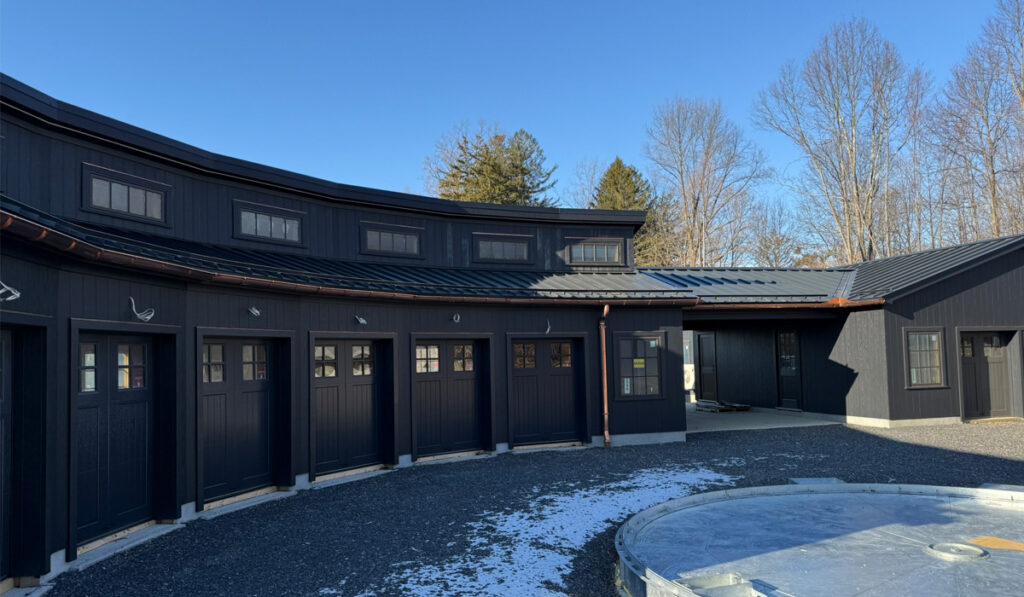

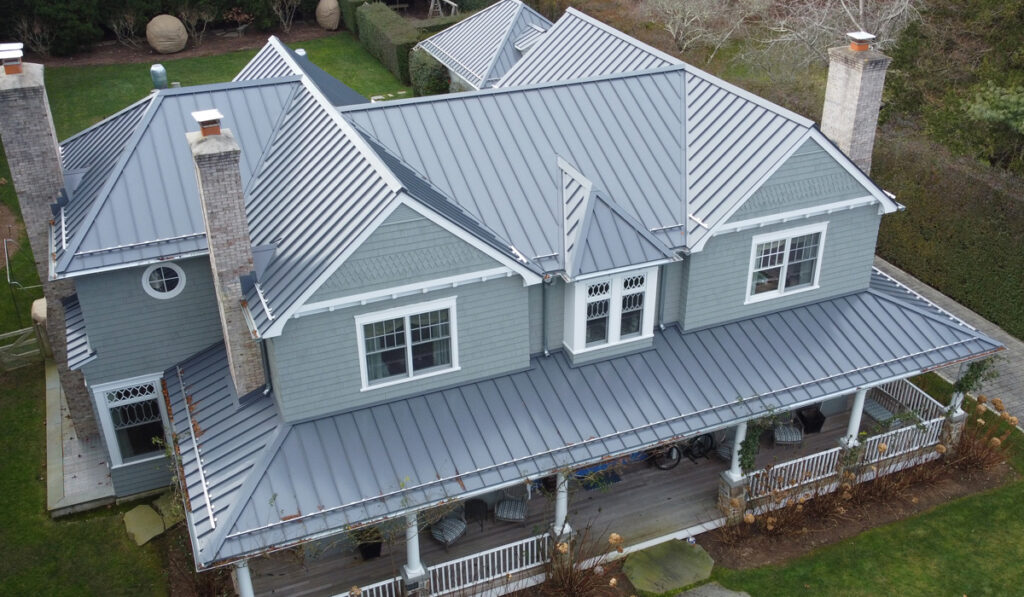

GALLERY
DOCUMENTS

Dutch Seam Product Brochure

Dutch Seam Spec Data Sheet

ATAS Color Chart

Dutch Seam Load Table

Dutch Seam Estimating Sheet

Example of Square Penetration Method For Standing Seam

Example of Square Penetration Layout

Square Penetration Order Sheet

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

Florida Building Code Approval

SRI Values Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
