CastleTop® is a diamond-shaped flat metal roof shingle for a unique roof appearance. The shingle offers easy install from eave to ridge with concealed fasteners. An expanded polystyrene backer board gives strength to allow for light foot traffic during installation. In some cases, the shingles may be applied directly over the existing roof, eliminating the need for tear-off and disposal*. Different colors may be combined to create interesting patterns. CastleTop® may be used for commercial or residential roof applications with a recommended minimum slope of 3:12. The metal roof shingle also is suitable for walls and mansards.



*Subject to local codes



Florida Building Product Approval: FL 2905

PRODUCT INFO
SKU:

HCT160

Material:

.032 aluminum
.7 mm zinc*
16 oz. copper*

Shingle Size:

15¾” x 15¾”

Shingle Coverage:

13½” x 13½”

Texture:

Stucco Embossed (aluminum only)
Smooth (copper and zinc only)

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors (aluminum only)
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

Fasteners:

Concealed fasteners

Minimum Slope:

3:12

Florida Building Product Approval:

FL 2905.2

MCA Certification:

0057CAST

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format
DWG File Format

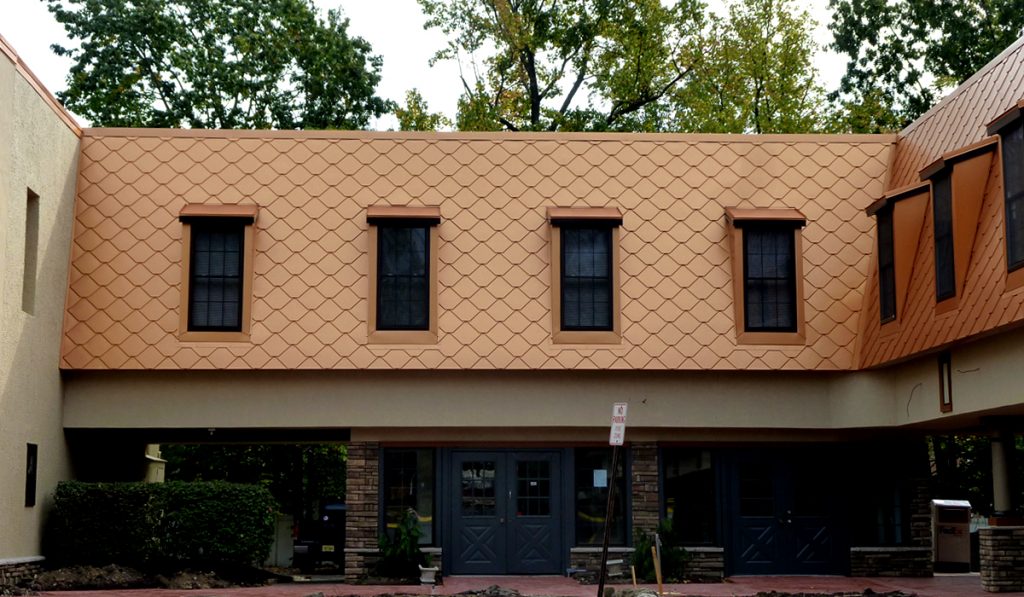

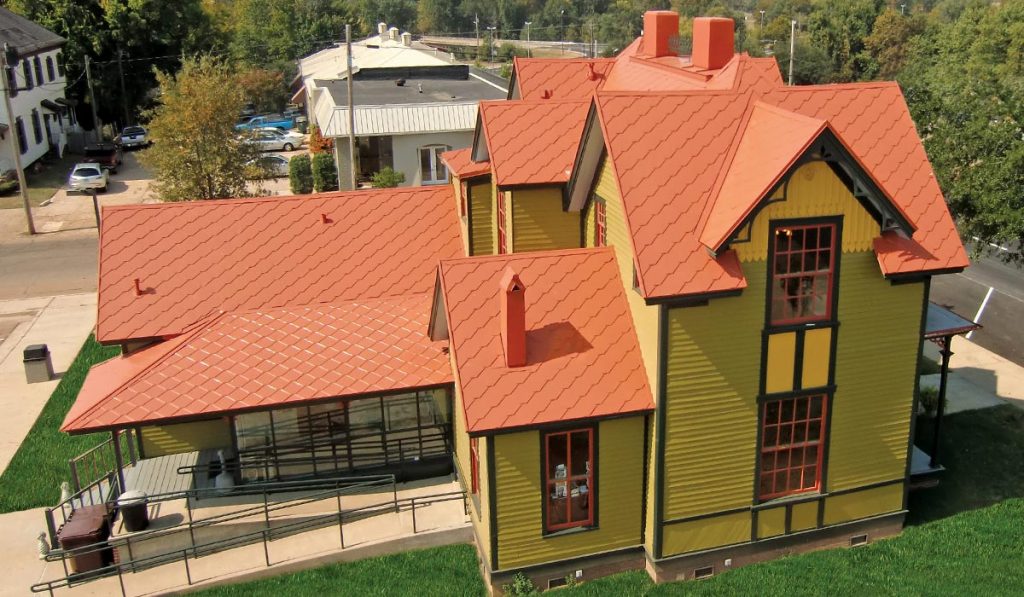

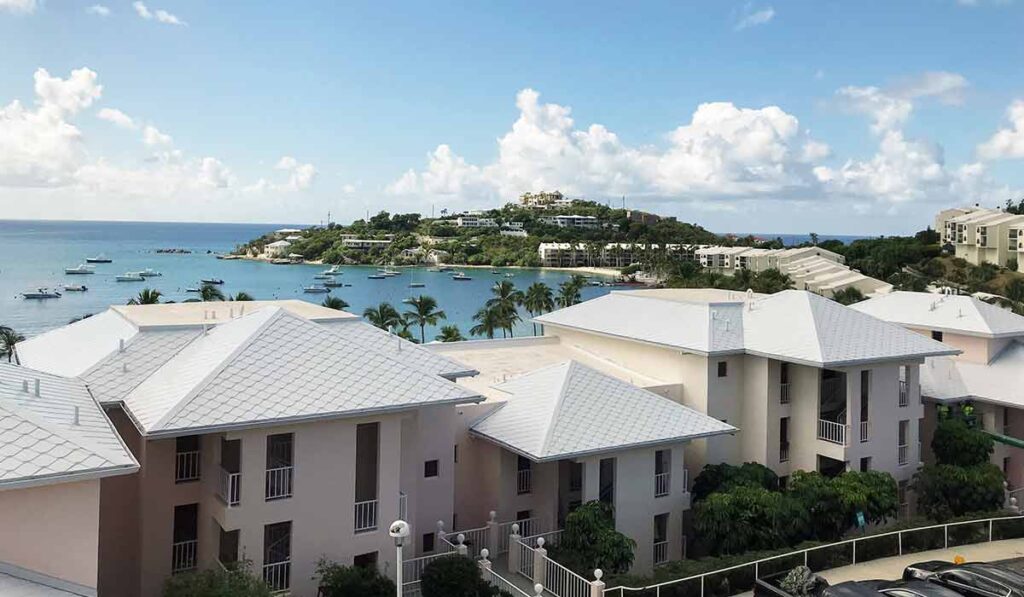

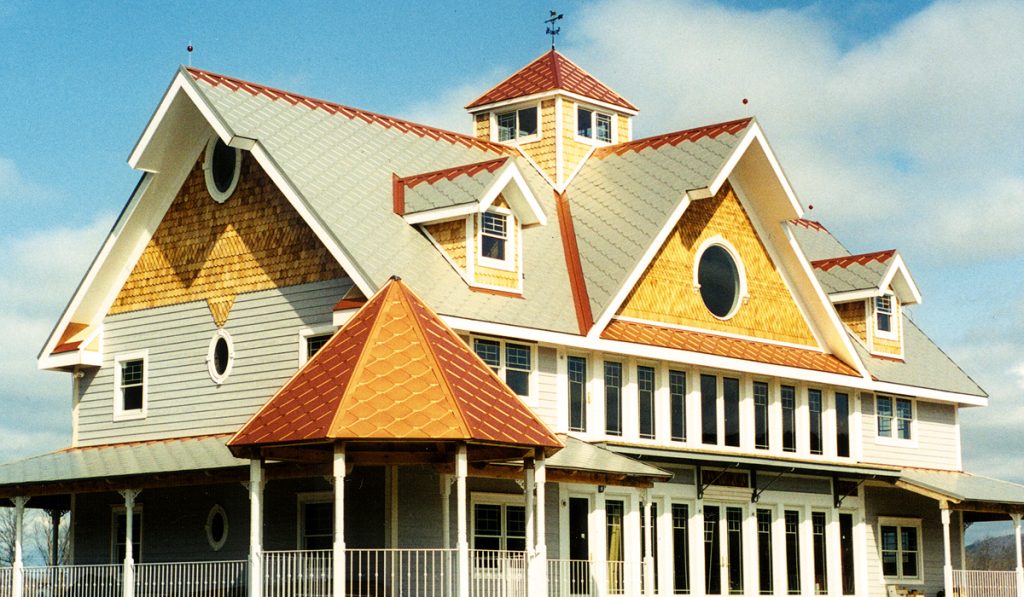

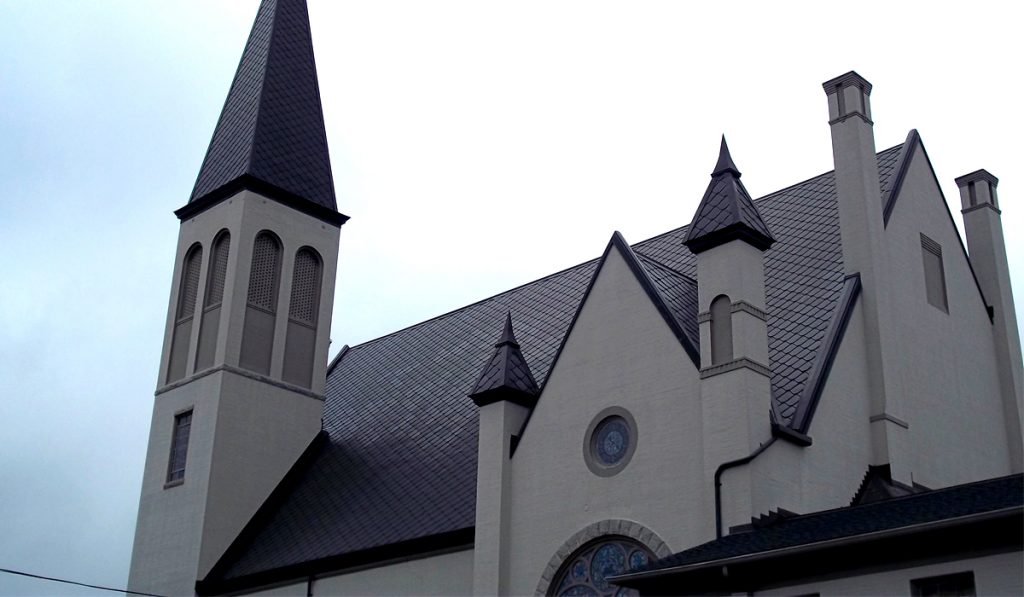

GALLERY
DOCUMENTS

CastleTop Product Brochure

CastleTop Spec Data Sheet

ATAS Color Chart

CastleTop Estimating Sheet

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

Florida Building Code Approval

SRI Values Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
