Curved 1″ Field-Lok

Curved 1″ Field-Lok

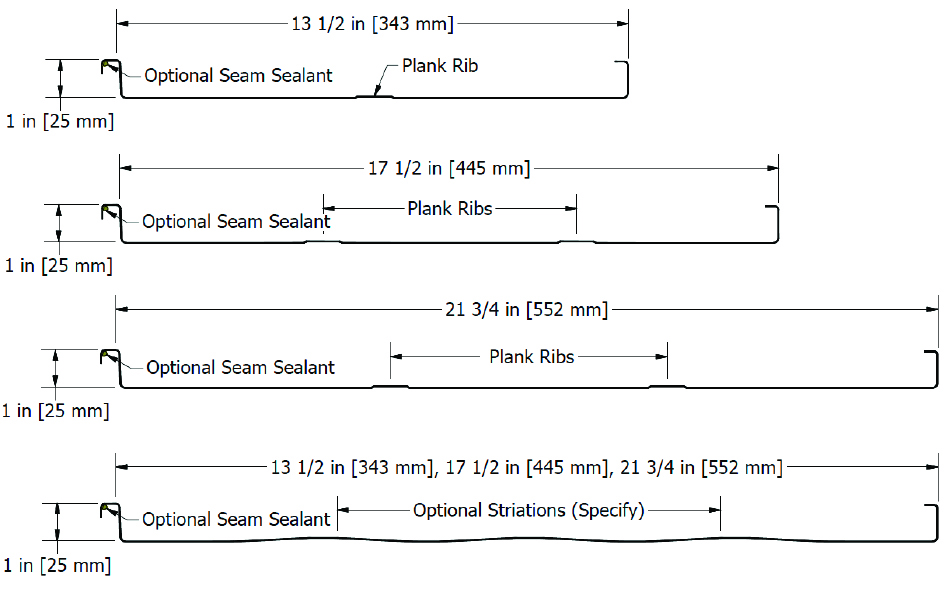

Panel Details:

Seam Detail
Seam Detail

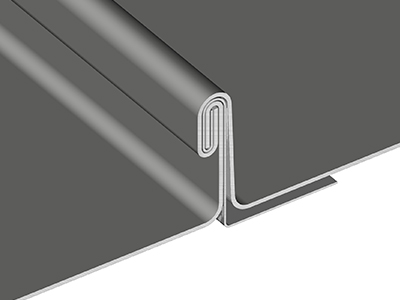

Double Lock
Double Lock

1” Field-Lok panel with 1” high seam is a non-structural single-locked or double-locked roof panel. 1″ Field-Lok has passed industry performance tests in accordance with UL 580 Class 90. The panel system is installed with either an expansion or fixed clip. It can be curved with or without plank ribs for special accents, as well as over entrances and walkways. Curved trims available.



Contractors and erectors are now able to rent roof seamers directly from our supplier, Developmental Industries (DI). Renting directly from DI, by visiting atas.diroofseamers.com, will provide an even quicker, more efficient ordering process and allow you to communicate directly with their knowledgeable staff regarding logistics and technical issues.

SKU:

FLX135
FLX175
FLX217
FLX999

Material:

.032 aluminum
24, 22* ga. metallic coated steel
24 ga. 55% Al-Zn alloy coated steel with acrylic coating
16, 20 oz. copper*

Panel Coverage:

13½”
17½”
21¾”

Minimum Panel Length:

4’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Seam Height:

1″

Curving Available:

Convex

Minimum Radius:

8′-0″ (aluminum)
12′-0″ (steel)

Texture:

Smooth

Finish:

70% PVDF

Colors:

Choice of over 35 stock colors
Custom colors and finishes available*

Accessories:

A complete line of curved trims available in matching colors, gauge, and finish or as specified.

Minimum Slope:

2:12 depending on climate conditions

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability
