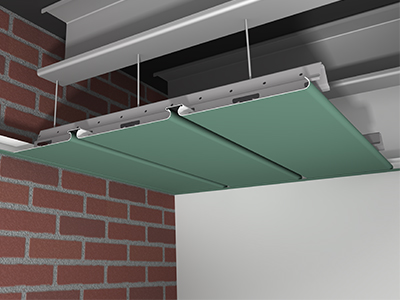

LCR - Recessed Overview
LCR - Recessed Overview
LCR - Recessed Close-Up
LCR - Recessed Close-Up
LCR - Mix & Match Widths
LCR - Mix & Match Widths
LCR - Flush Overview
LCR - Flush Overview

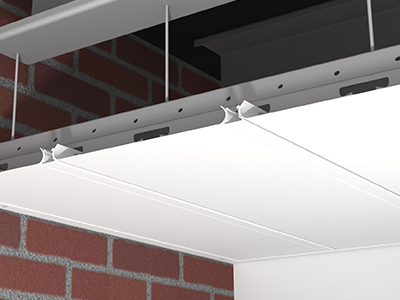

LCR - Flush Close-Up
LCR - Flush Close-Up
LCB - Recessed Overview
LCB - Recessed Overview

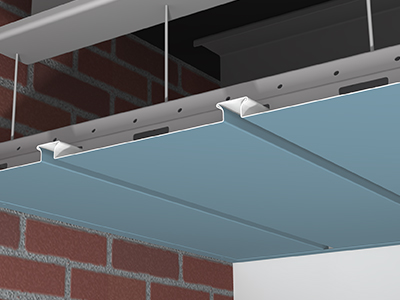

LCB - Recessed Close-Up
LCB - Recessed Close-Up
LCB - Mix & Match Widths
LCB - Mix & Match Widths
Microperfs with SoundTex
Microperfs with SoundTex
Microperfs with Insulation
Microperfs with Insulation
Linear Ceiling Series

Profile Options:

LCR - Recessed Overview
LCR - Recessed Overview
LCR - Recessed Close-Up
LCR - Recessed Close-Up
LCR - Mix & Match Widths
LCR - Mix & Match Widths
LCR - Flush Overview
LCR - Flush Overview
LCR - Flush Close-Up
LCR - Flush Close-Up
LCB - Recessed Overview
LCB - Recessed Overview
LCB - Recessed Close-Up
LCB - Recessed Close-Up
LCB - Mix & Match Widths
LCB - Mix & Match Widths
Microperfs with SoundTex
Microperfs with SoundTex
Microperfs with Insulation
Microperfs with Insulation

Linear Ceiling™ is a system comprised of a suspended or positive fastened carriers with metal panels snapped into place within the carrier.  The Linear Ceiling™ system is available in two distinct profiles: round edge (LCR) or a square box (LCB) with or without filler strips. Each profile has a choice of multiple widths that are interchangeable due to the 4” increments of the carrier system. The four ceiling widths provide coverages of 2″, 4”, 6″, and 8”. The use of filler strips provide either a flush or revealed appearance.  Filler strips can be removed to provide ventilation within the system or panel can be perforated or louvered if desired. Microperforations are available and recommended for interior use only.

PRODUCT INFO
Round Edge SKU:

LCR338
LCR538
LCR738

Box Style SKU:

LCB138
LCB338
LCB538
LCB738

Material:

.019 (only available for LCB338 & LCR338), .024, .032 aluminum

Panel Coverage:

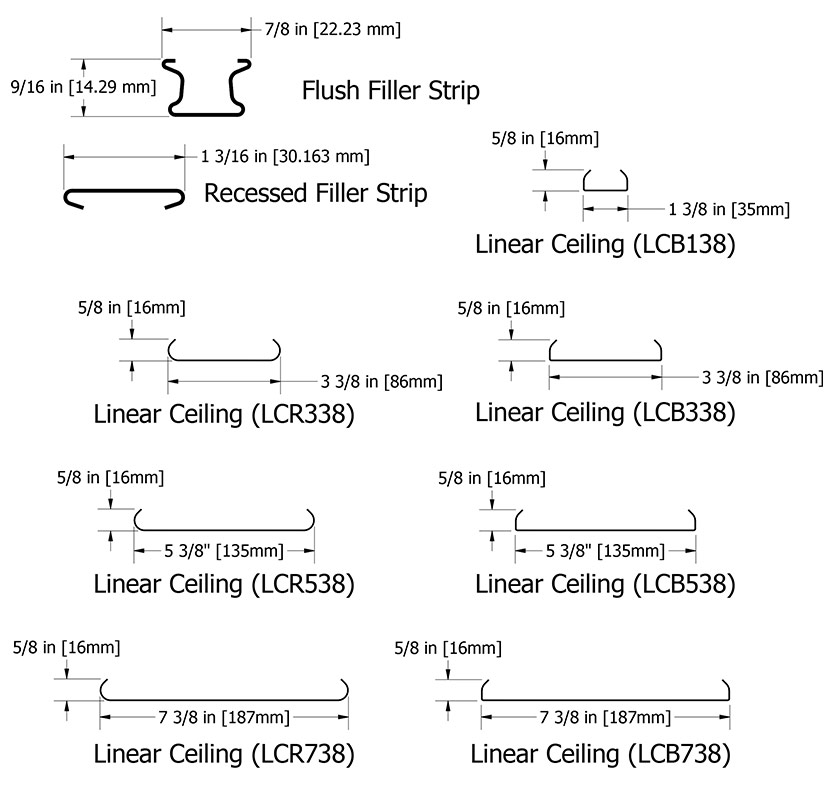

LCR Width: 3⅜”, 5⅜”, 7⅜” | 4″, 6″, 8″ coverage with filler strips
LCB Width: 1⅜”, 3⅜”, 5⅜”, 7⅜” | 2″, 4″, 6″, 8″ coverage with filler strips

Minimum Panel Length:

4’-0”

Maximum Panel Length:

20’-0” (LCB138 has a maximum of 12′-0″)

Panel Height:

⅝”

Texture:

Smooth
Wood Grain Embossed (032 aluminum only)

Available:

Louvered/Vented
Microperforated
Mix and Match Widths

Finish:

70% PVDF
Mirrored
Wood Grain Finishes

Color:

Choice of over 40 stock colors in .032 aluminum
.019 and .024 aluminum available in Bone White
Custom colors available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

Suspended carrier
A complete line of trims available

Carrier:

Metal: Aluminum
Gauge: .040
Length: Standard 12’

Filler Strips (optional):

Available in .019 in Black or Bone White

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format
DWG File Format
GALLERY
DOCUMENTS

Interior Applications Product Brochure

Exterior Ceiling & Soffit Systems Product Brochure

Linear Ceiling Spec Data Sheet

SoundTex & CFAB Sound Absorption

Panels with Soundproofing

ATAS Color Chart

Linear Ceiling Load Table

Finish Warranty

ATAS Aluminum Recycled Contents

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement
