Opaline | OPW

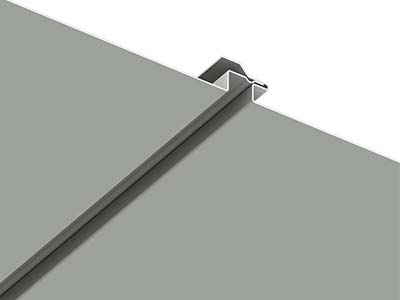

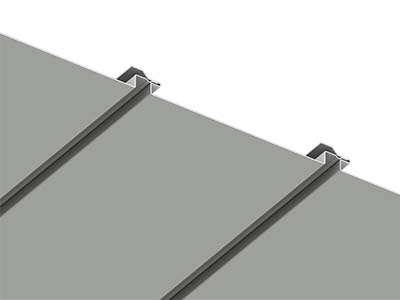

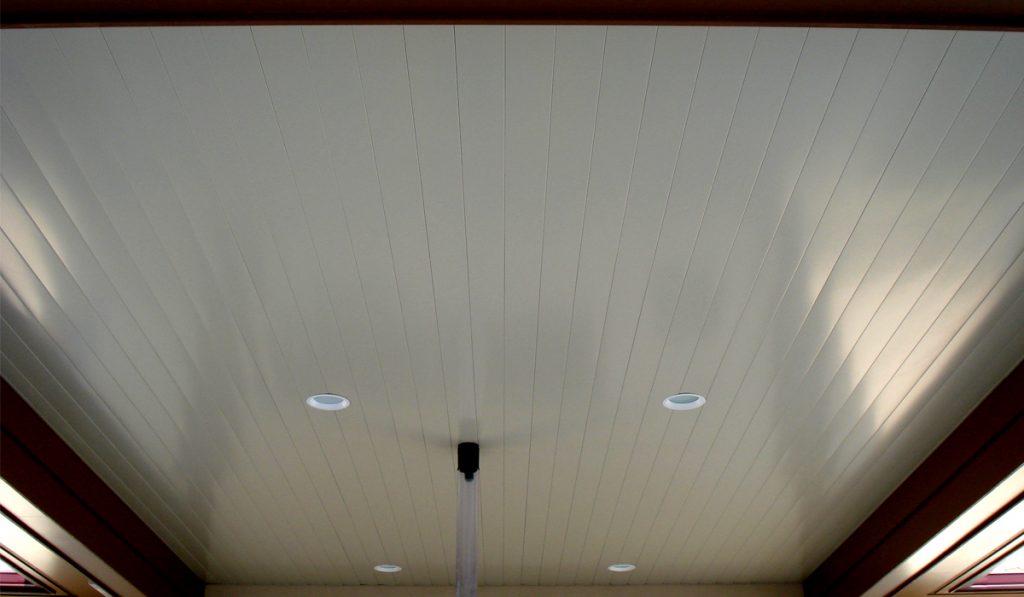

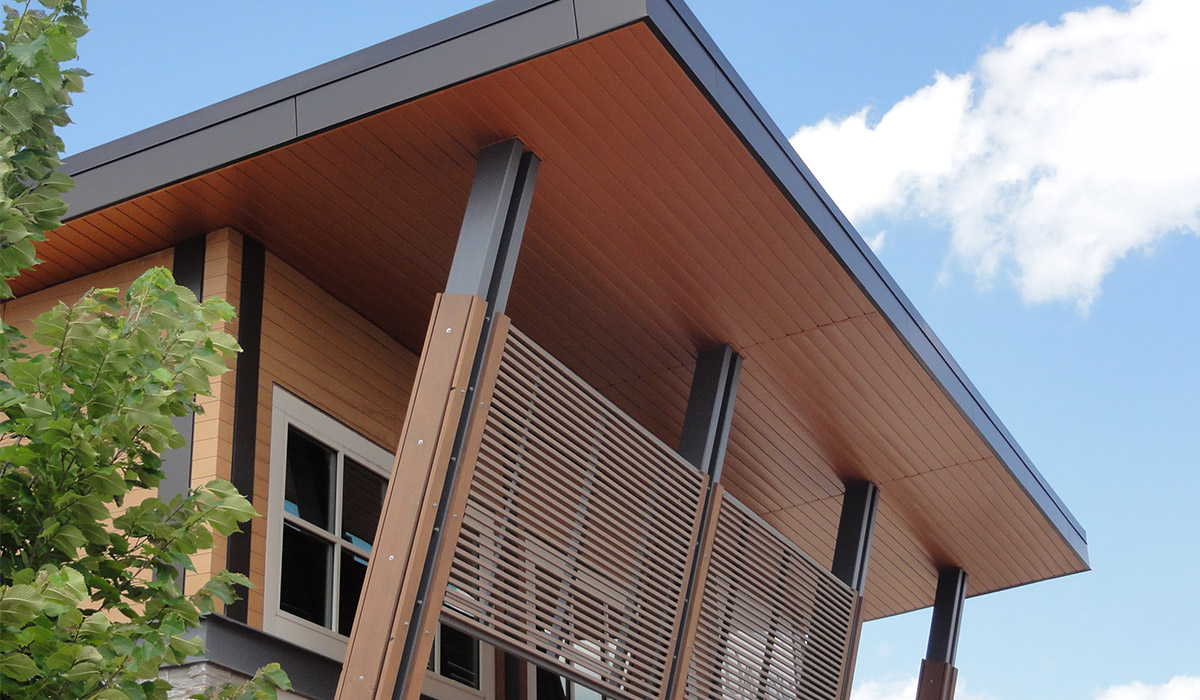

The Opaline™ Series panel is a structural panel that can be installed on open framing and spans up to 2’-6” on center. It can be applied to a solid substrate, as well. It installs as an enhanced tongue and groove design with improved mechanical fastener clearance. The fasteners are hidden by the adjacent panel. Panels are available with smooth or stucco embossed texture. Ideal applications for Opaline™ are vertical fascias, soffits, ceilings or sign bands, alternatives for E.I.F.S., laminated or extruded panels. The panel can be used in lieu of wide face flanging details.

Florida Building Product Approval: FL 16083.1

Download Product Brochure

Virtual Meeting

Request Meeting with Rep

PRODUCT INFO

SKU:

OPW045
OPW065
OPW085

Material:

.032, .040 aluminum
24 ga. metallic coated steel
16 oz. copper*

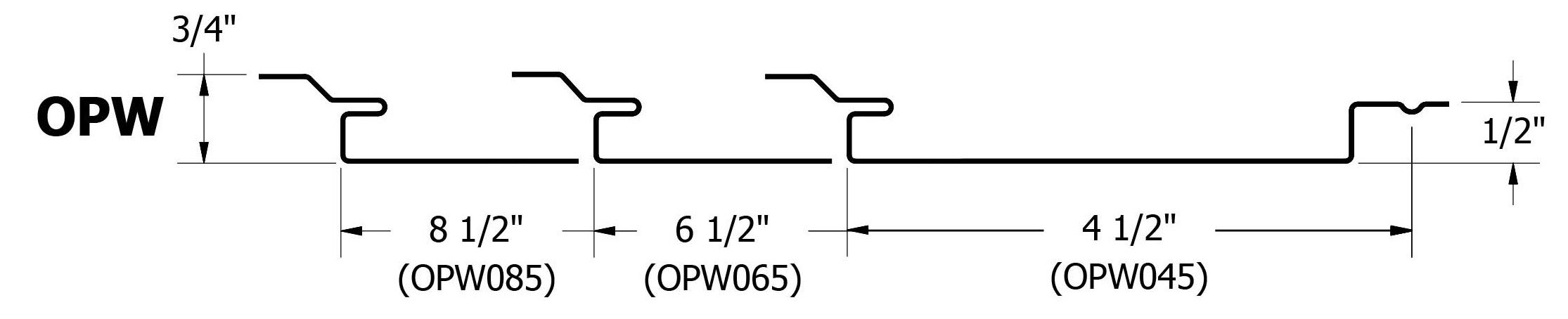

Panel Coverage:

4½”
6½”
8½”

Minimum Panel Length:

1’-6”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

¾”

Texture:

Smooth
Stucco Embossed
Wood Grain Embossed

Available:

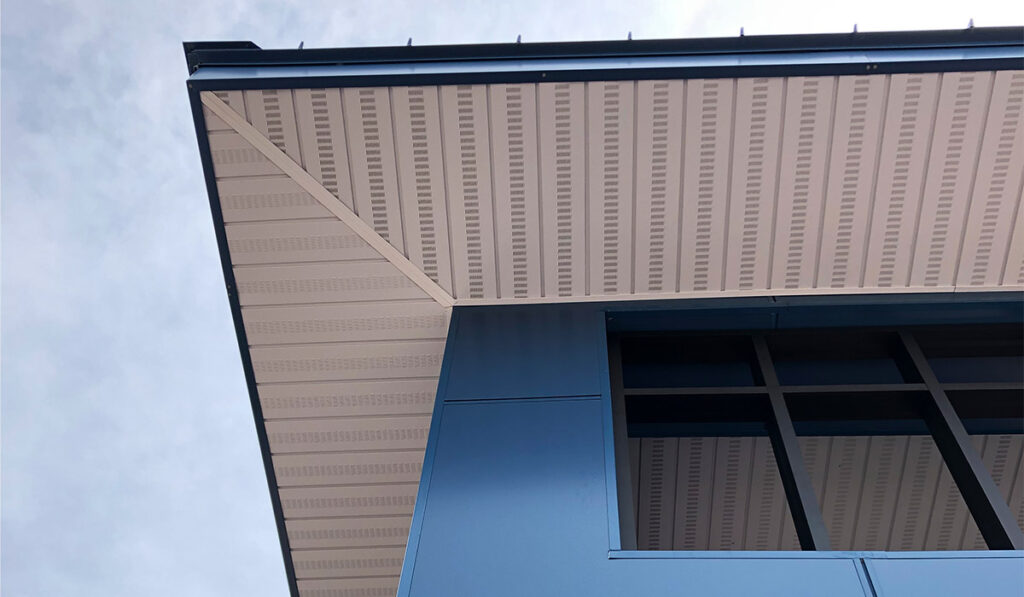

Louvered/Vented
Microperforated

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge and finish or as specified

Florida Building Product Approval:

FL 16083.1 (OPWO45, OPWO65)

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

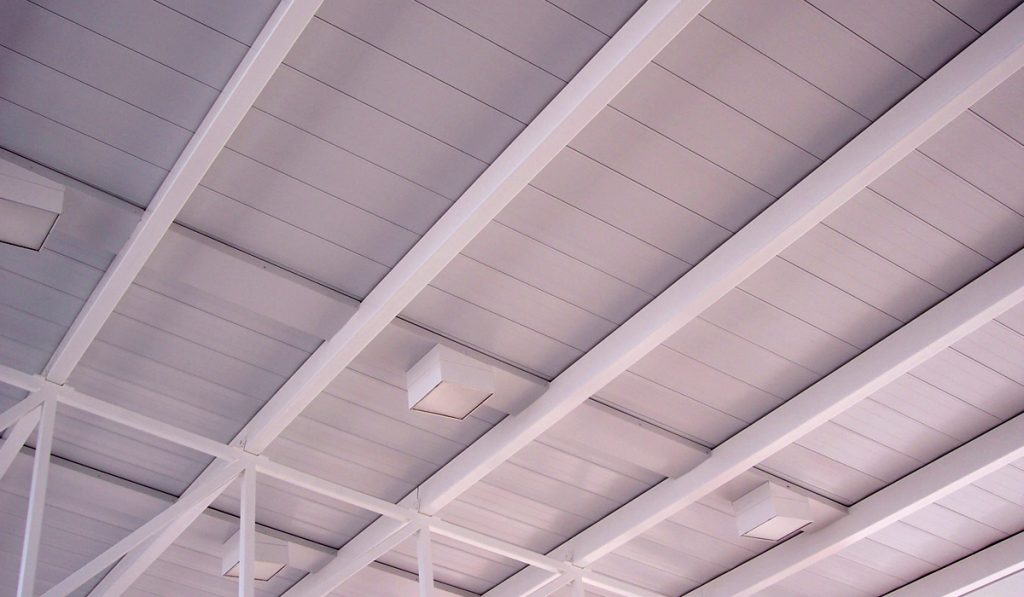

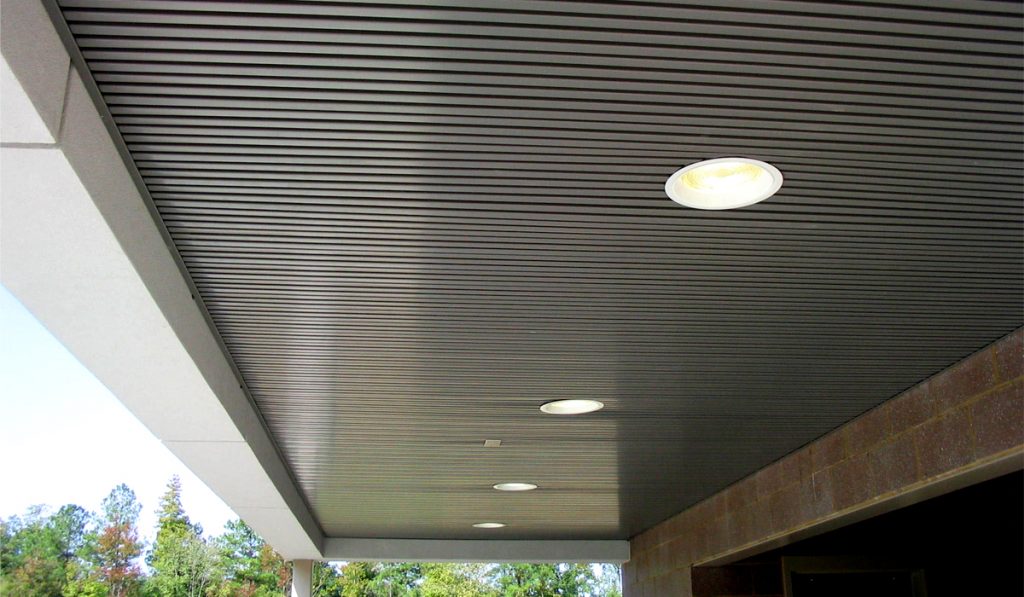

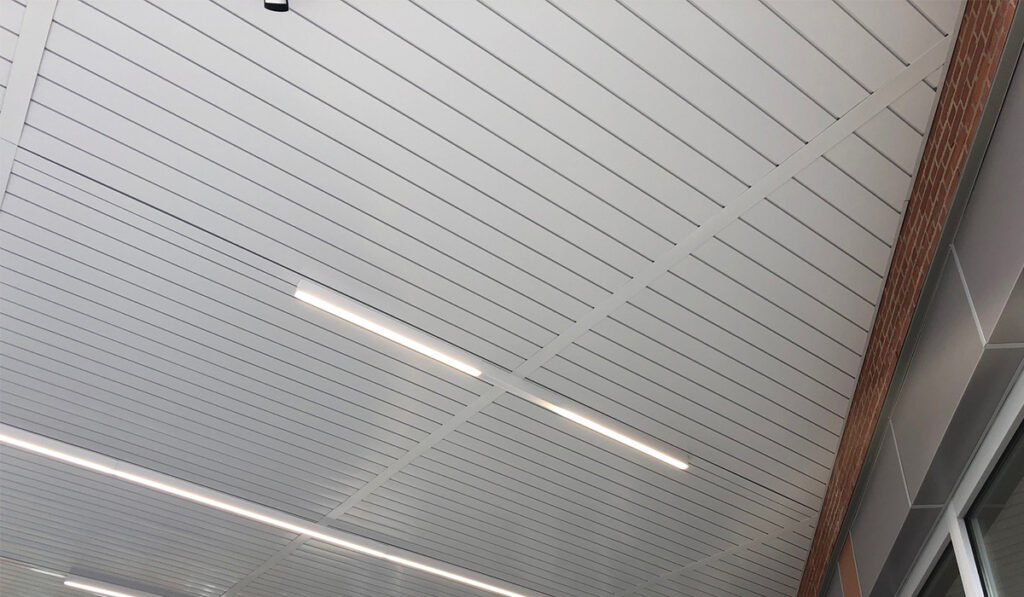

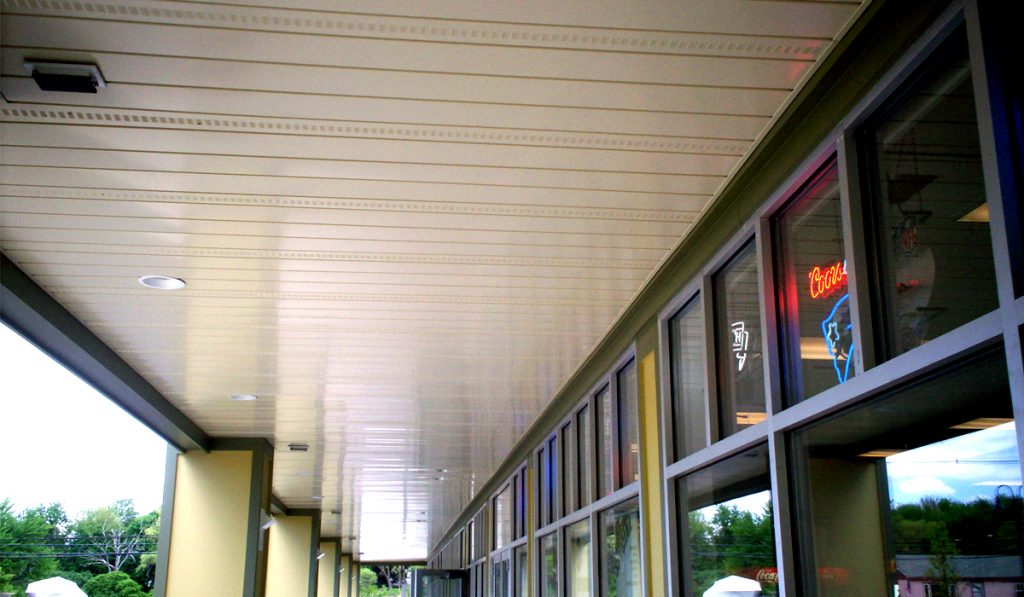

GALLERY

DOCUMENTS

Ceiling & Soffit Product Brochure

Opaline Spec Data Sheet

ATAS Color Chart

Opaline OPF080 Load Table

Finish Warranty

LEED v4

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

Florida Building Code Approval

Solar Reflectance & Thermal Emittance Chart

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.

Color Chart Color & Materials Availability
