Isoleren ML

Isoleren ML

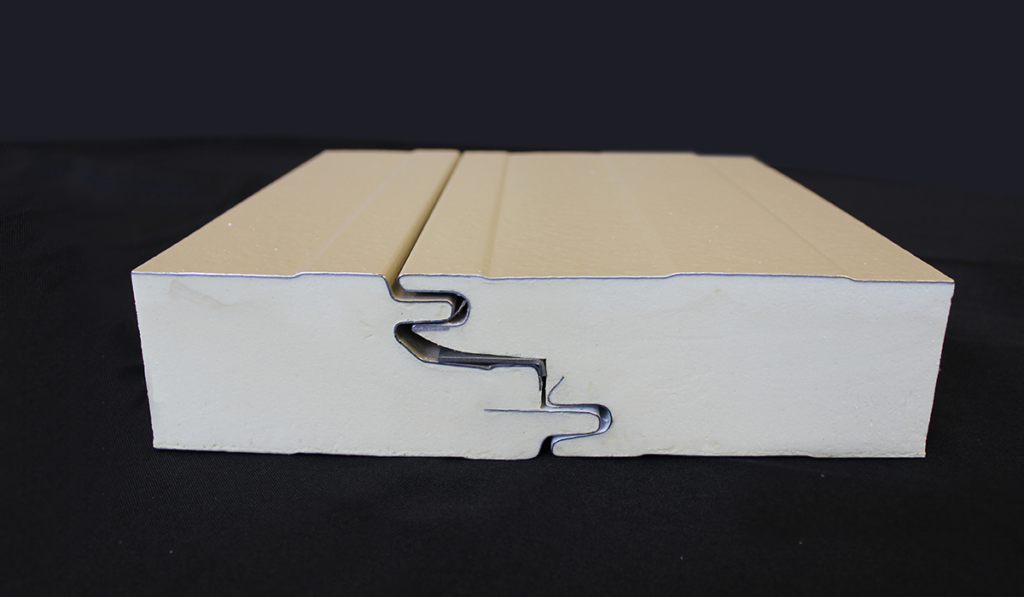

Panel Details:

Panel
Panel
Interlock
Interlock
Sidelap
Sidelap
Isoleren ML

Panel Details:

Panel
Panel
Interlock
Interlock
Sidelap
Sidelap

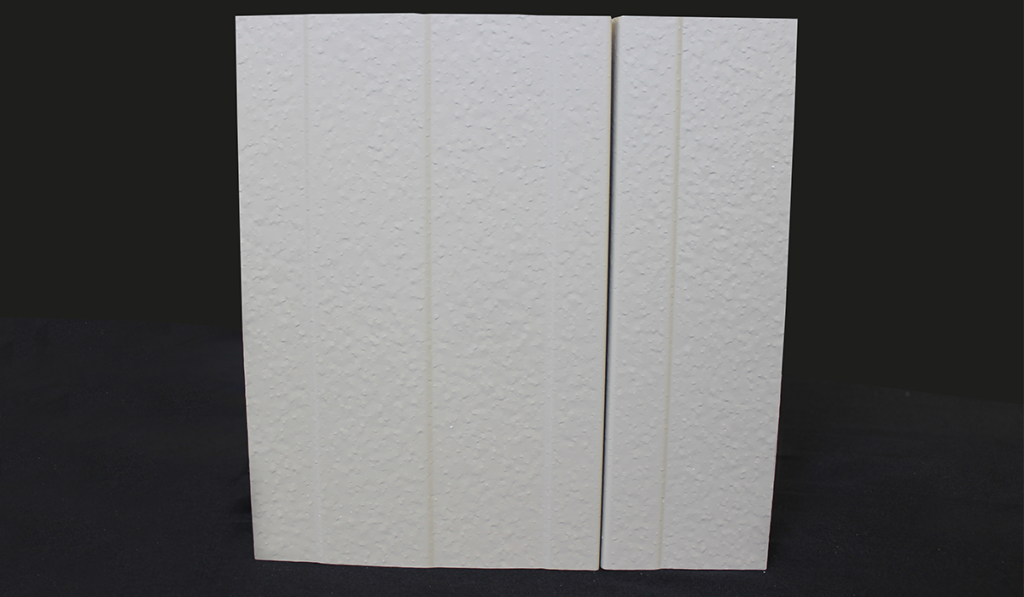

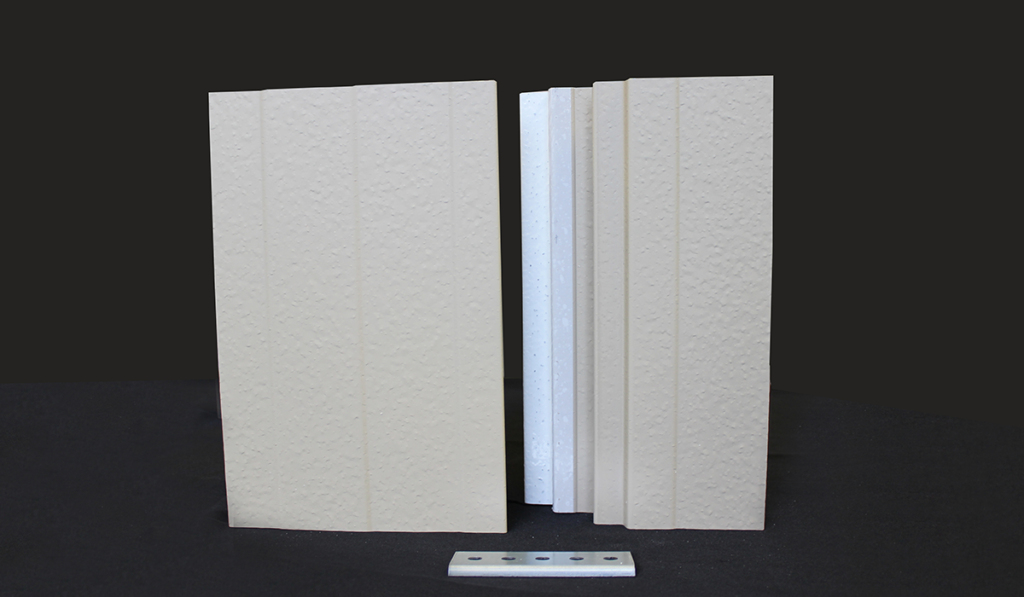

A lightly corrugated, ribbed insulated metal wall panel for use in a wide variety of exterior wall or interior partition wall applications. This “mesa” profile is a popular choice for many architectural, commercial and industrial applications.



PRODUCT INFO
SKU:

IML422
IML421
IML423
IML424
IML425
IML426

Exterior Profile:

Isoleren ML

Interior Profile:

Isoleren ML

Exterior Gauge:

26
24
22

Interior Gauge:

26
24
22

Substrate:

55% Al-Zn Alloy Coated Steel with Acrylic Coating
Metallic Coated Steel
Stainless Steel

Exterior Finish:

Polyester
Siliconized Polyester
70% PVDF
Standard Gloss (USDA White)
Plastisol
Stainless

Interior Finish:

Polyester
Siliconized Polyester
70% PVDF
Standard Gloss (USDA White)
Plastisol
Stainless

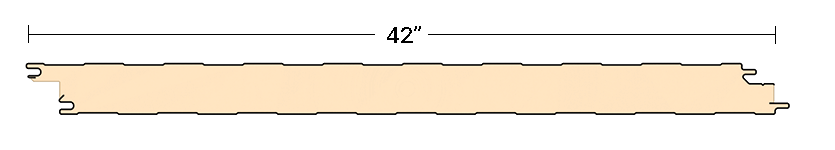

Panel Coverage:

42″

Thickness (A):

2″
2.5″
3″
4″
5″
6″

Exterior Texture:

Smooth
Embossed

Interior Texture:

Smooth
Embossed

Core:

Continuously poured-in-place, polyisocyanurate, insulating foam

R-Value:

R-8 per inch of thickness (nominal)

Standard Lengths:

8′-0″ to 53′-0″

Note:

All information subject to change without notice

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

Aluminum Extrusion and Non-standard Details are available upon request.  Please contact your local product representative for more information.

PDF File Format - Vertical Wall - Sheet Metal Flashing Details
PDF File Format - Horizontal Wall - Sheet Metal Flashing Details
DWG File Format - Vertical Wall - Sheet Metal Flashing Details
DWG File Format - Horizontal Wall - Sheet Metal Flashing Details

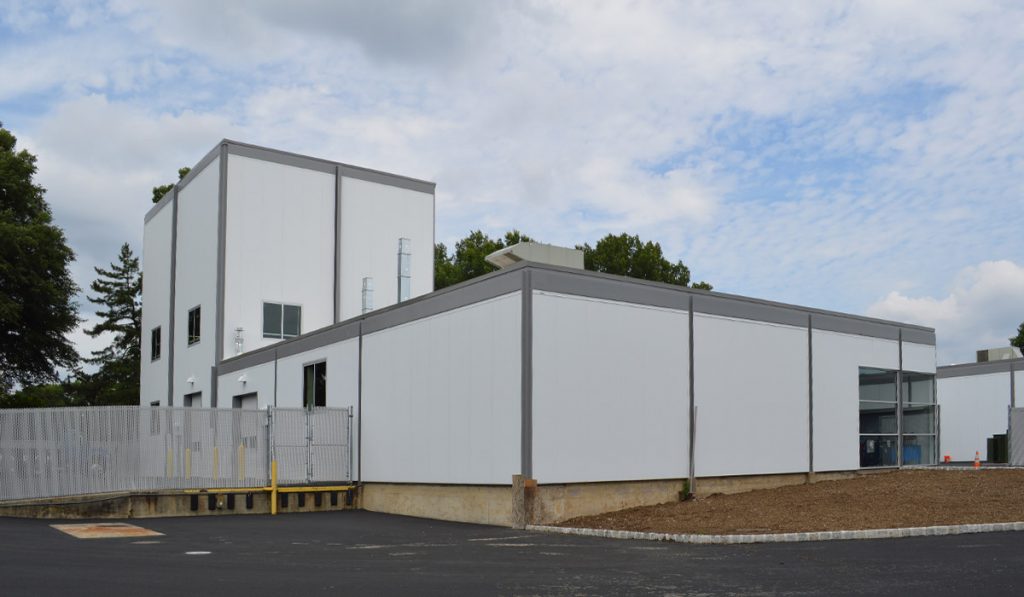

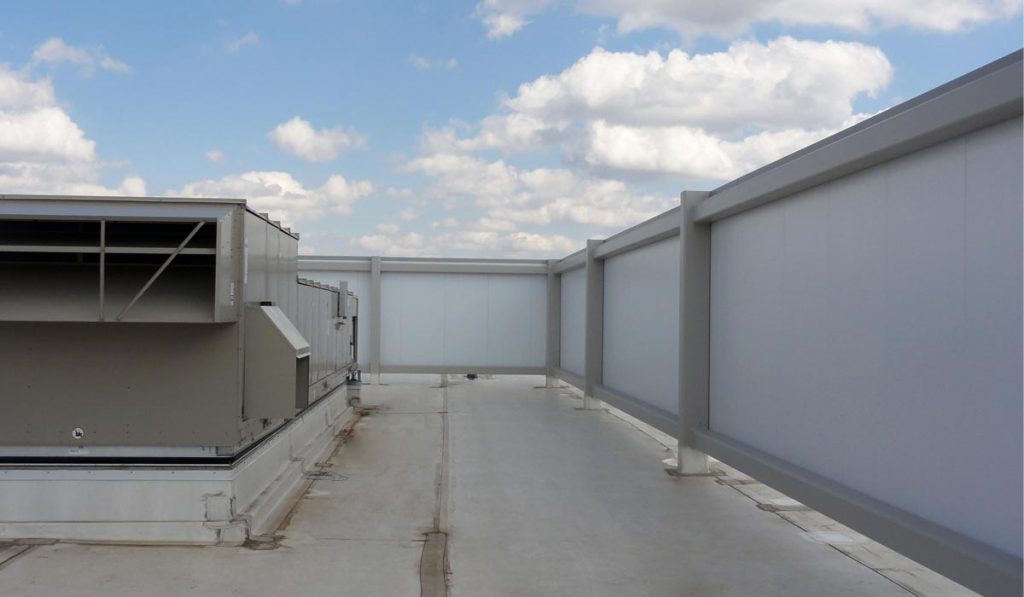

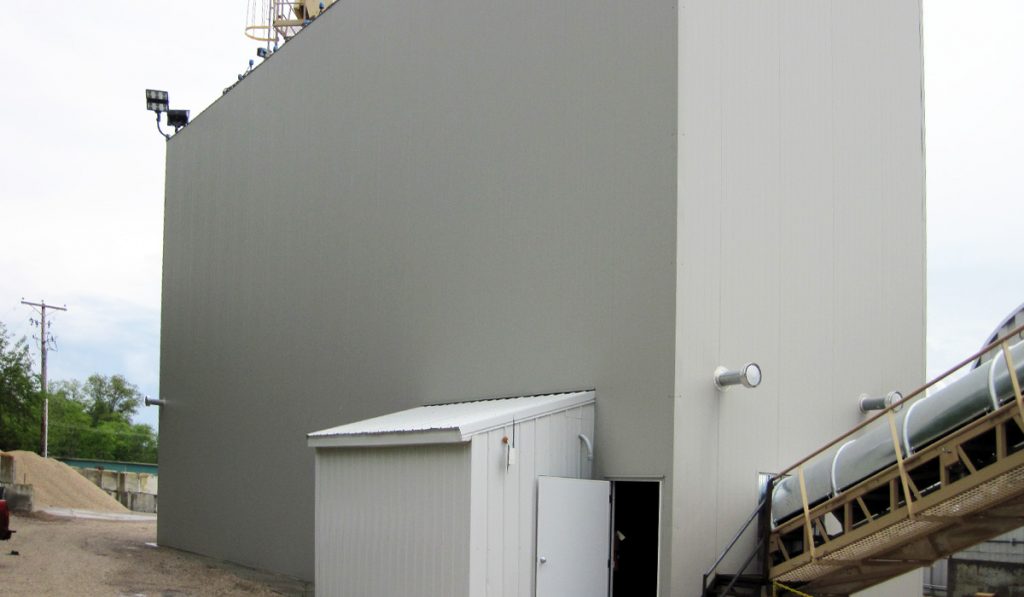

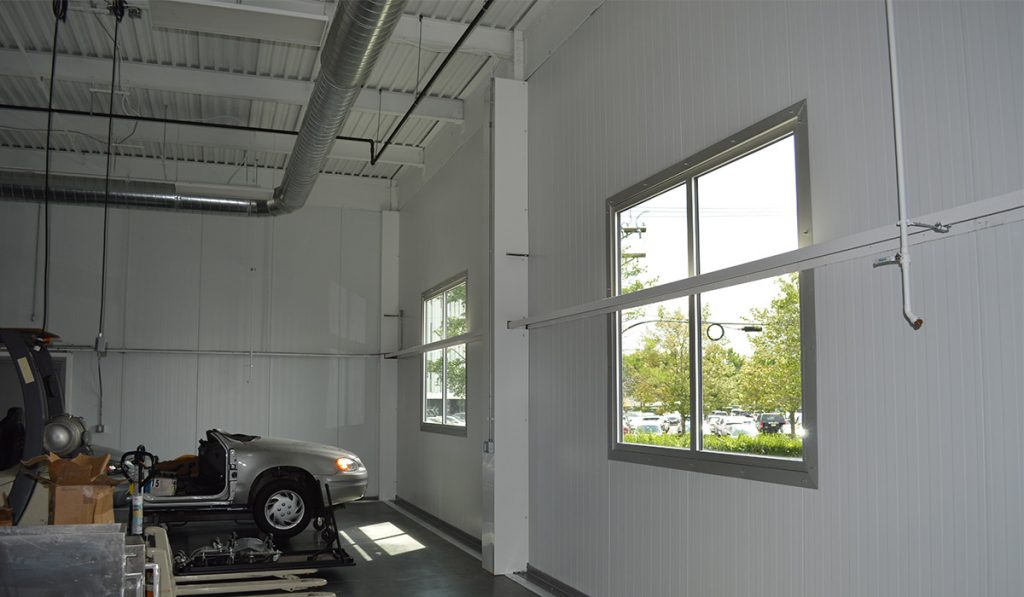

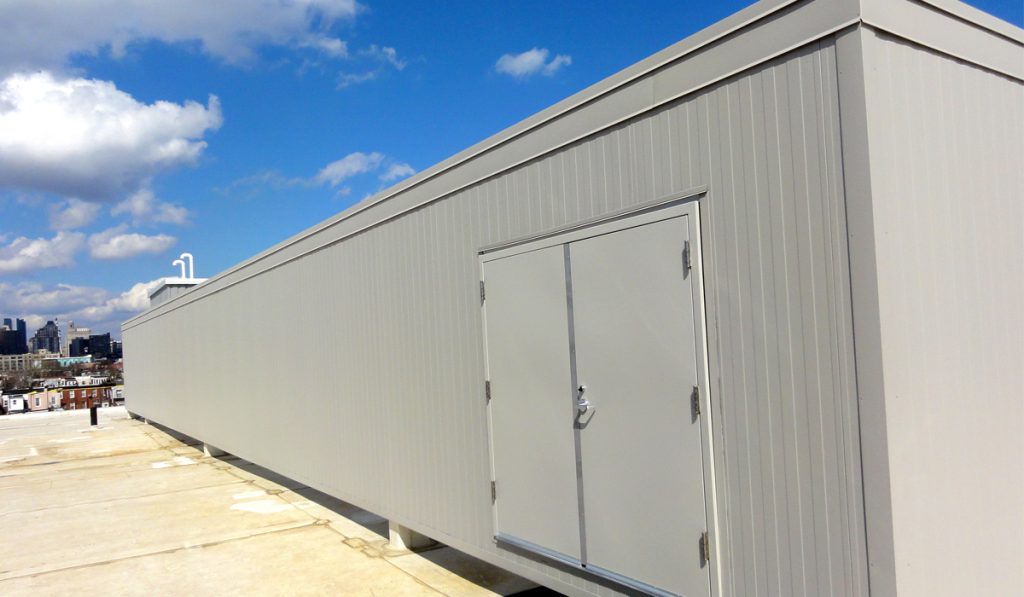

GALLERY

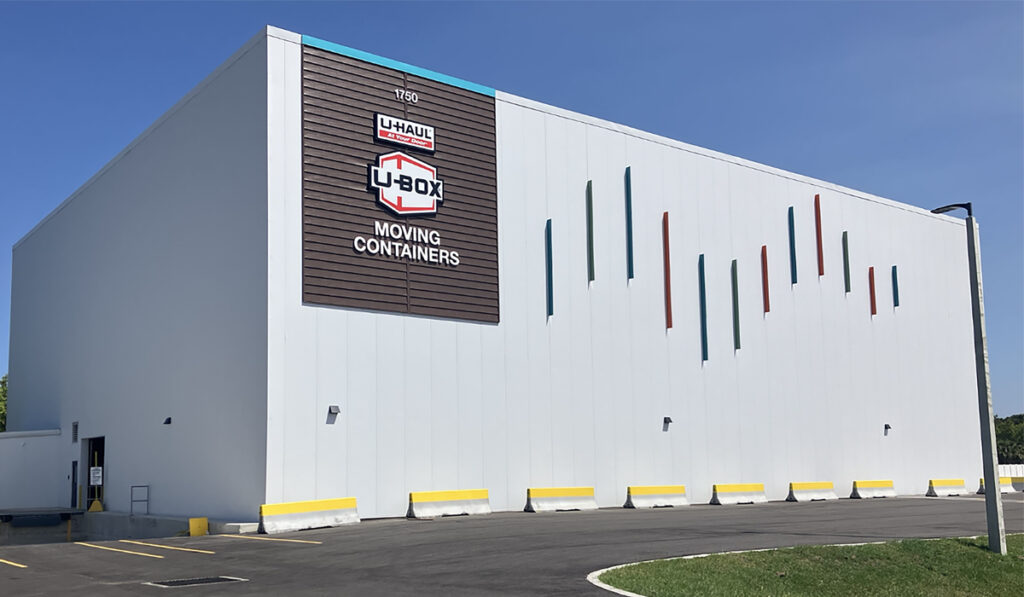

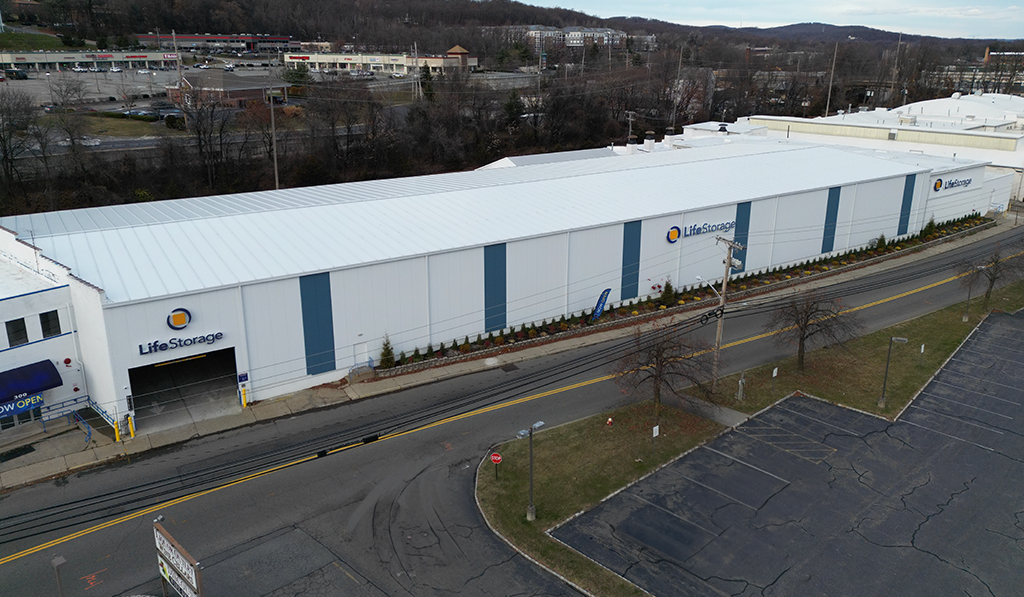

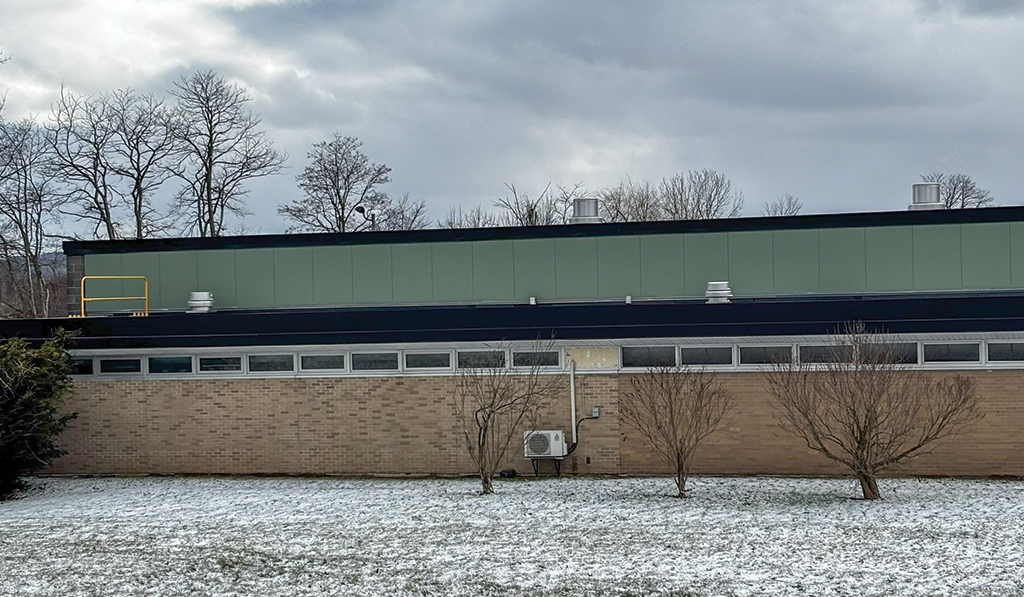

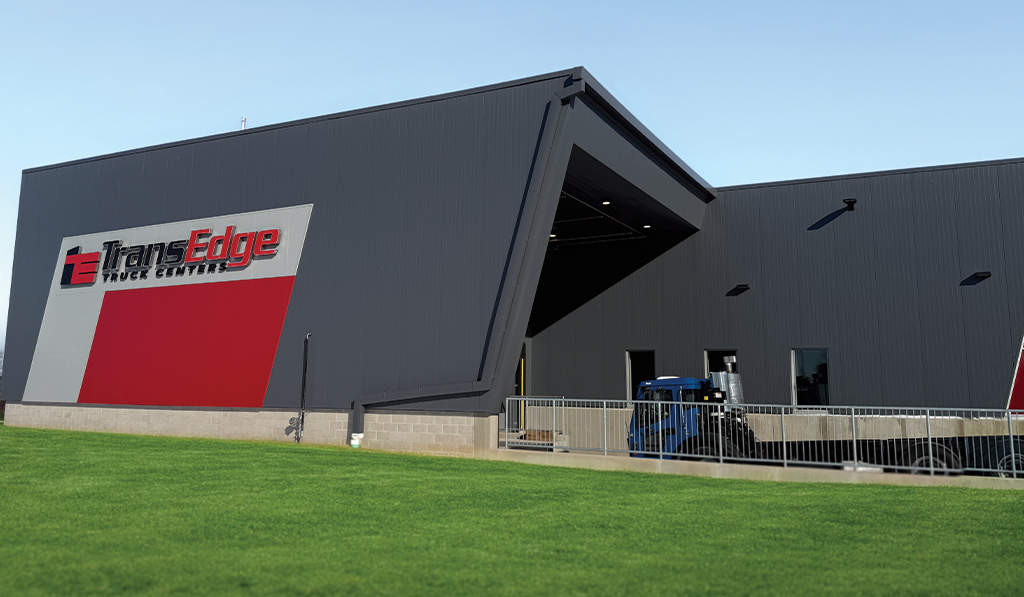

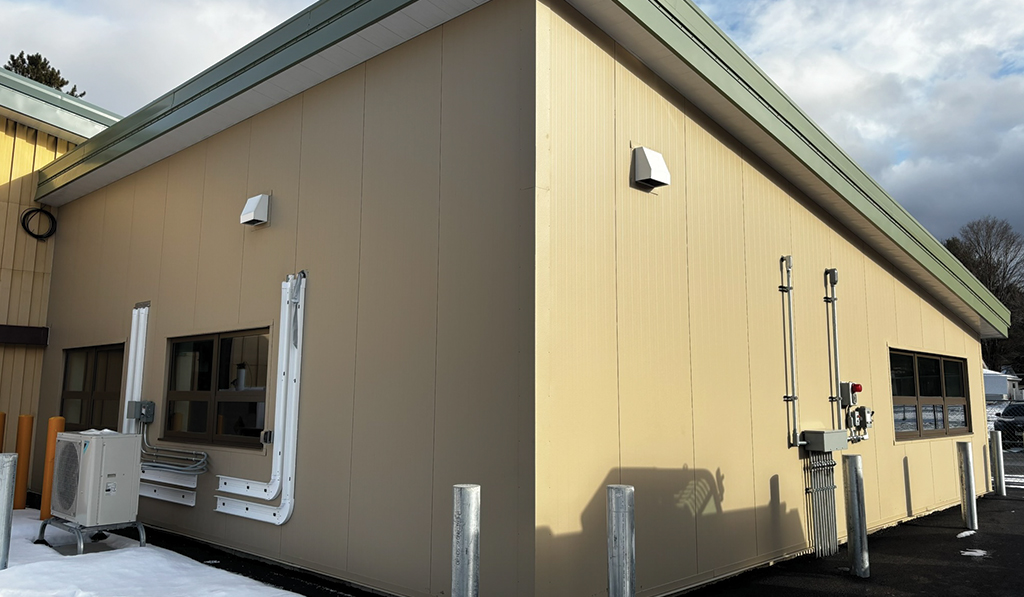

DOCUMENTS

Isoleren Insulated Metal Panels Product Brochure

Isoleren ML Spec Data Sheet

Isoleren ML Tech Data Sheet

Isoleren Color Chart

Isoleren Installation Guide

Isoleren Allowable Uniform Loads Table

Isoleren Ceiling Tee Allowable Loads

Isoleren Weight Chart

Isoleren Partition Span Table

Isoleren R-Values

Isoleren Ceiling Clip Allowable Loads

Isoleren Testing Insulated Metal Walls

Isoleren Insulated Metal Wall Panel Guide Specification - PDF Format

Isoleren Insulated Metal Wall Panel Guide Specification - Word Doc

Isoleren Handling and Maintenance Guide

LEED v4

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
