Isoleren IM

Isoleren IM

Panel Details:

Panel
Panel

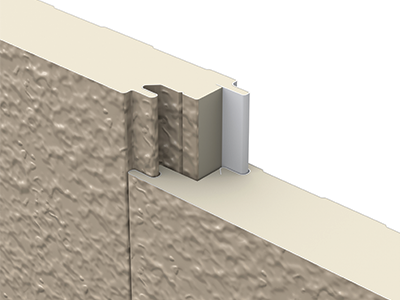

Interlock
Interlock
Sidelap
Sidelap
Isoleren IM

Panel Details:

Panel
Panel
Interlock
Interlock
Sidelap
Sidelap

The IM insulated metal wall panel features a flat, troweled embossed profile that provides the look of a richly textured masonry stucco wall. Combining performance, flexibility and aesthetics makes Isoleren® IM an excellent architectural panel.



PRODUCT INFO
SKU:

IIM422
IIM421
IIM423
IIM424

Exterior Profile:

Isoleren IM

Interior Profile:

Isoleren ML

Exterior Gauge:

26, 24

Interior Gauge:

26, 24, 22

Substrate:

55% Al-Zn Alloy Coated Steel with Acrylic Coating
G90 Galvanized
Stainless Steel

Exterior Finish:

70% PVDF
Low Gloss
Siliconized Polyester

Interior Finish:

Polyester
Siliconized Polyester
70% PVDF
Standard Gloss (USDA White)

Panel Coverage:

42″

Thickness (A):

2″
2.5″
3″
4″

Exterior Texture:

Troweled Embossed

Interior Texture:

Smooth
Embossed

Core:

Continuously poured-in-place, polyisocyanurate, insulating foam

R-Value:

R-8 per inch of thickness (nominal)

Reveal:

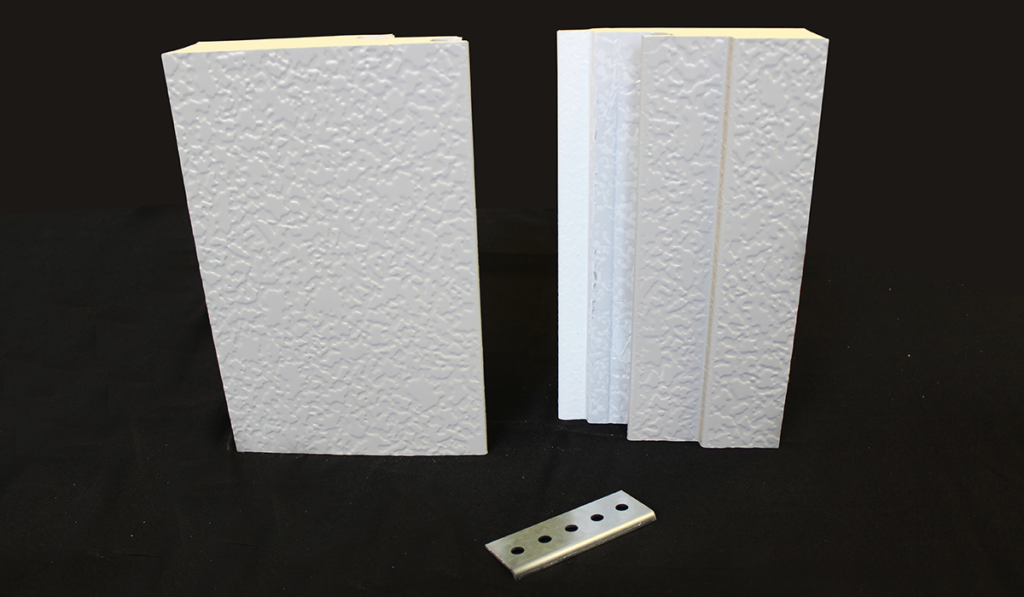

Also available in a 1 1/4″ reveal at panel interlock

Standard Lengths:

8′-0″ to 40′-0″

Note:

All information subject to change without notice

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.



Barrier Backup System:

The Isoleren Insulated Metal Panel Barrier Back Up Wall System provides an alternate all-in-one barrier wall solution vs a traditional multi-component wall system. This system incorporates a single component insulated metal wall panel that supports a secondary metal rainscreen system to meet a wide variety of architectural needs. The Insulated Metal Barrier Back Up panel is thermally efficient and provides the ideal air, vapor, and water barrier that can help reduce construction time by allowing buildings to be “dried-in” faster. To learn more about the Isoleren Insulated Metal Panel Barrier Back Up Wall System contact your local product representative.

PDF File Format - Vertical Wall - Sheet Metal Flashing Details
PDF File Format - Horizontal Wall - Sheet Metal Flashing Details
PDF File Format - Vertical Wall - Aluminum Extrusion Details
PDF File Format - Horizontal Wall - Aluminum Extrusion Details
DWG File Format - Vertical Wall - Sheet Metal Flashing Details
DWG File Format - Horizontal Wall - Sheet Metal Flashing Details
DWG File Format - Vertical Wall - Aluminum Extrusion Details
DWG File Format - Horizontal Wall - Aluminum Extrusion

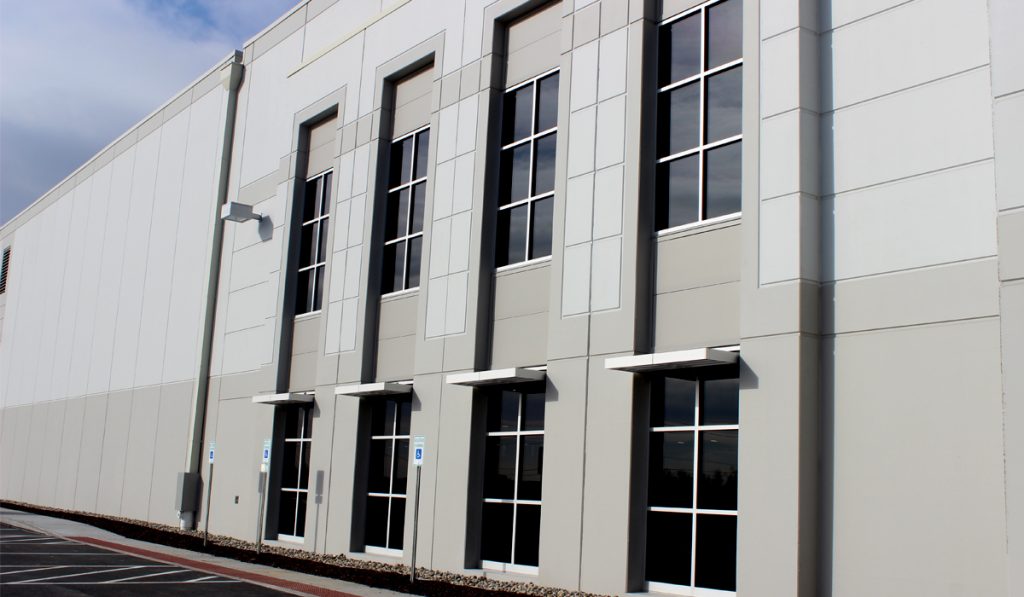

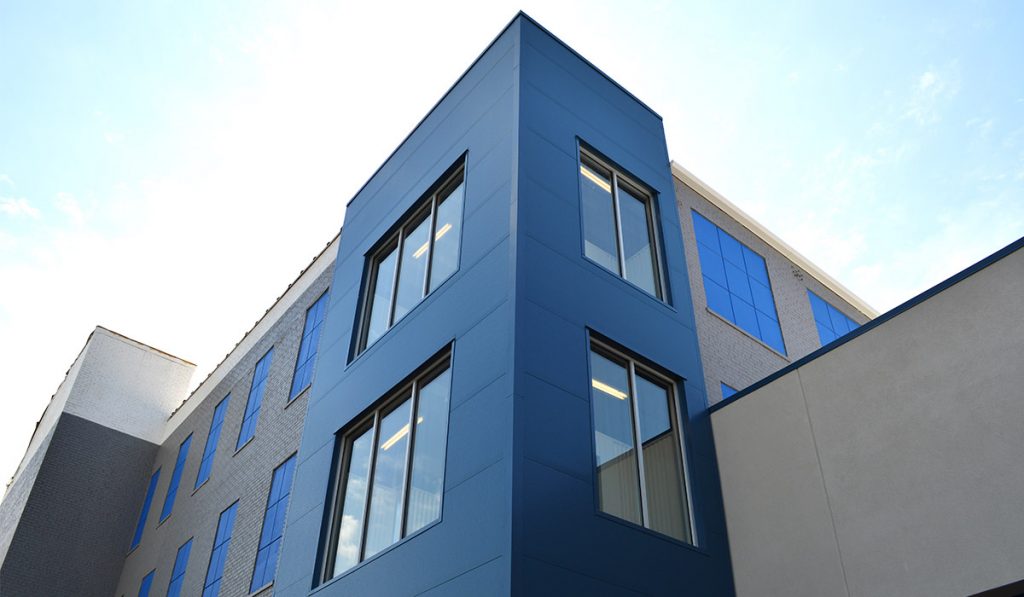

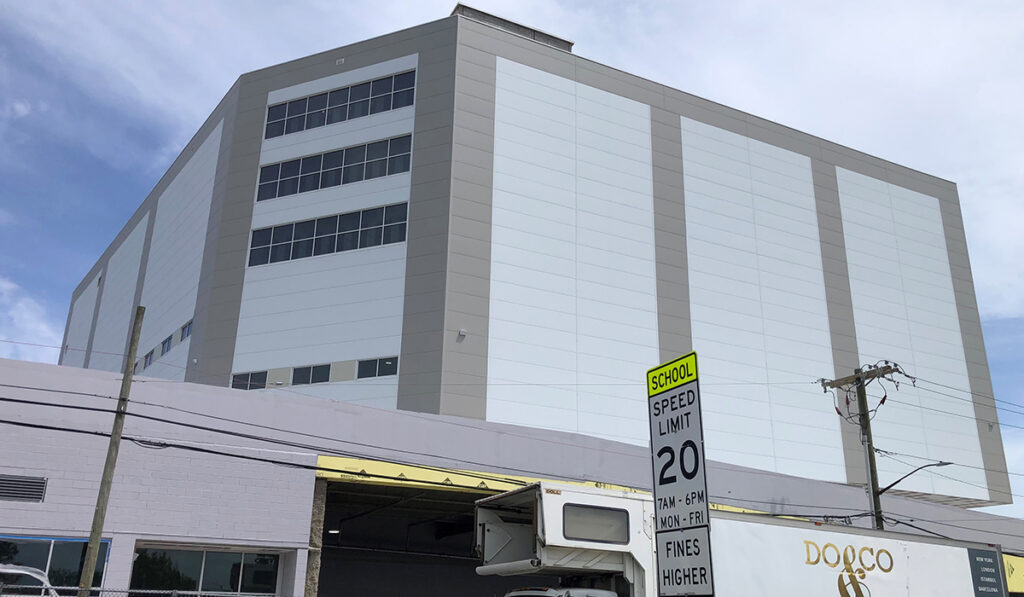

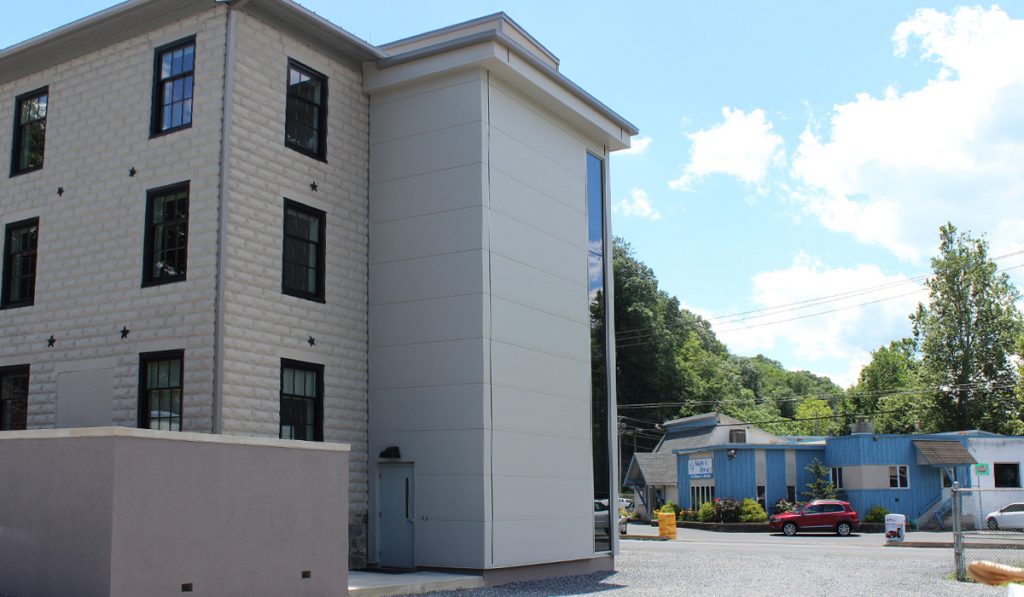

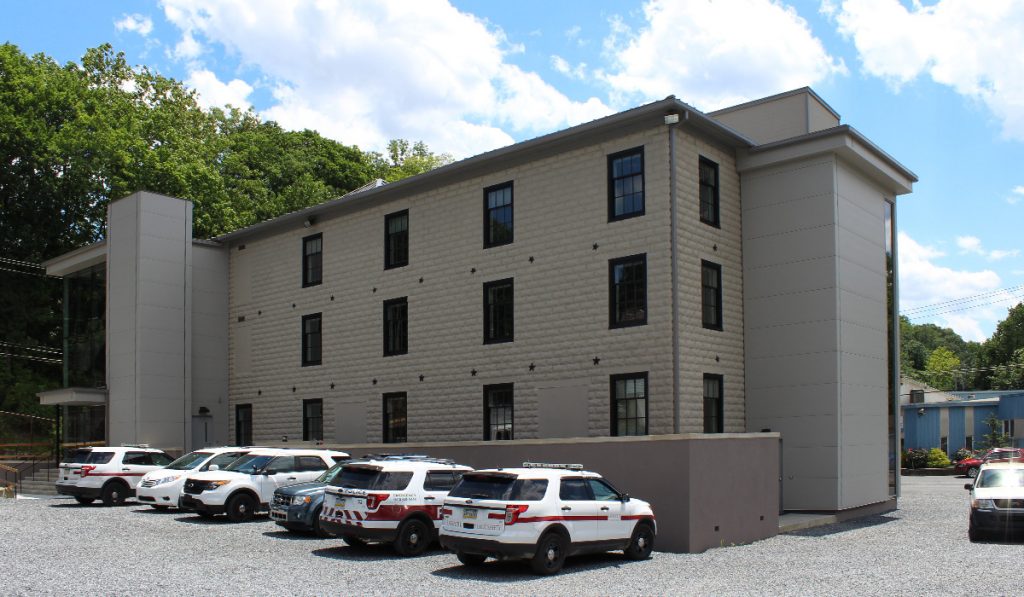

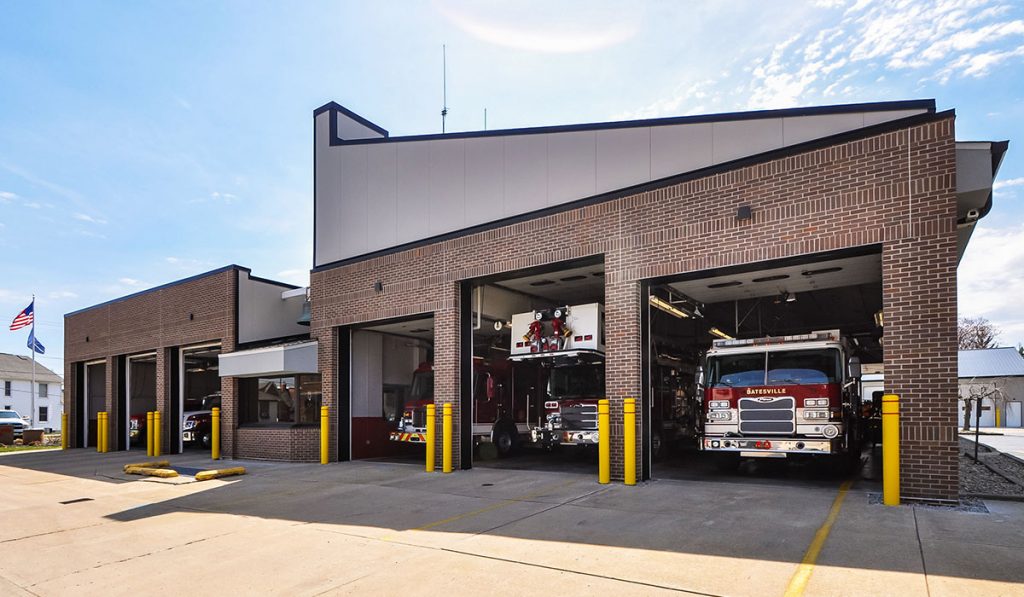

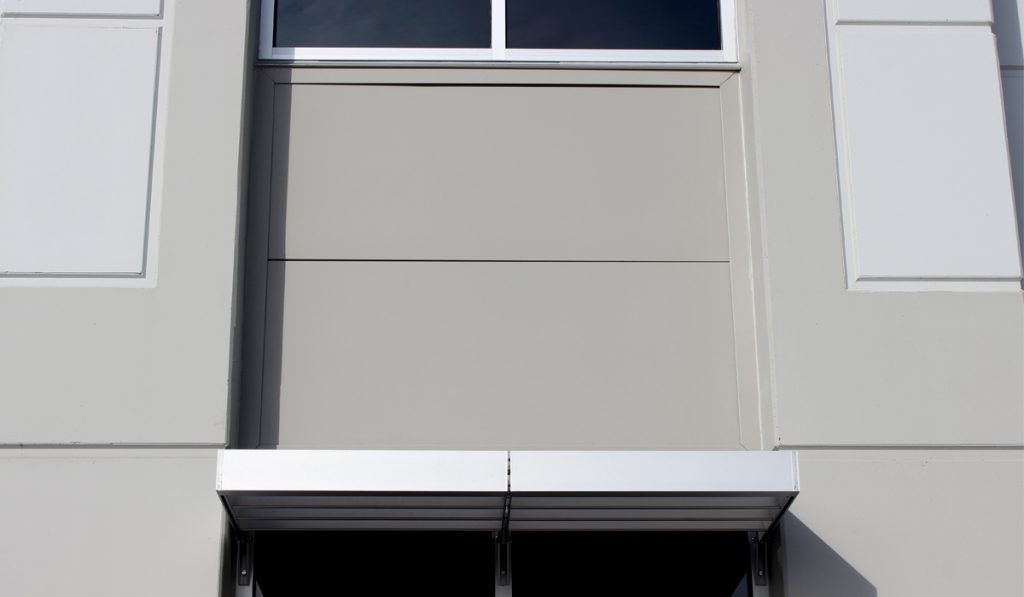

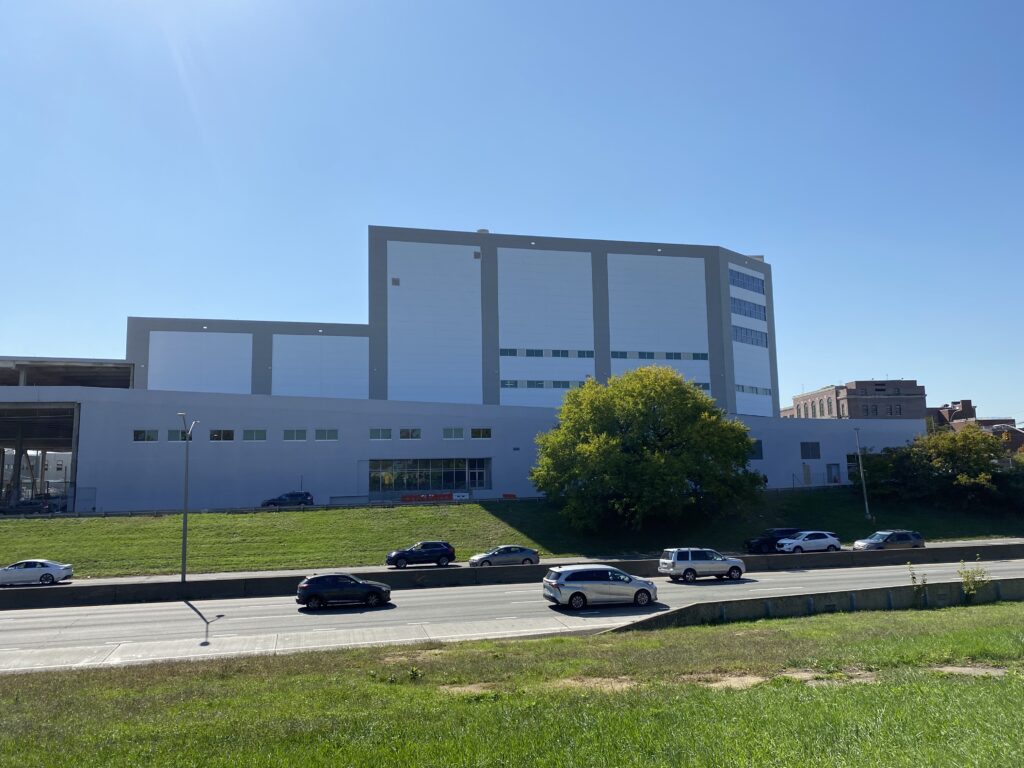

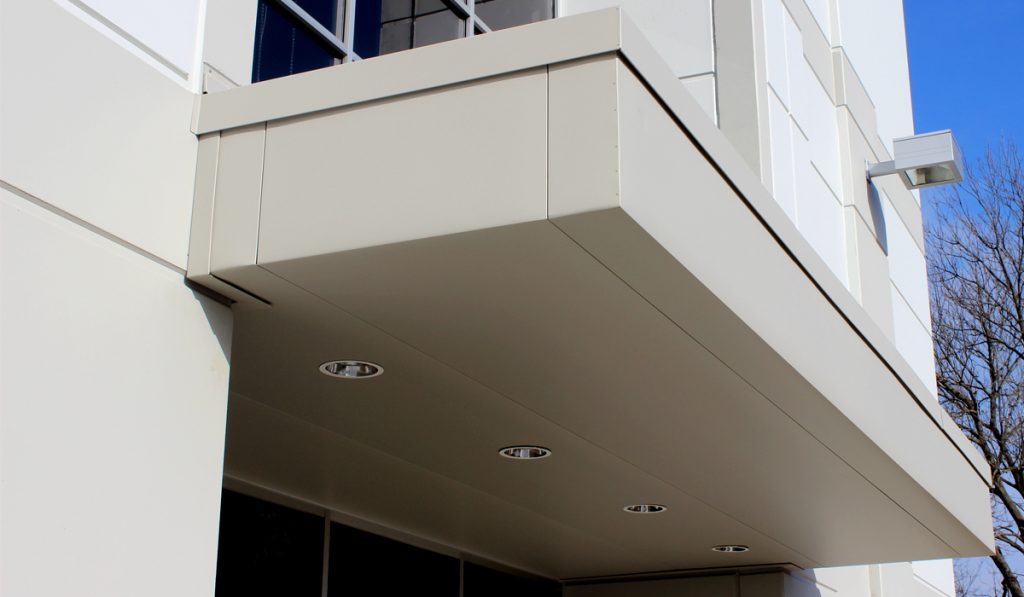

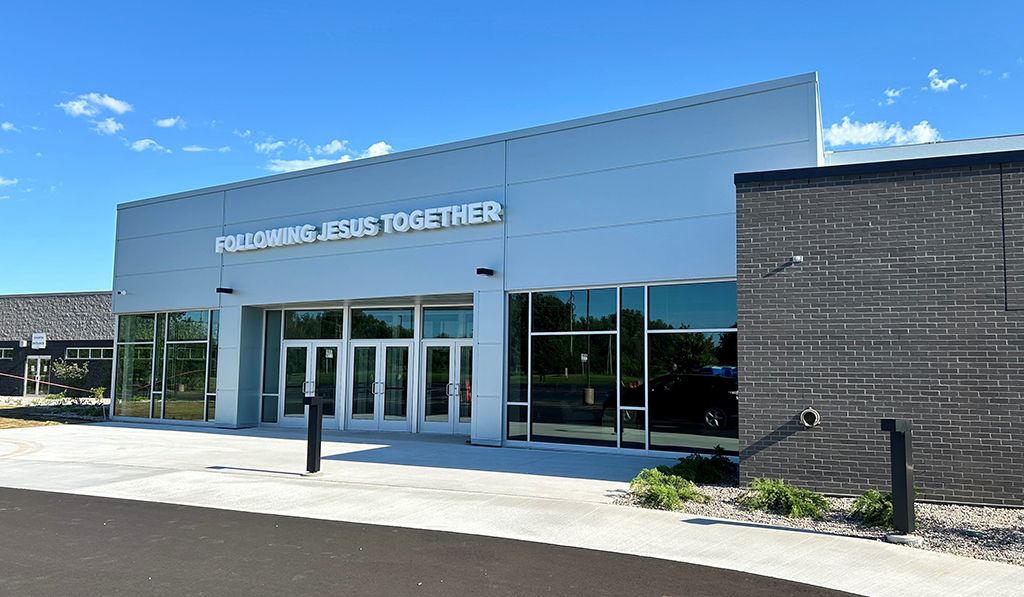

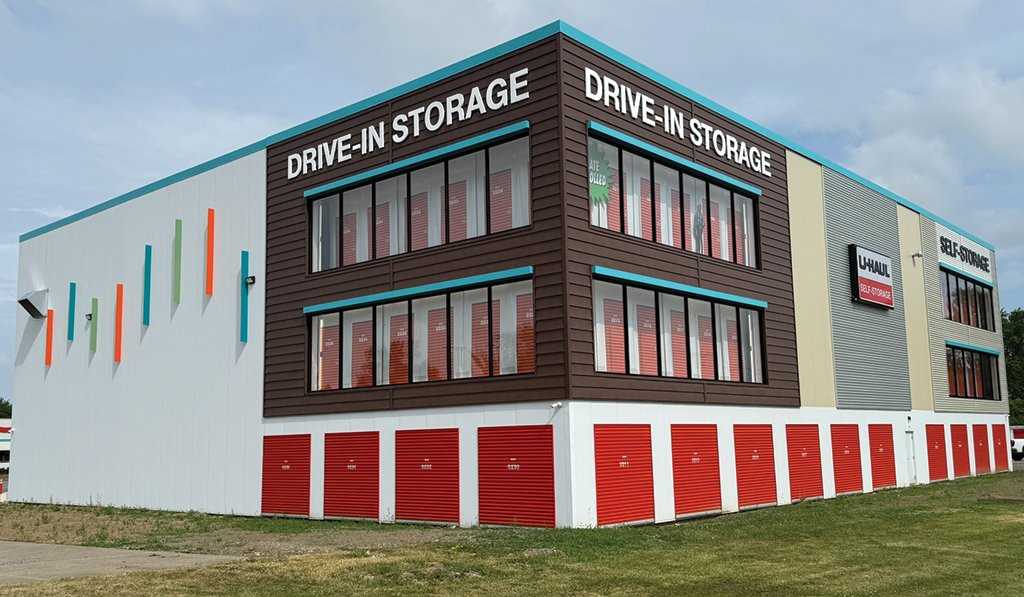

GALLERY
DOCUMENTS

Isoleren Insulated Metal Panels Product Brochure

Isoleren IM Spec Data Sheet

Isoleren IM Tech Data Sheet

Isoleren Color Chart

Isoleren Installation Guide

Isoleren Allowable Uniform Loads Table

Isoleren Ceiling Tee Allowable Loads

Isoleren Partition Span Table

Isoleren Weight Chart

Isoleren R-Values

Isoleren Ceiling Clip Allowable Loads

Isoleren Testing Insulated Metal Walls

Isoleren Insulated Metal Wall Panel Guide Specification - PDF

Isoleren Insulated Metal Wall Panel Guide Specification - Word Doc

Isoleren Handling and Maintenance

LEED v4

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
