Isoleren Fire Rated

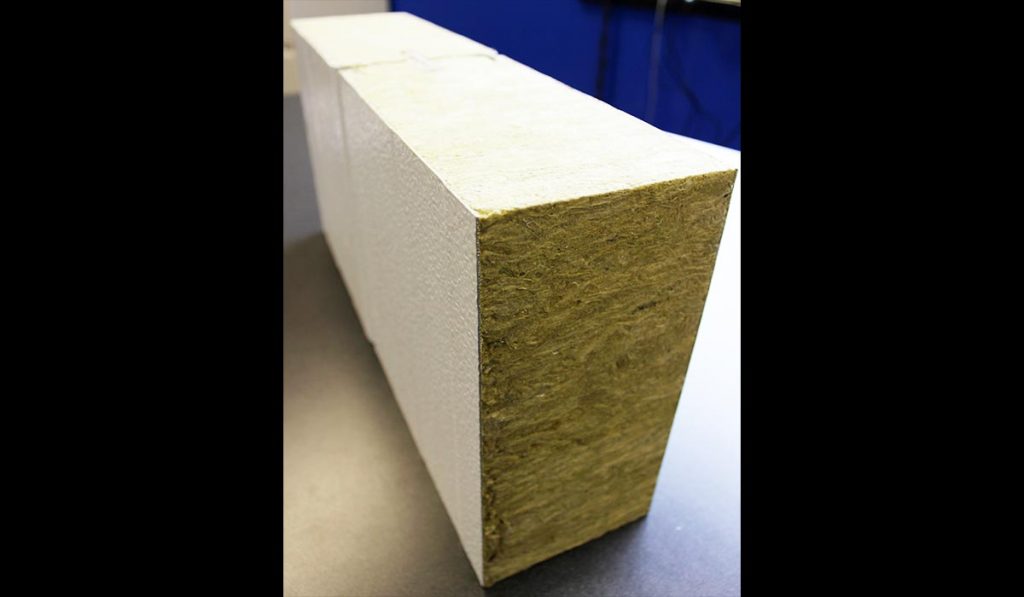

ATAS’ fire rated insulated metal wall panels combine aesthetics, flexibility and performance into a mineral wool core insulated panel that can achieve fire resistance ratings of one, two or three hours.

PRODUCT INFO

SKU:

IMF474
IMF475
IMF476
IMF478
IMF471
IMF472
ISF474
ISF475
ISF476
ISF478
ISF471
ISF472

Exterior Profile:

Isoleren MF
Isoleren SF

Interior Profile:

Isoleren ML

Exterior Gauge:

26 (0.020″)
24 (0.023″)

Interior Gauge:

26 (0.020″)
24 (0.023″)

Substrate:

55% Al-Zn Alloy Coated Steel with Acrylic Coating
G90
Stainless Steel

Exterior Finish:

1.0 mil thick 70% PVDF
Polyester
Siliconized Polyester

Interior Finish:

Siliconized Polyester
Standard Gloss (USDA White)

Panel Coverage:

47⅜”

Thickness (A):

4″
5″
6″
8″
10″
12″

Exterior Texture:

Embossed

Interior Texture:

Stucco Embossed

Core:

ROCKWOOL^® ConRock L structural mineral wool

K-Factor:

0.277 Btu-in/hr-ft²/F° @ 40° F mean temperature (R-3.61)

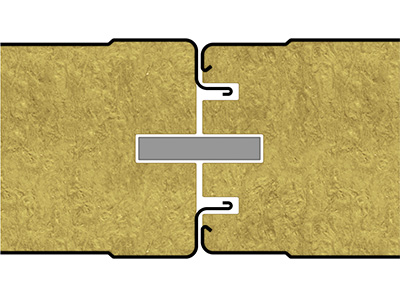

Splines:

Fiber-reinforced cement board (½” x 2¾” x 8′ long)

Minimum Panel Length:

8’0″

Maximum Panel Length:

30′-0″
over 30′-0″, please inquire

Note:

All information subject to change without notice

CAD DETAILS

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.

PDF File Format

DWG File Format

GALLERY

DOCUMENTS

Isoleren Insulated Metal Panels Product Brochure

Isoleren Fire Rated Spec Data Sheet

Isoleren Fire Rated Tech Data Sheet

Isoleren Color Chart

Isoleren Insulated Metal Panels Handling and Maintenance Guide

Isoleren Insulated Fire Rated Wall Panel Guide Specification - PDF Format

Isoleren Insulated Fire Rated Wall Panel Guide Specification - Word Doc

Isoleren Fire Rated Panel Weight Chart

Isoleren Fire Rated Fire Endurance Ratings

Isoleren Fire Rated Panel Span Characteristics

Isoleren Fire Rated Thermal Conductance

LEED v4

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
