Versa-Lok Panel

October 9, 2020

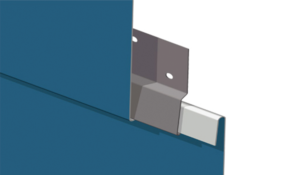

Versa-Lok™, a flat shingle style wall panel, creates classic rectangular shapes with its versatile mix-and-match sizes. Versa-Lok™ is available in many sizes and can be installed directionally right to left or left to right in a horizontal or vertical orientation. The panel utilizes concealed clips and fasteners to provide a metal shingle type application on a wall.

Product Information

  • Horizontal

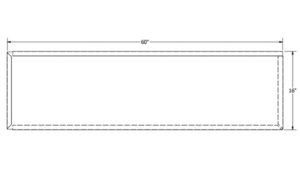

    • 12″x36″12″x60″, 16″x36″, 16″x60″
  • Vertical
    • 36″x12″, 36″x16″, 60″x12″, 60″x16″
  • Custom sizes available*
  • Must specify panel orientation and direction of panel installation
  • Smooth

Material Availability

  • .032, .040 aluminum
  • 16, 20 oz. copper*
  • 1.0 mm zinc*
  • .0197 classic & tin matte stainless steel*

Colors & Finishes

  • Choice of over 40 stock colors
  • Custom colors and finishes available*
  • Anodized
    • Clear Satin
    • Dark Bronze

Common Applications

  • Education
  • Residential
  • Parks
  • Religious buildings
  • Healthcare facilities
  • Commercial/retail

*Subject to minimum quantities and extended lead time Inquire for material and panel coverage availability
