Monarch Batten Seam

January 15, 2021

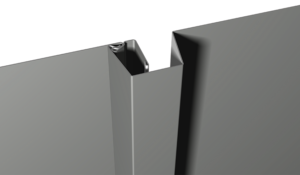

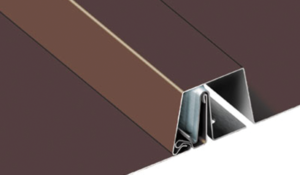

Monarch™ is a bold “batten” style panel with an integral batten and seam. The batten seam and lock are an integral part of the panel, and a vertical “leg” is formed as an extra water barrier. A clip is hooked over the leg; this allows for the expansion of the system. The panels interlock with each other. All clips and fasteners required to install the panel are concealed with the batten of the consecutive panel. Continuous panel lengths eliminate cross seams. Easy one-piece installation lowers on-site labor cost, and there are no extra caps or strips to install. Also, no special equipment is required to zip or seam the panels together.

Product Information:

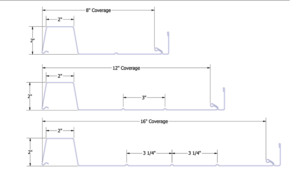

  • 8”, 12” or 16” panel coverage
  • Stiffening ribs are standard, specify without
  • 2” seam height
  • 4’-0” minimum panel length
  • .032, .040, .050* aluminum
  • 24, 22*, ga. metallic coated steel
  • 24 ga. 55% Al-Zn alloy coated steel with acrylic coating
  • 16 & 20 oz. copper*
  • Choice of over 40 stock colors
  • Clear Satin and Dark Bronze Anodized
  • Custom colors and finishes available
  • Smooth
  • Stucco Embossed

*Subject to minimum quantities and extended lead time. Inquire for material and panel coverage availability
