- .032, .040, .050 aluminum
- 24, 22* ga. metallic coated steel
- 24, 22* ga. 55% Al-Zn alloy coated steel with acrylic coating
- 20 oz. copper*
- 1.0 mm zinc*
- .0197 classic & tin matte stainless steel*
- Minimum Panel Length
- 6’0”
- Maximum Panel Length
- Transportation limitations and/or product and project design considerations
- Florida Building Code Approval
Product Options
- Concealed fastener panel
- Perforations available
- Smooth or embossed
- Choice of over 40 stock colors
- PVDF woodgrain & oxide series
- Clear satin and dark bronze anodized available
- A complete line of trims available in matching colors, gauge, and finish or as specified
- Elite trims available
- Mix & match with specific profiles
- Metafor
- Rigid Wall II series
- Multi-Purpose series
- MPS & MPV not compatible to mix and match due to shallower panel depth
Applications
- Vertical
- Horizontal
- Mansards
- Equipment screens
- Roofs – limited application
- Ridge to eave only
- Minimum slope of 4:12
- Soffit

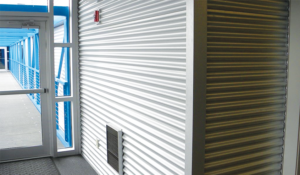

- Interior
- Open framing
- Solid substrate
