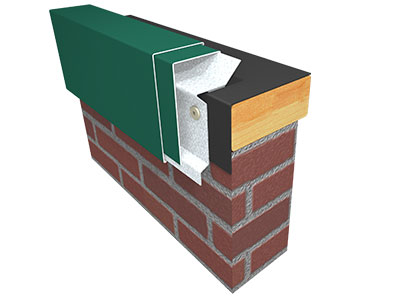

Rapid-Lok Fascia

Rapid-Lok is ATAS’ best fascia system designed to quickly install on all single-ply membrane roof systems without the need for strip-in plies or heat welding. It features a heavy 20 ga continuous retainer that is pre-punched with slotted fastener holes, and a snap-on cover that is available in a wide variety of materials, gauges and colors. Rapid-Lok is provided in 12’-0” lengths, with interior splice plates, and quick drive screws. Rapid-Lok has a 30-year 150 mph windstorm warranty, and has been tested per ES-1 as required by International Building Code for low-slope perimeter edge systems.

Job-Specific Fabrications:

In addition to our full line of stock standard items, ATAS International offers a wide range of custom fabrication capabilities to fit any project’s needs. Radiused sections and accessories including miters, T-miters, end caps, and end closures are available for all perimeter edge products. Options include fabricated and sealed or welded and PVDF painted to match. Available in over 40 PVDF stock colors, our products come equipped with industry expertise and technical support, including design and development assistance, product specification guidance, and installation support.

Florida Building Product Approval:
5 1/2″  face height – 24 ga. steel: FL 20821.17 | .040 aluminum: FL 20821.19
11 1/2″  face height – 24 ga. steel: FL 20821.18 | .040 aluminum: FL 20821.20

Product Info


Inside & Outside Miters
Z Miters
Left & Right End Closures
Left & Right End Terms
Peak Miters
Valley Miters
Concave & Convex Radius Fascia
Concave & Convex Vaulted Fascia
CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
