Greater than 10" - Front

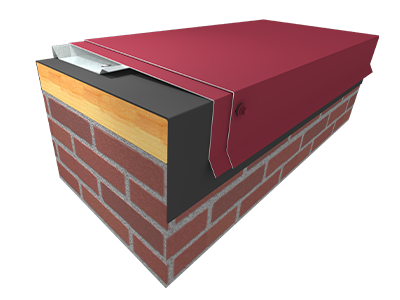

Greater than 10" - Back
Less than 10" - Front

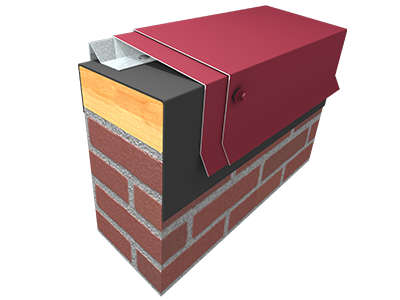

Less than 10" - Back
Continuous Cleat Coping
ATAS’ Continuous Cleat Coping is an economical system that has been tested per ES-1 as required by International Building Code for low-slope perimeter edge systems. The system includes a continuous 22 ga. front cleat that is pre-punched with slotted fastener holes, a cant to build in slope, and a roof flange for easy installation. The coping cap is offered in a wide variety of materials, gauges and colors in 12’-0” lengths. Pre-punched with slotted holes to allow for thermal movement, and interior splice plates, nails and screws provide for a complete coping system.
In addition to our full line of stock standard items, ATAS International offers a wide range of custom fabrication capabilities to fit any project’s needs. Radiused sections and accessories including miters, T-miters, end caps, and end closures are available for all perimeter edge products. Options include fabricated and sealed or welded and PVDF painted to match. Available in over 40 PVDF stock colors, our products come equipped with industry expertise and technical support, including design and development assistance, product specification guidance, and installation support.
Florida Building Code Product Approval:
5 1/2″ front face height, 4 1/2″ back face height, 10″ wide – 24 ga. steel: FL 20821.1 | .040 aluminum: FL 20821.2
5 1/2″ front face height, 4 1/2″ back face height, 24″ wide – 24 ga. steel: FL 20821.4 | .040 aluminum: FL 20821.3
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format
- Perimeter Edge Product Brochure
- Continuous Cleat Coping Spec Data Sheet
- ATAS Color Chart
- Continuous Cleat Coping Installation Guide
- Continuous Cleat Coping Order Specification Sheet
- Continuous Cleat Coping Accessories Order Sheet
- Perimeter Edge Guide Specification - Word Doc
- Lightning Protection Bracket Order Specification Sheet
- ATAS Manufacturer Qualification Statement
