Versa-Lok Reveal

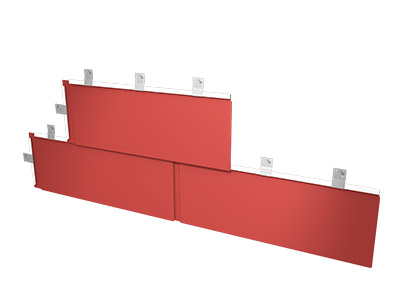

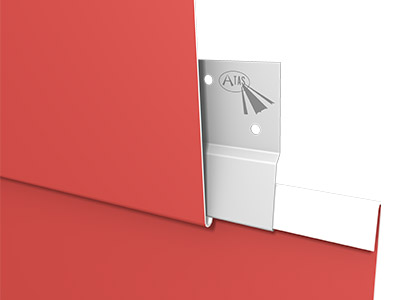

Versa-Lok™ Reveal is a modular wall panel series designed as a drained and back ventilated (D/BV) assembly or for attachment to a solid substrate. The panels are offered in various widths, depths, and lengths to create a unique appearance. It may be installed horizontally or vertically without the need for any sealants, gaskets, or splines to create the dry joint. Versa-Lok™ Reveal is a great light-gauge alternative to other heavier plate and Metal Composite Material (MCM) modular styles.

PRODUCT INFO

SKU:

VLR

Material:

.032, .040 aluminum

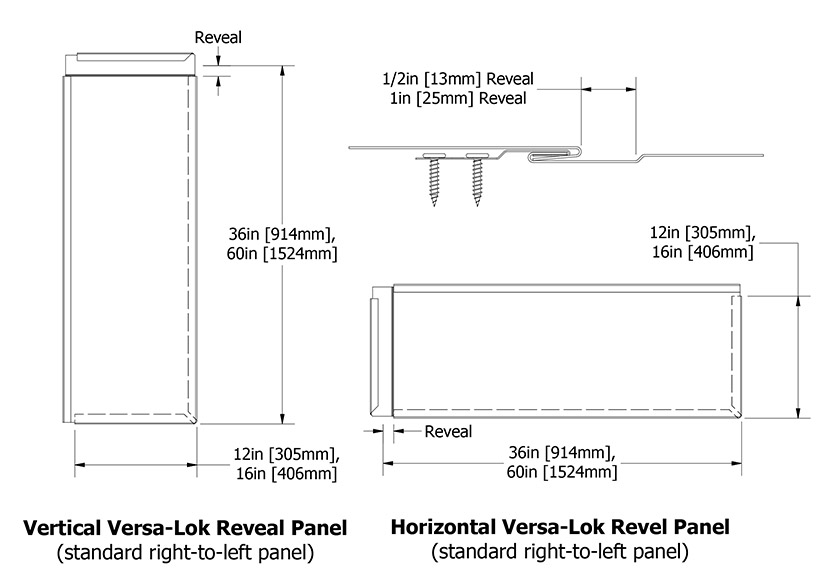

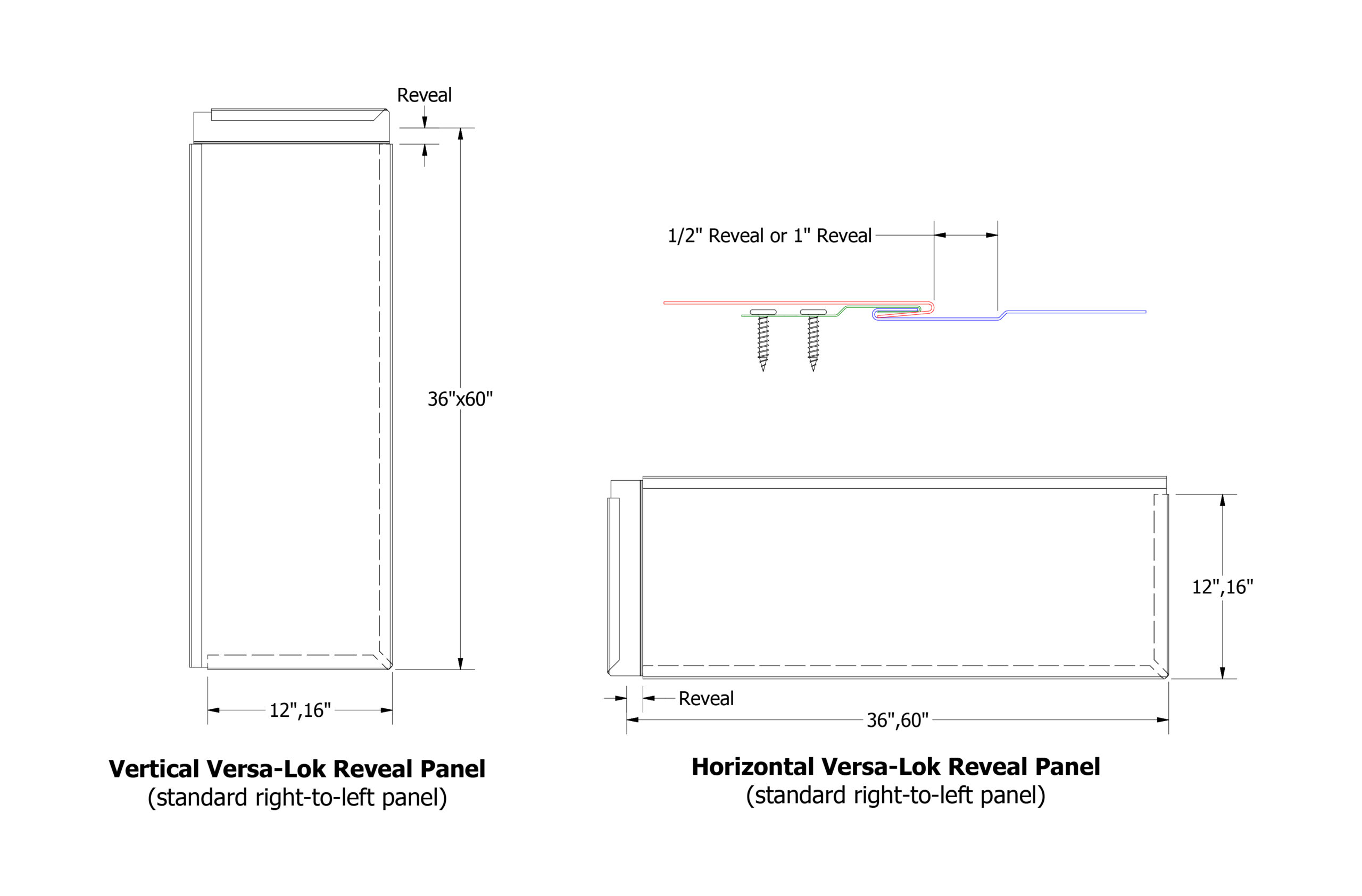

Panel Size

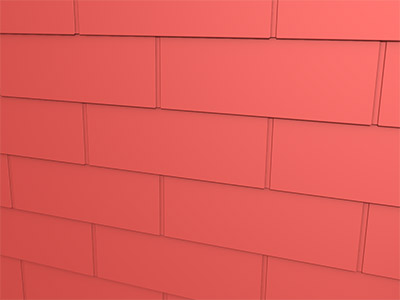

Horizontal: 12″x36″, 12″x60″, 16″x36″, 16″x60″

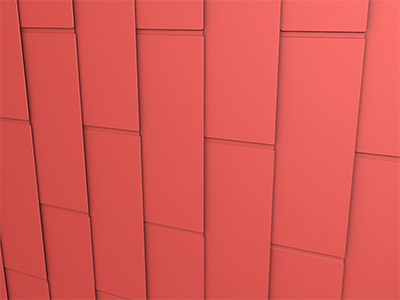

Vertical: 36″x12″, 36″x16″, 60″x16″, 60″x36″
Custom sizes available*
Must specify panel orientation and direction of panel installation

Reveal:

½”, 1″

Texture:

Smooth

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

*Subject to minimum quantities and extended lead time
Inquire for material and panel coverage availability

DOCUMENTS

ATAS Color Chart

Solar Reflectance & Thermal Emittance Chart

Finish Warranty

ATAS Aluminum Recycled Contents

ATAS Steel Recycled Contents

LEED v4

ATAS Manufacturer Qualification Statement

COLORS

Color Chart

To view the available colors, please visit the Color Chart. There you can view additional information and material availability. You can also request a color chip, where applicable.
