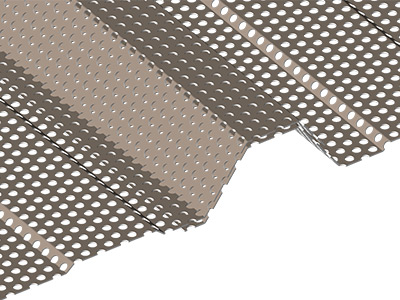

Perforated

Z Box

Closure Angle

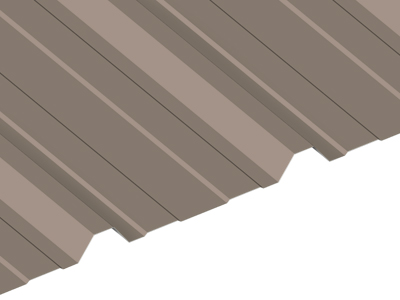

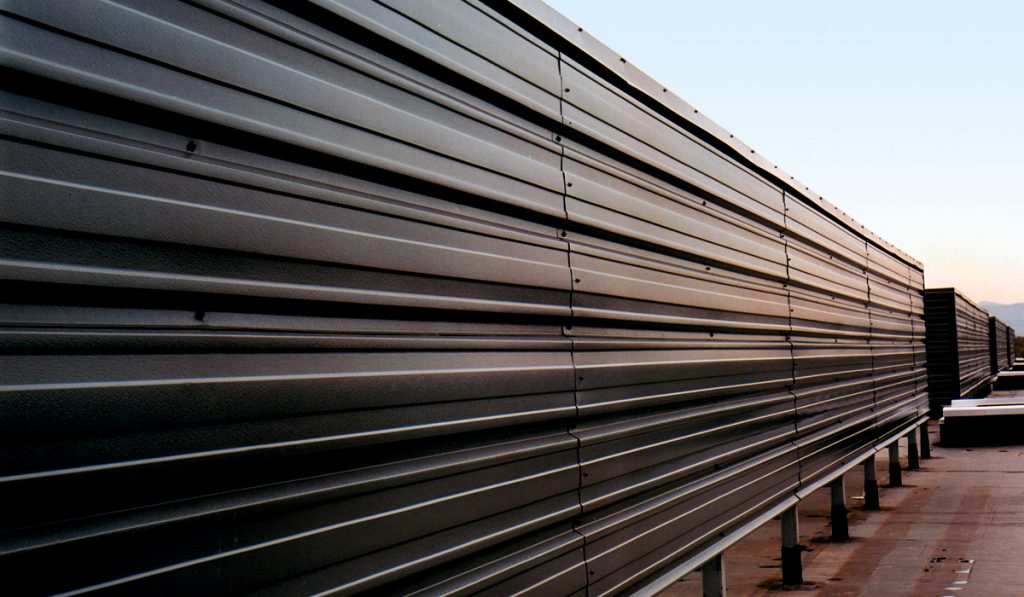

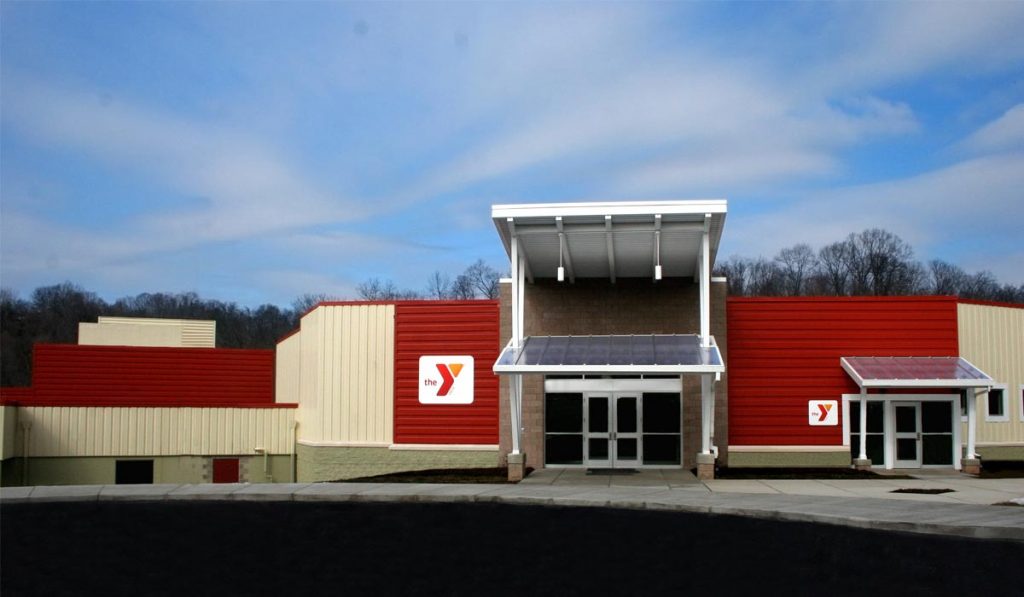

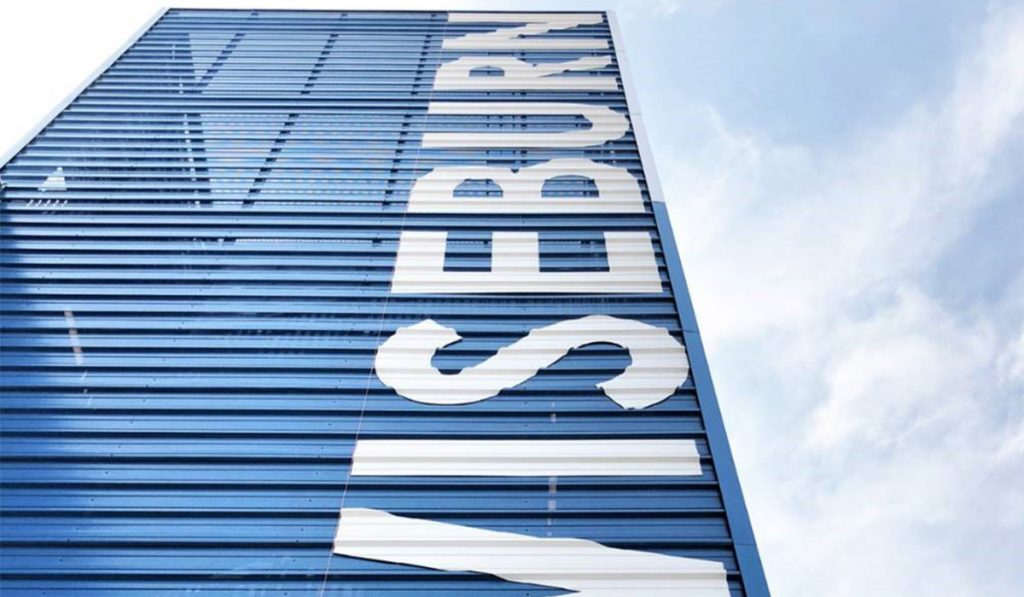

Belvedere Grand R
Belvedere™ Grand R panels are structural in nature and can be installed either on solid substrate or open framing. This panel can be installed vertically or horizontally with exposed fasteners.

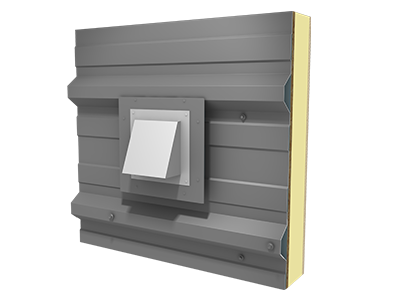

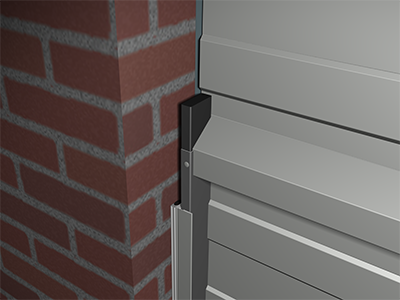

You can also enhance aesthetics of Belvedere™ Grand R by using factory fabricated Elite Series, including the Z Box and Closure Angle shown.

BWG390
.032, .040, .050 aluminum
24, 22*, 20*, 18* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn alloy coated steel with acrylic coating
39″
6’-0”
Transportation limitations and/or product and project design considerations
1½”
Smooth
Stucco Embossed
70% PVDF, Anodized
Choice of over 40 stock colors
Custom colors and finishes available*
A complete line of trims available in matching colors, gauge, and finish or as specified
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format - Horizontal Application - Solid Substrate
- Horizontal Belvedere Grand R Solid - All Details
- Horizontal Belvedere Grand R Solid - Base Detail
- Horizontal Belvedere Grand R Solid - Endwall Detail
- Horizontal Belvedere Grand R Solid - Inside Corner Detail
- Horizontal Belvedere Grand R Solid - Jamb Detail
- Horizontal Belvedere Grand R Solid - Jamb Alternate Detail
- Horizontal Belvedere Grand R Solid - Existing Jamb Detail
- Horizontal Belvedere Grand R Solid - Jamb Flange Detail
- Horizontal Belvedere Grand R Solid - Outside Corner Detail
- Horizontal Belvedere Grand R Solid - Top Of Wall Detail
- Horizontal Belvedere Grand R Solid - Window Head Detail
- Horizontal Belvedere Grand R Solid - Existing Window Head Detail
- Horizontal Belvedere Grand R Solid - Window Head Flange Detail
- Horizontal Belvedere Grand R Solid - Window Sill Detail
- Horizontal Belvedere Grand R Solid - Existing Window Sill Detail
- Horizontal Belvedere Grand R Solid - Window Sill Flange Detail

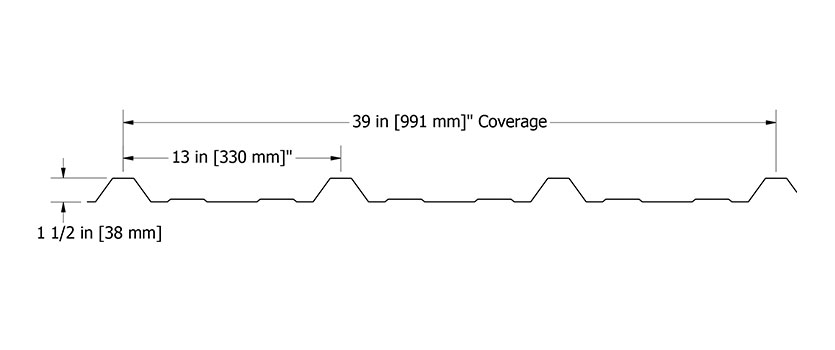

- Belvedere Grand R - Panel Profile Detail
PDF File Format - Vertical Application - Solid Substrate
- Vertical Belvedere Grand R Solid - All Details
- Vertical Belvedere Grand R Solid - Base Detail
- Vertical Belvedere Grand R Solid - Endwall Detail
- Vertical Belvedere Grand R Solid - Inside Corner Detail
- Vertical Belvedere Grand R Solid - Jamb Detail
- Vertical Belvedere Grand R Solid - Existing Jamb Detail
- Vertical Belvedere Grand R Solid - Jamb Flange Detail
- Vertical Belvedere Grand R Solid - Outside Corner Detail
- Vertical Belvedere Grand R Solid - Top Of Wall Detail
- Vertical Belvedere Grand R Solid - Window Head Detail
- Vertical Belvedere Grand R Solid - Existing Window Head Detail
- Vertical Belvedere Grand R Solid - Window Head Flange Detail
- Vertical Belvedere Grand R Solid - Window Sill Detail
- Vertical Belvedere Grand R Solid - Existing Window Sill Detail
- Vertical Belvedere Grand R Solid - Window Sill Flange Detail
- Belvedere Grand R - Panel Profile Detail
PDF File Format - Horizontal Application - Open Framing
- Horizontal Belvedere Grand R Open - All Details
- Horizontal Belvedere Grand R Open - Base Detail
- Horizontal Belvedere Grand R Open - Endwall Detail
- Horizontal Belvedere Grand R Open - Inside Corner Detail
- Horizontal Belvedere Grand R Open - Jamb Detail
- Horizontal Belvedere Grand R Open - Outside Corner Detail
- Horizontal Belvedere Grand R Open - Top Of Wall
- Horizontal Belvedere Grand R Open - Window Head Detail
- Horizontal Belvedere Grand R Open - Window Sill
- Belvedere Grand R - Panel Profile Detail
PDF File Format - Vertical Application - Open Framing
- Vertical Belvedere Grand R Open - All Details
- Vertical Belvedere Grand R Open - Base Detail
- Vertical Belvedere Grand R Open - Endwall Detail
- Vertical Belvedere Grand R Open - Inside Corner Detail
- Vertical Belvedere Grand R Open - Jamb Detail
- Vertical Belvedere Grand R Open - Outside Corner Detail
- Vertical Belvedere Grand R Open - Top Of Wall
- Vertical Belvedere Grand R Open - Window Head Detail
- Vertical Belvedere Grand R Open - Window Sill
- Belvedere Grand R - Panel Profile Detail
DWG File Format - Horizontal Application - Solid Substrate
- Horizontal Belvedere Grand R Solid - Base Detail
- Horizontal Belvedere Grand R Solid - Inside Corner Detail
- Horizontal Belvedere Grand R Solid - Jamb Detail
- Horizontal Belvedere Grand R Solid - Jamb Alternate Detail
- Horizontal Belvedere Grand R Solid - Existing Jamb Detail
- Horizontal Belvedere Grand R Solid - Jamb Flange Detail
- Horizontal Belvedere Grand R Solid - Outside Corner Detail
- Horizontal Belvedere Grand R Solid - Top Of Wall Detail
- Horizontal Belvedere Grand R Solid - Window Head Detail
- Horizontal Belvedere Grand R Solid - Existing Window Head Detail
- Horizontal Belvedere Grand R Solid - Window Head Flange Detail
- Horizontal Belvedere Grand R Solid - Window Sill Detail
- Horizontal Belvedere Grand R Solid - Existing Window Sill Detail
- Horizontal Belvedere Grand R Solid - Window Sill Flange Detail
- Belvedere Grand R - Panel Profile Detail
DWG File Format - Vertical Application - Solid Substrate
- Vertical Belvedere Grand R Solid - Base Detail
- Vertical Belvedere Grand R Solid - Endwall Detail
- Vertical Belvedere Grand R Solid - Inside Corner Detail
- Vertical Belvedere Grand R Solid - Jamb Detail
- Vertical Belvedere Grand R Solid - Existing Jamb Detail
- Vertical Belvedere Grand R Solid - Jamb Flange Detail
- Vertical Belvedere Grand R Solid - Outside Corner Detail
- Vertical Belvedere Grand R Solid - Top Of Wall Detail
- Vertical Belvedere Grand R Solid - Window Head Detail
- Vertical Belvedere Grand R Solid - Existing Window Head Detail
- Vertical Belvedere Grand R Solid - Window Head Flange Detail
- Vertical Belvedere Grand R Solid - Window Sill Detail
- Vertical Belvedere Grand R Solid - Existing Window Sill Detail
- Vertical Belvedere Grand R Solid - Window Sill Flange Detail
- Belvedere Grand R - Panel Profile Detail
DWG File Format - Horizontal Application - Open Framing
- Horizontal Belvedere Grand R Open - Base Detail
- Horizontal Belvedere Grand R Open - Endwall Detail
- Horizontal Belvedere Grand R Open - Inside Corner Detail
- Horizontal Belvedere Grand R Open - Jamb Detail
- Horizontal Belvedere Grand R Open - Outside Corner Detail
- Horizontal Belvedere Grand R Open - Top Of Wall Detail
- Horizontal Belvedere Grand R Open - Window Head Detail
- Horizontal Belvedere Grand R Open - Window Sill Detail
- Belvedere Grand R - Panel Profile Detail
DWG File Format - Vertical Application - Open Framing
- Vertical Belvedere Grand R Open - Base Detail
- Vertical Belvedere Grand R Open - Endwall Detail
- Vertical Belvedere Grand R Open - Inside Corner Detail
- Vertical Belvedere Grand R Open - Jamb Detail
- Vertical Belvedere Grand R Open - Outside Corner Detail
- Vertical Belvedere Grand R Open - Top Of Wall Detail
- Vertical Belvedere Grand R Open - Window Head Detail
- Vertical Belvedere Grand R Open - Window Sill Detail
