Crimp Curved Corrugated Panel

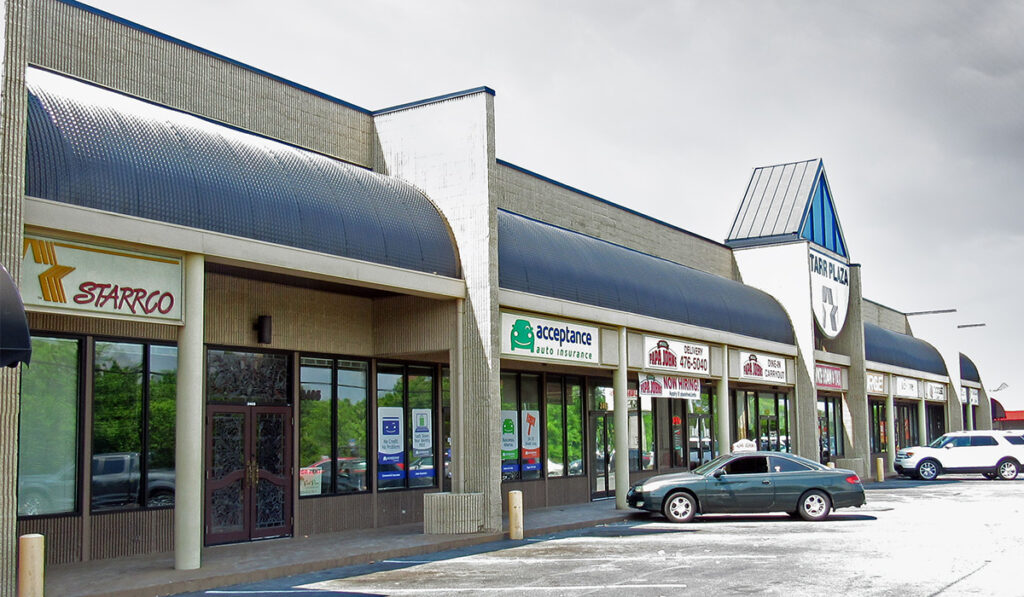

The corrugated metal panel is a traditional, economical wall or roof panel. It is installed horizontally or vertically with exposed fasteners. The panel is available in smooth or stucco embossed texture, depending on material. Ideal applications are walls, mansards and equipment screens. Curved trims available.

Line Drawing
Product Info
CAD Details
Gallery
Documents

Line Drawing

Product Info

SKU:

BWC374

Material:

.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn alloy coated steel with acrylic coating

Panel Coverage:

37¼”

Minimum Panel Length:

6’-0”

Maximum Panel Length:

Transportation limitations and/or product and project design considerations

Panel Depth:

⅞”

Curving Parameters:

32″-36″ W x ⅞” D x 2⅔” Pitch
Convex and/or Concave
2 ft O.S. rad. min. 24 ga.
4 ft O.S. rad. min. 22 ga.
6 ft O.S. rad. min. 20 ga.

Texture:

Smooth
Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 35 stock colors
Custom colors in PVDF and anodized finishes available*

Anodized:

Clear Satin
Dark Bronze

Accessories:

A complete line of curved trims available in matching colors, gauge, and finish or as specified

View the list of Crimp Curved Accessories.

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design. Curved trims available.
