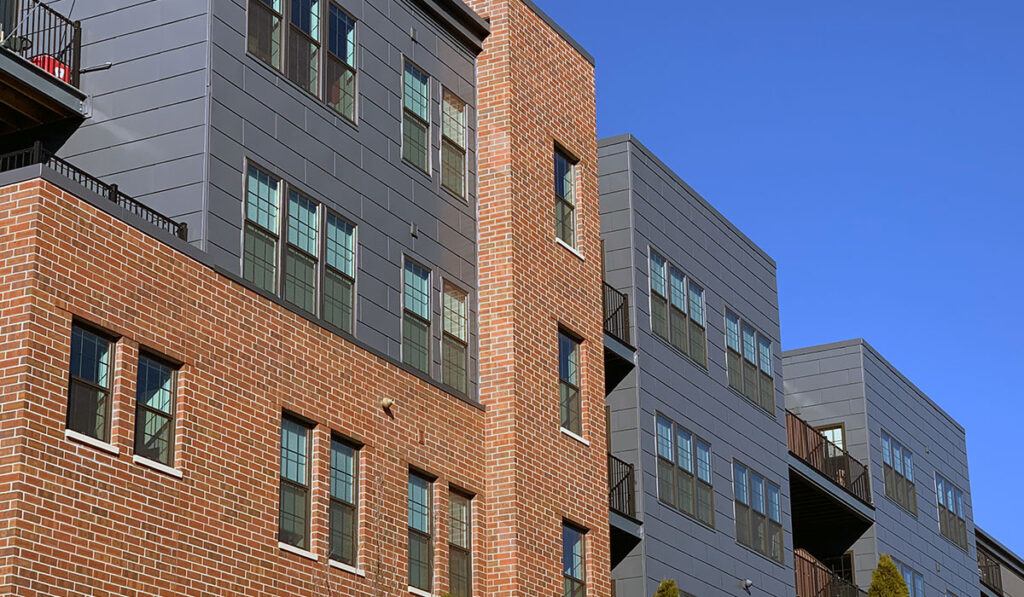

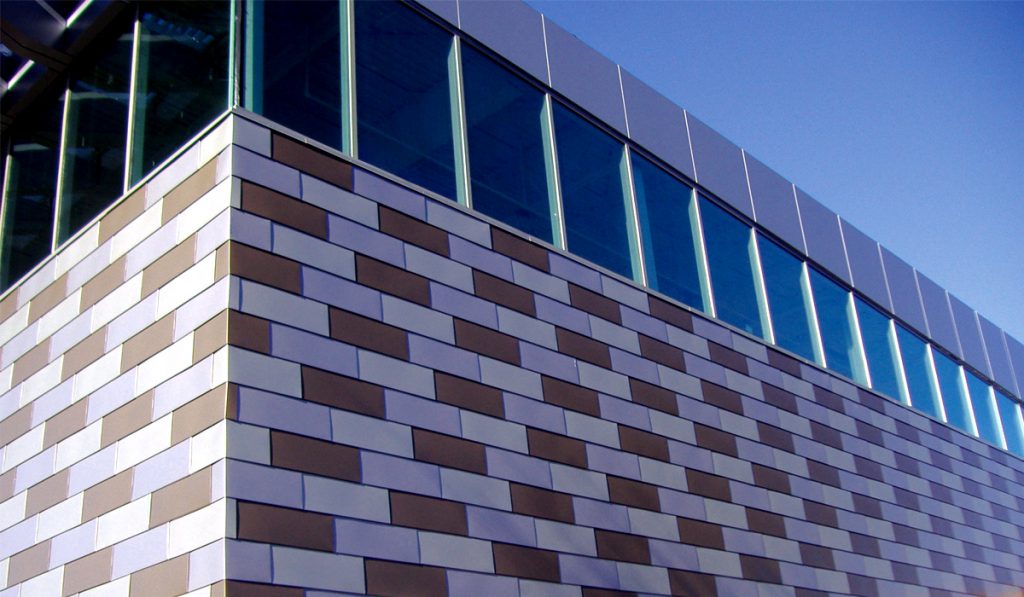

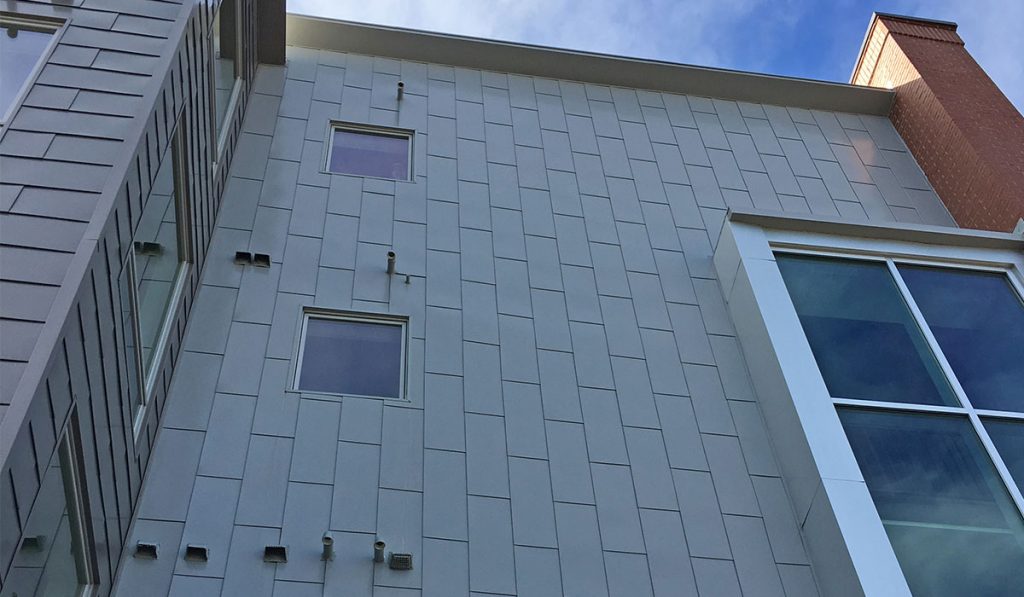

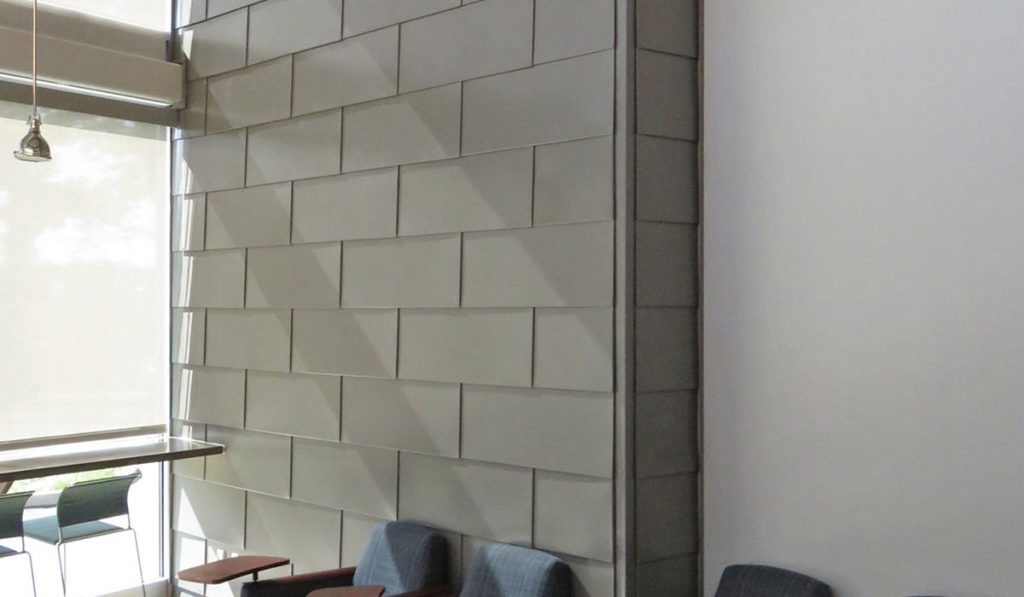

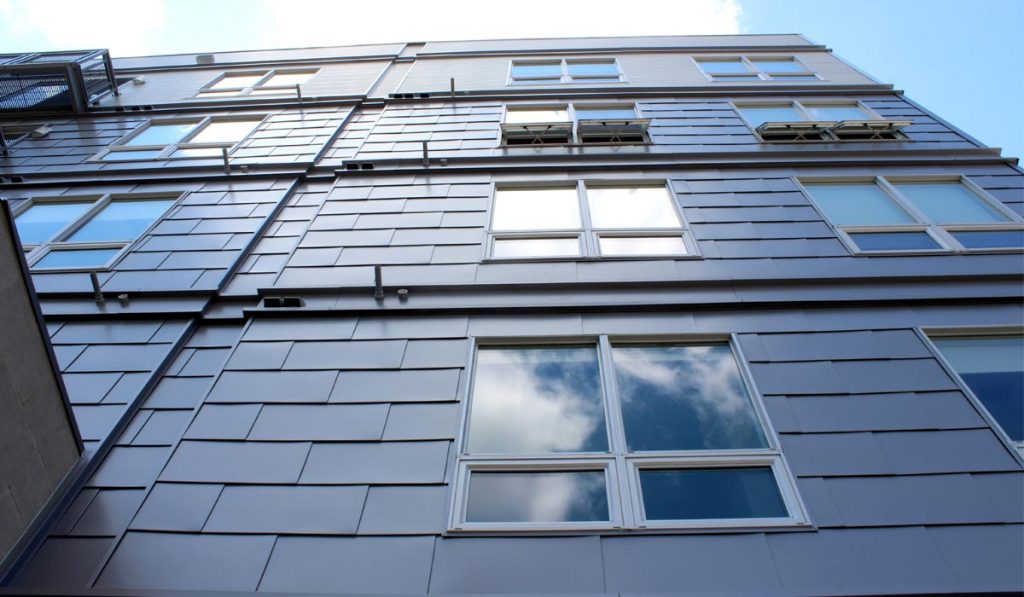

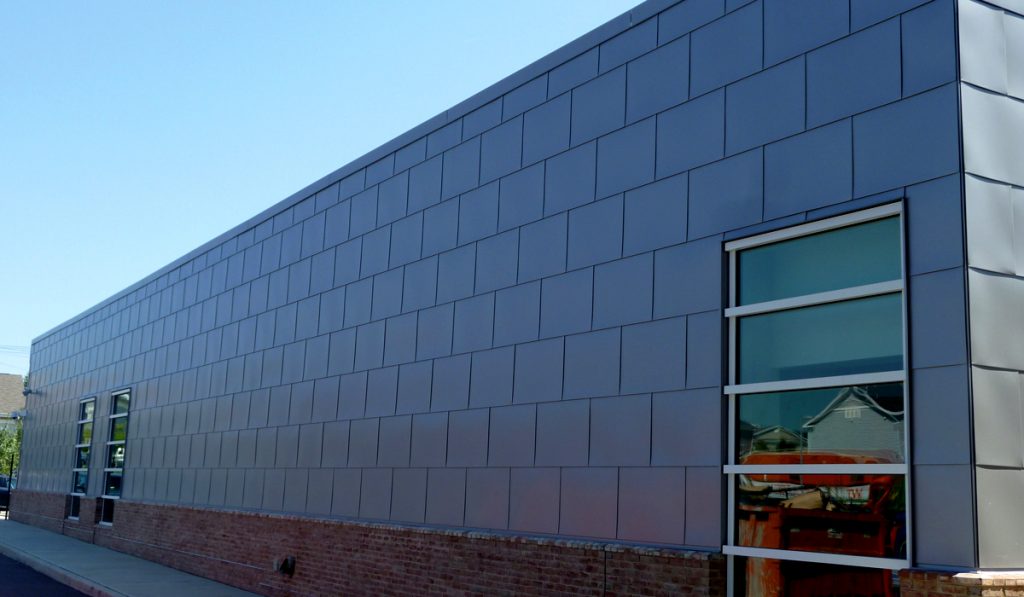

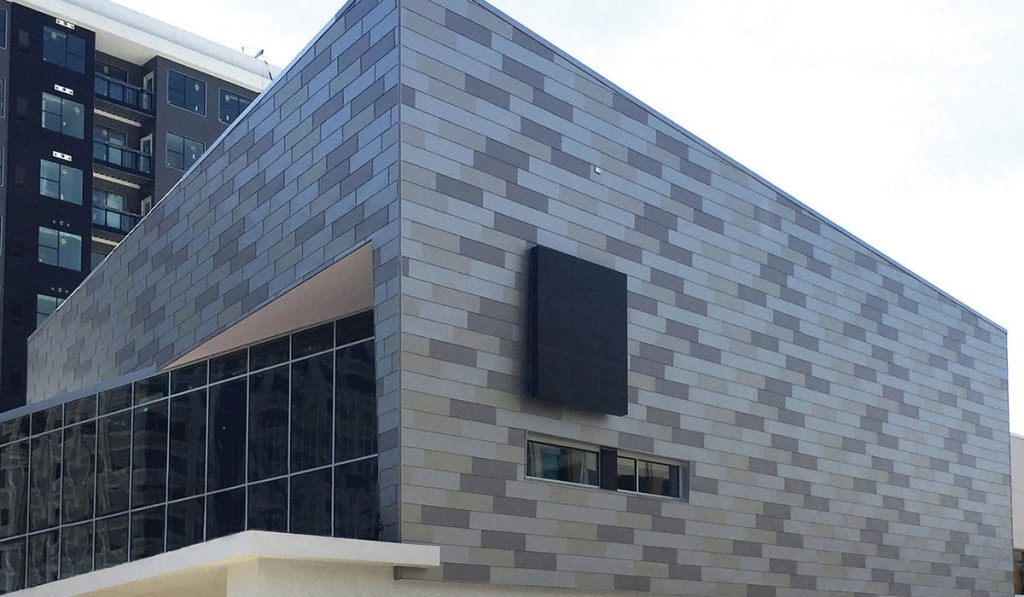

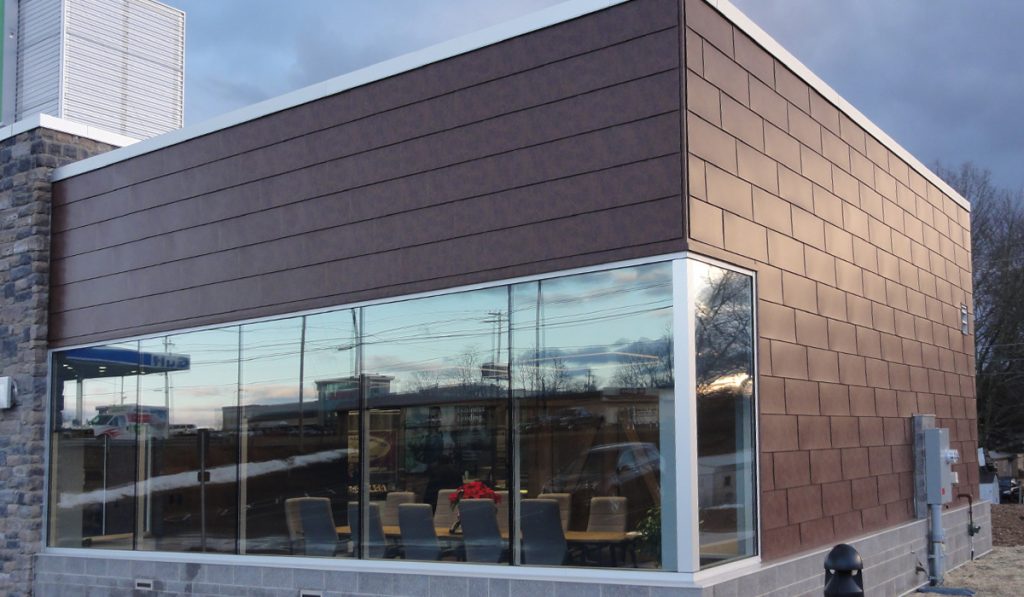

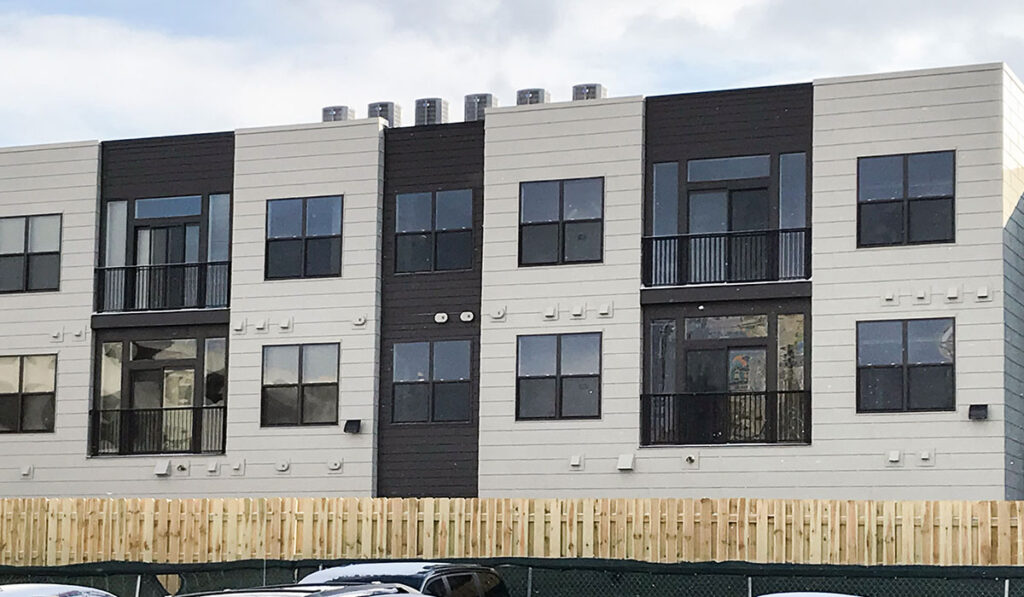

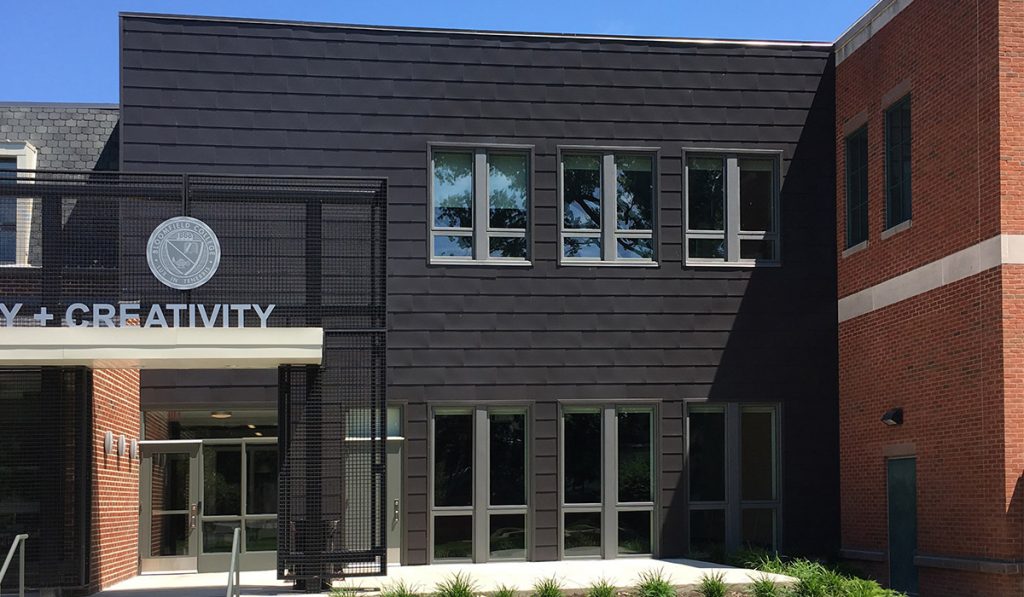

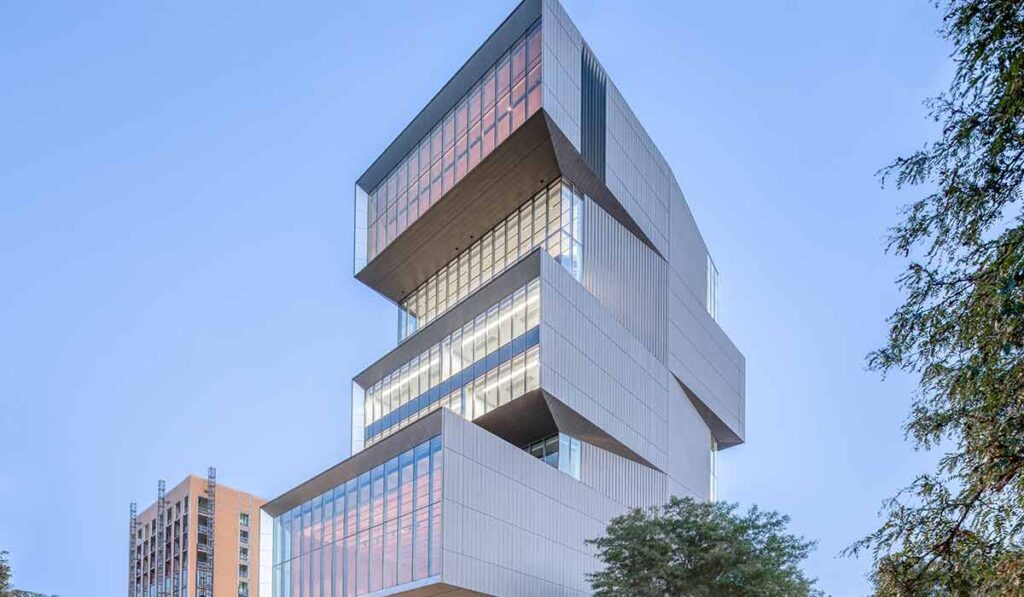

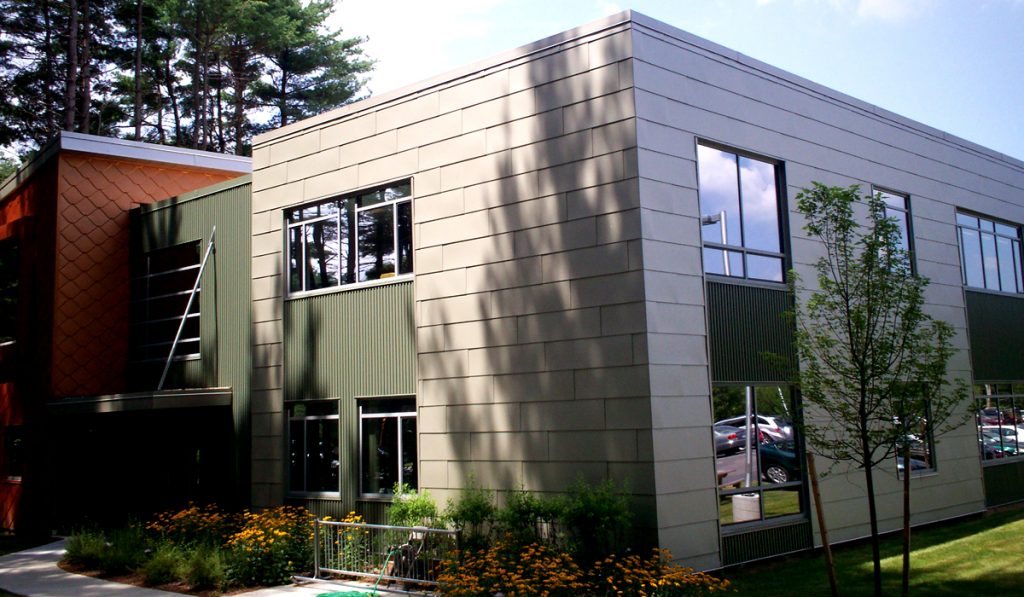

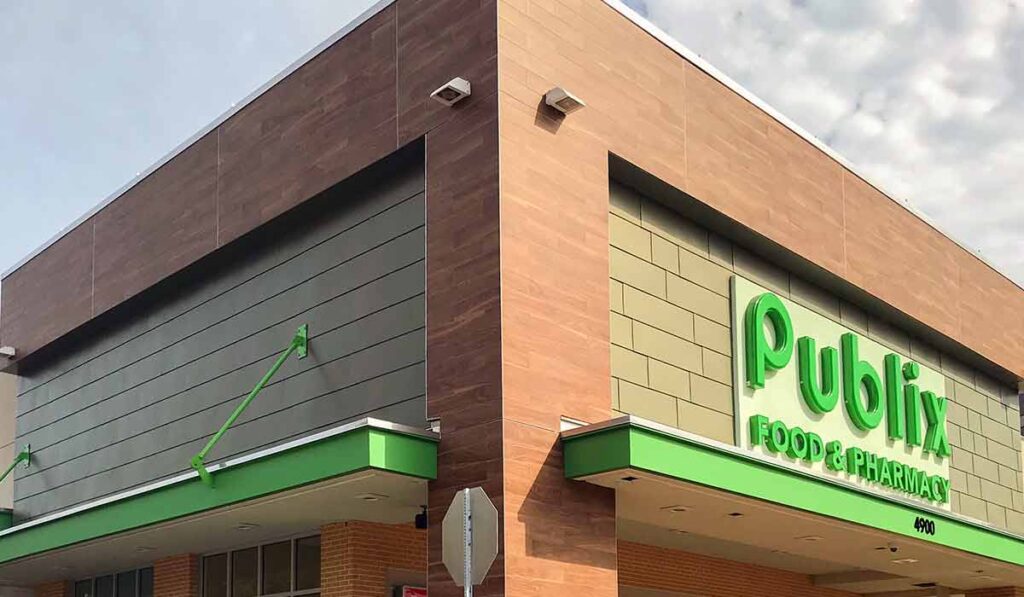

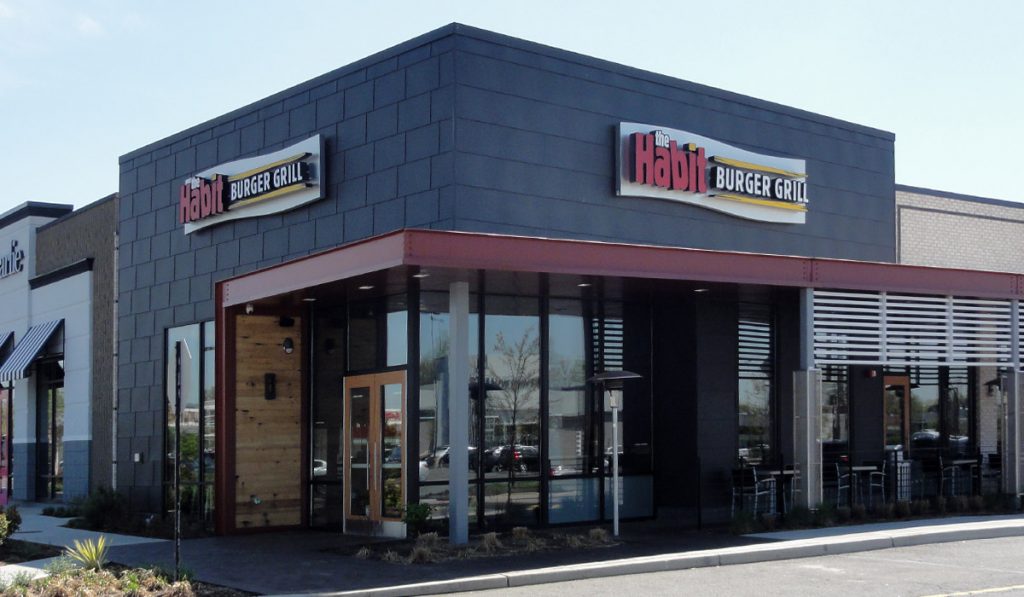

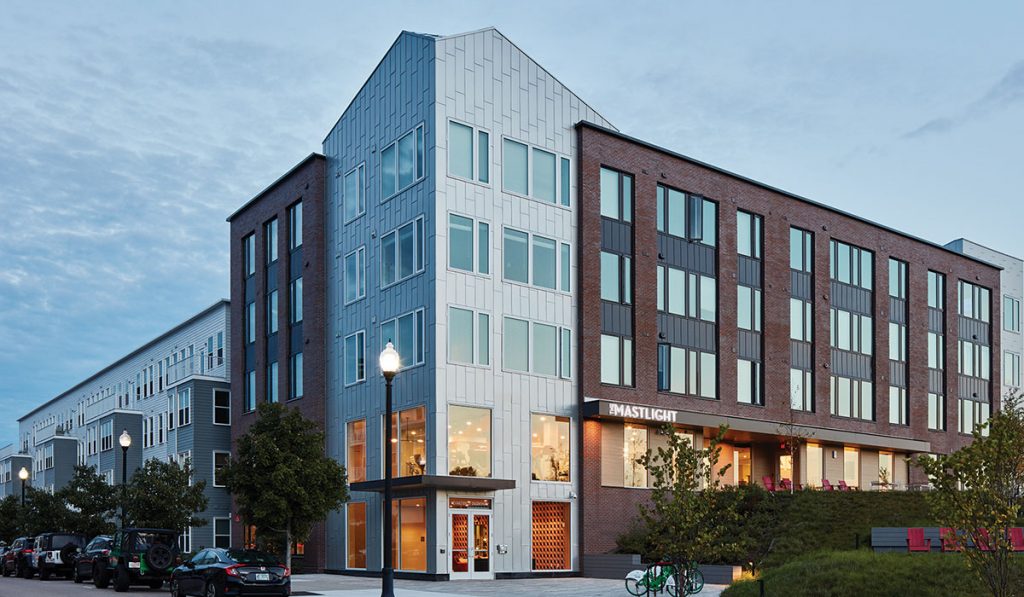

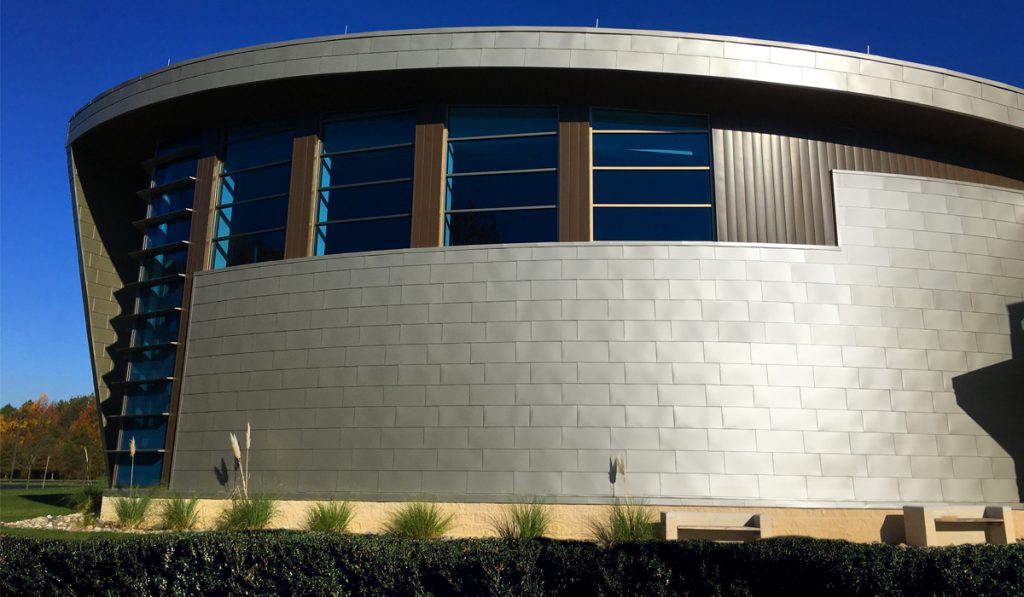

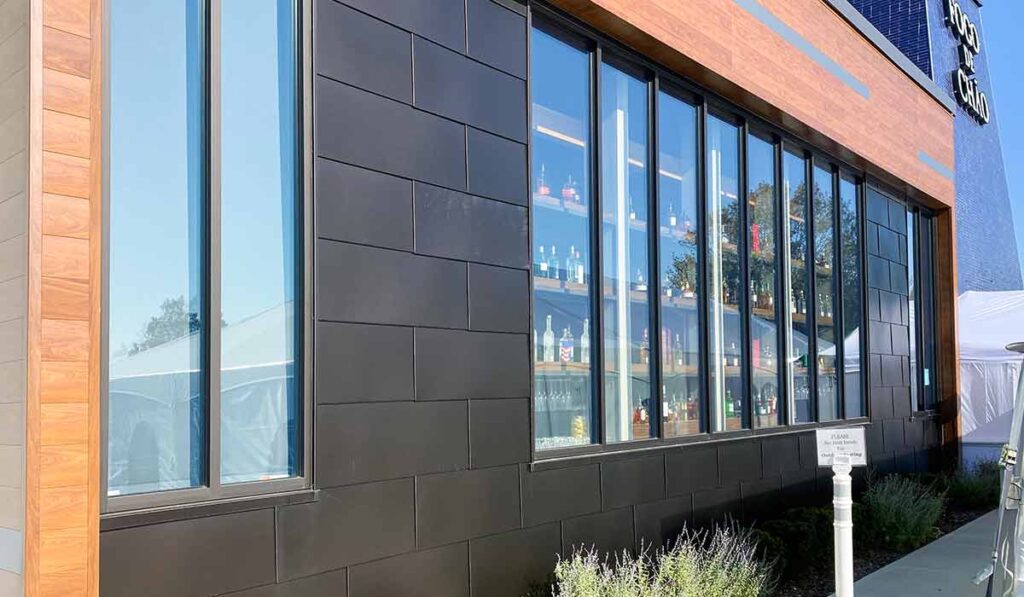

Versa-Lok™, a flat shingle style wall panel, creates classic rectangular shapes with its versatile mix-and-match sizes. Versa-Lok™ is available in many sizes and can be installed directionally right to left or left to right in a horizontal or vertical orientation. The panel utilizes concealed clips and fasteners to provide a metal shingle type application on a wall.

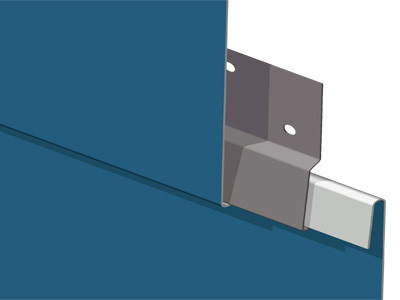

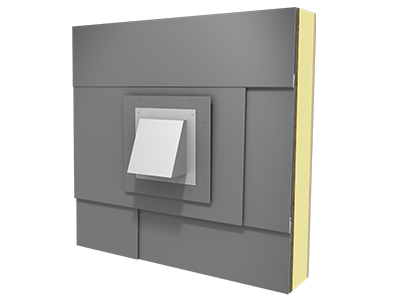

You can also enhance aesthetics of Versa-Lok™ by using factory fabricated Elite Series accessories, including the Z Box shown.

Horizontal: VSL123, VSL126, VSL163, VSL166
Vertical: VSL312, VSL316, VSL612, VSL616
.032, .040 aluminum
16, 20 oz. copper*^
1.0 mm zinc*^
.0197 classic & tin matte stainless steel*^

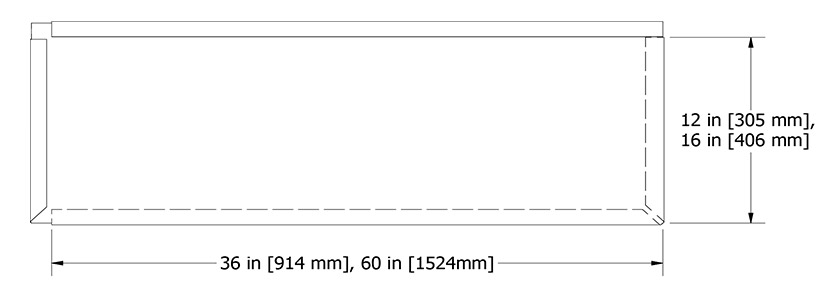

Horizontal: 12″x36″, 12″x60″, 16″x36″, 16″x60″
Vertical: 36″x12″, 36″x16″, 60″x12″, 60″x16″
Custom sizes available*
Must specify panel orientation and direction of panel installation
Smooth
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
Clear Satin
Dark Bronze
A complete line of trims available in matching colors, gauge, and finish or as specified
FL 35064.1 (Aluminum)
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
