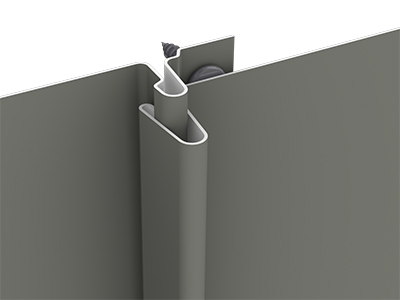

Interlock Detail

Interlock

Shingle
Standing Seam Shingle

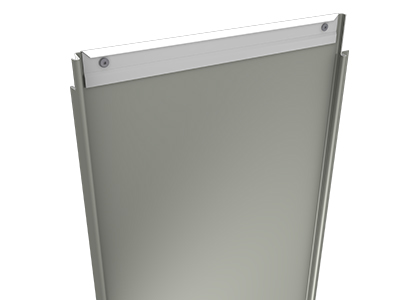

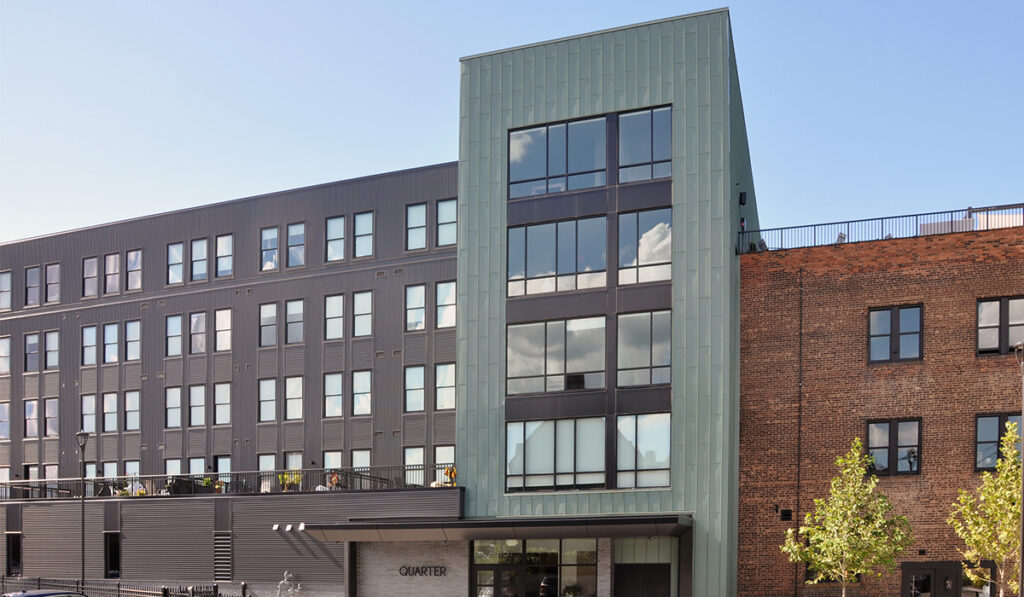

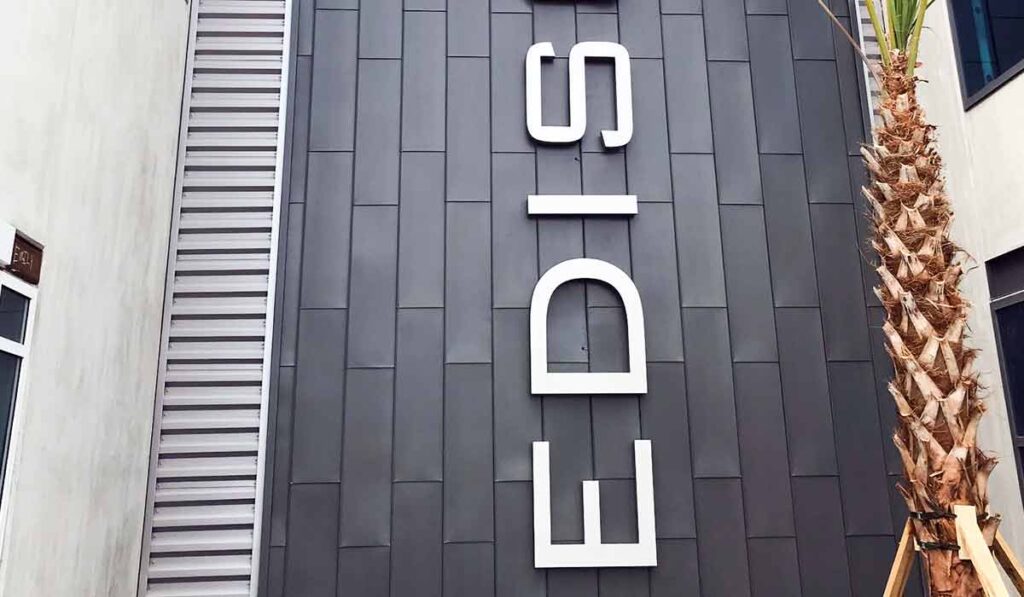

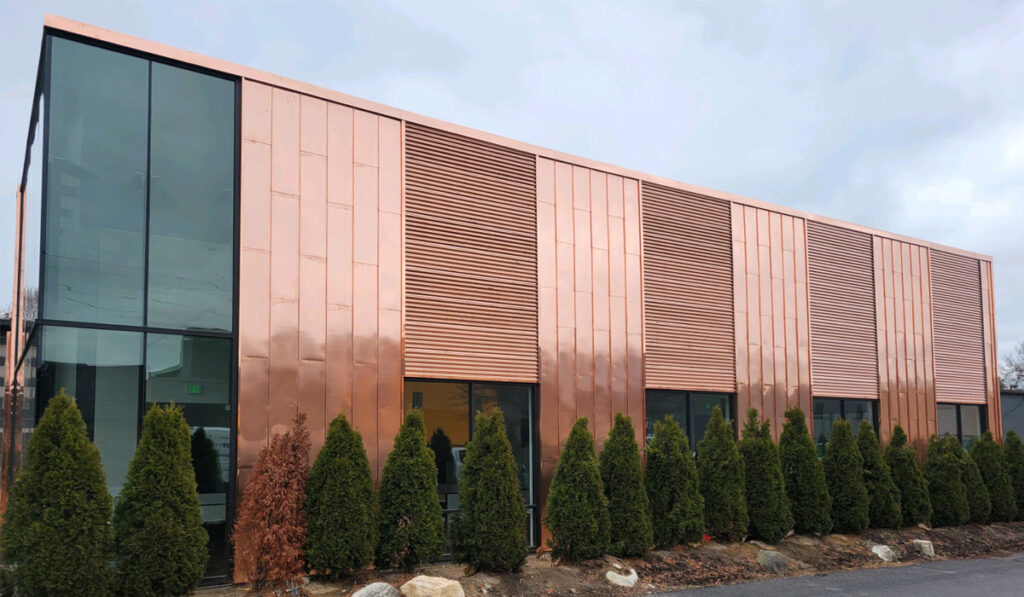

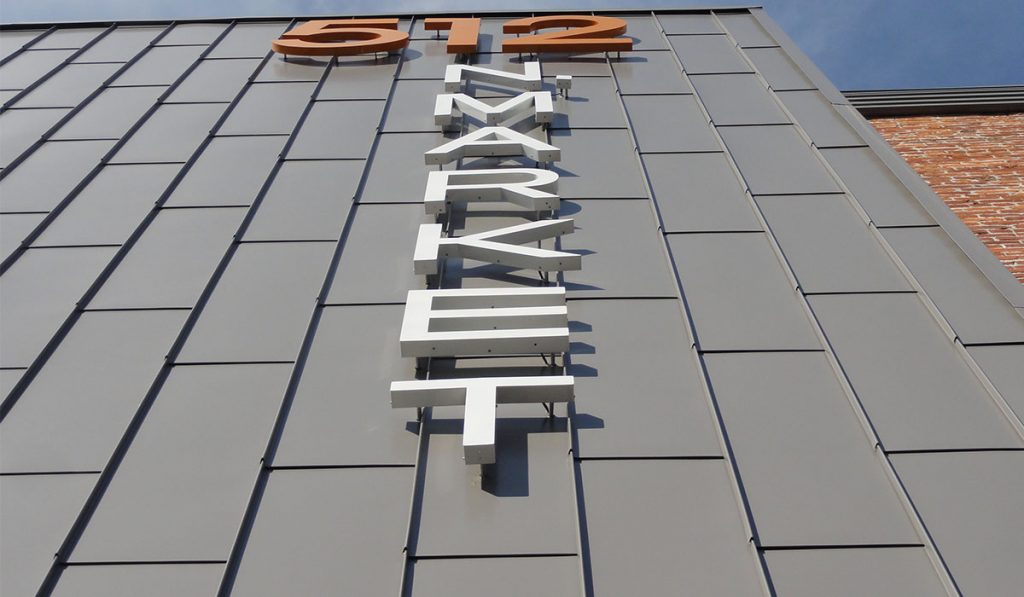

Standing Seam Shingles are elegant in their style and feature a four-way interlock to ensure weathertightness. These panels are installed with concealed fasteners over a solid substrate. Transverse seams are staggered to provide clean lines running up the wall. Traditionally a roof panel, use ATAS’ Standing Seam Shingles on your next wall application for a unique vertical shingle look.

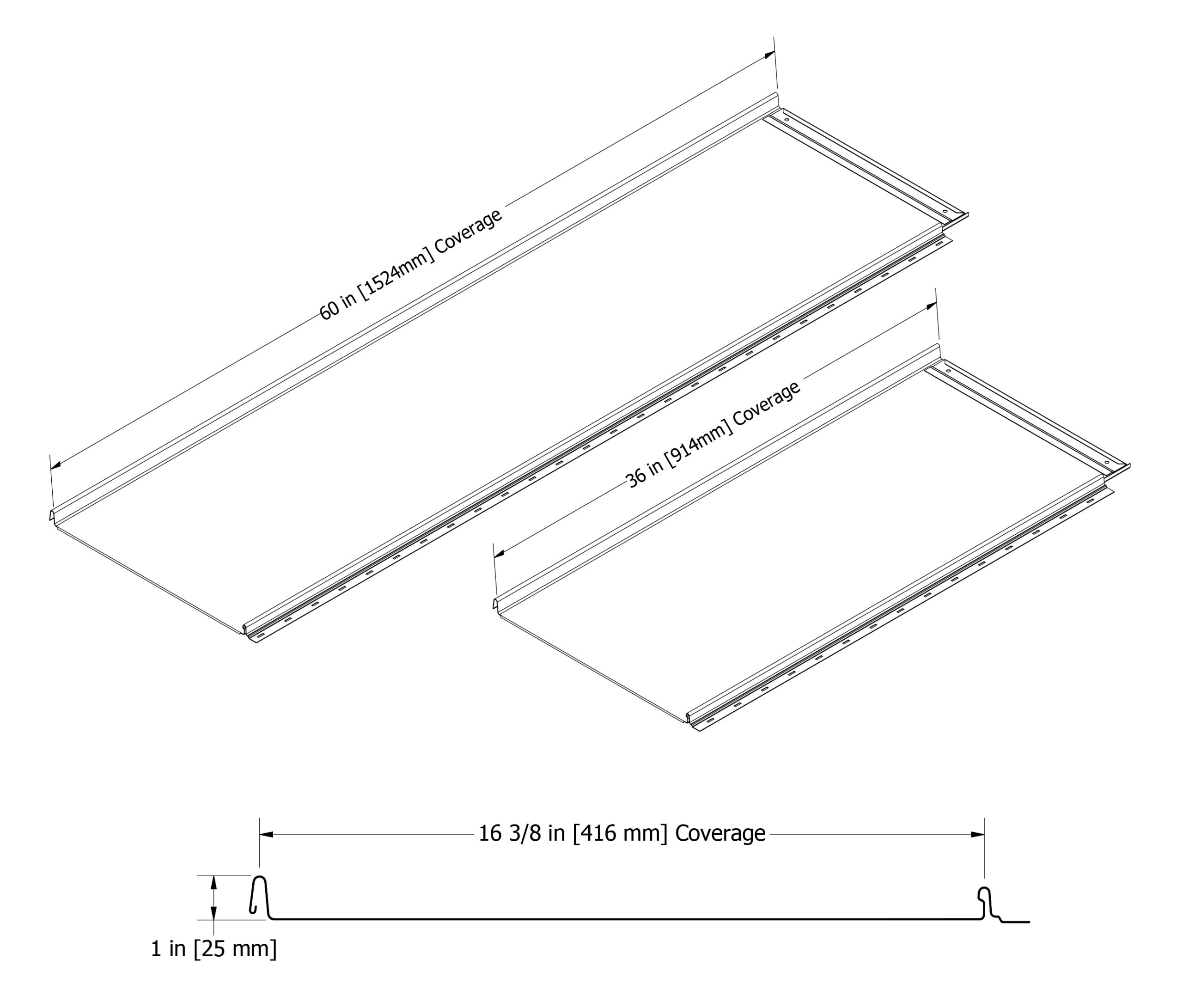

HSS164 (36”)
HSS165 (60”)
.032 aluminum
16 oz. copper*
16” x 36”
16″ x 60”
1″
Smooth
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
A complete line of trims available in matching colors, gauge, and finish or as specified
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format
- Standing Seam Shingle - All Details
- Standing Seam Shingle - Base Detail
- Standing Seam Shingle - Endwall Detail
- Standing Seam Shingle - Inside Corner Detail
- Standing Seam Shingle - Outside Corner Detail
- Standing Seam Shingle - Top of Wall Detail
- Standing Seam Shingle - Window Head Detail
- Standing Seam Shingle - Jamb Detail
- Standing Seam Shingle - Window Sill Detail
